ASUS GPU Tweak II Dual GeForce RTX 3060 V2 OC

Knowing GPU Tweak II

ASUS GPU Tweak II utility allows you to monitor and tweak the settings of your ASUS graphics card for optimal performance. It has two user interfaces, Simple Mode and Professional Mode, that allow you to quickly monitor your preset and customized profiles, boost the GPU settings for your game-changing enjoyment, or do some advanced tweaking on the GPU settings for optimal performance. ASUS GPU Tweak II includes these ASUS-exclusive preset power-saving and gaming profiles:

System requirements

AMD 7000 Series GPU or higher
NVIDIA 600 Series GPU or higher
32-/64-bit Microsoft® Windows® 10 / 8 / 8.1 / 7

Installing GPU Tweak II

Ensure that you have installed the ASUS graphics card and its driver. Refer to the ASUS graphics card user manual for details on installing its driver.
Locate the ASUS GPU TweakII driver folder and double-click the setup.exe file to start the installation.
Follow the onscreen instructions to finish the installation.

Launching GPU Tweak II

Double-click the GPU Tweak icon on the desktop.
Click Start > All Programs > ASUS > GPU Tweak II to launch the program.

Simple Mode
Simple Mode provides you with a quick way to monitor your GPU settings in real-time, and tweak some system settings via Gaming Booster for your game-changing enjoyment.

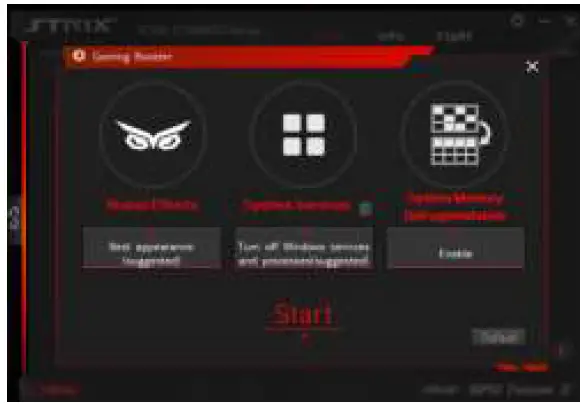

Gaming Booster
Get that game-changing performance edge with Gaming Booster, which helps optimize your system for seamless and faster gameplay in your computer games.
Gaming Booster offers you these three (3) functions:

Visual Effects: This lets you turn off the Windows® visual effects to intensify the processor performance.
System Services: This Lets you automatically or manually turn off Windows® services or processes.
System Services setting: This lets you manually choose the services or processes that you want to stop.
System Memory defragmentation: This lets you rearrange and clean your system memory without closing any processes.

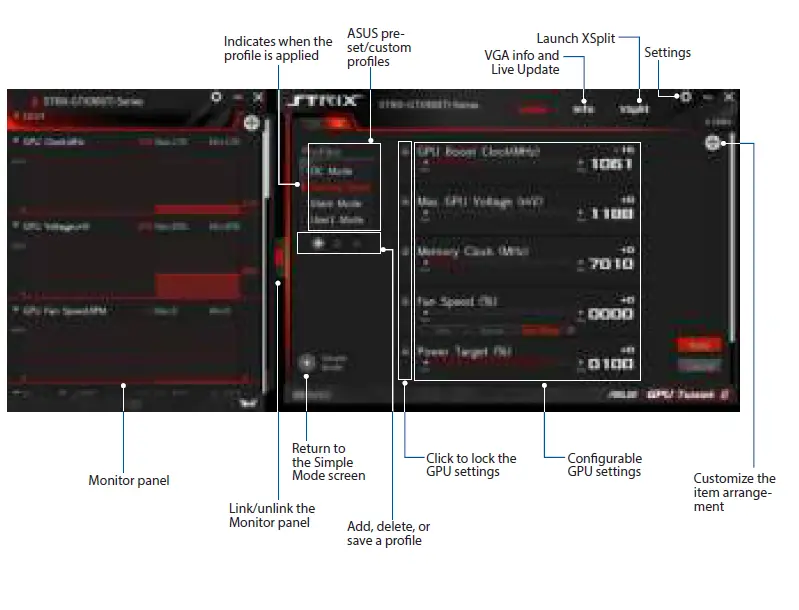

Professional Mode
Configure the GPU settings like a pro, and get the optimal performance from your ASUS Graphics card.

Configuring a profile

Select the profile that you want to configure.
When done, click

Adding a profile

Click then assign the profile name.
Set your preferred values.
When done, click to save the profile.

Applying a profile

Select the profile, then click to apply the profile

Deleting a profile

Select the profile, then click to delete the profile.

Getting the VGA info and Live Update

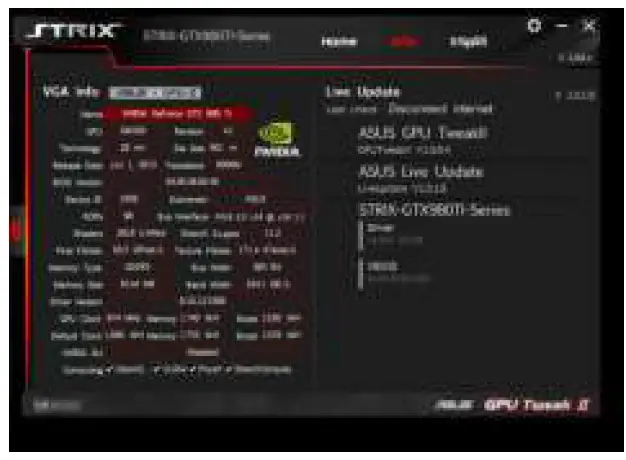

The Info screen provides you with information and live updates about your ASUS VGA card.
NOTE
Ensure that your computer is connected to the Internet to get the Live Update.

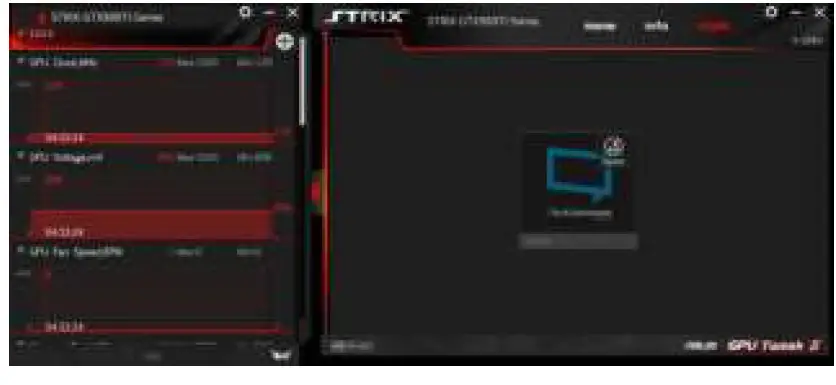

Launching XSplit
Install and launch XSplit Gamecaster from GPU Tweak II.

Using the Settings screen

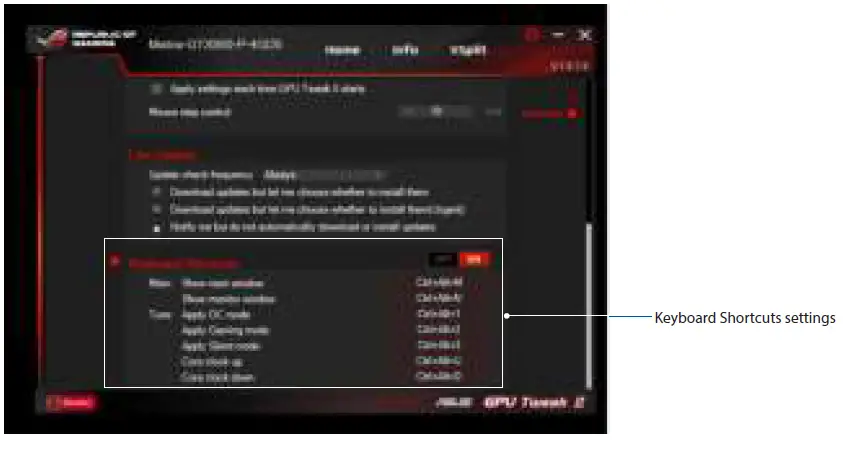

The Settings screen allows you to configure the GPU Tweak II settings such as Main, Tuning Settings, Live Update, and Keyboard Shortcuts.

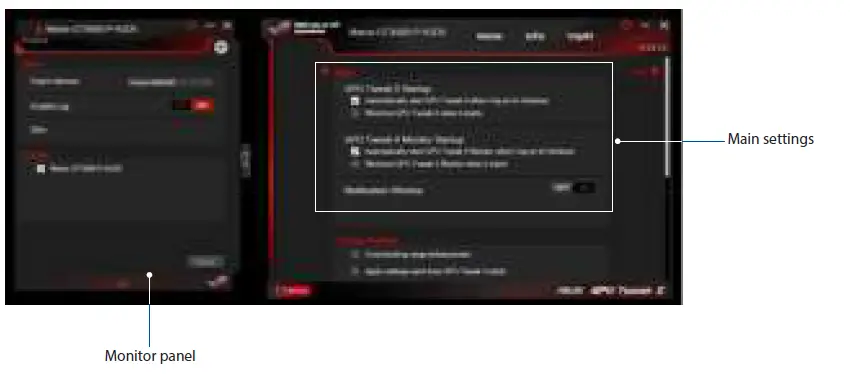

Main
From the Main settings, you can select any of these options on launching GPU Tweak II:

Automatically launch GPU Tweak II or its Monitor panel on Windows® startup.
Minimize GPU Tweak II or its Monitor panel once launched.
Turn the notification window on/off.

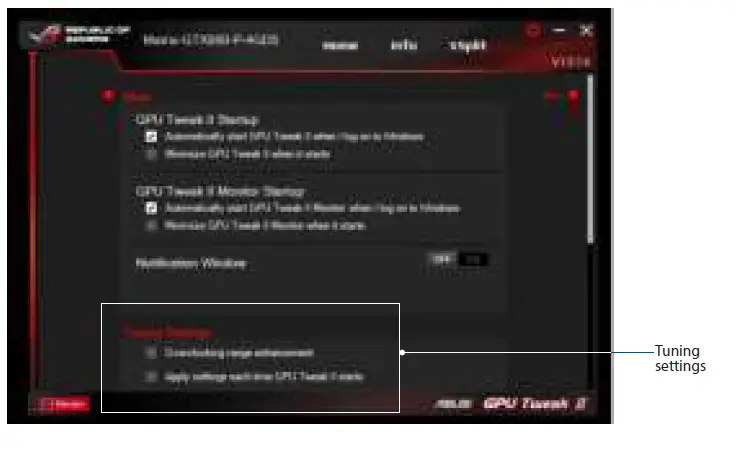

Tuning Settings

From the Tuning Settings, you can select any of these options on applying the GPU Tweak II settings:

Enhance the overclocking range.
Apply the settings on GPU Tweak startup.

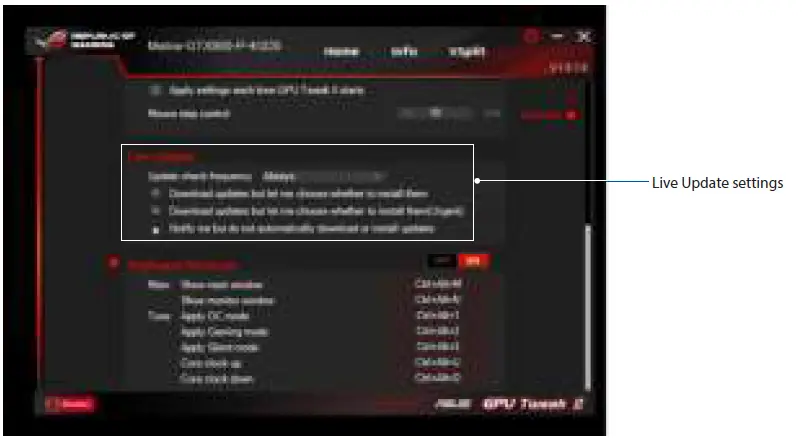

Live Update
Receive notifications on the latest VBIOS and driver updates from Live Update. Configure and select the following Live Update options:

Set the Update check frequency as to when you want to receive the Live Update.
Select any of the Live Update options:
Download updates but let me choose whether to install them: Select this option to automatically download updates, and decide whether to manually install them.
Download important updates but let me choose whether to install them: Select this option to automatically download critical updates, and decide whether to manually install them.
Notify me but do not automatically download or install updates: Select this option to receive notifications only, and decide whether to manually download and install the updates.
