PENELOPE TOUCH LAMP
USER GUIDE
Introduction
Thank you for purchasing this Penelope touch lamp.
Please read the instructions carefully before use to ensure the safe and satisfactory operation of this product.
Warnings
Please read these instructions carefully before commencing any work.
For your safety, always switch off the supply before changing lightbulbs, cleaning, or removing shade. Always take care when handling lightbulbs to avoid injury in case of breakage.
If the flexible external cable becomes damaged, it should only be replaced by the manufacturer or suitably qualified person.
This product is Class II (double insulated) and must not be earthed.
This product is Non-Dimmable.
| Parts list | Qty | |
| Light fitting |  | 1 |
| Shade (C) |  | 1 |
| Silicone seal (D) |  | 1 |
Recommended bulb
Recommended bulb (not included)
1 x 40W (Max.) E14/ SES Golf ball, or
1 x 28W E14/ SES Eco Halogen Golf ball, or
1 x 7W E14/ SES LED Energy Efficient Golf ball
When changing a bulb, always switch off at the mains and allow the bulb to cool before handling. Dispose of used bulbs carefully. Do not exceed the rated power stated or use a different shape bulb from that indicated on the fitting.
Product assembly

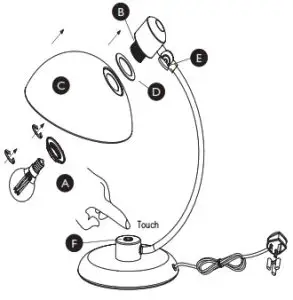

1. Refer to assembly drawings on the page opposite.
Carefully unpack the carton, making sure all the parts are present before assembly.2. To attach the shade remove the shade ring (A) from the threaded body (B).
Place the silicone seal (D) in the center of the indent on the shade (C), and place the shade over the threaded body.
Holding the shade in place with one hand, screw the shade ring (A) back in place over the threaded body (B) with gentle pressure, ensuring that the silicone seal is not distorted.
Adjust the shade if necessary and tighten the shade ring more firmly to secure the grip.
3. Fit a recommended bulb. Your light is now ready to use.
The light can be switched on/off by touching the central touchpoint (F).
The direction of the light can be adjusted with knuckle (E).
Metal shade may get hot during use, so you should only adjust the light after it has been switched off for 10 minutes.
Caring for your product
We recommend cleaning with a soft dry cloth. Do not use abrasive materials as these will damage the finish.
Aftercare and Troubleshooting
If you experience any unresolvable technical issues with the product, contact your nearest John Lewis & Partners shop or John Lewis & Partner Technical Support on 03301 230106.
Specification
Max. power: 40W
Voltage: 220–240V, 50Hz
IP rating: 20
Weight: 1.51kg
5-year guarantee
At John Lewis & Partners we test every light to high-quality standards so we are able to offer you a 5-year guarantee.
Recycling
This symbol
indicates that this product should not be treated as normal household waste and it should be recycled. John Lewis & Partners does not operate instore take back, but as members of the Distributor Take Back scheme have funded the development and upgrade of recycling facilities across the UK. Please take it to your nearest collection facility or for further details contact your local council or visit www.recycle-more.
co.uk.
John Lewis Partnership
171 Victoria Street
London SW1E 5NN
johnlewis.com
Made in China
Please retain these instructions for future reference.
23/11/2020
