HBB-2-59 Back Bar Refrigerator Two Section with Lockable Solid
Doors Instructions
Parts Manual
Back Bar Equipment
Models HBB-2-59, HBB-3-69, HBB-3-80, HBB-4-95,
HBB-2G-LD-59, HBB-3G-LD-69, HBB-3G-LD-80, HBB-4G-LD-95
HBB-2-59 Back Bar Refrigerator Two Section with Lockable Solid Doors

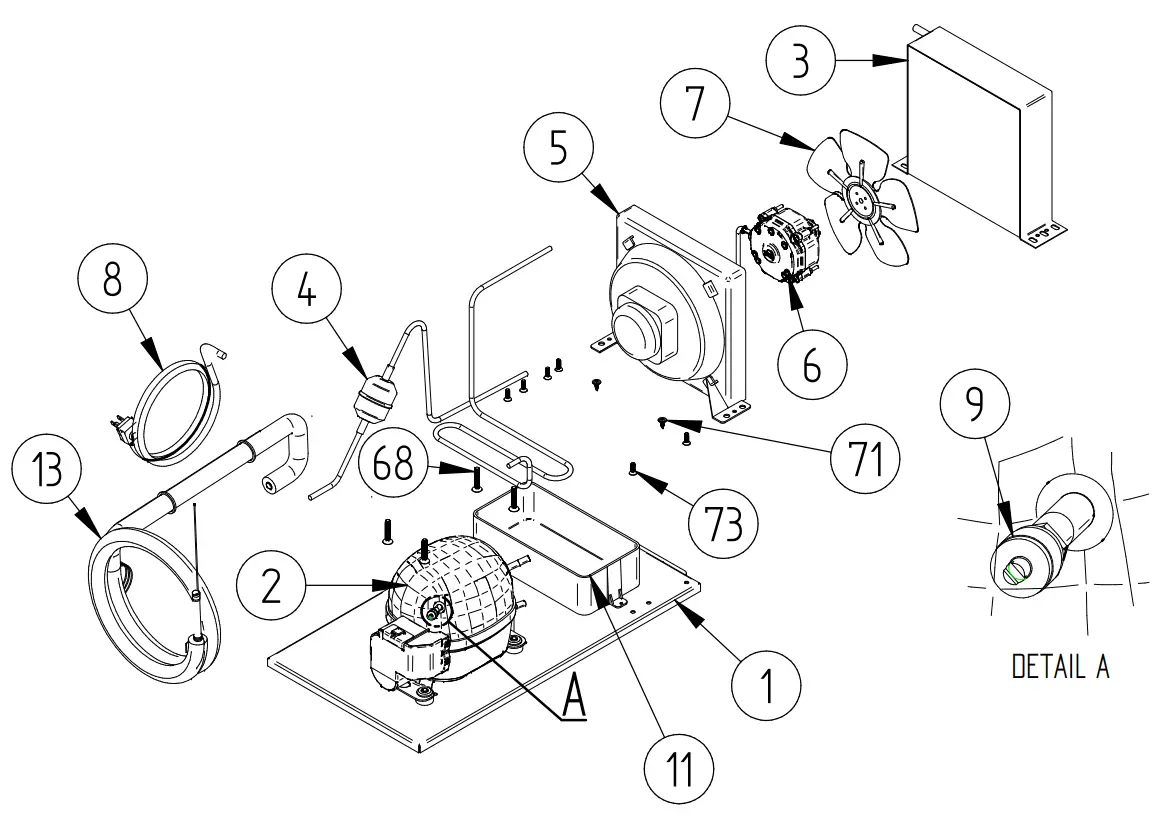

 |  |
 |  |
 |  |
| # ITEM | PART NUMBER | DESCRIPTION | HBB-2-59 | HBB-2G-LD-59 | HBB-3-69 | HBB-3G-LD-69 | HBB-3-80 | HBB-4G-LD-80 | HBB-4-95 | HBB-3G-LD-95 |
| 1 | 12195862 | DECK | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 12190495 | Compresor FFI10HBX 115V | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | 12190812 | CONDENSER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 4 | 12188004 | DRIER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 5 | 12189983 | FAN SUPPORT | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 6 | 12190510 | FAN | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 7 | 12190018 | FAN BLADE 8-28 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 8 | 12190608 | POWER CORD | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 9 | 12037369 | ACCESS VALVE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 10 | 12201656 | POWER CORD (SPIDER HUB) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 11 | 12189560 | AUTOMATIC EVAPORATION TRAY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Evaporation Units | ||||||||||

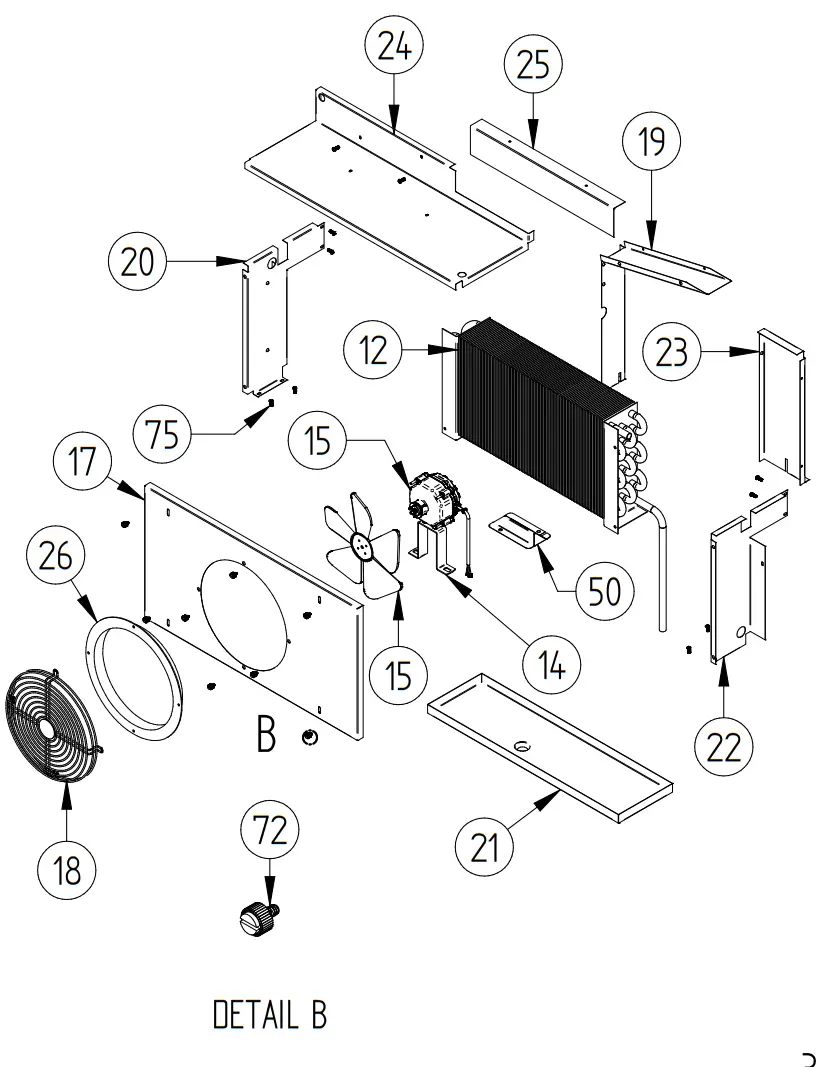

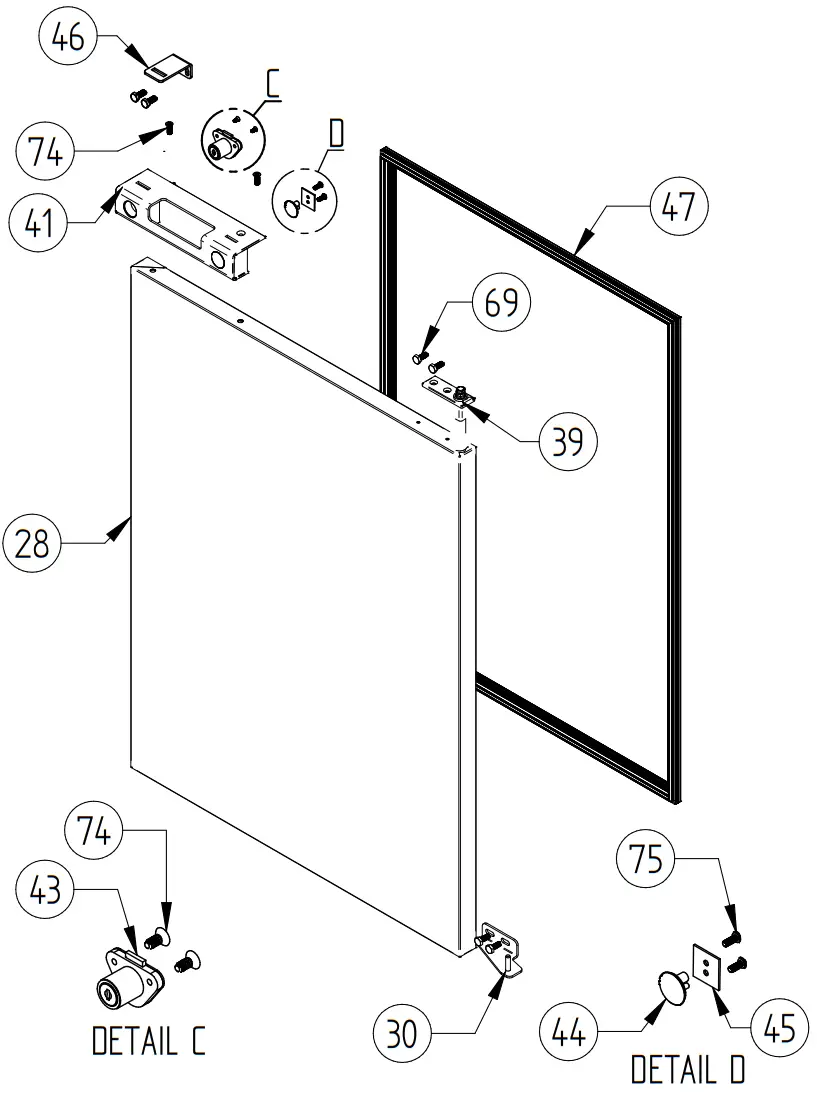

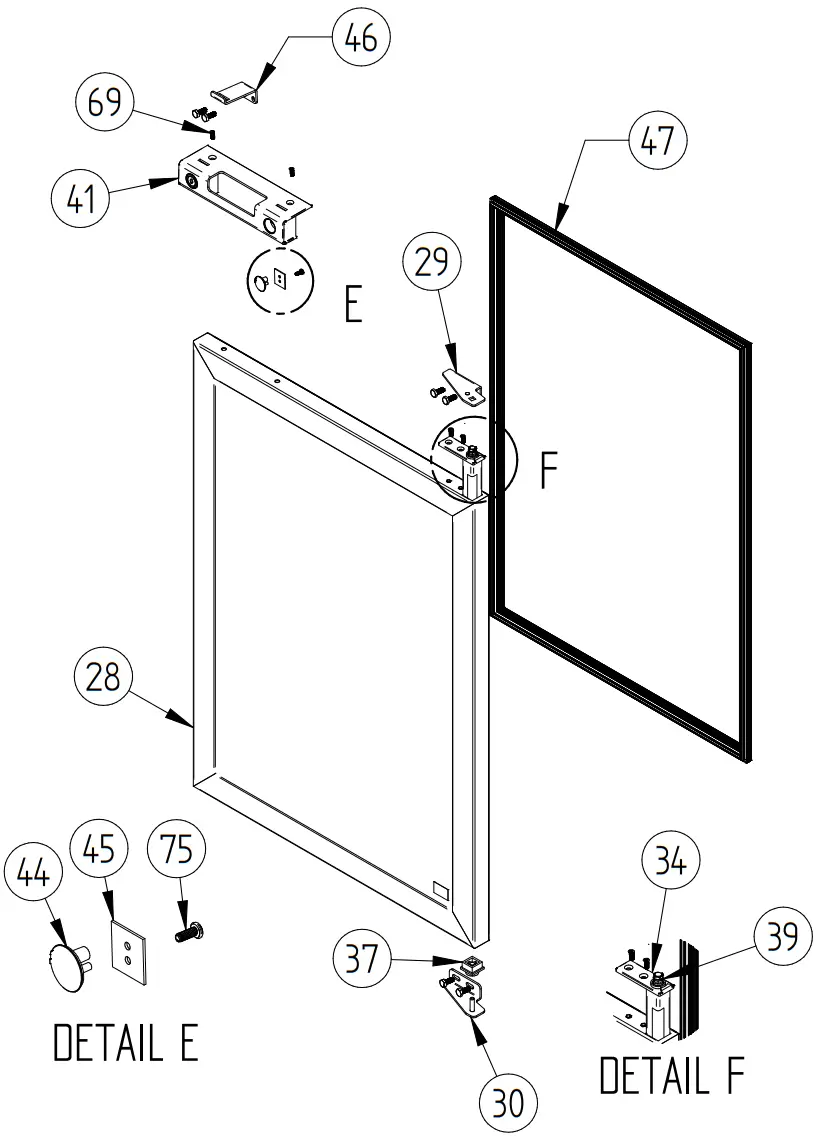

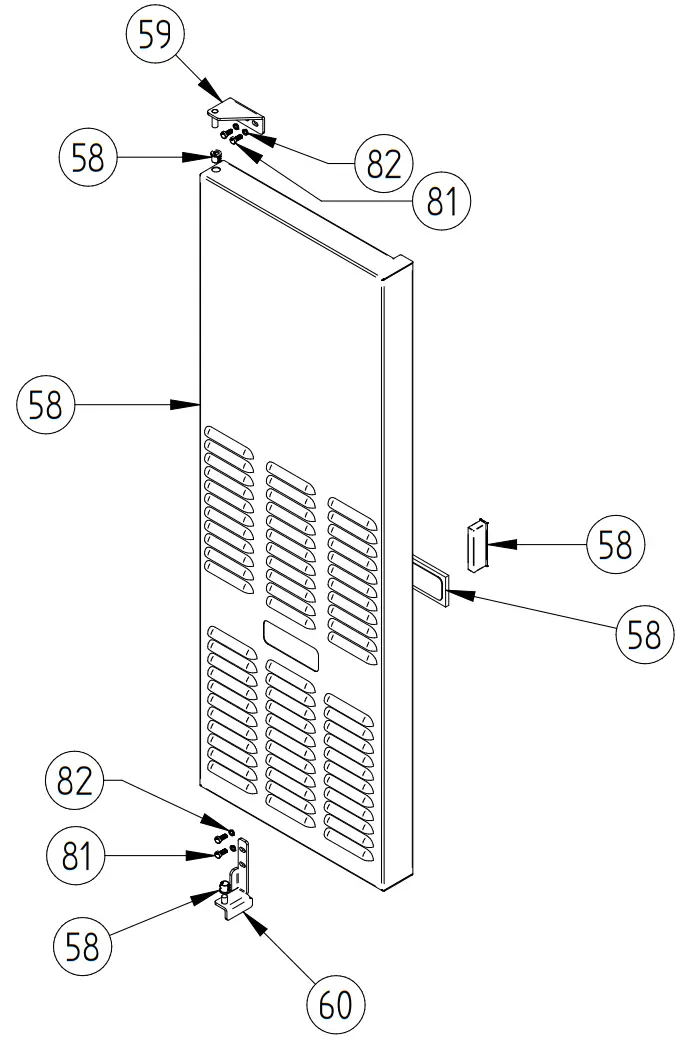

| EVAPORATION UNIT | ||||||||||
| 12 | 12190777 | EVAPORATOR COIL | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 13 | 12190429 | HEAT EXCHANGER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 14 | 12191294 | FAN SUPPORT | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 15 | 12190018 | BLADE PLASTIC | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 16 | 12190510 | FAN | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 17 | 12194193 | EVAPORATOR PROTECTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 18 | 12190728 | FAN GRID | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 19 | 12194245 | ANGULAR DEFLECTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20 | 12194247 | DEFLECTOR LEFT | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 21 | 12193839 | EVAPORATION TRAY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 22 | 12194246 | DEFLECTOR RIGHT | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | 12194248 | CLOUSURE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 24 | 12194249 | TOP COVER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 25 | 12194250 | TOP DEFLECTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 26 | 12190068 | GRID SUPPORT | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| # ITEM | PART NUMBER | DESCRIPTION | HBB-2-59 | HBB-2G-LD-59 | HBB-3-69 | HBB-3G-LD-69 | HBB-3-80 | HBB-4G-LD-80 | HBB-4-95 | HBB-3G-LD-95 | ||
| Doors & O thers | ||||||||||||
| 12202917 | RIGHT DOOR | 1 | 1 | 2 | 2 | |||||||
| 12202918 | LEFT DOOR | 1 | 1 | 1 | ||||||||
| 28 | 12214347 | LEFT DOOR | 1 | |||||||||
| 12203177 | RIGHT DOOR | 1 | 1 | 2 | 2 | |||||||
| 12203178 | LEFT DOOR | 1 | 1 | 1 | ||||||||
| 12214348 | LEFT DOOR | 1 | ||||||||||
| RIGHT HINGE KIT | ||||||||||||
| 29 | 12191308 | TOP HINGE | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | ||
| 30 | 12191306 | BOTTOM HINGE | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | ||
| 31 | 12190016 | SPACER | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | ||
| 32 | 12195539 | WHASER | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| 33 | 12195118 | HINGE CARTRIDGE | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | ||
| 34 | 12195119 | STOP HINGE | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | ||
| LEFT HINGE KIT | ||||||||||||
| 35 | 12191309 | LEFT TOP HINGE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 36 | 12191307 | LEFT BOTTOM HINGE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 37 | 12190016 | SPACER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 38 | 12195539 | WHASER | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| 39 | 12195118 | HINGE CARTRIDGE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 40 | 12195119 | STOP HINGE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| HANDLE KIT | ||||||||||||
| 12202998 | HANDLE RIGHT | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | |||
| 41 | 12202999 | HANDLE LEFT | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 42 | 12211931 | DOOR LOCK | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | ||
| 43 | 12190887 | LOCK | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | ||
| 44 | 12211932 | PLATE | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | ||
| 45 | 12195809 | SUPPORT PLATE | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | ||
| 46 | 12195087 | LOCK STOP | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | ||
| 12191258 | GASKET | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | |||
| 47 12191259 | GASKET | 1 | 1 | |||||||||
