Walk Through Metal Detector
ZK-D3180 (Standard: 18 Zones)

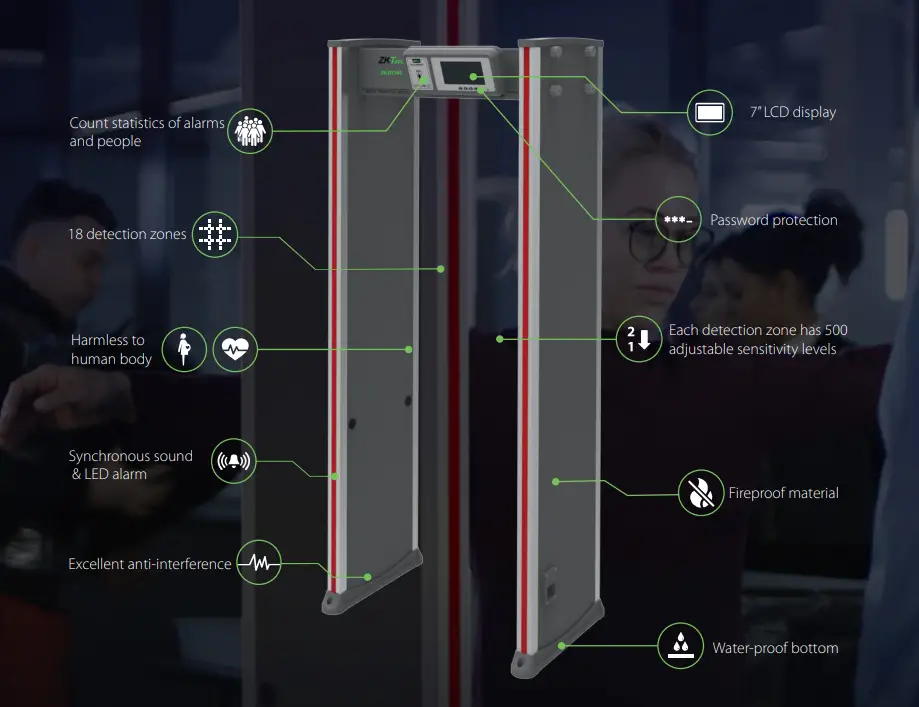

Applications
- 18 detection zones
- 500 sensitivity levels
- 7’’ LCD display
- Separate counting in and out
- TCP/IP communication
- Gate linkage
- Support App
- Simple installation and use
- Synchronous sound & LED alarm
Specifications
| Power Supply | AC100V to 240V (DC12V/3A) |
| Working Temperature | -20°C to 55°C |
| Working Humidity | <95% (non-condensing) |
| Working Frequency | 5.7KHz to 9.6KHz |
| Input Voltage | DC12V |
| Working Current | 1.2A |
| Running Power | 14W |
| Dimension (L*W*H) | 2226*845*580 (mm) |
| Lane Size (L*W*H) | 2000*710*498 (mm) |
| Dimensions of Product with Packaging (L*W*H) | 2280*347*660 (mm) |
| Weight with Packing | 52kg |

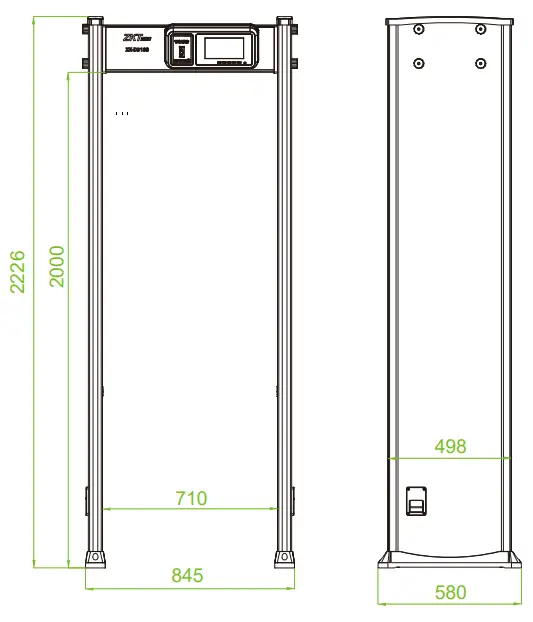

Dimensions (mm)
Applicable Scenarios
Locations with high people flow
ZKTECO CO., LTD.
www.zkteco.com
E-mail: [email protected]
V1.0 09/23/2021
Copyright © 2021 ZKTECO CO., LTD.
All rights reserved.
