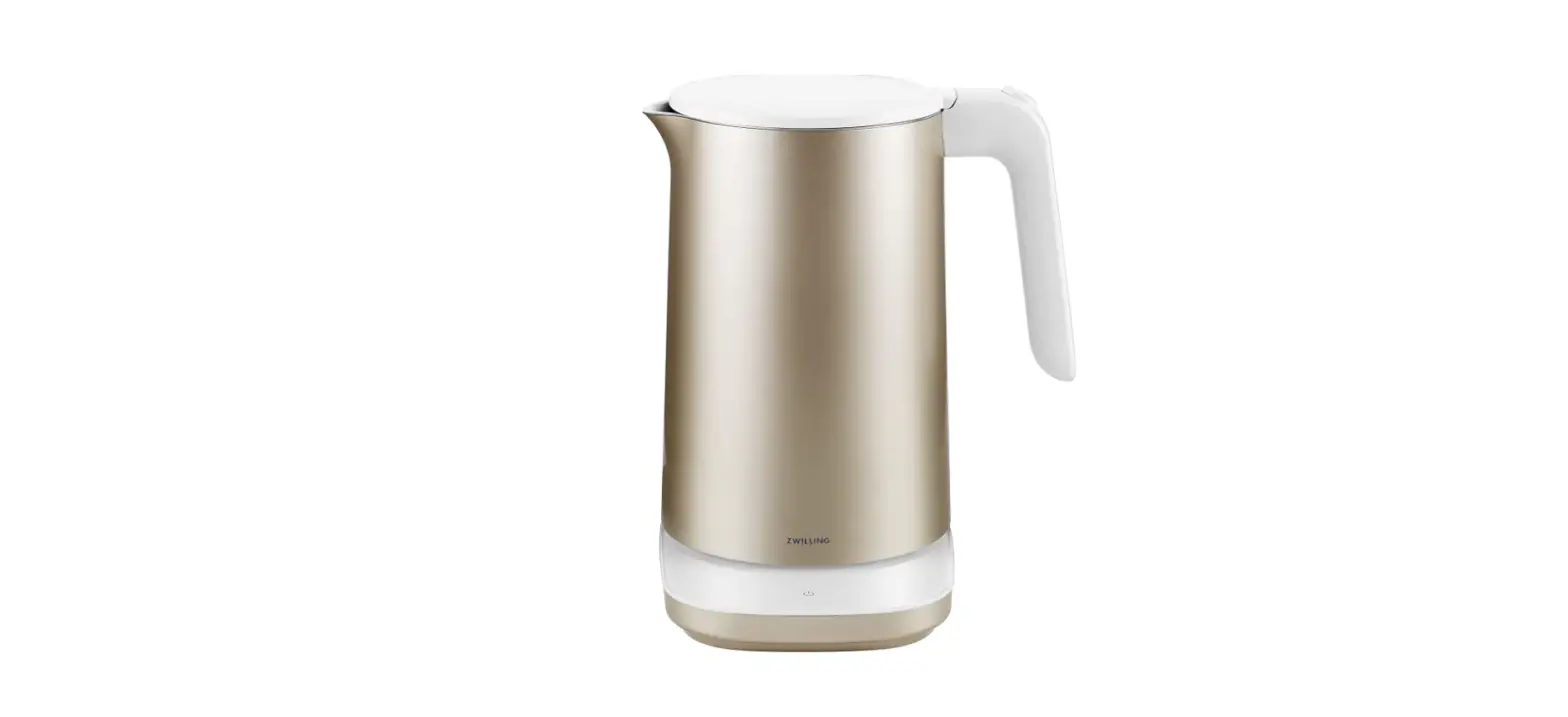

ZWILLING 53101-503-0 Enfinigy 1.56-qt Cool Touch Electric Kettle

Safety

Read these operating instructions in their entirety before using the kettle. Keep these operating instructions in a safe place. If you transfer the kettle to a third party, ensure that you include the operating instructions in such a transfer. Non-observance of these operating instructions can lead to serious injury or damage to the appliance. Zwilling does not accept any liability for damage caused by non-observance of these operating instructions. Important information for your safety is specifically marked. Make sure to observe this
information in order to avoid accidents and damage to the appliance:

Safety information

The kettle (hereinafter referred to as the “appliance”) is intended exclusively for heating household quantities of cold non-carbonated drinking water and for heating small bottles of baby food. Any other use is considered improper and may result in personal injury or property damage. Do not heat any other liquids or foods in the appliance. The appliance is intended for domestic use. It is not intended for commercial use. The appliance can be used in the following household-like environments:

• in kitchens for employees in shops, offices, and other commercial areas
• in agricultural operations
• for use by customers in hotels, motels and other similar living environments
• in bed and breakfasts
• The water container may only be operated with the supplied base.

Certain persons are at greater risk:

• This appliance may be used by children 8 years of age and older and by persons with reduced physical, sensory or mental capacity or with a lack of experience and knowledge if such children and persons are supervised or have been instructed in the safe use of the appliance and understand the hazards resulting from using the appliance.
• Children are not allowed to play with the appliance.
• Cleaning and maintenance may be carried out by children older than 8 if supervised.
• Keep the appliance and its connection cable in a location that is not accessible to children under 8 years old.
• Keep children away from the packaging material.
• It poses a risk of suffocation.
• The appliance is operated with an electric current.

There is therefore a danger of electric shock:

• Only plug the appliance into a correctly installed, earthed socket that any leaking water cannot access.
• Only operate the appliance if the voltage stated on the rating plate matches the voltage of your socket.
• The appliance has a high power consumption.
• For this reason, do not connect the appliance to multiple sockets or extension cables.
• Make sure that the connection cable is not kinked or pinched and make sure that the connection cable and the appliance do not come in contact with sources of heat (e.g. hobs, gas flames).
• When unplugging the power plug from the socket, always unplug the power plug directly.
• Do not carry the appliance by the connection cable.
• Never touch the power plug and the base with wet hands.
• Do not allow liquids to come into contact with the base.
• Take the water container off the base when filling it.
• If the base comes into contact with liquids, unplug the power plug, soak up the liquid and let the base dry.
• Never touch the base with metal objects when it is plugged in.
• Do not insert any objects into the openings on the appliance.
• As long as the power plug is plugged in, there is a voltage inside the appliance, even if the appliance is switched off.
• After every use and in the event of danger or a defect, unplug the power plug from the socket immediately.
• For this reason, keep the socket into which the appliance’s power plug is plugged easily accessible at all times.
• Unplug the appliance from the socket prior to cleaning it.
• Never unscrew the appliance and do not make any technical modifications.
• Never immerse the appliance in water or other liquids, do not clean it under running water, and never put it in the dishwasher.

When the appliance is switched on, there is a risk of scalding from boiling water or hot steam:

• Always guide the connection cable through the cable bushing on the underside of the base to ensure that the appliance is stable.
• Fill the water container to the MAX marking at most, and never above, as otherwise, hot water could spray out.
• Only switch the appliance on when the lid of the water container is closed completely.
• Do not move or transport the appliance while boiling is in process.
• Never open the lid while the water is boiling.
• Only open the lid when the hot water has been completely poured out.
• Never top up the water while the appliance is running.
• Hot steam emerges during the boiling process.
• This is normal. Keep away from the lid of the water container while boiling is in process.

When the appliance is switched on and immediately after boiling, there is a risk of burns on hot housing parts:

• Only hold the water container at the handle provided for this purpose.
• Let the appliance cool down for a while prior to carrying out maintenance.
• The bottom of the water the container remains warm for a long period.

Water may spoil if it is left in the appliance for several days:

• Do not leave any water in the appliance when it is not in use.
• Pour out any water that is not required Clean the appliance regularly.

Baby food that is heated too much can cause burns:

• When heating baby food, only use the program function intended for this purpose.
• Do not repeatedly heat baby food.

A faulty appliance can cause damage and injuries:

• Check the appliance for damage prior to each use.
• If you detect any transport damage, contact the dealer from whom you purchased the appliance immediately.
• Never operate a faulty appliance.
• Never operate an appliance that has been dropped.
• The appliance needs to be repaired in the event of a fault or a damaged connection cable. The appliance does not contain any parts that you are able to repair yourself.
• Damage may occur if the appliance is handled incorrectly. Place the appliance on a dry, level, and non-slip surface.
• Do not place the appliance on a hot surface or in the vicinity of strong sources of heat.
• Do not place the appliance on a surface that could be damaged by water and heat (e.g. untreated wood).
• Position the appliance so that other objects and furniture (e.g. wall cabinets) are not damaged by the steam and heat that emerges.
• Do not let the connection cable hang down. After use, store the connection cable in the cable compartment on the underside of the base.
• Never operate the appliance without water or with too little water. Fill the water container to the 0.5 liters marking at a minimum.
• There may be small temperature deviations, which may be greater when the filling volume is low.

Before you store the appliance:

• Unplug the power plug and let the appliance cool down completely.
• Allow the appliance to dry completely at room temperature or dry it with a cloth.

Explanation of symbols

• Danger of death due to electric shock
• Danger of burns on hot surfaces and danger of scalding from hot water.

Technical data

• Power supply 220 – 240 V∼, 50–60 Hz
• Energy consumption/Power 1550 – 1850 W
• Filling quantity 0.5 l bis max. 1.5 l
• Length of the connection cable 0.7 m
• Dimensions incl. base (W x H) 223.1 x 265.5 mm
• Weight approx. 1.7 kg

Do not dispose of household waste.
The appliance complies with the directives for CE marking.

Program functions

1. Heats water to 80 °C
2. On/Off switch
3. Heats water for coffee to over 90 °C
4. Heats water for small bottles of baby food to 40 °C
5. Boils water
6. Heats water to 60 °C
7. Keep warm function (30 min)
8. Heats water to 70 °C

Overview

1. Lid
2. Base
3. Button to open
4. Control panel
5. Handle
6. Water container
7. Connection cable
8. Limescale filter

Operation

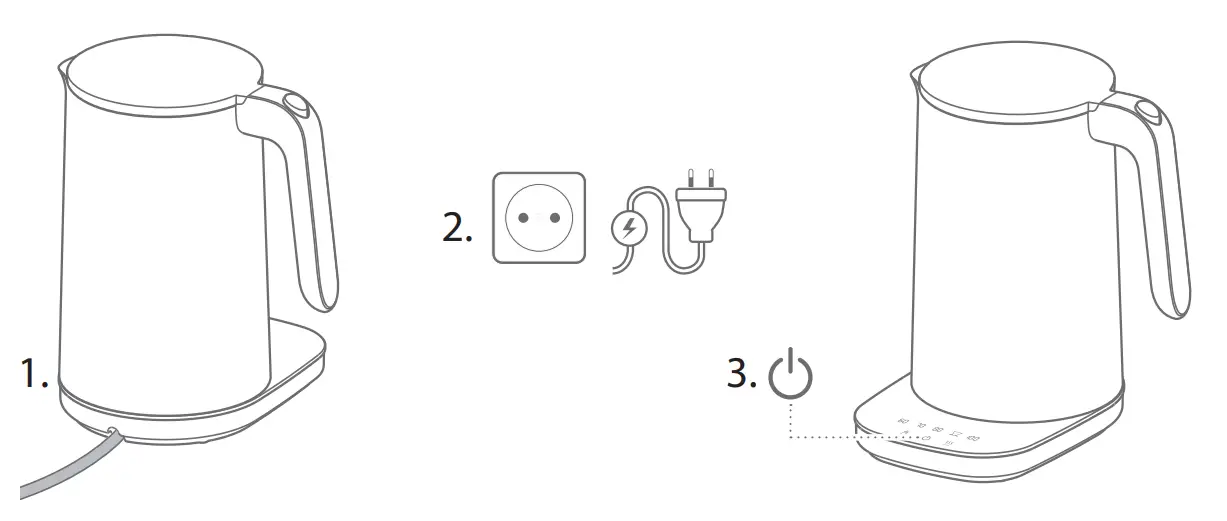

1. Putting the kettle into operation
   Prior to first use, you must unwind the connection cable completely and guide it through the opening on the base. To switch on the appliance, press and hold the on/off button on the control panel.
2. Filling the water
   To fill with water, lift the water container from the base using the handle and press the button to open the lid. There is a measuring scale for cups and litres on the inside. After filling, close the lid in such a way that it audibly clicks into place.
   Observe the MAX marking for the maximum water volume. Do not overfill.

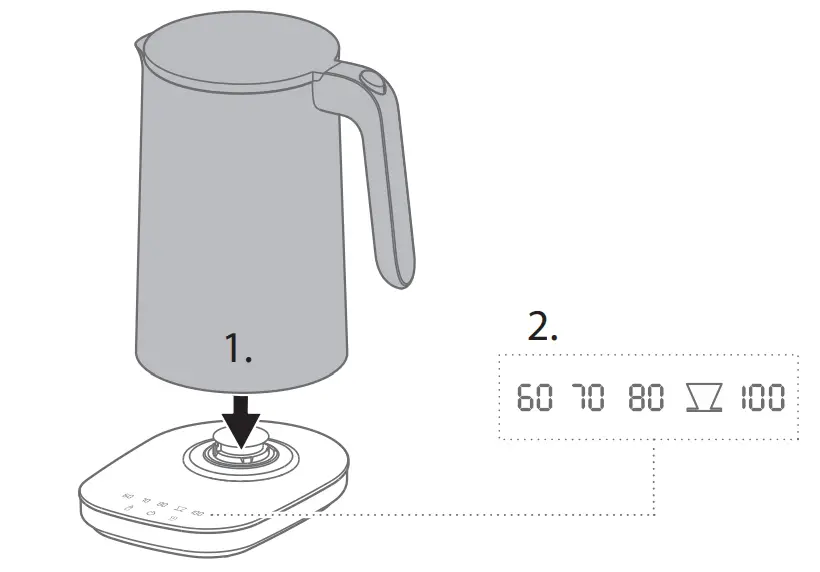

3. Boiling water
   To boil water, you must first place the filled water container on the base. Then press the desired program function on the control panel.
   Do not open the lid while boiling is in process.

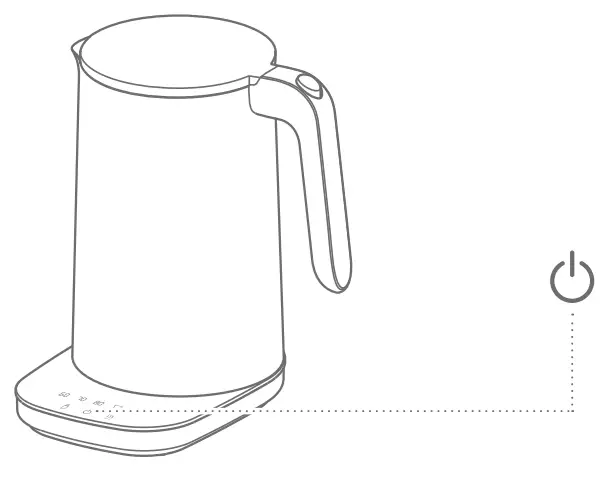

4. Interrupting a boiling process
   If you wish to stop boiling prematurely, press the on/off button on the control panel.

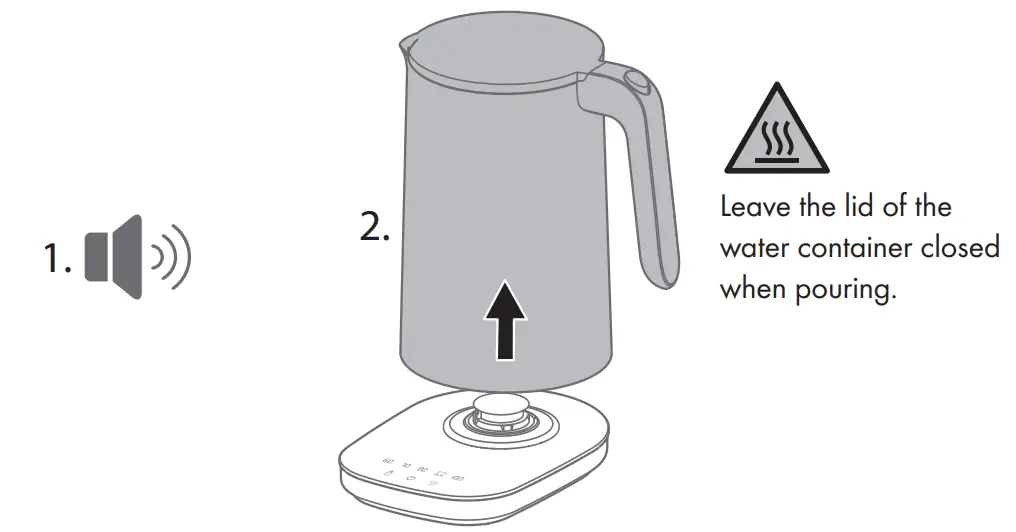

5. Removing water
   During the boiling process, the program symbol for the selected program flashes on the control panel. The boiling process has ended when the program symbol stops flashing and a beep sounds. To pour out, lift the water container from the base using the handle.

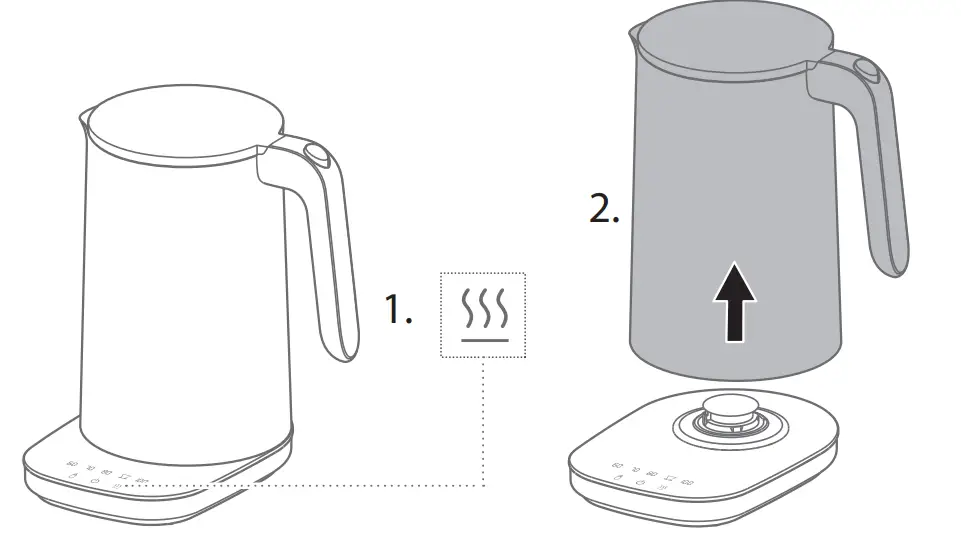

6. Keeping water warm
   To keep water warm, press the keep warm program function on the control panel after the boiling process. The water is kept warm for up to 30 minutes. To end the keep warm function prematurely, simply take the water container off the base.
   The keep-warm function can be switched on for all program functions under 100 °C, even during the boiling process.

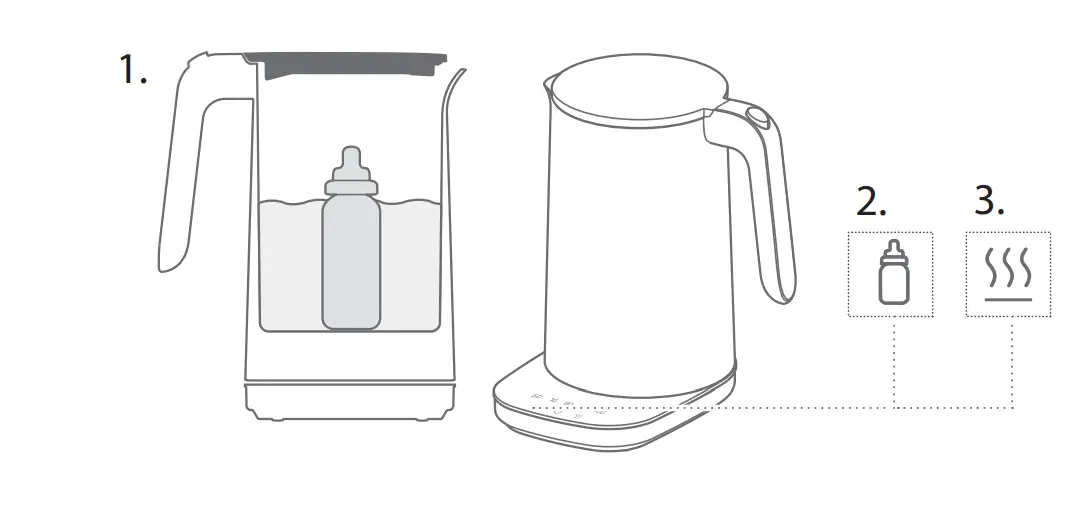

7. Warming baby food
   To warm a small bottle of baby food, place the bottle in the water container and fill the water container with water to the edge of the bottle. Then press the program function for warming baby food and keeping warm on the control panel. In 30 minutes, the baby food in the bottle is warmed.
   There may be small temperature deviations, which may be greater when the filling volume is low.

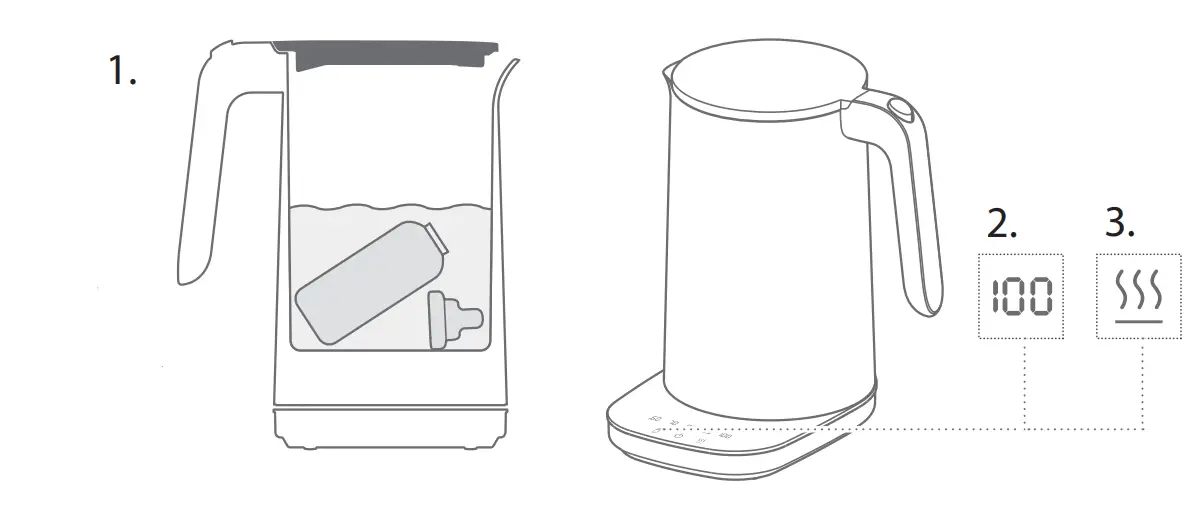

8. Boiling a baby’s bottle
   To clean a baby’s bottle and drinking attachments, place the parts individually in the water container and fill the water container with water. Then press the program functions for boiling and keeping warm on the control panel. The boiling process has ended when the program symbol stops flashing and a beep sounds.
   Before boiling, completely clean and rinse the parts.

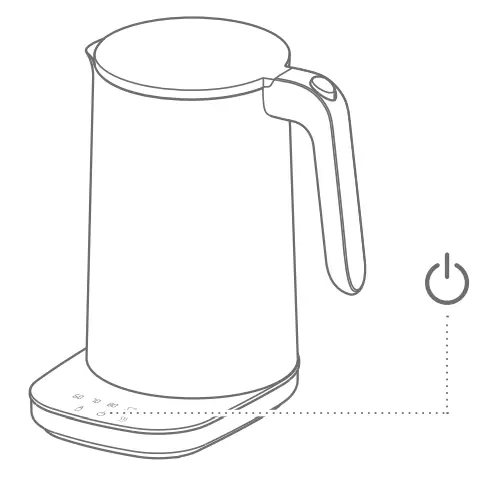

9. Switching off
   To switch off the kettle, press and hold the on/off button on the control panel.

Maintenance

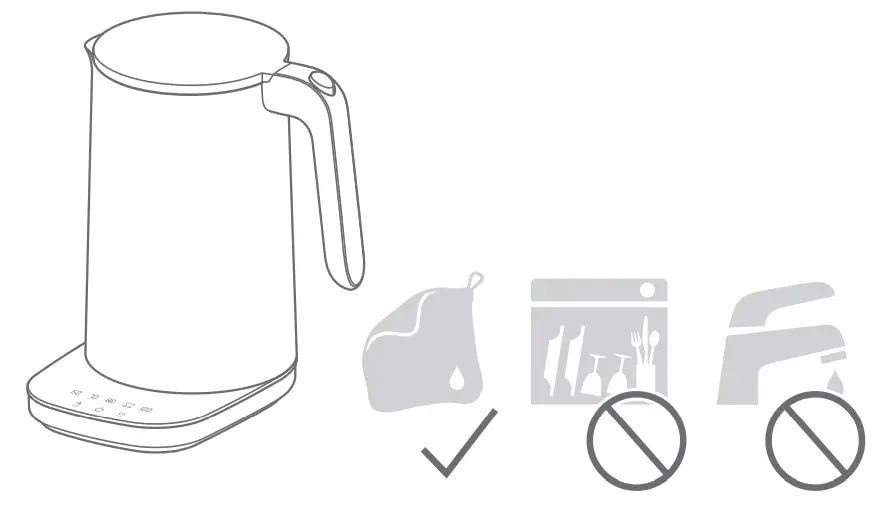

1. Cleaning the water container and base
   You can clean the base and the water container with a damp, lint-free cloth.
   Prior to cleaning, unplug the power plug and let the water container cool down completely.

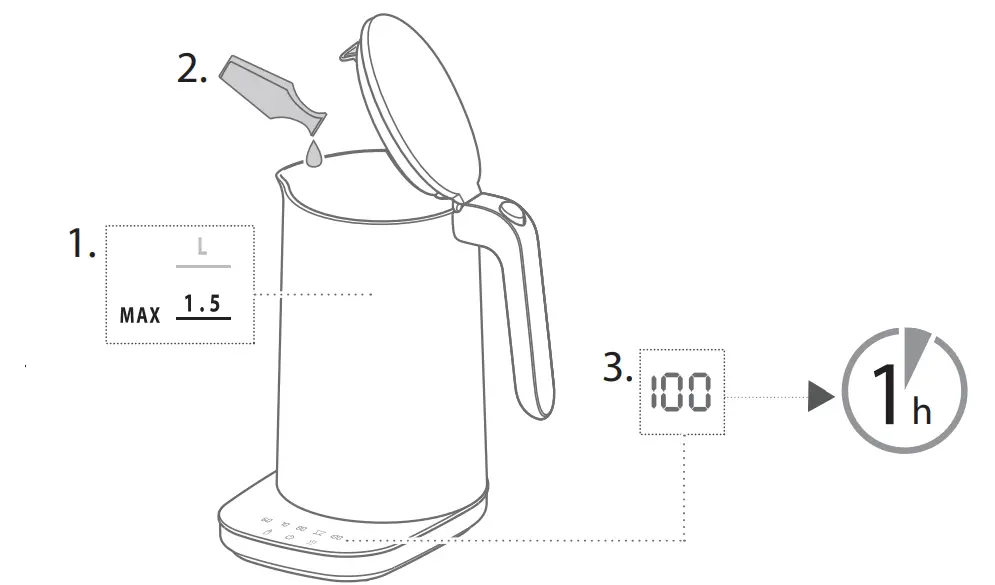

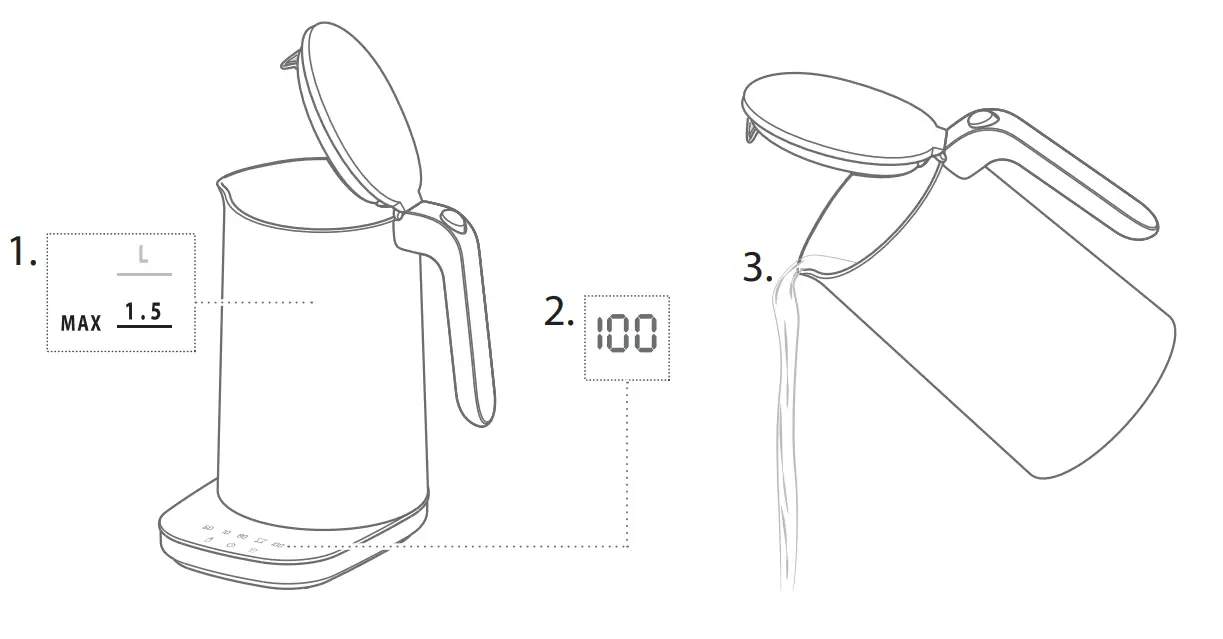

Decalcification

1. Filling with water and vinegar essence
   To decalcify, fill the water container to the MAX marking with water and 2 tablespoons of vinegar essence. Then select the ‘Boil water’ program, let the water stand for 1 hour and then pour it out.
   Decalcify regularly, before visible limescale forms.
2. Rinsing the water container with clear water
   To rinse, fill the water container with clear water again, boil the water and then pour it out.

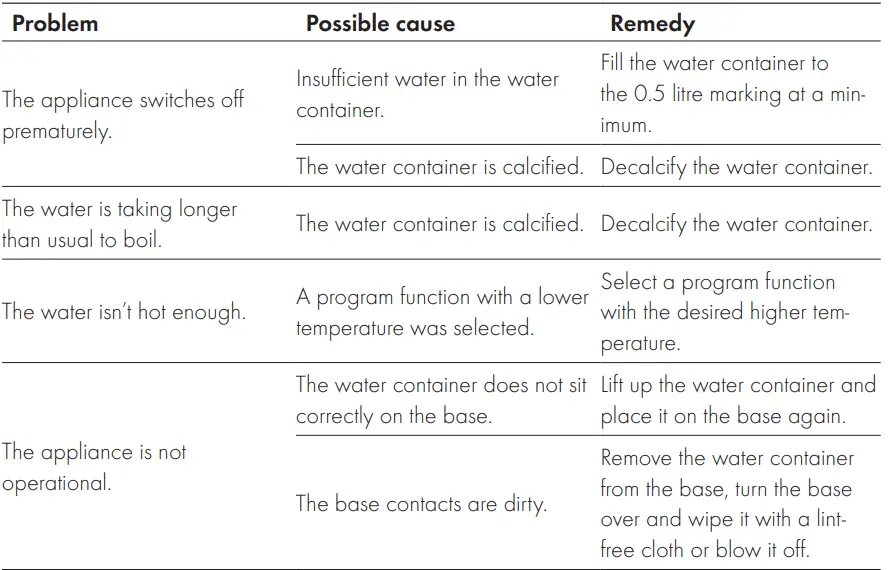

Fault

Customer service

Please contact our customer service should you encounter any problems with your kettle. Detailed information on service, repairs, warranty and product registration can be found at www.zwilling.com/service.
Disposal
With regard to disposal, please return your old appliance to a collection point for electrical appliances.
