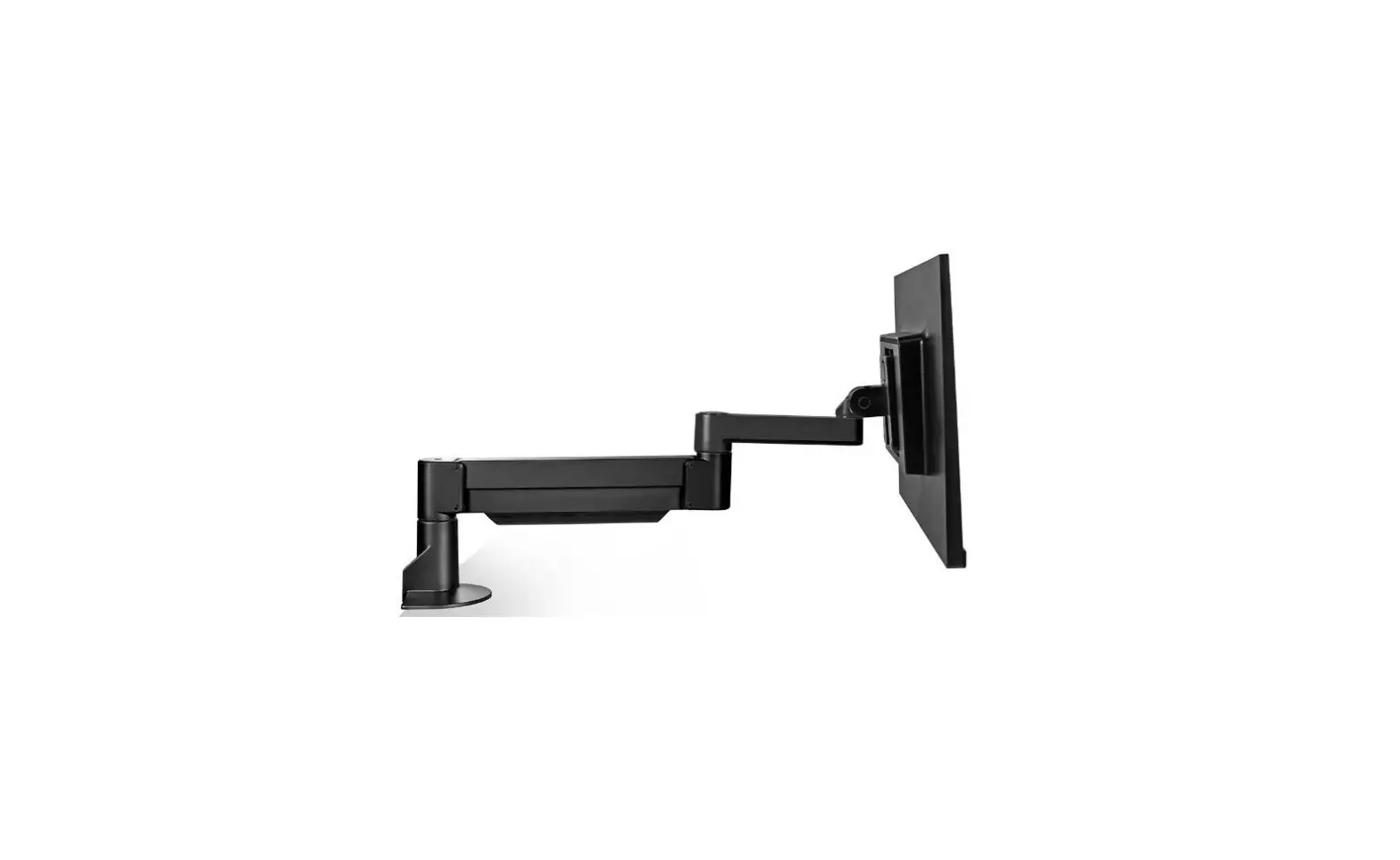

Innovative Design Works 7000 Flexible Flat Panel LED Monitor Arm – 24″ Reach
Note: Parts may be shipped in separate boxes, please review all packaging prior to discarding.

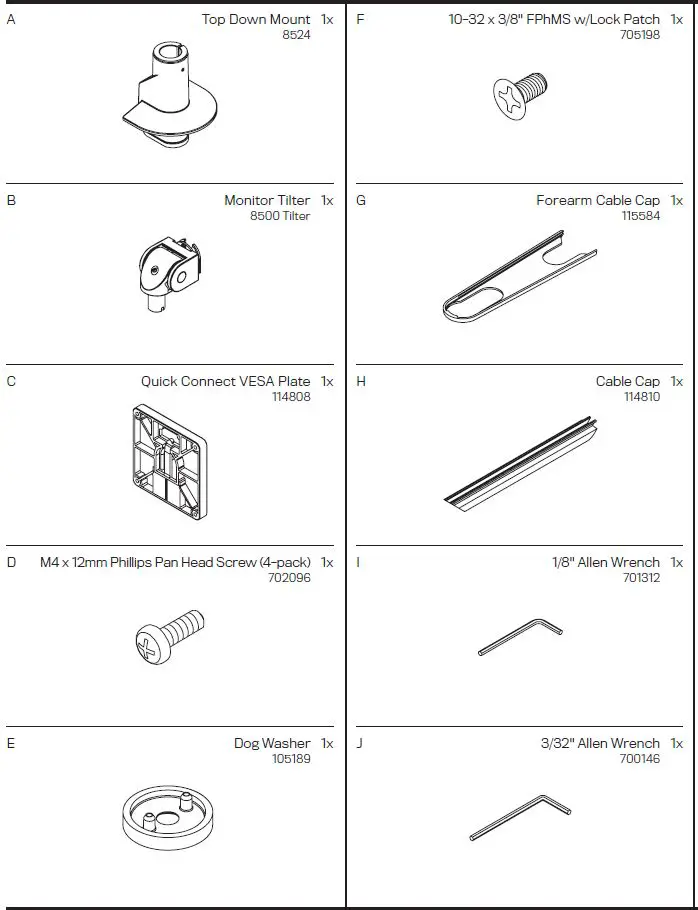

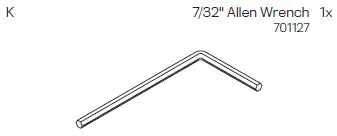

Parts List

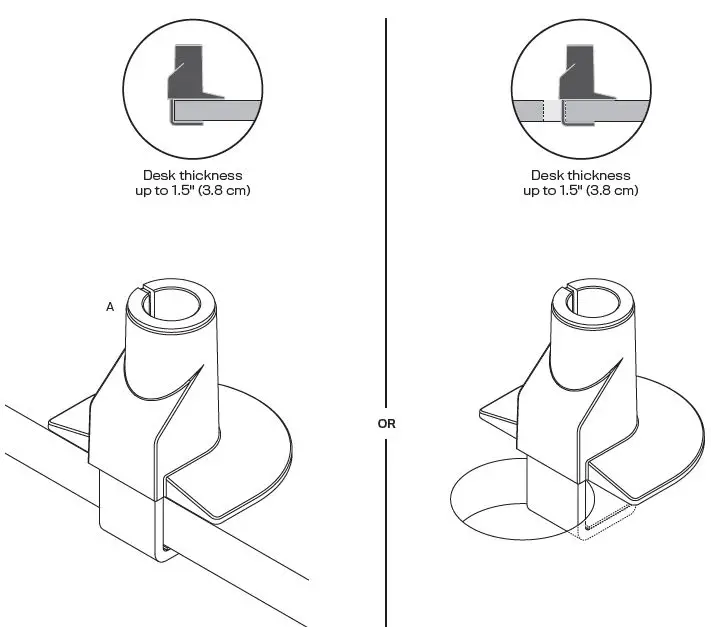

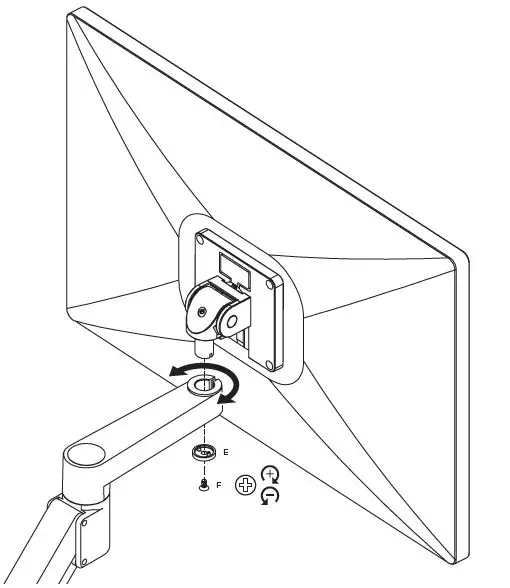

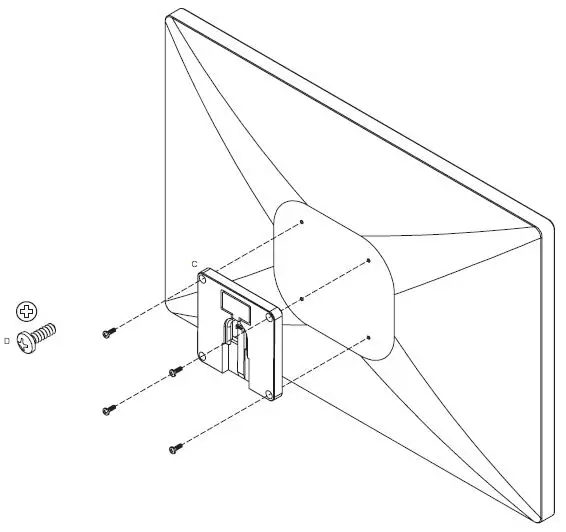

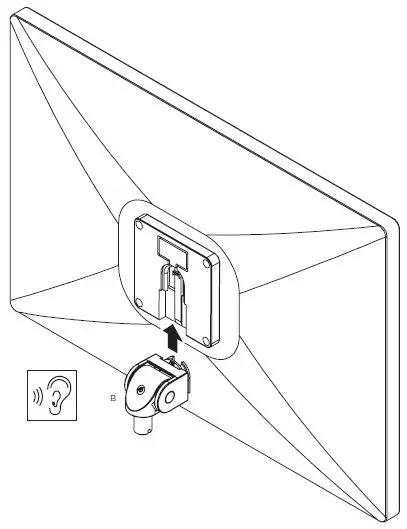

Installation Instruction

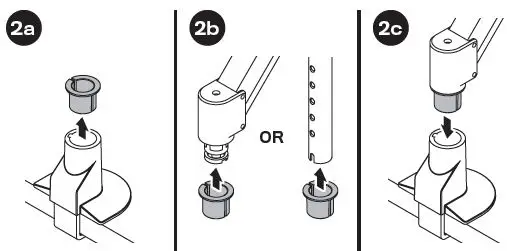

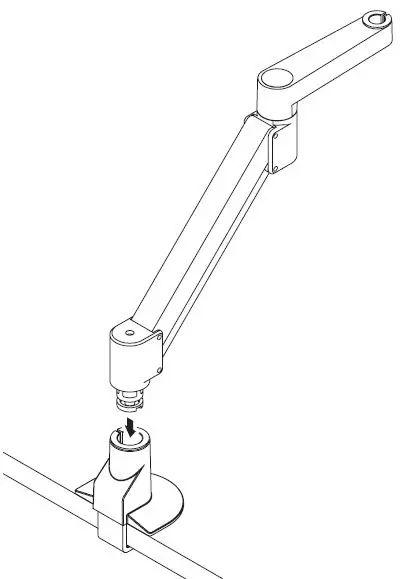

If the monitor arm or pole does not easily fit into the mount, remove the bushing from the mount and place it on the monitor arm or pole and press firmly back into the mount.

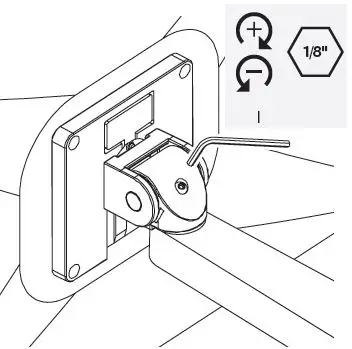

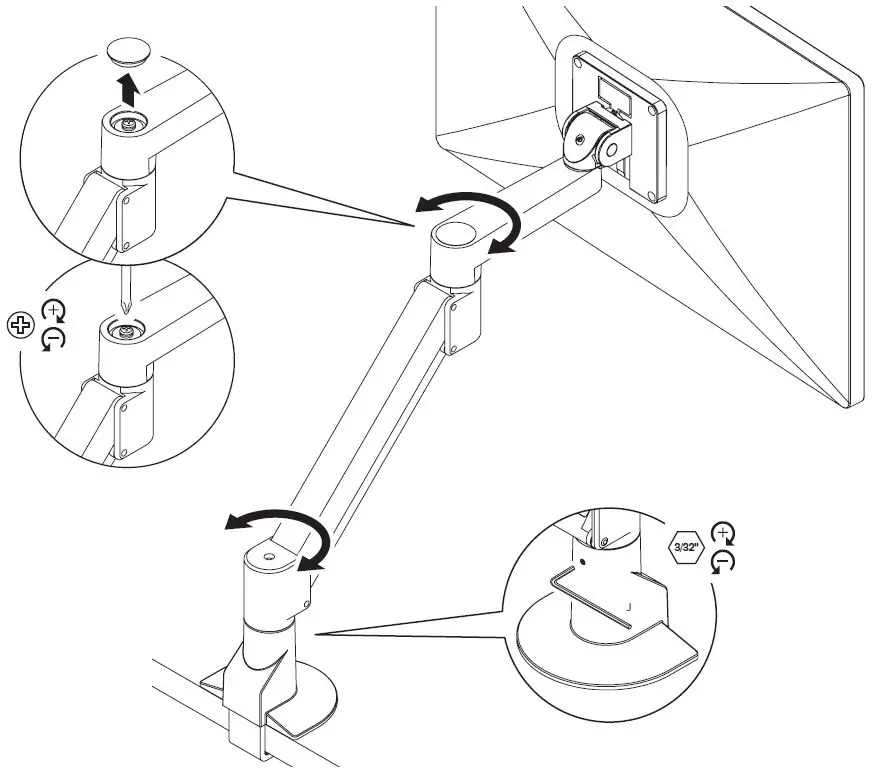

TILTER FRICTION ADJUSTMENT
IMPORTANT!
- The monitor must be on the arm
- The arm must be in mount

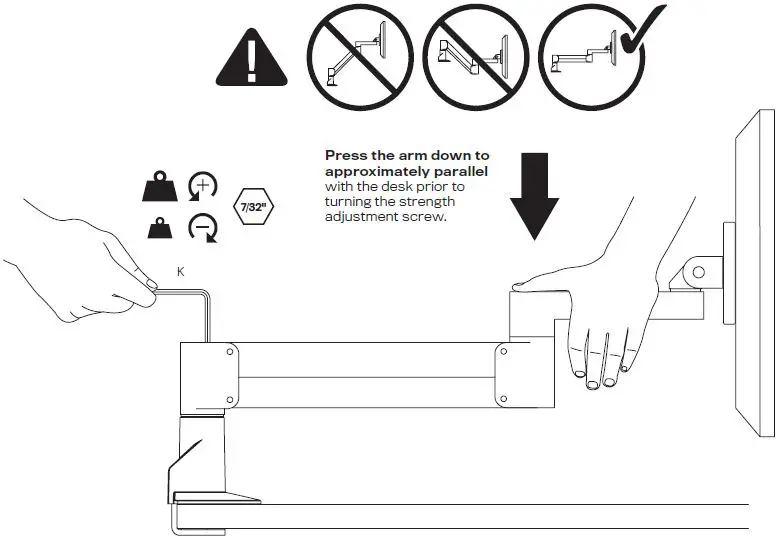

Press the arm down to approximately parallel with the desk prior to turning the strength adjustment screw.
If the arm drifts upward, turn the adjustment screw clockwise.
If the arm drifts downward, turn the adjustment screw counter-clockwise.

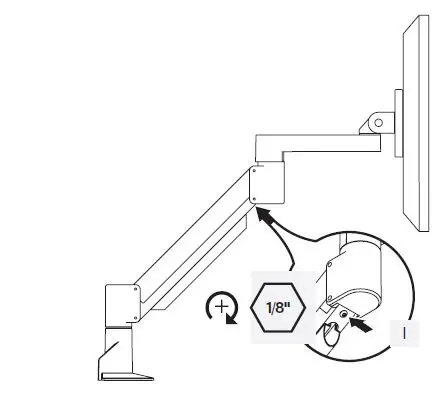

Optional Adjustment
In some instances
An additional counterbalance adjustment may be needed to allow the arm’s instant height adjustment function to work properly.
If your arm is not staying in position after performing step 7, tighten the adjustment screw as shown.
