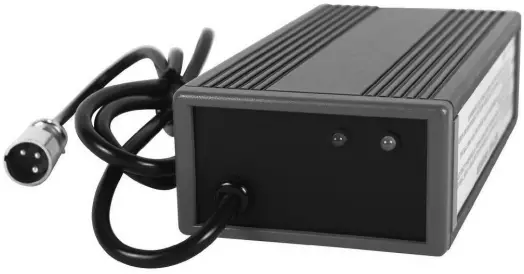

Invacare 1654661 5 A Charger Lead Acid Battery Charger User Manual

INVACARE 1654661 5 A Charger Lead Acid Battery Charger User Manual

This manual MUST be given to the user of the product.
BEFORE using this product, this manual MUST be read and saved for future reference.

Symbols found on the product

	This product bears the CE declaration of conformity. The launch date of this product is stated in the CE declaration of conformity.
	C-Tick (Australian EMC)
	This product complies with European safety requirements.
	Insulation class: Class II

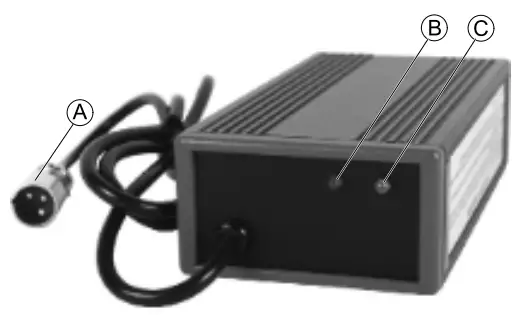

Features

A Battery charging plug
B POWER LED indication
C CHARGING LED indication

LED display

Caution

• Before using the battery charger, read all instructions and cautionary markings.
• In order to extend the service life of the charger, you should not leave the mobility device connected to it for prolonged periods. Turn of the power after charging.
• Do not use the charger for totally discharged batteries or when the batteries are faulty.
• Use the charger in a well ventilated room.
• Only use the charger for gel or AGM batteries (16-60 Ah).
• Do not use for a voltage input other than that specified.
• The temperature of case will rise when charging. Avoid to touch the case directly.
• “Output Connector Not For Current lnterrupting”.
• For continued protection against risk of fire, replace only with same type and ratings of fuse.
• To reduce the risk of fire and electric shock, install in a temperature- and humidity-controlled indoor area relatively free of conductive contaminants.
• Power Supply Cord: Use UL Listed detachable power supply cord-No. 18 AWG, 2 conductors, flexible cord, rated 10 A, VW – 1, 105 °C, minimum 1.8 m, maximum 3 m long. Provided with a molded–on, non–polarized attachment plug with a 15 A, 125 V (NEMA1-15P) configuration and a molded-on connector which mates with the power inlet.

Operating instructions

1. Make sure the battery charger output voltage is the same as the output voltage of the connecting battery.
2. Connect the battery charger to the charging socket of the mobility device.
3. Connect the power cord. The LED indicates red and green flash when AC power is on.
4. Start charging. Refer to 1.3 LED display.

Troubleshooting

• If the POWER LED (red) is off:
  • Check that the charging cable is correctly connected.
  • If the LED still does not light, the battery charger may be faulty. Contact your provider .
• If the CHARGING LED is off:
  • Check that the charging cable is correctly connected.
  • If the battery is fully charged, the charger will switch to trickle charge mode and the CHARGING LED light goes out.
  • If the charging process was not started (orange LED), the battery could be faulty. Contact your provider.
• If the green CHARGING LED keeps flashing, it cannot turn to indicate charging:
  • Check if the battery is connected successfully.
  • Check if the output connection is short or open.
  • If the battery connection is ok, the battery charger may be faulty.
• If the POWER LED (red) keeps flashing:
  • Check if the battery connection is reversed.
  • Check if the output connection is short or open.
  • Check if the environment temperature is too low (< 0 °C)
  • If the POWER LED keeps flashing, the battery charger may be faulty.
• If the CHARGING LED does not change from orange to green:
  • The battery cannot be charged correctly. It may be faulty. Stop charging and contact your provider.
• If the CHARGING LED changes from orange to green immediately:
  • The battery is either fully charged or faulty. Contact your provider.

Technical specifications

Belgium & Luxemburg:
Invacare nv
Autobaan 22
B-8210 Loppem
Tel: (32) (0)50 83 10 10
Fax: (32) (0)50 83 10 11
[email protected]
www.invacare.be

EMERGO EUROPE
Prinsessegracht 20
2514 AP, The Hague
The Netherlands

Distributor:
CHIEN TI ENTERPRISE CO. LTD.
No. 13, Lane 227, Fu Ying Road Hsin Chuang, Taipei, Taiwan R.O.C.

© 2019 Invacare Corporation
All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
Invacare reserves the right to alter product specifications without further notice.

Making Life’s Experiences Possible®
