Explorer – Simarine-SCQ50
Installer Wiring
Installation Guide
SCQ50 Explorer Simarine Installer Wiring

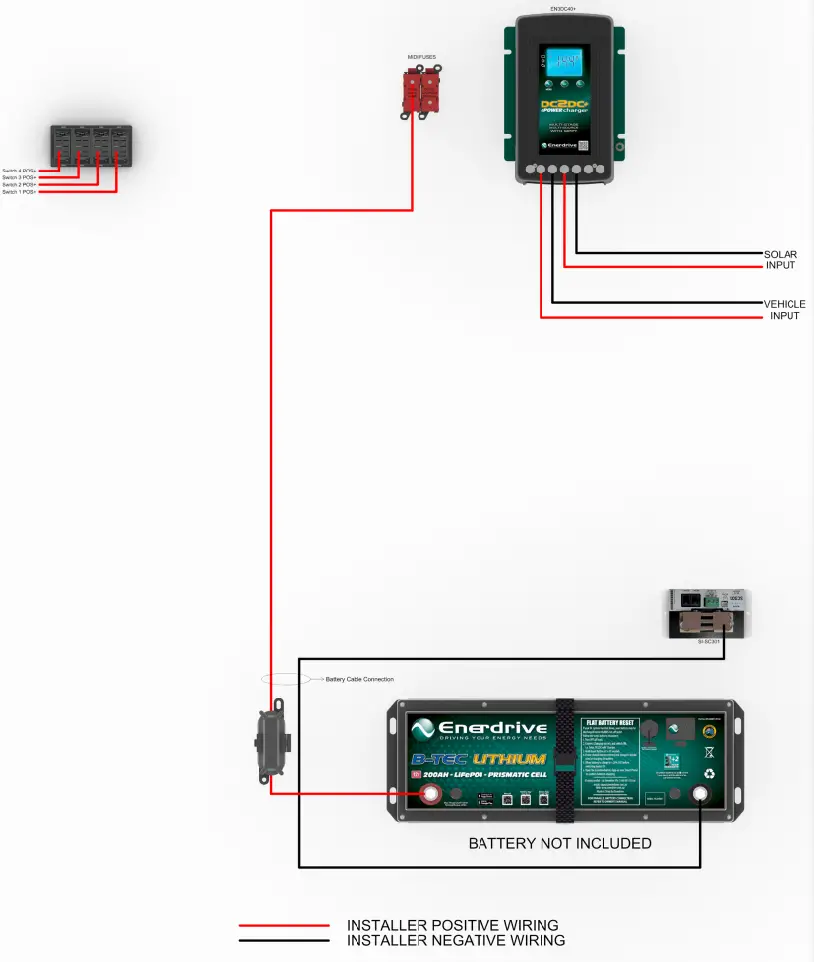

This wiring diagram is only a representation of how the wiring s done and may not fully ref ect exactly how your system is wired. Circuit breakers are sown in rear view format.
Updated June 2022
Canopy systems – wiring
