Lenoxx Btd200 Bluetooth 300 Watt Entertainment System Instruction Manual

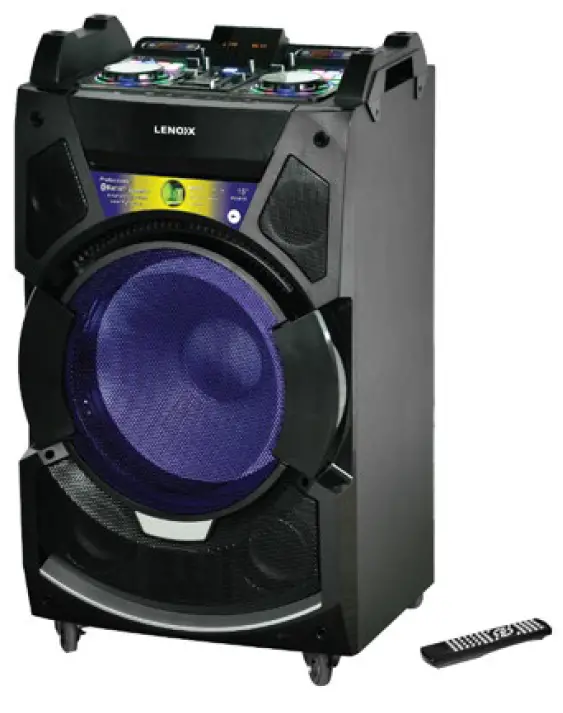

LENOXX BTD200 Bluetooth 300 Watt Entertainment System

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of “uninsulated dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to a person.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.
Safety Precautions
Warning: To prevent fire or electric shock, do not expose this appliance to rain or moisture.

IMPORTANT SAFEGUARDS

Caution: Please carefully read all of the following important safeguards to ensure safe operation

1.  Read Instructions:
   All the safety and operating instructions should be read before the appliance is operated.
2.  Retain Instructions:
   The safety and operating instructions should be retained for future reference.
3.  Follow Instructions:
   All operating instructions should be followed.
4.  Heed Warnings:
   All warnings on the unit and the operating instructions should be adhered to.
5.  Power Source:
   The appliance should be connected based on instructions.
6.  Heat:
   Keep the unit away from heat sources such as radiators,refrigerators,stoves or other appliances that may radiate heat.
7.  Non-use Periods:
   The power cord of the unit should be unplugged from the outlet when you do not use it for a long time.
8.  Damage requiring service:
   The unit should be repaired by qualified service personnel in the following cases:
   1.  The power plug or cable has been damaged;
   2. Objects have fallen or liquid has been spilled on the appliance;
   3.  The appliance has been exposed to rain;
   4.  The appliance is functioning abnormally.

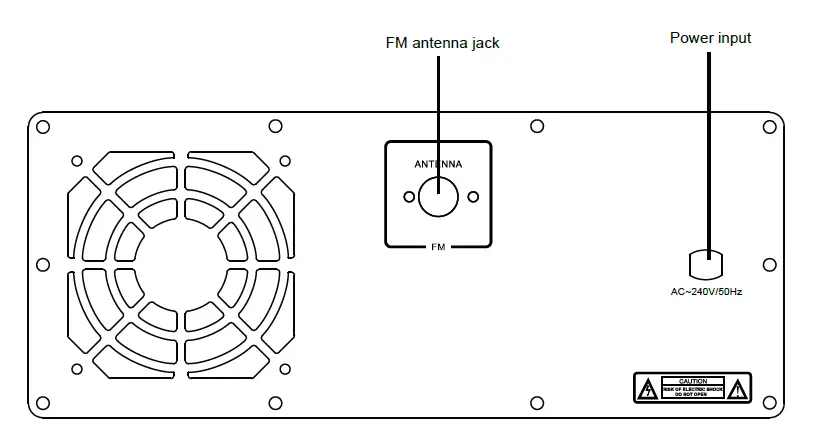

CONNECTIONS

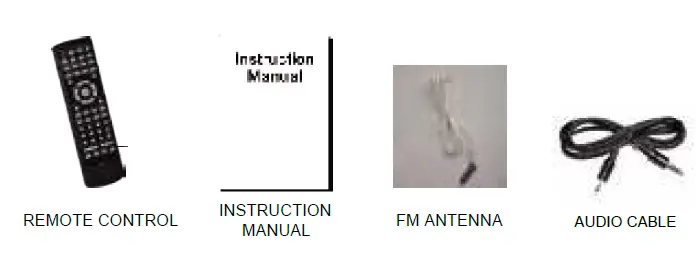

Accessories FRONT PANEL-CONTROLS AND FUNCTIONS

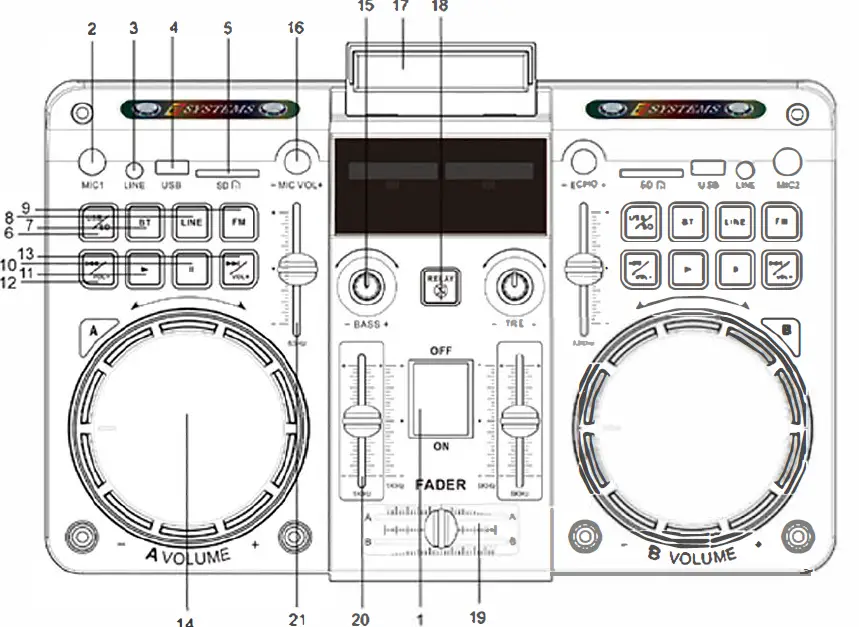

SYSTEM A

1.  Power ON/OFF
2. Microphone 1 input slot
3.  A System Line input slot
4.  A System USB input slot
5.  A System SO card input slot
6.  A System USB/SO card input key
7.  A System BT input key(BT searching name: BTD200 lenoxx A)
8.  A System Line input key
9. A System FM input key
10. A System Pause key
11. A System Play key
12. A System Previous key. long press for volume decrease
13. ASystem next key, long press for volume increase
14.  a system volume control
15. BASS increase/weaker knob
16. Microphone volume increase/decrease knob
17. Digital display screen
18.  Replay on/off key
19.  Fader sliding adjuster
20.  Equalizer sliding adjuster
21. Equalizer sliding adjuster

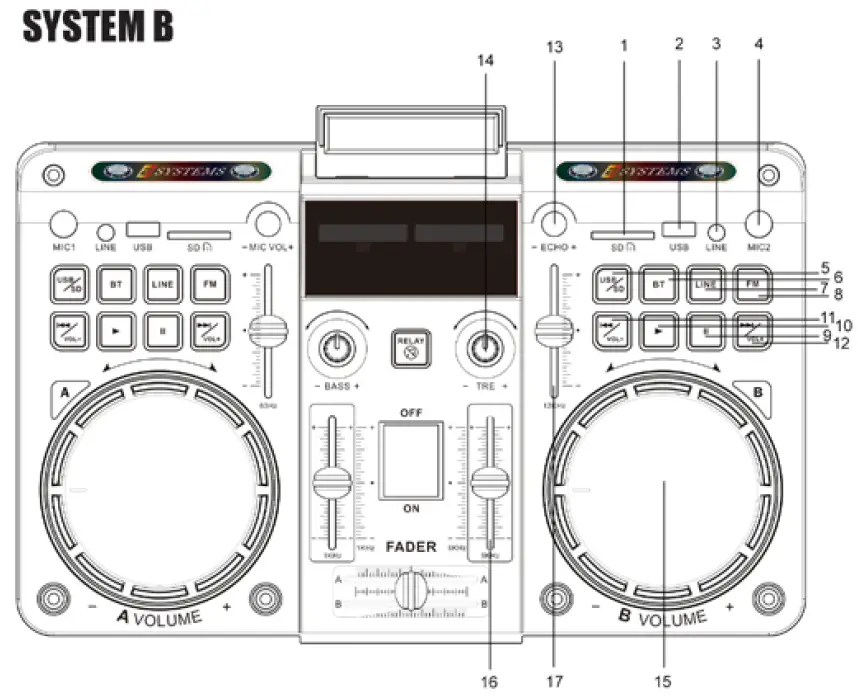

1. System SO card input slot
2. System USB input slot
3. System Line input slot
4. Microphone2 input slot
5.  System USB/SD card input key
6.  System BT input key(BT searching name: BTD200 lenoxx 8)
7. System Line input key
8. System FM input key
9. System Pause key
10.  System Play key
11.  System Previous key, long press for volume decrease
12. System next key. long press for volume increase
13.  ECHO weaker/increase knob
14.  TRE increase/weaker knob
15. System volume control
16.  Equafjser sliding adjuster
17.  Equaliser sliding adjuster

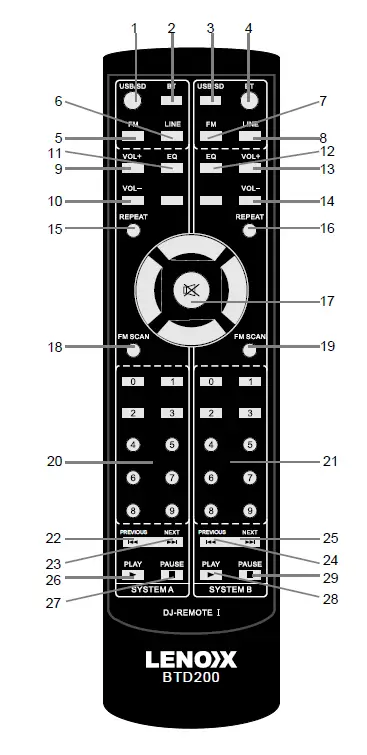

REMOTE INSTRUCTION

1. A System USB/SD card input button
2.  A System BT input button
3.  B System USB/SD card input button
4.  B System BT input button
5.  A System FM input button
6.  A System LINE input button
7.  B System FM input button
8.  B System LINE input button
9.  A System volume increase
10.  A System volume decrease
11.  A System Equalizer
12.  B System Equalizer
13.  B System volume increase
14.  B System volume decrease
15. A System play again
16.  B System play again
17. Mute volume
18.  A System auto scan for channels
19.  B System auto scan for channels
20.  A System USB/SD card song select
21.  B System USB/SD card song select
22.  A System previous song
23.  A System next song
24. . B System previous song
25. B System next song
26. A System play
27.  A System Pause
28. B System play
29. B System Pause

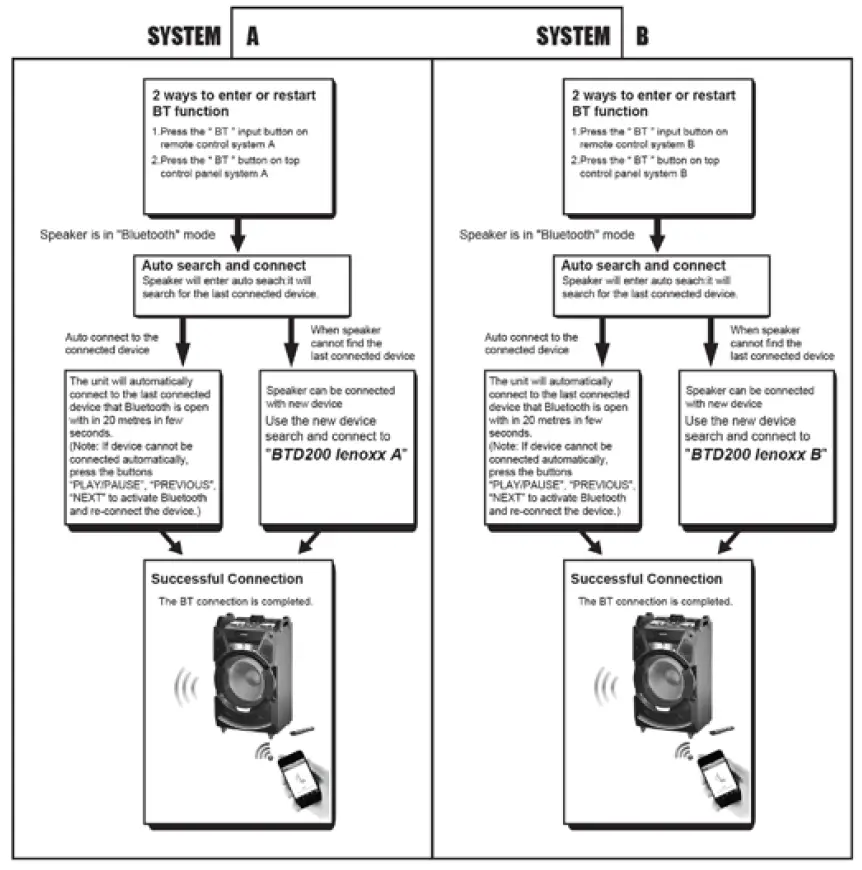

HOW TO USE BLUETOOTH CONNECTION

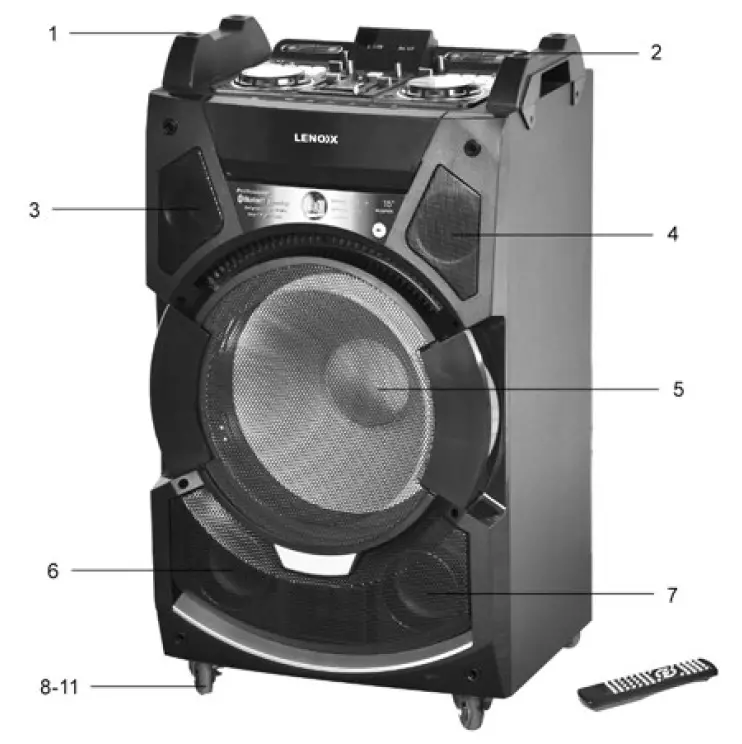

PRODUCT OVERVIEW

• 1-2: Two Handles (Pis refer to installation instrue1ion )
• 3-4: Two tweeters
• 5: 15 inch woofer with disco light
• 6-7: Two gas holes for air blow. plea&& do not cove,
• 8-11 :Four wheels. the two wheels in front can be k>cked by pressing down the switch on the wheels
