laia T-Pod Air Pro Dual Quad
Attention
Electrical safety
The installation and use of this product must strictly comply with the local electrical safety
Careful transportation
During transportation, storage and installation, it is necessary to prevent damage caused by heavy pressure, severe vibration and immersion.
Polarity of power supply
This product is powered by POE + 12V, with a maximum current of 0.3A.
Careful installation
Do not rotate the head of the microphone by hand, otherwise it may cause mechanical failure. Do not turn on power until all installation is completed.
Do not disassemble without authorization
This product has no parts that users can repair by themselves. Damage caused by users’ self-disassembly does not fall within the scope of warranty.
Accessories
When opening the package, please check and confirm all accessories that should be provided.

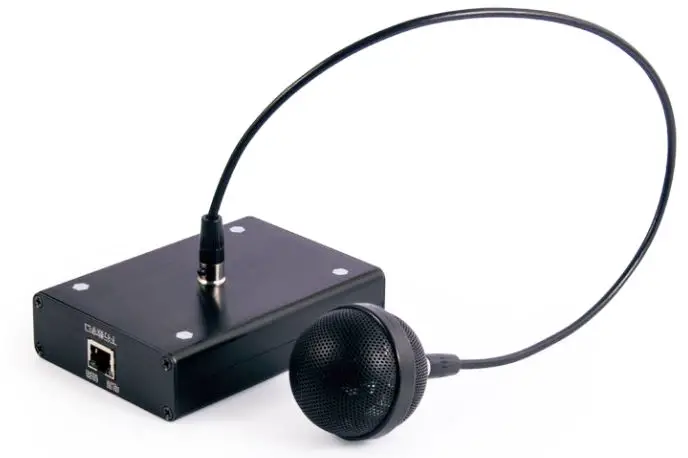

- Digital microphone
- Pickup box
- Ceiling mount
- POE power
- Power adapter
- Audio cable
- User manual
Application
Main feature
- All-directional, all-function condyle
360 degree pickup microphone star array, wide range frequency response, support dual-mode (digital, analog) output. - Intelligent Voice Tracking
It can focus on the current speaker without human intervention, with clear sound quality and low noise. - Super-large pick-up area
Pick-up covers an area of 60 square meters, which is three times larger than that of similar one-way products. - Beautiful and efficient
Electronic equipment can be hidden in the ceiling, away from the floor and desktop, equipment deployment is simpler, more beautiful and more efficient. - Perfect sound quality
The characteristics of suspended ceiling optimize audio acquisition and real restore sound.
Feature
| Name | T-Pod Air Pro |
| Parameters | |
| Monomer | Back-polar electret |
| Directivity | 360° |
| Pick-up distance | 6 meters radius |
| Frequency response | 40Hz ~ 20KHz |
| Sensitivity | -38dB ± 2dB (0dB = 1V / Pa at 1KHz) |
| Output impedance | 500Ω ± 30% (at 1kHz) |
| Equivalent noise level | ≤13dB A (IEC 581-5) |
| Maximum sound pressure level | 132dB (THD ≤ 1.0％ at 1kHz) |
| Single maximum cascade series | 4 |
| AEC | Support |
| AGC | Support |
| ANS | Support |
| Analog audio output | for third-party products, incompatibility |
| Digital audio output | Digital audio interface for authentication partners |
| I/O interface | |
| Microphone interface | 6-core Canon head for connecting special pickup |
|
System indicator | Light Red Always Bright: System Start-up Green Ever Bright: In Clock Synchronization Green scintillation: normal work |
| Uplink Digital Port | RJ45: PoE Power Supply Input, Digital Audio Transmission (Terminal) |
| Downlink Digital Port | RJ45: PoE Power Supply Output, Digital Audio Transmission (Connected with the Next Microphone) |
| Analog Port | RJ45: Connecting Pre-adapter Box (DAB10), PoE Power Supply |
