Zebra Cs60-hc Series Companion Scanners Installation Guide

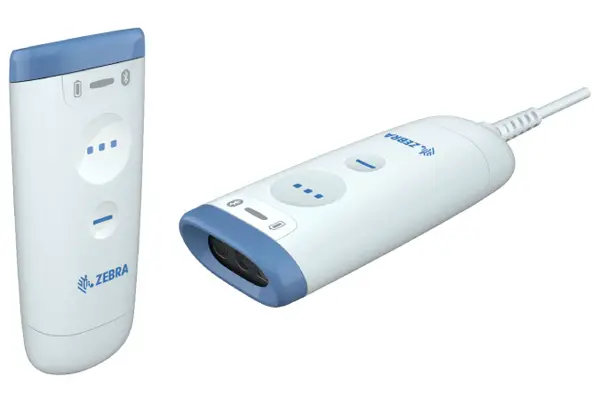

ZEBRA CS60-HC Series Companion Scanners

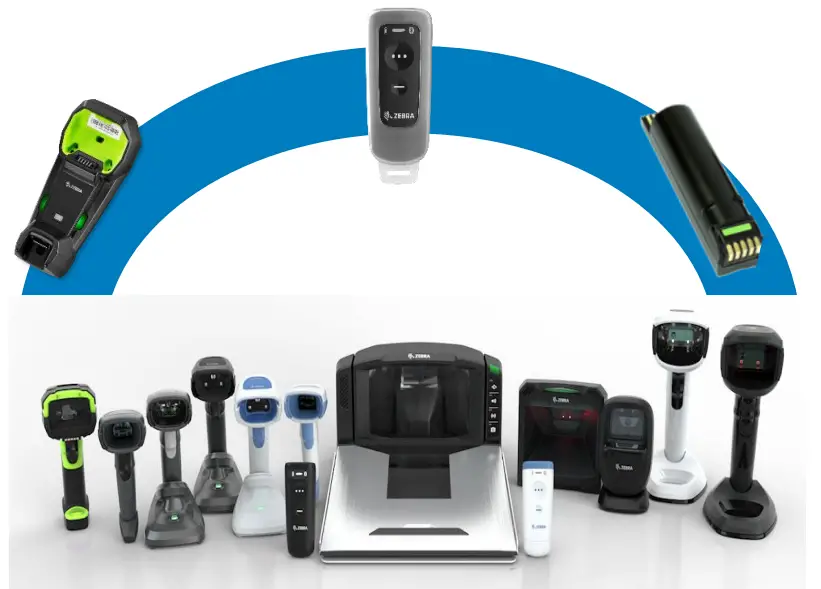

Customize Your Solution With A Full Range Of Accessories

We offer a choice of power supplies, battery packs, capacitors, USB adapters, mounts and holsters to fit every barcode scanning need. Enhance productivity for your workforce with accessories designed to complement and enhance scanner operation. Part numbers may vary by region.

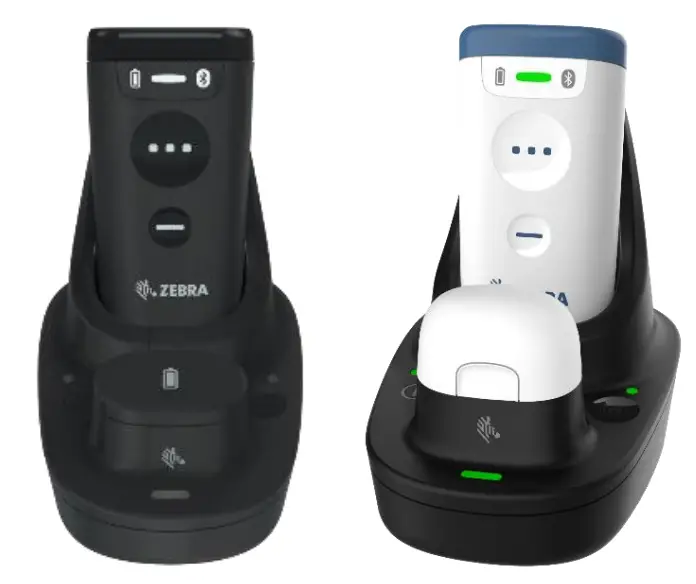

Single-slot Charge Communication Cradles

• Single-slot Device + Battery Charge Communication Cradle

  • Charges 1 Device and 1 Spare Battery
  • Part Numbers:
    • CR6080-SC100F4WW
      • CS6080 Cordless: Standard Cradle, Inductive, Bluetooth, Midnight Black – 1 Slot for Scanner and 1 Slot for Spare Battery.
        USB-C Cradle Cable CBL-CS6-S07-04 Sold Separately.
    • CR6080-SC100F4CN (China Only)
      • CS6080 Cordless: Standard Cradle, Inductive, Bluetooth, Midnight Black –
        1 Slot for Scanner and 1 Slot for Spare Battery.
        USB-C Cradle Cable CBL-CS6-S07-04 Sold Separately. China Only.

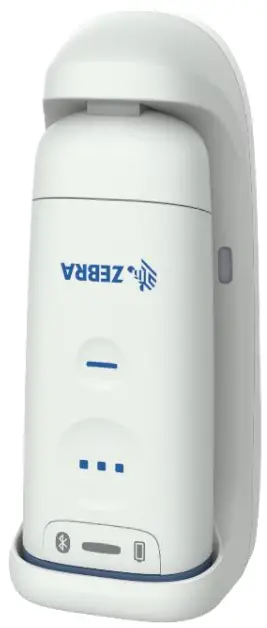

• Single-slot Device Healthcare Cart Mountable Charge Communication Presentation Cradle

  • Charges 1 Device
  • Part Numbers:
    • CR6080-PC100FBWW
      • CS6080 Cordless: Presentation Cradle, Inductive, Bluetooth, Healthcare White.
        USB-C Cradle Cable CBL-CS6-S07-0B Sold Separately.
    • CR6080-PC100FBCN (China Only)
      • CS6080 Cordless: Presentation Cradle, Inductive, Bluetooth, Healthcare White.
        USB-C Cradle Cable CBL-CS6-S07-0B Sold Separately. China Only

USB-C (Cradle) to USB-A (Host) Cables for Single-slot Charge Communication Cradles

• USB-C (Cradle) to USB-A (Host) Charge Cable for Single-slot Device + Battery  Charge Communication Cradle
  • Part Number:
    • CBL-CS6-S07-04 (Not Pictured)
      • CS6080 Cordless Cradle Cable: USB-C (Cradle) to USB-A (Host) Cable; 7ft. (2.1m), Straight – Midnight Black
• USB-C (Cradle) to USB-A (Host) Charge Cable for Single-slot Device Healthcare Cart Mountable Charge Communication Presentation Cradle
  • Part Number:
    • CBL-CS6-S07-0B (Not Pictured)
      • CS6080 Cordless Cradle Cable: USB-C (Cradle) to USB-A (Host) Cable; 7ft. (2.1m), Straight – HC White

Rack Mountable Multi-slot Chargers

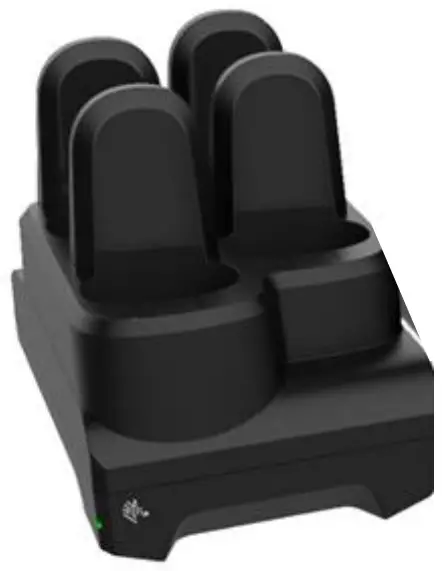

• Device Charger

  • Charges 4 Devices on Single-slot Charge Base
  • Part Number:
    • CR6080-SC400F4WW
      • CS6080 Cordless: 4-Slot Device ShareCradle, Inductive, Midnight Black.
        Includes Power Supply and DC line cord.
        3-wire grounded country specific AC line cord sold separately.

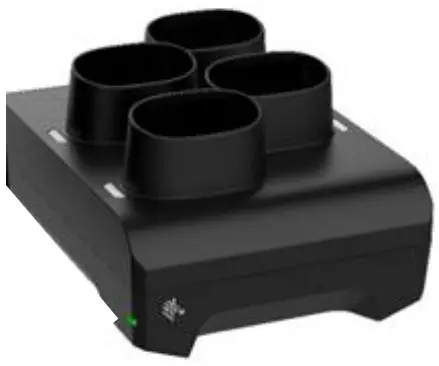

• Battery Charger

  • Charges 4 Spare Batteries on Single-slot Charge Base
  • Part Number:
    • CR6080-BC40004WW
      • CS6080 Cordless: 4-Slot Battery ShareCradle, Inductive, Midnight Black.
        Includes Power Supply and DC line cord.
        3-wire grounded country specific AC line cord sold separately.
• 19” Rack Mounting Accessory Part Number (BRKT-SCRD-SMRK-01)

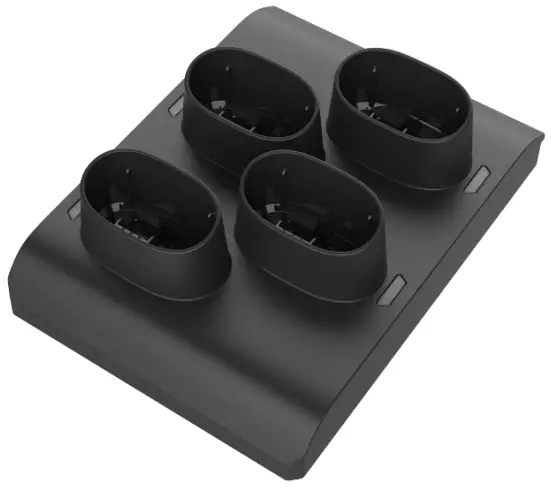

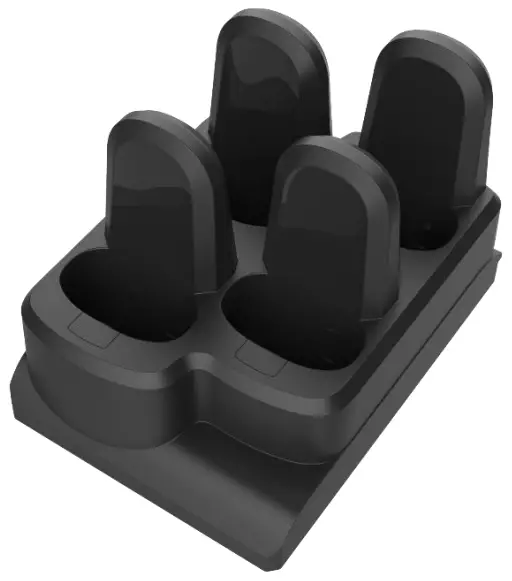

Multi-slot Charge Cups

• Device Charge Cup

  • 4 Device Charge Cup (sold separately from the charge base) can be installed on any Single, Double or 5 slot charge base
  • Part Number:
    • CR6080-SA40004WW
      • CS6080 Cordless: 4-Slot Device Cradle Adapter Cup, Inductive, Midnight Black
• Battery Charge Cup

  • 4 Battery Charge Cup (sold separately from the charge base) can be installed on any Single, Double or 5 slot charge base
  • Part Number:
    • CR6080-BA40004WW
      • CS6080 Cordless: 4-Slot Battery Cradle Adapter Cup, Inductive, Midnight Black

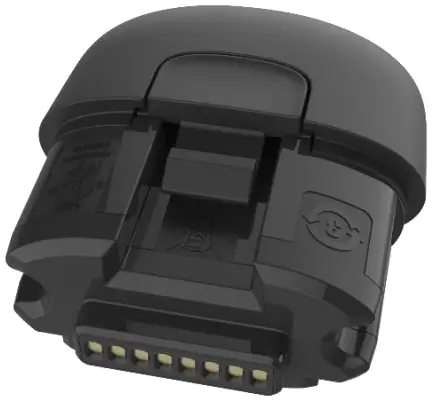

Spare Batteries

• CS60 735 mAh Lithium Polymer Spare Battery

  • Part Numbers:
    • BTRY-CS60EAB0E-04
      • Spare Battery, CS6080-SR
    • BTRY-CS60EAB0E-04K
      • Spare Battery, CS6080-SR – India, Korea, Japan Only

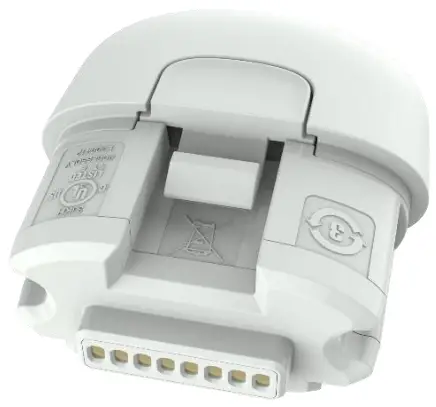

• CS60-HC 735 mAh Lithium Polymer Spare Battery

  • Part Numbers:
    • BTRY-CS60EABHE-0B
      • Spare Battery, CS6080-HC
    • BTRY-CS60EABHE-0BK
      • Spare Battery, CS6080-HC – India, Korea, Japan Only

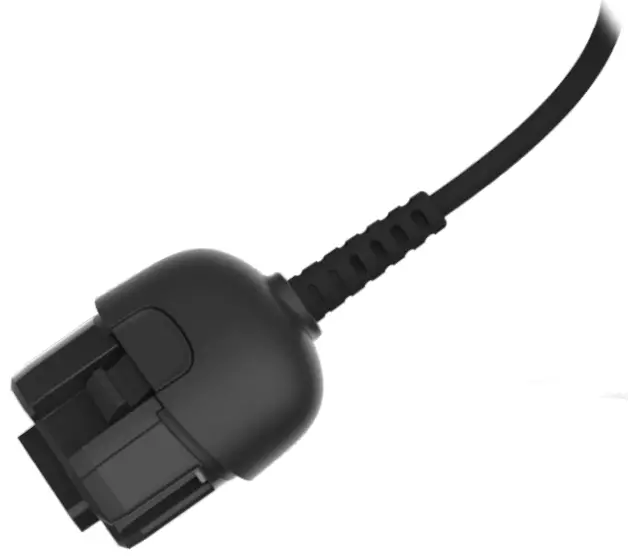

Corded USB-A (Host) Converter

• Converts the CS60 cordless device to a corded device

  • Part Number:
    • CVTR-U70060C-04
      • 7 ft (2.1m) Corded USB Converter – CS6080-SR (Midnight Black)

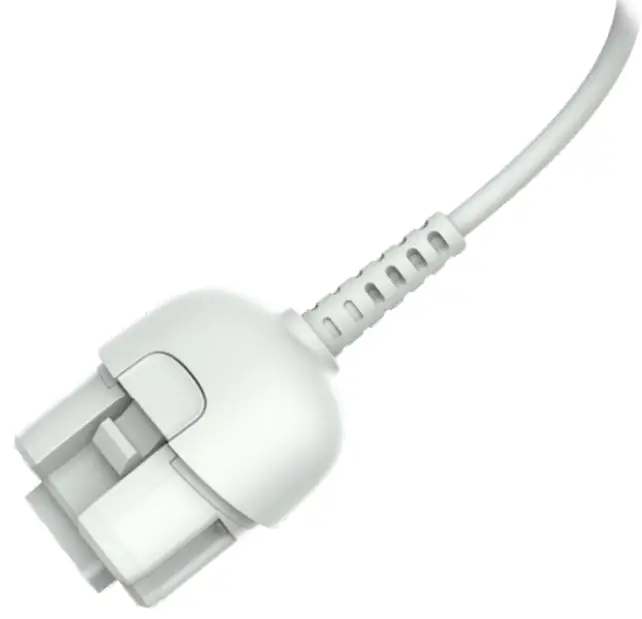

• Converts the CS60-HC cordless device to a corded device

  • Part Number:
    • CVTR-U70060C-0B
      • 7 ft (2.1m) Corded USB Converter – CS6080-HC (HC White)

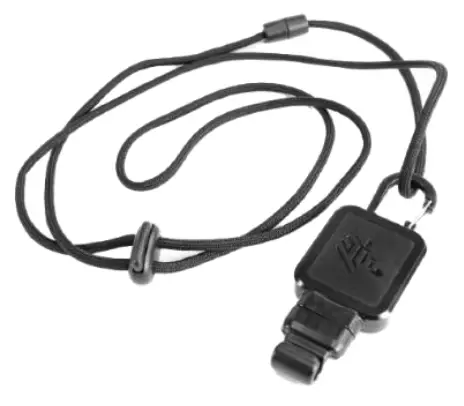

Wearable Accessories

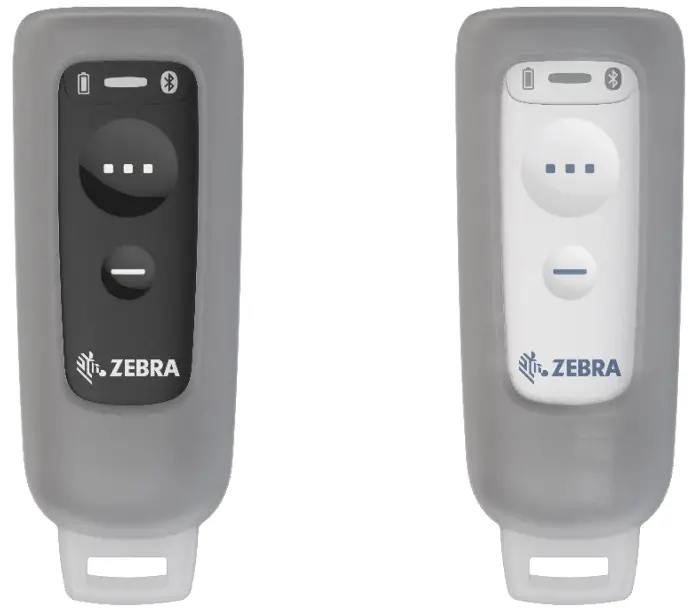

• Lanyard, Multi-purpose Retractor and Silicon Sleeve (sold together): Comfortably and safely wear the CS60 or CS60-HC on a neck lanyard or belt loop; includes silicone protector.
  • Part Number:
    • LNYD-000060W-04
      • Lanyard, Retractor, Silicon Sleeve – CS6080 Cordless (Midnight Black)

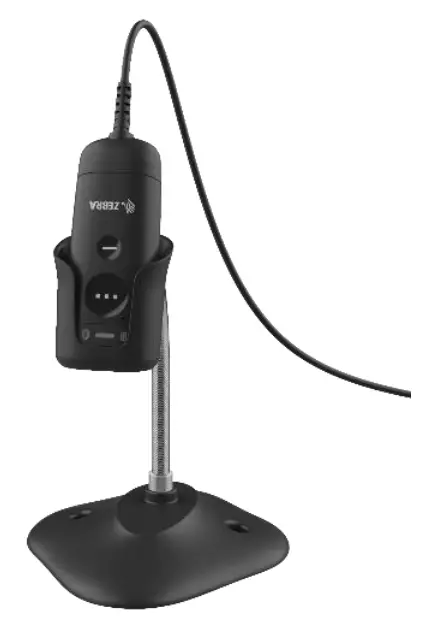

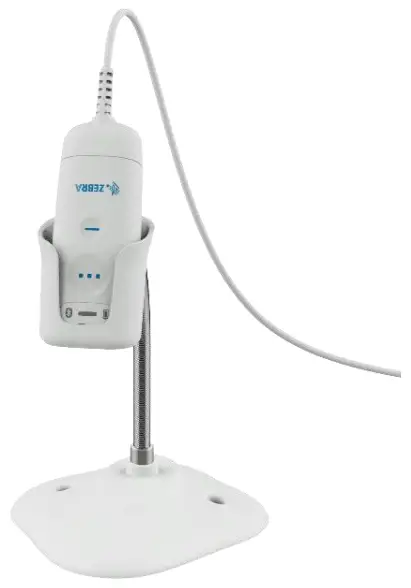

Gooseneck Intellistands and Cups

• Non-weighted
  • Part Numbers:
  • STND-GS0060C-04
    • Gooseneck Intellistand – CS6080-SR Corded (Midnight Black)
  • STND-GS0060C-0B
    • Gooseneck Intellistand – CS6080-HC Corded (HC White)
• Weighted
  • Part Numbers:
    • STND-WS0060C-04 (Not Pictured)
      • Gooseneck Intellistand, Weighted – CS6080-SR Corded (Midnight Black)
    • STND-WS0060C-0B (Not Pictured)
      • Gooseneck Intellistand, Weighted – CS6080-HC Corded (HC White)
• Cups (Compatible with Non-weighted and Weighted Intellistands)
  • Part Numbers:
    • CUP-GS0060C-04
      • Gooseneck Cup – CS6080-SR Corded (Midnight Black)
    • CUP-GS0060C-0B
      • Gooseneck Cup – CS6080-HC Corded (HC White)

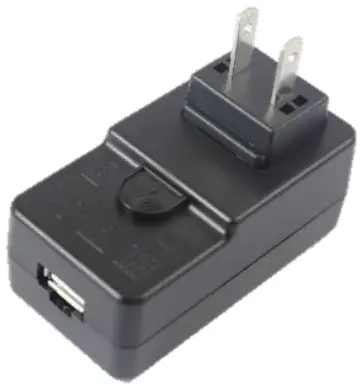

Wall Charger – For use with Single-slot Device + Battery Charge Communication Cradle

Wall Charger – Power Supply

PWR-WUA5V12W0XX
Power Supply-100-240 VAC, 5 V, 2.5 A with country specific plugs.

AC Line Cords – Country Specific
