RC-Tire Additive Applicator for 1-8 GP
Instruction Manual

Tire Additive Applicator for 1-8 GP

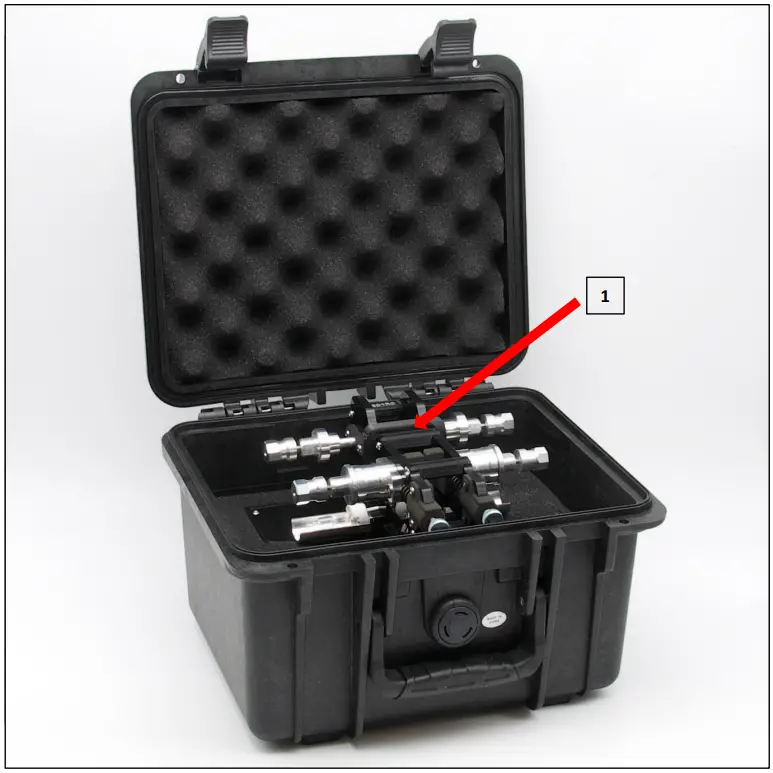

1. PULL THE TIRE SAUCE APPLICATOR OUT FROM THE CASE BY ITS RETRACTABLE HANDLE

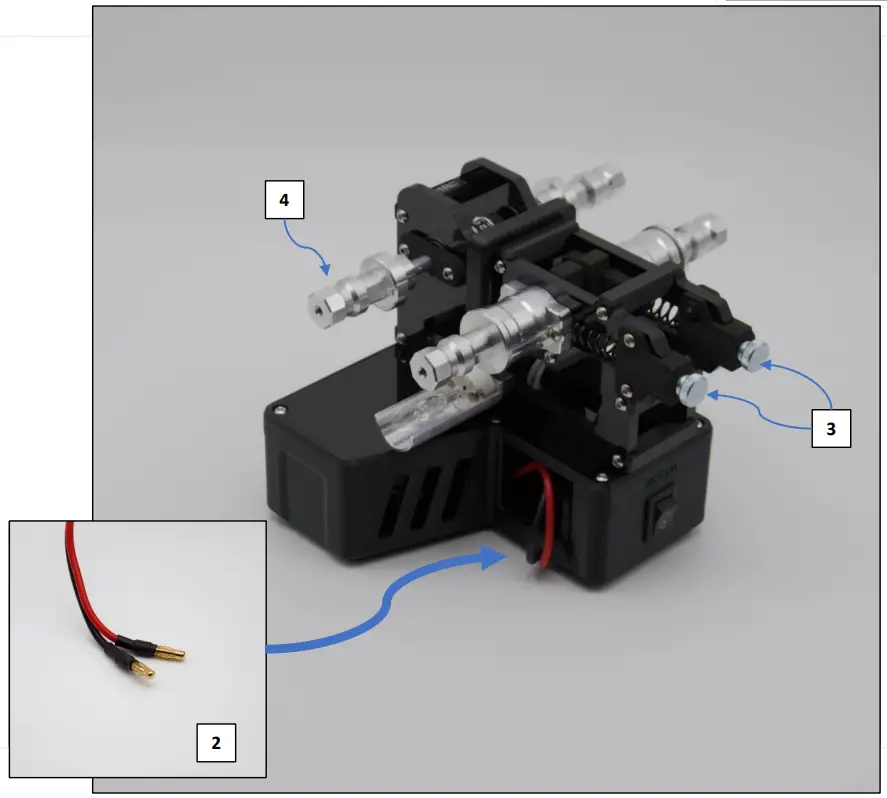

2. PULL BULLET PLUGS OUT, EXTEND CABLE, AND PLUG IT INTO A 12V POWER SUPPLY
3. LOOSEN UP BOTH THUMB NUTS APPROXIMATELY 5MM OUT (TO RELEASE SPRING COMPRESSION DURING MOUNTING THE TIRES)

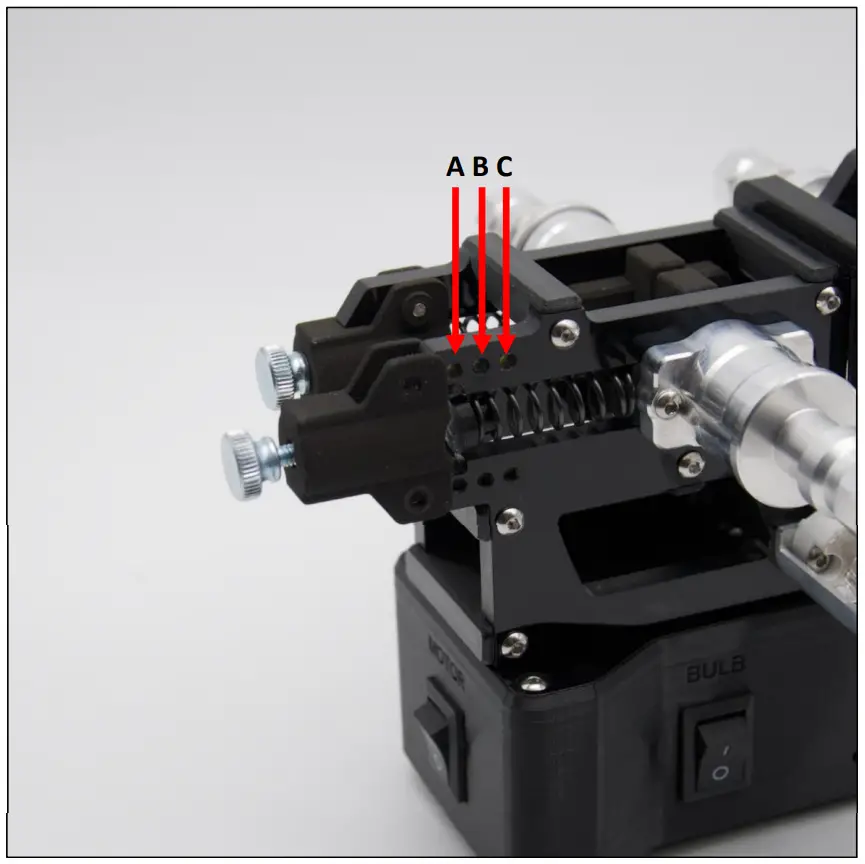

4. UNSCREW ALL 4 WHEEL NUTS* DEFAULT SPRING CARRIER SETTING IS AT “B”. ASIDE FROM THE THUMB NUT, SPRING COMPRESSION CAN ALSO BE ADJUSTED BY MOVING THE CARRIER IN 3 POSITIONS. FOR SMALL TIRE DIAMETERS, USE POSITION “C” IF MORE COMPRESSION IS REQUIRED. REMOVE THE M3X12 SCREWS (2X), PICK A POSITION, AND DO NOT OVER TORQUE SCREWS WHEN INSTALLED BACK IN.

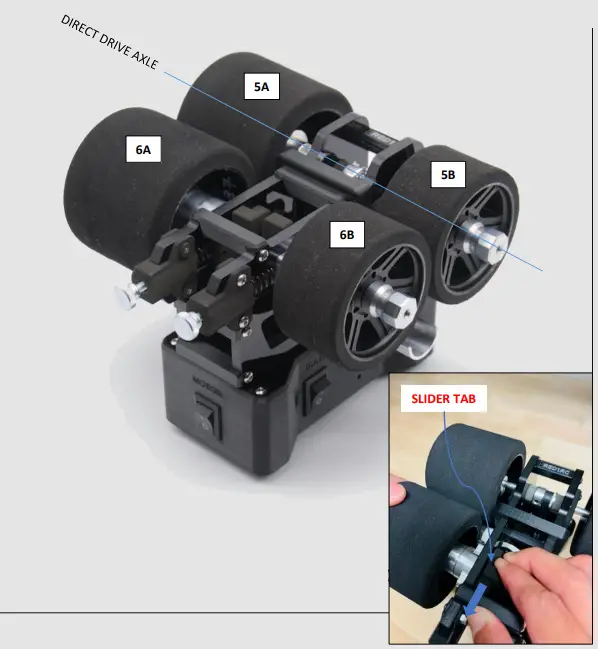

5. 5A/5B. MOUNT TIRES FIRST AT THE DIRECT DRIVE AXLE SIDE. MAKE SURE TO ENGAGE AXLE PIN INTO THE RIMS THEN INSTALL WHEEL NUT(S).
6. 6A/6B. MOUNT TIRES BY PULLING SLIDER TAB(S) THEN INSTALL WHEEL NUT(S).

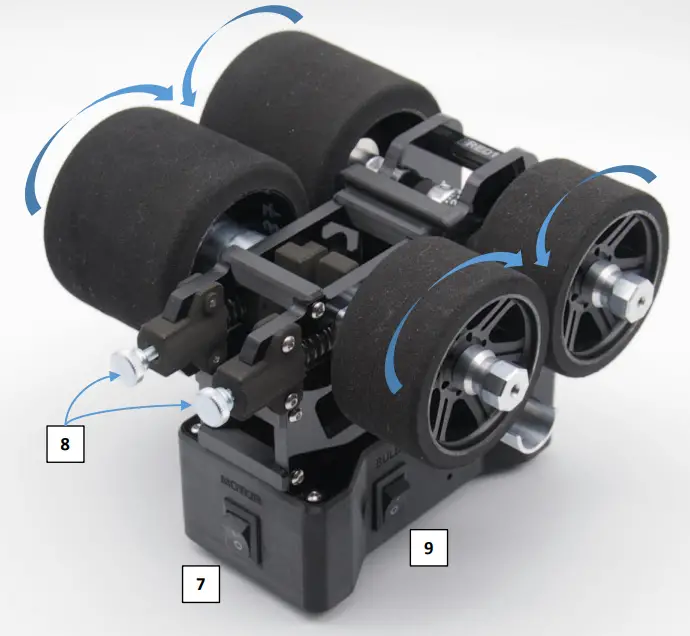

7. TURN ON SWITCH (MOTOR). TIRE DIRECTION SHOULD BE AS SHOWN (BLUE ARROW). APPLY TIRE SAUCE AMOUNT TO YOUR LIKING.
8. INCREASE/DECREASE COMPRESSION BY TIGHTENING/LOOSENING THE THUMB NUTS.
9. TURN ON SWITCH (BULB) TO ACCELERATE TIRE SAUCE DRYING TIME.

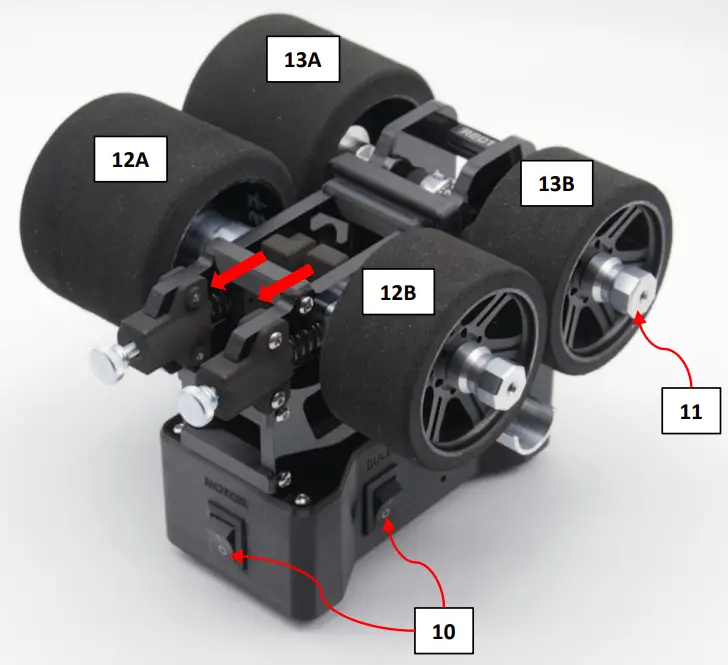

   TIRE REMOVAL
10. TURN OFF BOTH SWITCHES.
11. UNSCREW ALL 4 WHEEL NUTS.
12. 12A/12B. REMOVE TIRES BY PULLING SLIDER TAB(S).
13. 13A/13B. REMOVE TIRES.
