BRAUN Series Pro 9 Foil Electric Shaver

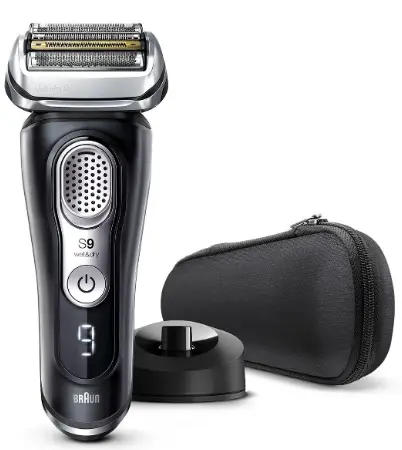

BRAUN-Series-Pro-9-Foil-Electric-Shaver-product

Read these instructions completely, they contain safety information. Keep them for future reference.

WARNING

  • BRAUN-Series-Pro-9-Foil-Electric-Shaver-fig-5This shaver is suitable for cleaning under running water and use in a bathtub or shower. For safety reasons, it can only be operated cordless. Detach the shaver from the power supply before using it with water.
  • Keep power supply, charging stand, PowerCase and cleaning station dry.
  • This appliance is provided with a Safety Extra Low Voltage plug-in power supply. To avoid risk of electric shock, do not exchange or tamper with any part of it.
  • Only use Braun power supply type BRAUN-Series-Pro-9-Foil-Electric-Shaver-fig-6 .
  • Do not use if the appliance or any attachment is damaged. Do not open the appliance!

The built-in rechargeable batter-ies of the shaver can only be replaced by an authorized Braun Service center. This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super-vision or instruction concerning use of the appliance in a safe way and understand the hazards involved. If the appliance is provided with a hair clipping attachment, it can be used for hair clipping purpose by children aged from 3 years under supervision. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Important
Recommended ambient temperature for charging is 5 °C to 35 °C, for storage and shaving it is 15 °C to 35 °C. Do not expose the appliance to tempera-tures higher than 50 °C for extended periods of time.

  • The shaver head needs cleaning under hot running water after each foam or gel usage! Switch the shaver on and rinse until all residues have been removed.
  • Only use the appliance for its intended purpose. For hygienic reasons, do not share this appliance with other persons.
  • Shaver needs to be completely dry, when stored or charged in the PowerCase. Wipe the PowerCase with a damp cloth from time to time.
  • For storage the PowerCase should be fully charged and recharged from time to time.

BRAUN-Series-Pro-9-Foil-Electric-Shaver-fig-7Product contains batteries and / or recyclable electric waste. For environment protection, do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.
Subject to change without notice.

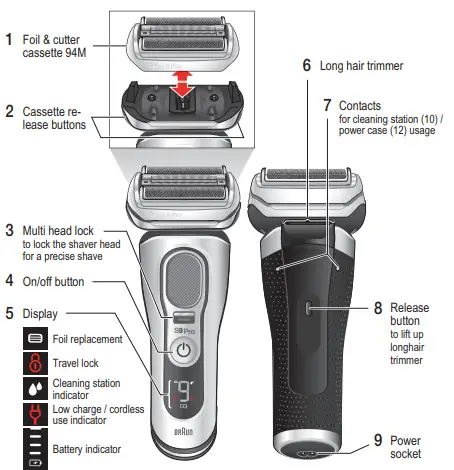

Description Shaver

BRAUN-Series-Pro-9-Foil-Electric-Shaver-fig-1BRAUN-Series-Pro-9-Foil-Electric-Shaver-fig-2

  1. Foil & cutter cassette 94M
  2. Cassette release buttons
  3. Multi head lock to lock the shaver head for a precise shave
  4. On/off button
  5. Display
    • Foil replacement indicator
    • Travel lock indicator
    • Cleaning station indicator
    • Low charge / cordless use indicator
    • Battery indicator with status bars and minutes left (9 minutes and below)
  6. Long hair trimmer
  7. Contacts for cleaning station / PowerCase usage
  8. Release button to lift up long hair trimmer
  9. Power socket

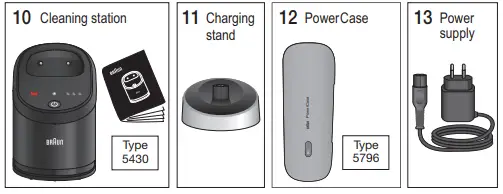

  10. Cleaning station (see separate use instructions)
  11. Charging stand
  12. PowerCase
  13. Power supply

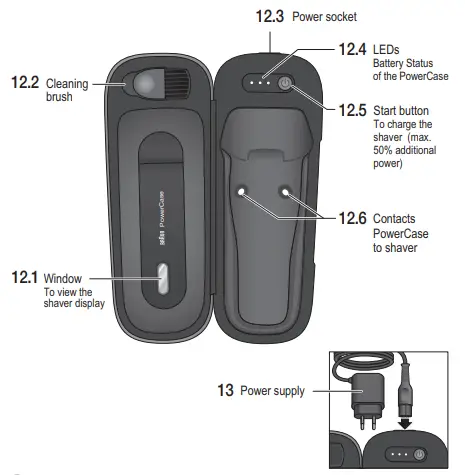

Description PowerCaseBRAUN-Series-Pro-9-Foil-Electric-Shaver-fig-3BRAUN-Series-Pro-9-Foil-Electric-Shaver-fig-4

  • 12.1 Window to view the shaver display
  • 12.2 Cleaning brush
  • 12.3 Power socket
  • 12.4 Battery status LEDs of the PowerCase 12.5 Start button to charge the shaver (max. additional 50% battery power)
  • 12.6 Contacts of the PowerCase need to align with the contacts of the shaver

Note: Content may vary by model
Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.BRAUN-Series-Pro-9-Foil-Electric-Shaver-fig-8www.service.braun.com
