AiM SPORTS GPS03 GPS compatibility

Compatibility

AiM GPS compatibility

• Question:
  Which GPS Module can I connect to my device to sample lap/split times and start finish line coordinates?
• Answer:
  AiM designed and developed different GPS Modules, compatible with the various generations of AiM devices:

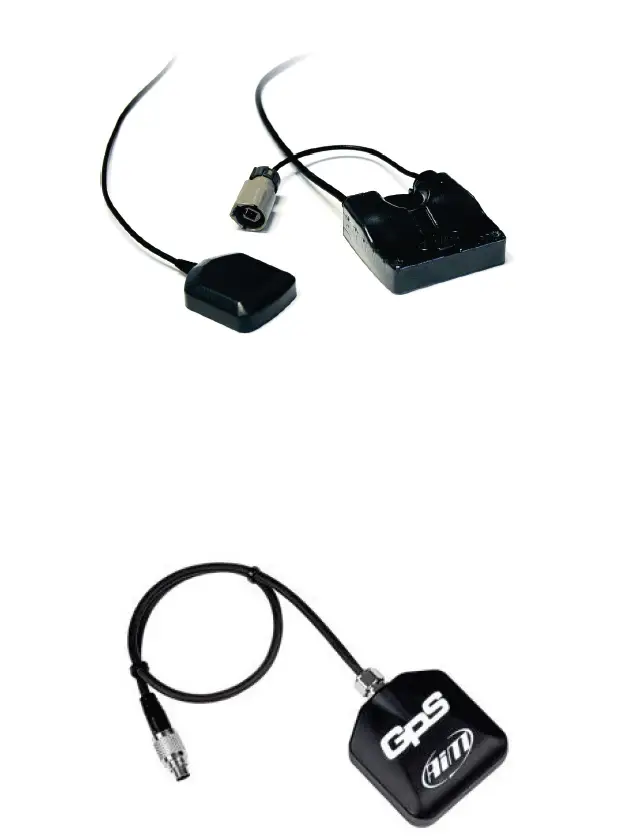

• GPS03 – supported by:
  • MXL Strada/Pista/Pro/Pro05
  • EVO3 Pista/Pro

GPS05 – supported by:

• MXL2
• MXS/MXS 1.2
• MXS Strada/MXS Strada 1.2
• MXG/MXG 1.2
• MXG 1.2 Strada
• MXP/MXP Strada
• SmartyCam GP HD Rev. 2.2
• MXsl
• EVO3 Pro/Pista
• EVO4S
• EVO5
• MXL Strada/Pista/Pro/Pro05
• ECU Bridge
• RPM Bridge
• MyChron4

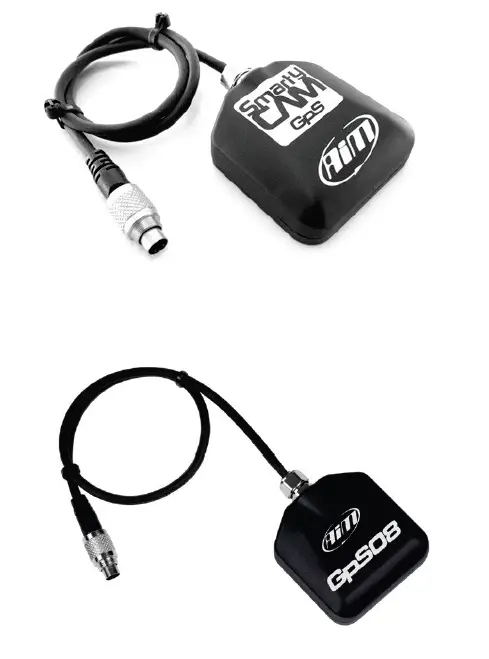

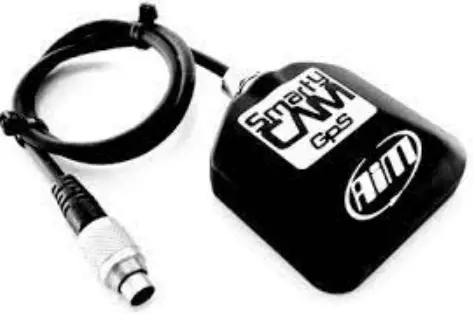

GPS05B – supported by:

• SmartyCam

GPS08 – supported by:

• EVO3 Pro/Pista
• ECU Bridge
• RPM Bridge
• MXL Strada/Pista/Pro/Pro05
• MyChron4
• EVO4S
• EVO5
• MXL2
• MXS / MXS Strada
• MXG
• MXsl
• MXS 1.2 / MXS 1.2 Strada
• MXP / MXP Strada
• MXG 1.2 / MXG 1.2 Strada
• SmartyCam GP HD Rev. 2.2
• MXK10 4 gen/5 gen
• MX2E
• PDM32
• PDM08
• SW4 Steering Wheel 4

In addition to GPS satellites detection, it even detects the Glonass (Global Navigation Satellite System) signal, with an average number of 20 satellites contemporarily.

GPS08B – supported by:

• SmartyCam GP
• SmartyCam GP HD
• SmartyCam HD Rev. 2.1
• SmartyCam GP HD Rev. 2.1

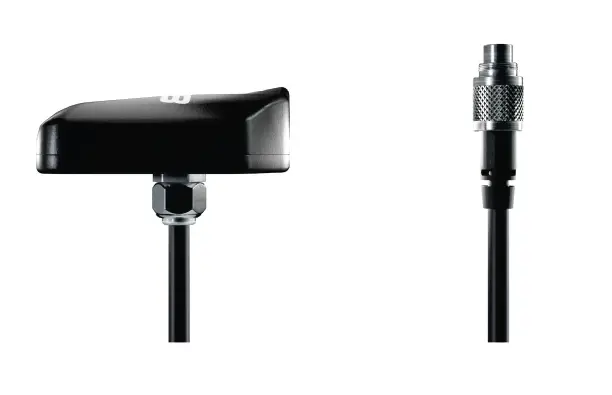

GPS08R – for the installation on the vehicle roof; supported by:

• EVO3 Pro/Pista
• ECU Bridge
• RPM Bridge
• MXL Strada/Pista/Pro/Pro05
• MyChron4
• EVO4S
• EVO5
• MXL2
• MXS / MXS Strada
• MXG
• MXsl
• MXS 1.2 / MXS 1.2 Strada
• MXP / MXP Strada
• MXG 1.2 / MXG 1.2 Strada
• SmartyCam GP HD Rev. 2.2
• MXK10 4 gen/5 gen
• MX2E
• PDM32
• PDM08
• SW4 Steering Wheel 4

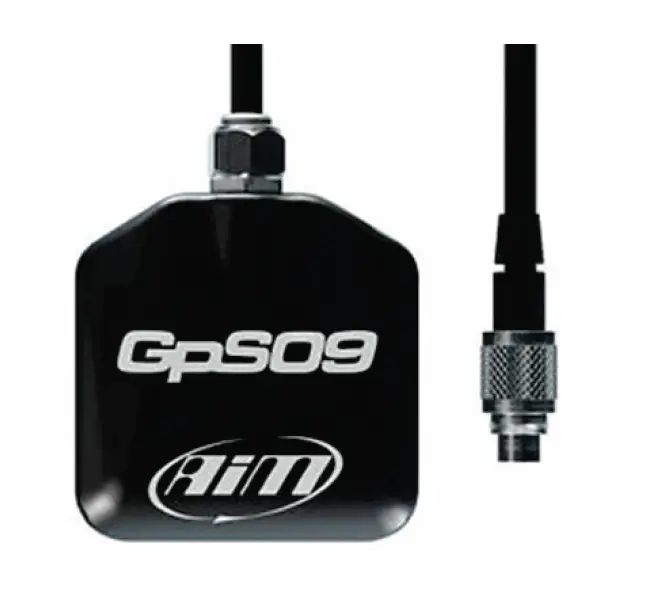

GPS09 – supported by

• EVO4S
• EVO5
• MXL2
• MXS / MXS Strada
• MXG
• MXsl
• MXS 1.2 / MXS 1.2 Strada
• MXP / MXP Strada
• MXG 1.2 / MXG 1.2 Strada
• SmartyCam GP HD Rev. 2.2
• MXK10 4gen
• MXK10 5gen
• MX2E
• PDM32
• PDM08
• SW4 Steering Wheel 4

GPS09R – per installazione sul tetto del veicolo; compatibile con:

• EVO4S
• EVO5
• MXL2
• MXS / MXS Strada
• MXG
• MXsl
• MXS 1.2 / MXS 1.2 Strada
• MXP / MXP Strada
• MXG 1.2 / MXG 1.2 Strada
• SmartyCam GP HD Rev. 2.2
• MXK10 4gen
• MXK10 5gen
• MX2E
• PDM32
• PDM08
• SW4 Steering Wheel 4
