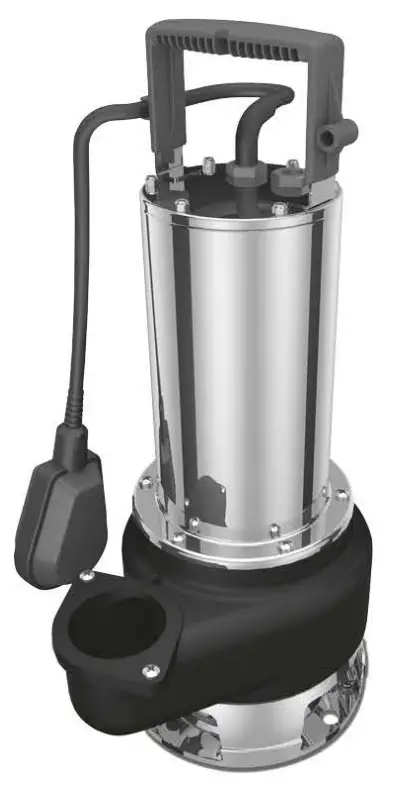

Oase 25000 ProMax MudDrain Drainage Pump

WARNING

Disconnect all electrical units in the water from the power supply before reaching into the water. Otherwise there is a risk of injuries or death by electrocution.
This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.

Safety information

Electrical connection

Only connect the unit if the electrical data of the unit and the power supply match.
Only plug the unit into a correctly installed outlet. Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
Protect open plugs and sockets from moisture.

Safe operation

Operate the unit only when there are no people in the water.
Do not use the unit, if electrical lines or the housing are damaged.
If a power connection cable is damaged, have it replaced immediately by OASE, an authorized customer service or a qualified electrician to prevent electric shock.
Do not carry or pull the unit by its power cable.
Route lines so that they are protected from damage and nobody can trip over them.
Never make technical modifications to the unit.
Only carry out work on the unit that is described in this manual.
Only use original spare parts and accessories.
Should problems occur, please contact the authorized customer service or OASE.

Intended use

Only use the product described in this manual as follows:

For pumping clear water or rain water.
For pumping chlorinated water.
For pumping dirty water containing particles max. 40 mm in size
For irrigating and watering.
For transferring water from and draining basins or ponds/pools.
For pumping the water out of rain barrels or cisterns.
In compliance with the technical specifications. (→ Technical data)

The following restrictions apply to the unit:

Not suitable for salt water.
Not suitable for drinking water.
Do not use for long-term operation (e.g. continuous recirculation of water in a pond).
Do not use for industrial purposes.
Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
Do not connect to the drinking water supply.

Product description

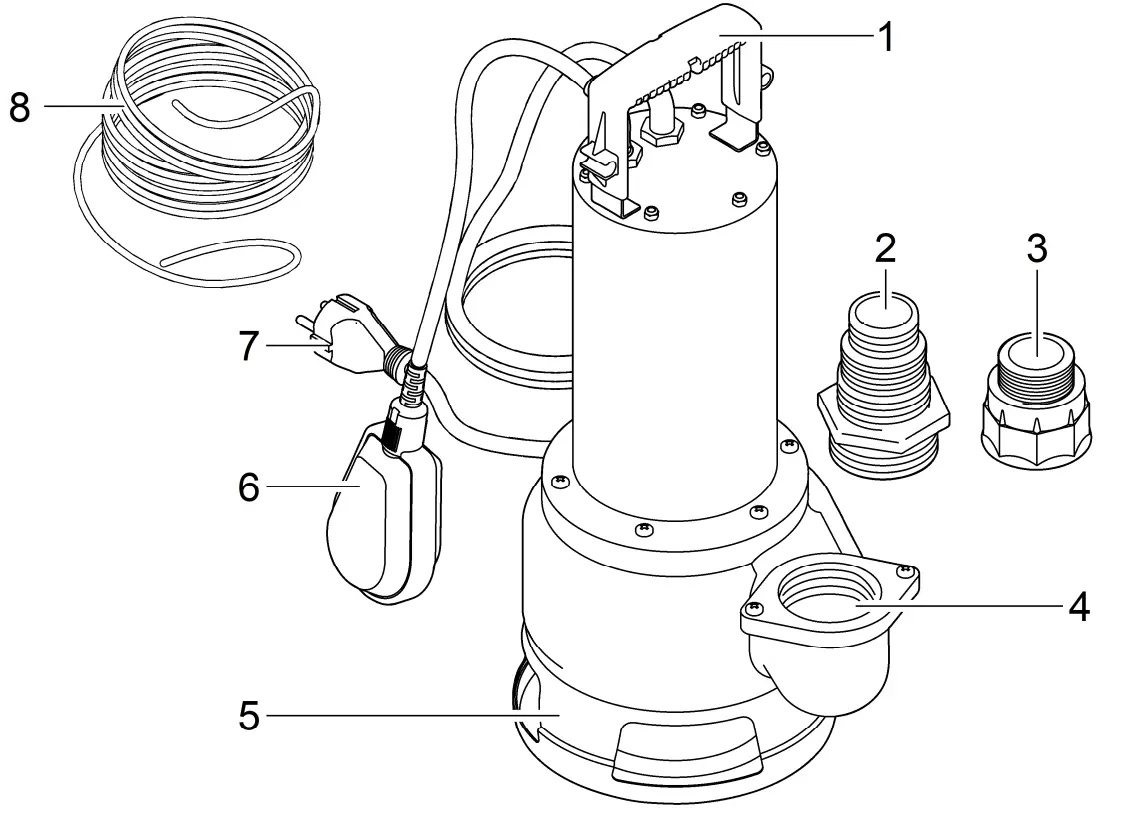

Overview

1	Handle
2	Stepped hose adapter
3	Reducing coupling, G1½ to G1¼
4	Connection, pressure side G2
5	Pump base
6	Float switch
7	Power connection cabl
8	Fastening cable, 10 m

The unit contains cast iron which is subject to a natural corrosion process. This does not impair the function of the unit.

Symbols on the unit

	The unit is dust-proof and water-tight down to 7 m.
	Never dispose of the unit with normal household waste.
	Read the operating instructions.

Installation and connection

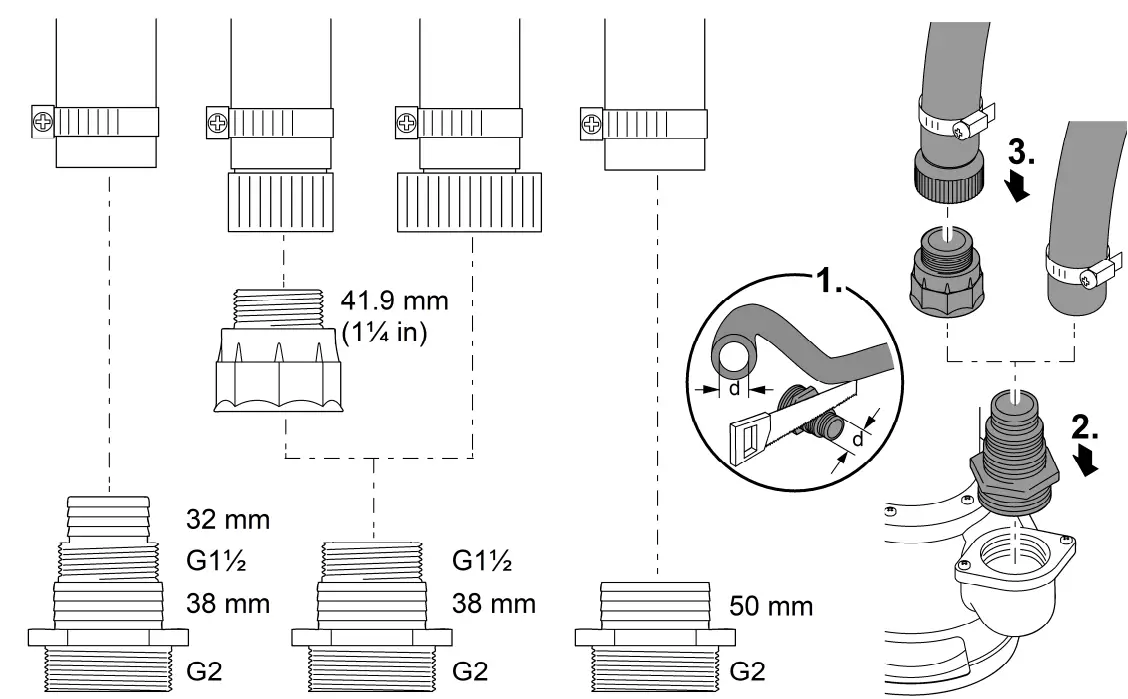

Connecting the pressure hose

An optimum flow rate is achieved with a 50 mm hose diameter.
How to proceed:

Adapt the stepped hose adapter to the hose diameter.
Screw the stepped hose adapter onto the connection on the pressure side.
Connect the pressure hose to the stepped hose adapter. – Secure the pressure hose with a hose clip.

Automatic mode

When the water level rises, it lifts the float switch until the switch-on point is reached and the pump switches on.
When the water level drops, the float switch lowers until the switch-off point is reached and the pump switches off.

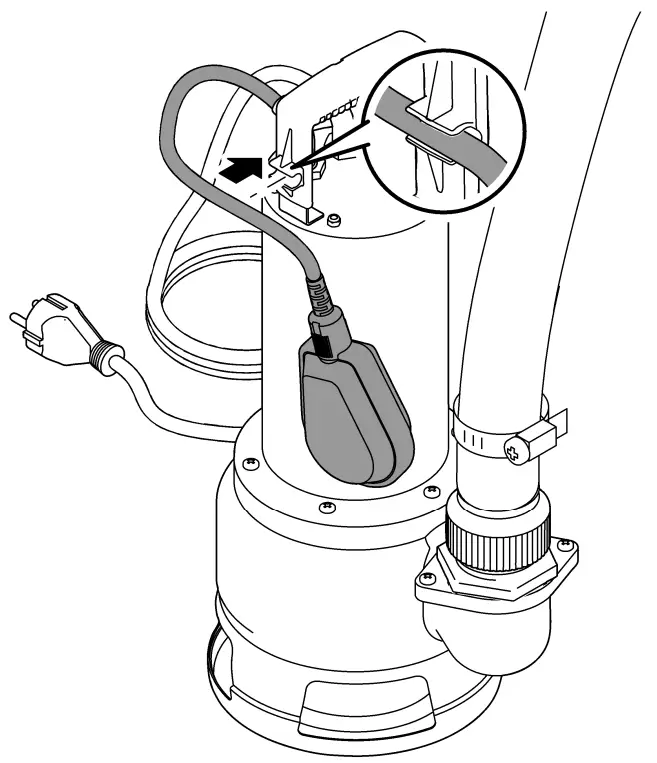

How to proceed:

Push the float switch cable into the cable clip.
– The shorter the cable between the float switch and the cable clip, the lower the switch-on point and the higher the switch-off point.

To ensure faultless function, ensure that the length of cable between the float switch and the cable clip is at least 100 mm long.

The minimum residual water height is only reached in manual mode.

Manual mode

The pump remains permanently switched on if the float switch is positioned vertically (cable hanging down).

NOTE

The pump can run dry in manual mode. Running the pump dry increases wear.

Switch off the pump when the minimum water level is reached.

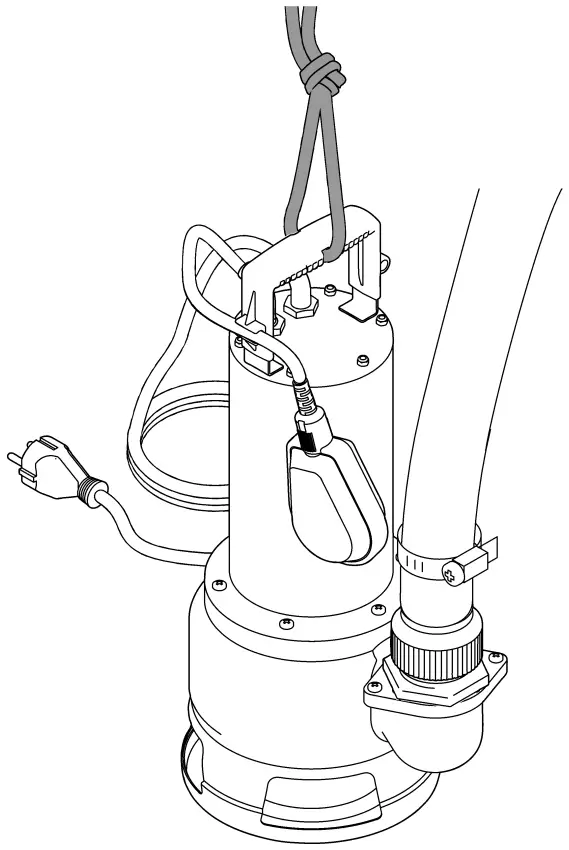

Installing the pump

Install the pump in a vertical and stable position in the water.
If it needs to be lowered into a shaft, fasten a rope to the handle. Do not carry it by the power connection cable.
Install the pump so that it does not take in dirt particles with a size >40 mm, which would block the intake. Install the pump in a raised position if necessary.
Ensure that the float switch can always move freely.

Operation

WARNING

Serious injury or death from electric shock is possible.

Only operate the pump if no persons are in the water.
Disconnect all electrical devices in the water from the power supply before reaching into the water

NOTE

The pump is not suitable for long-term operation. Long-term operation will reduce the pump service life accordingly.

Switching on the unit

Insert the power plug into the outlet.
– The pump is ready for operation.
– The pump will start up as soon as the water level reaches the activation height.

Switching off the unit

Disconnect the power plug.
– When the pump is switched off, residual water in the hose may flow back and out of the pump intake.

Rinse the pump with clear water after use.

Maintenance and cleaning

NOTE

Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment.

Clean the unit with clean water and a soft brush or sponge wherever possible. Remove stubborn dirt with the aid of the recommended cleaning agents.

Clean the unit as required, but at least twice a year.

Recommended cleaning agent for removing stubborn limescale deposits:
– Pump cleaning agent PumpClean from OASE.
– Vinegar- and chlorine-free household cleaning agent.
After cleaning, thoroughly rinse all parts in clean water.

Storage/overwintering

The unit is not frost-proof and has to be removed and put into storage if freezing temperatures are expected.
How to correctly store the unit:

Thoroughly clean the unit and replace damaged components.
Store the unit in a dry and frost-free place.
Protect open plug connections from moisture and dirt.
Empty hoses and connections as much as possible

Troubleshooting

Malfunction	Possible cause	Remedy
The pump does not start	The power supply is interrupted	Plug in the power plug Check the fuse of the power outlet
The pump switches off after a short running period	The overload protection has switched the pump off due to overheating	Clean the intake opening and the pressure hose Allow the pump to cool down. The overload protection is auto- matically reset after cooling down
The pump is running but is not delivering, or the delivered quantity is insufficient	The pressure hose is blocked	Route the pressure hose with- out kinks Check the outlet and clean if necessary
	The intake opening is clogged	Clean the intake opening
	The pressure hose contains air	Bleed the pressure hose
	If applicable: The non-return valve is incorrectly fitted in the pressure hose or clogged	Fit the non-return valve cor- rectly Clean the non-return valve
	The impeller unit is faulty or worn	Contact OASE. The impeller unit may only be replaced by the OASE service.

Technical data

ProMax MudDrain			25000	30000
Rated voltage		V AC	230	230
Rated frequency		Hz	50	50
Rated power		W	1200	1500
Protection type			IP68	IP68
Connection, pressure side		G	2	2
Minimum switch-on height / maximum switch-off height		mm	550	300
Maximum switch-on height / minimum switch-off height		mm	750	180
Flow rate	maximum	l/h	25000	30000
Head height	maximum	m	10	12
Immersion depth	maximum	m	7	7
Particle size	maximum	mm	40	40
Power connection cable	Length	m	10	10
Dimensions	Length	mm	178	178
	Width	mm	246	246
	Height	mm	453	453
Weight		kg	13.60	14.10

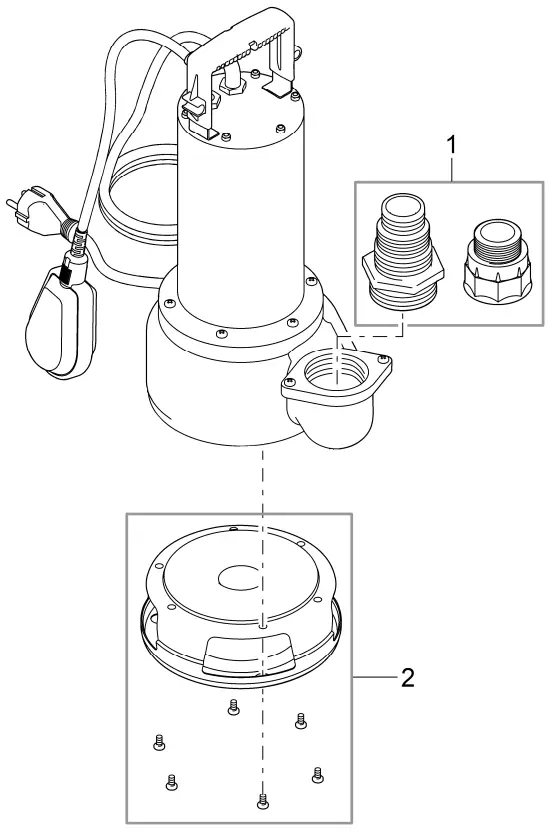

Wear parts

The following components are wear parts and may only be replaced by the OASE service.

Impeller unit

Disposal

NOTE

Do not dispose of this unit with domestic waste.

Dispose of the unit by using the return system provided for this purpose.
Should you have questions, please contact your local disposal company. They will give you instructions on how to dispose of your unit properly.
Disable the unit by cutting off the cables.
