Nutrichef Nchub13 Digital Hot Water Dispenser User Guide

nutrichef NCHUB13 Digital Hot Water Dispense

SAFETY PRECAUTIONS

When using an electrical appliance, basic safety precautions should always be followed, including the following:

1.  It is very important to read Instruction Manual carefully before use.
2. Please carry or handle this Hot Water Dispenser using the built-in carrying handle.
3. Do not place on or near other high temperature appliances.
4.  Do not immerse power cord, or Hot Water Dispenser body in water or other liquids for fear of electric shock.
5.  Keep this Hot Water Dispenser out of children’s reach during use.
6.  Make sure to unplug power cord from the Water Dispenser when cleaning the Hot Water Dispenser.
7.  Do not use if power cord is frayed, damaged or the Hot Water Dispenser operates abnormally. Send this Hot Water Dispenser to the nearest authorized repair facility for inspection, adjustment or repair. Do not attempt to disassemble or repair.
8.  It is not recommended to use tools other than what are included with this Hot Water Dispenser.
9.  This Hot Water Dispenser is for indoor use only.
10. Do not suspend power cord off the edge of tables or countertops for fear of injury resulting from overturning the Hot Water Dispenser.
11. Keep this Hot Water Dispenser away from hot surfaces, stoves and baking ovens.
12. This Hot Water Dispenser operates using only 120V AC.
13. Make sure that exterior/interior of the Hot Water Dispenser is clean and free of foreign material.
14. Do not place hands close or touch the steam vent for fear of burns resulting from high temperature steam released in the course of boiling water.
15.  Do not boil more water than the maximum amount allowable.
16. Use damp cloth or sponge for cleaning Hot Water Dispenser.
    Never use metal or abrasive scrubbers.
17. Do not use this Hot Water Dispenser for purposes other than what is intended.
18. Always use caution when there is hot water present in the Hot Water Dispenser.
19. Do not suddenly change the temperature of the inner metal lining.
    For example, adding ice into boiling water.
20. Do not touch the bottom heating area until it cools down.

INTRODUCTION

The Nutri chef Digital Hot Water Dispenser is tailored for making hot water available 24/7. With the new emphasis on “Healthy Living-Healthy Life“, many people are adding hot tea to quench their thirst. Today, as people are exposed to more and more chemicals and heavy metals in their environment, they are developing certain sensitivities to them. From these sensitivities, awareness and fears of using non-stick coated cookware are ever increasing. Taking this into consideration, along with the pursuit of healthier living, our company has developed and manufactured the Nutri chef Digital Hot Water Dispenser. We believe our Hot Water Dispenser, free of chemicals and heavy metals, promotes a healthier stress free living.

FUNCTIONS

The Nutri chef Digital Hot Water Dispenser is tailored for people who lead a busy, active lifestyle, and are also health conscious. This Hot Water Dispenser will boil water and can keep warm at three different temperatures. Keep warm at 208°F; good for tea, instant coffee and other instant drinks, at 185°F; energy saving and it is the default keep warm temperature setting, and 149°F; good for Japanese Green Tea or Baby Formula. It also comes with a Stand-by function for extended energy saving when you will not use the Hot Water Dispenser for a long period of time, such as when you are asleep.

SPECIFICATIONS

MAIN PARTS DIAGRAM

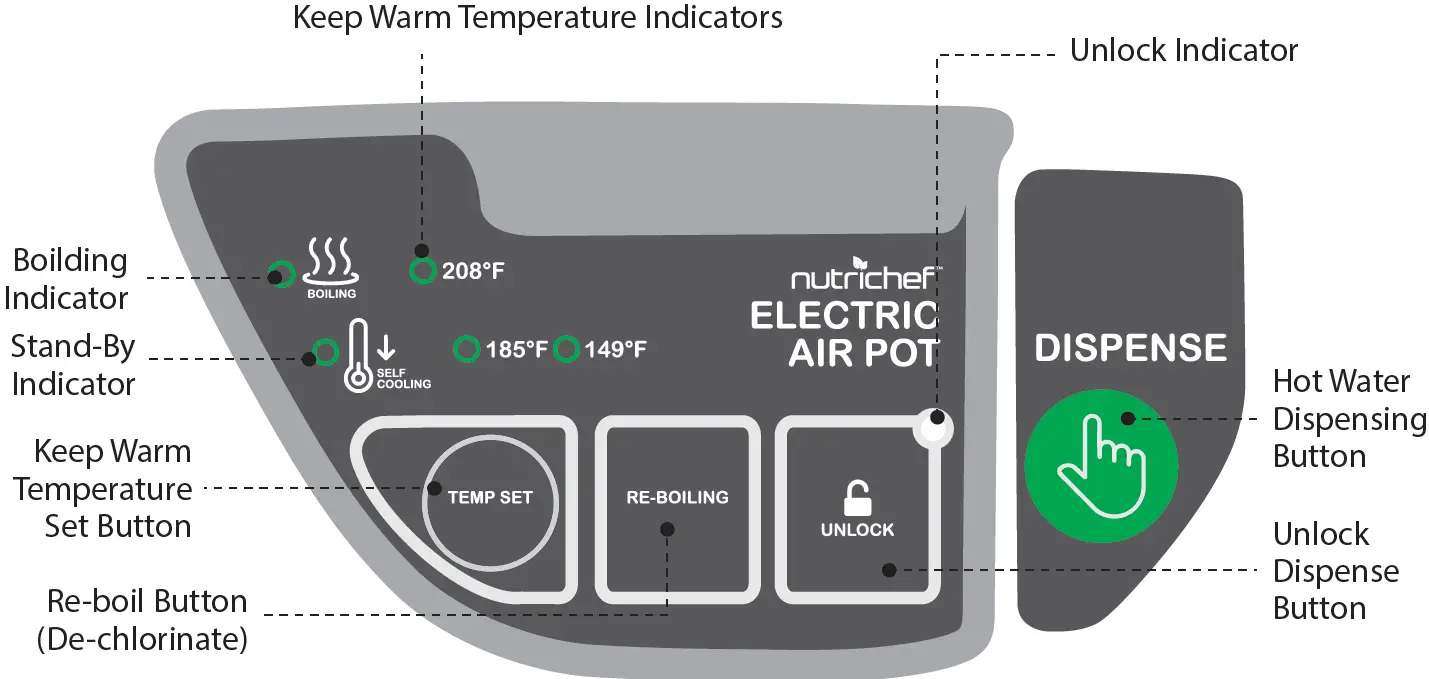

CONTROL PANEL

DIRECTIONS
Pay attention to the following before use:

1. Preparation prior to first operation.
   Take out Nutri chef Digital Hot Water Dispenser, Power cord, Instruction manual and warranty from the packing box.
   • Fill out the warranty card and mail it back to our Company for registration and one year after-sales service. Your rights and benefits will only be guaranteed if we receive your completed warranty.
   •  Put aside packing materials and box for future storage and transport.
   •  Please read Instruction Manual carefully for proper use of this kettle.
   •  Do not plug power cord in outlet prior to being ready to use.
   •  Make sure interior and exterior of the kettle is dry and clean before pouring water into this kettle (Filtered Water is recommended for boiling in this kettle).
2. Press “TEMP SET” Button to select your desired keep warm temperature.
3.  The Nutri chef Digital Hot Water Dispenser is designed to boiling water hand keep warm 24/7 for your convenience. Do not use this kettle for anything other than heating water.
4. The Nutri chef Digital Hot Water Dispenser is characterized by its ease of operation and convenience. Enjoy!

HOW TO USE

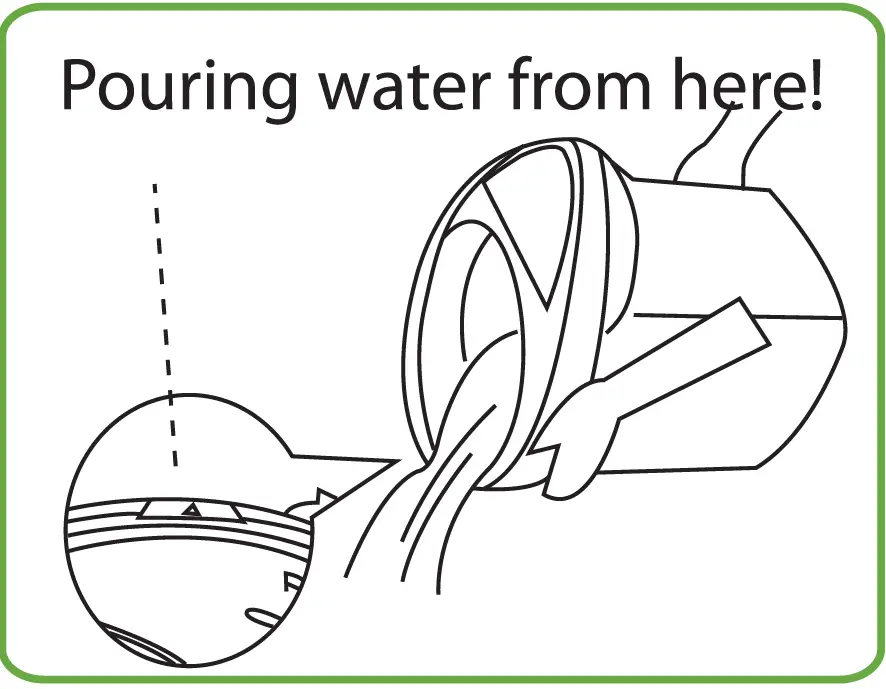

1. Open Lid to Pour Water
   NOTE:
   Filtered Water is recommended for boiling in this Hot Water Dispenser

   • Do not spill water outside of this kettle.
   • Close the lid after pouring water.

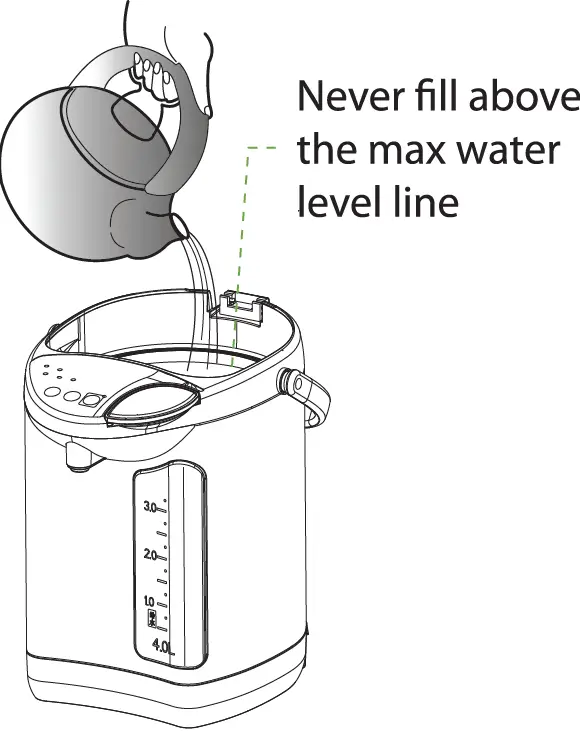

   •  Please do not over fill water pass the Max Water Level. It might cause overflow during boiling

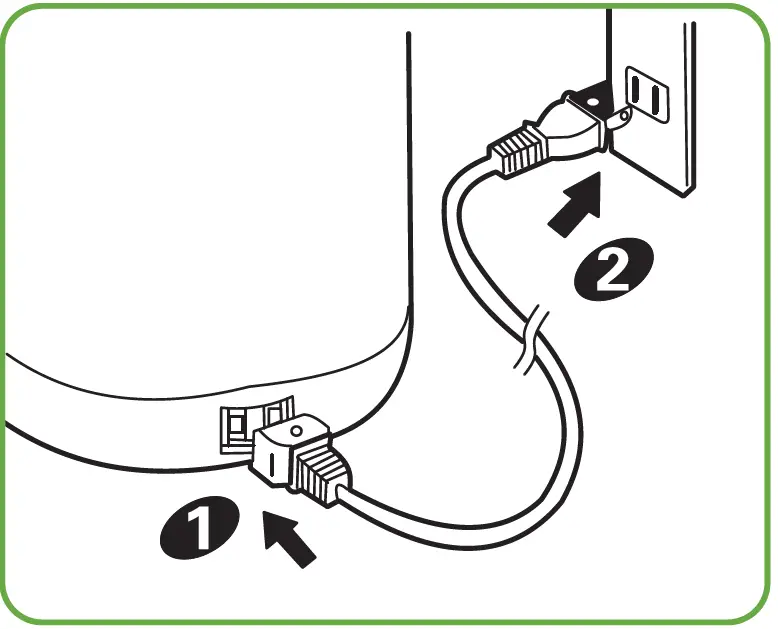

2.  Plug in the Power Cord to start boiling



CAUTION
Steam Vent is Very Hot

1. Connect Power Cord to Hot Water Dispenser.
2. Plug Power Cord to the power outlet. After connect to the outlet, the “BOILING“ indicator lights up and water starts to boil automatically till reaching boiling temperature of (212°F).
3. When Water is boiling, the Hot Water Dispenser will switch in to keep warm mode. The Defaul (or customer select) Temp idicator of 185°F lights up.
   • Hot Water Dispenser will re-boil again if the water temperature drops below the set temperature level.
   •  If Hot Water Dispenser do not boil automatically, press “RE-BOIL” button to boil water.
4. Each time the “TEMP SET“ button is pressed, the keep warm temperature indicator will switch by following sequence; 185°F -> 208°F-> 149°F -> 185°F ->

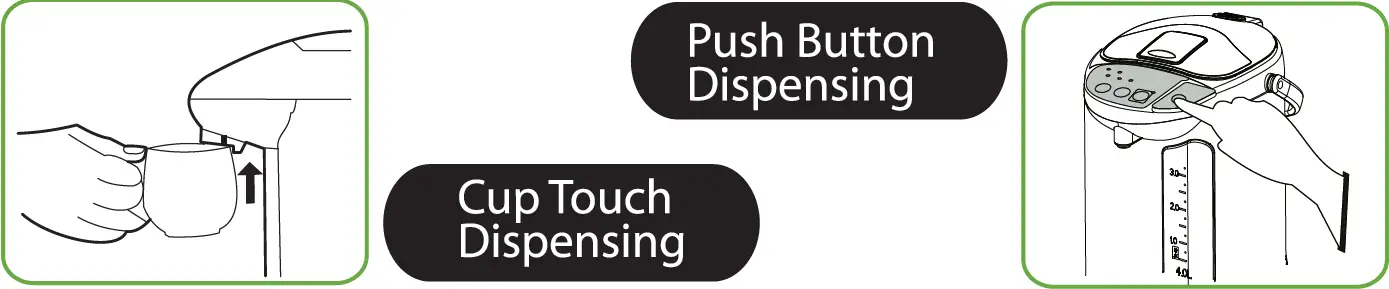

 TWO WAYS TO DISPENSE HOT WATER

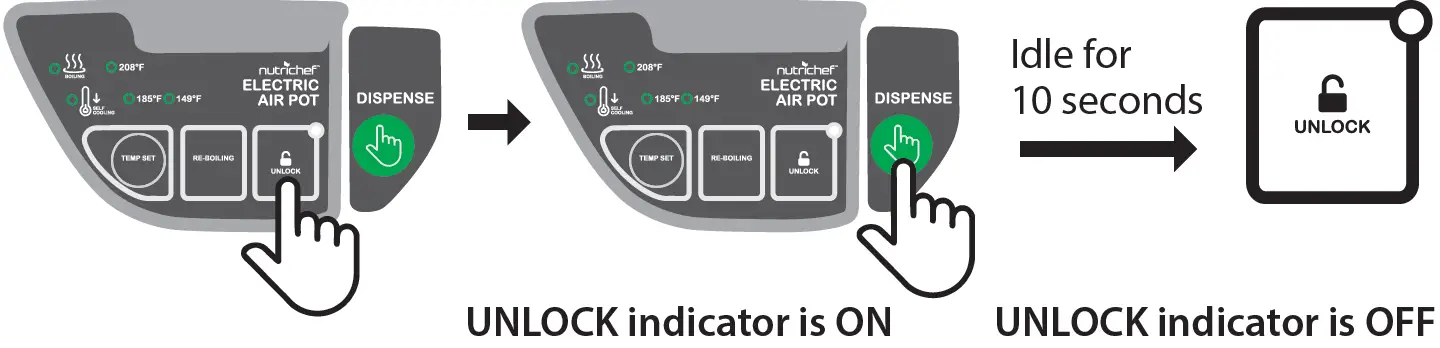

1.  Press “UNLOCK” button, the unlock light is on. (Hot Water Dispenser will auto lock if idle for 10 seconds.)

2. Push Button Dispensing: Press “DISPENSE” button to dispense hot water into cup. Cup Touch Dispensing: Holding cup up to touch the cup switch behind the spout to dispense hot water into cup.

NOTE:
After water has boiled without dispensing for a period. Some air might become trapped in the water pump to prevent pumping water. Simply open then close the lid to solve this issue.

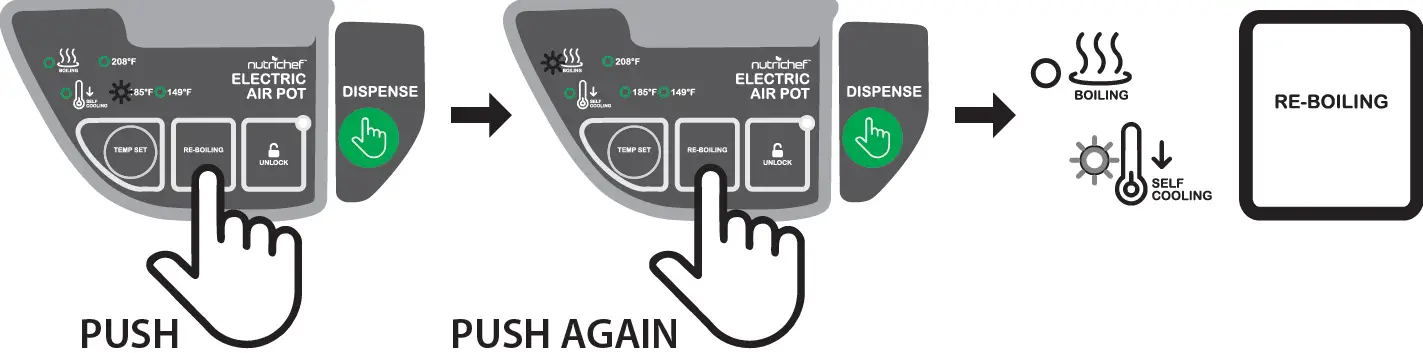

 STAND-BY FUNCTION

1.  During water boiling, press “RE-BOIL” button once, kettle will turn into STANDBY mode and stop boiling. To resume boiling press “RE-BOIL” again.
2. If Dispenser is in keep warm mode, press “RE-BOIL” button twice to set Hot Water Dispenser into STANDBY mode. Resume boiling by pressing “RE-BOIL” again.

MAINTENANCE

BODY
Wipe the Hot Water Dispenser body with soft dry cloth.

•  Wipe with dump cloth, if the stain is hard to remove. (never use soaked cloth!)
• Don’t use thinner to clean, it might crack the plastic casing.
•  Any cloth containing chemicals might cause color changing of body.

WARNING:
This Hot Water Dispenser is not Dishwasher safe!
REMOVE SCALE DEPOSIT
If using tap water, the minerals in the water will deposit on the surface of stainless steel lining over time. This deposit scale will shorten the life of this Hot Water Dispenser. Please clean this Hot Water Dispenser with citric acid at least once a month. Please follow the instruction on the citric acid’s package to clean and remove mineral deposits.
LINING
Wipe lining with dump sponge. Don’t use detergent or any kind of abrasive brush.
REPLACE SILICON SEAL
The silicon seal may become damaged after a long period of use. It should be replaced. Call our service line or order on our web store for replacement silicon ring. It is easy to replace silicon ring by removing four screws inside bottom of upper lid and then removing the stainless steel plate. Remove the silicon ring and replace with new ring. Put back Stainless Steel plate and tighten four stainless steel screws.

STORAGE

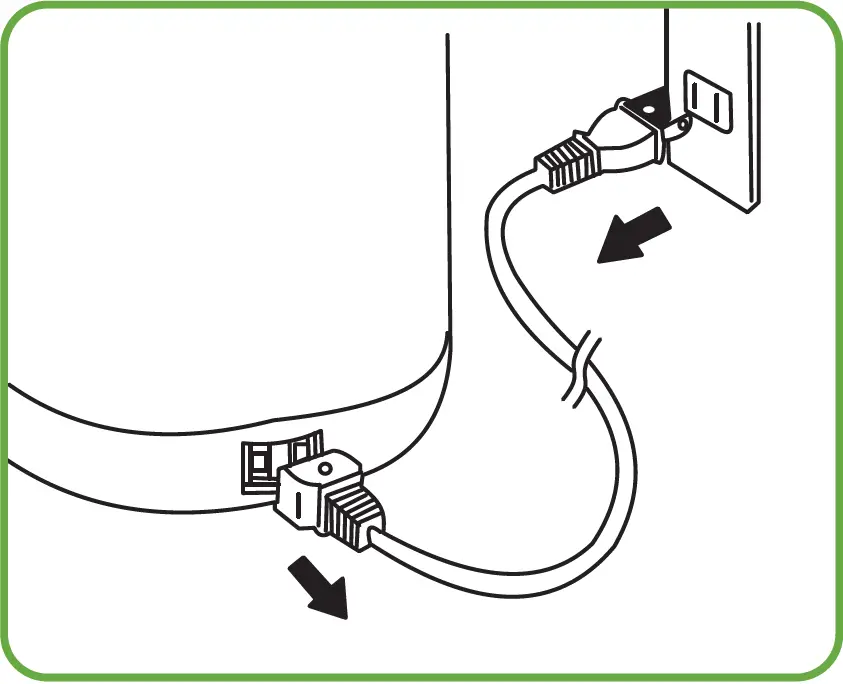

1.  Pull the plug out of outlet.
2. Pull the cord out of kettle.
3. Remove upper lid.
4. Pour all water out of kettle.

TROUBLESHOOTING

OVERHEAT PROTECTION

Once the Hot Water Dispenser is empty of water, a overheat safety protection sensor will automatically activate and quickly shut off the Hot Water Dispenser’s power to prevent overheating. At the same time, the temperature keep warm lights blinking when overheat protection is activated. This Hot Water Dispenser is equipped with overheat protection sensors, but it is extremely dangerous without water in the Hot Water Dispenser with the power on. This might cause a fire and damage to your property. Please always keep water above the REFILL line on the water gauge to avoid any accident.
Note:
If you still can’t solve the problem after following the troubleshooting, contact our service center or authorized repair center for repairing.
Do not try to disassembly this Hot Water Dispenser by yourself. It will void manufactory warranty.
The following cases are exempted from free maintenance or warranty

1.  The failure to present invoice, pre-pay postage or the failure to send in the warranty registration form to our company.
2.  Damage to the Hot Water Dispenser due to inappropriate use.
3.  Use for commercial purposes.
4.  Damage to Hot Water Dispenser resulting from unexpected accident after purchase.
5. Damage to the Hot Water Dispenser due to self-modification or repair.
6. Damage to the Hot Water Dispenser resulting from natural and or man-made disasters.

HOT WATER DISPENSER FEATURES:

• 360° Rotating Base
• Instantly Heat & Dispense Hot Water!
• Simple Electric Plug-in Design
•  Built-in LED Light Illuminates When Dispensing
•  Adjustable Water Temperature & Dispensing Amounts
• Convenient Easy Access Refillable Water Tank

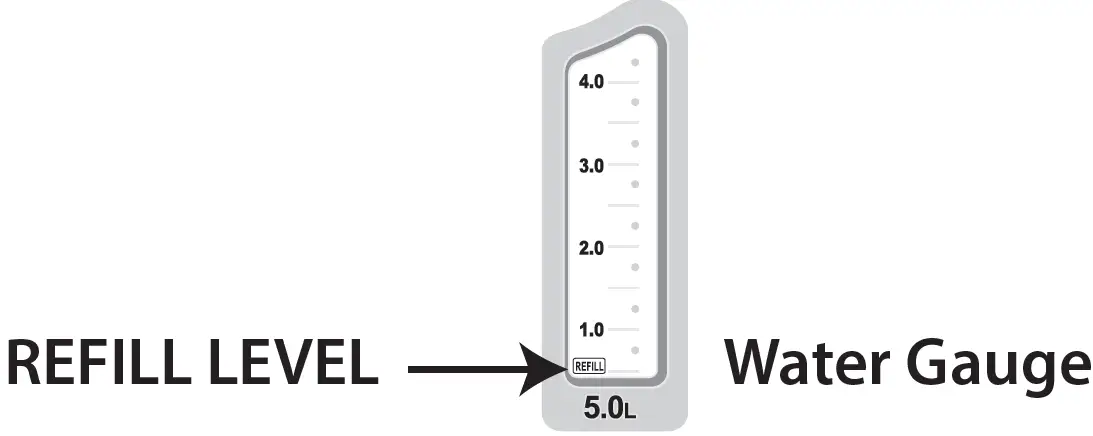

• Transparent Water Container with Clear Level Mark
• Safe for Placement on Any Table or Countertop
• Used for All Drinks Including Instant Coffee, Tea & Soups!
• 2 Way Easy Dispensing Methods: Electric Auto Dispense & Cup Touching
• Automatically Keep Warm and Re boil
• Dry-boiled Protection and Safety Auto Shut-off

WHAT’S IN THE BOX:

• Heating Unit
• Cable

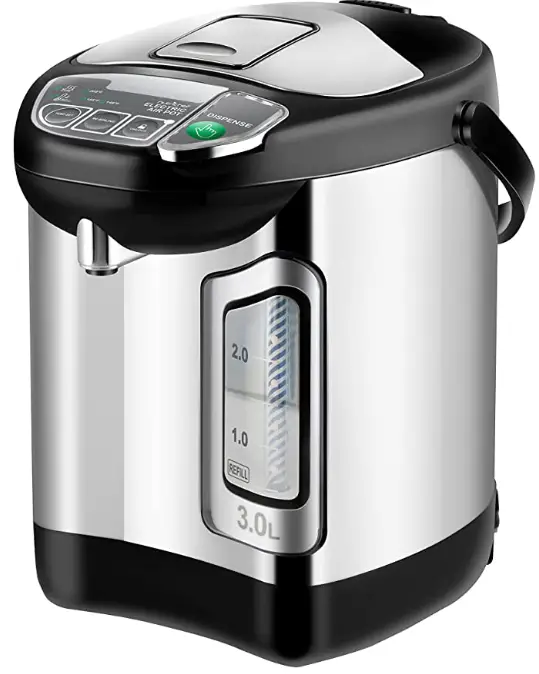

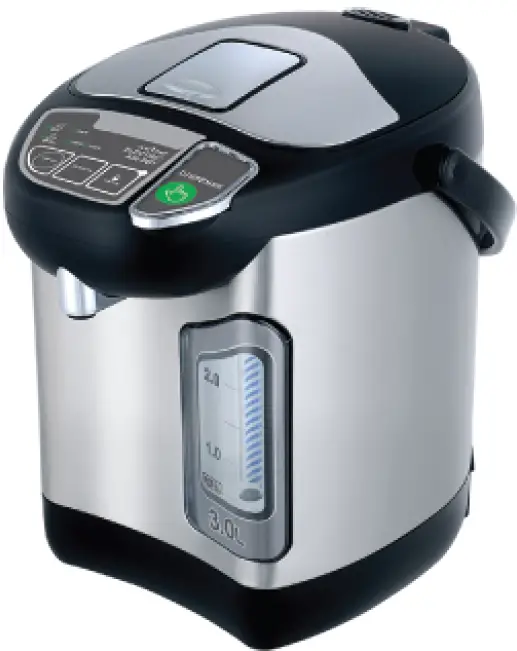

NCHUB133L Digital Hot Water Dispenser

TECHNICAL SPECS:

•  Heating Element: 750Watt
• Capacity: 3L
•  Electric Auto Dispense Amounts: 10oz – 16oz per 10seconds
•  Temp. Adjustment: 149 / 185 / 208° Fahrenheit
•  Construction Material: 304 Stainless Steel Inner Pot and #430 Stainless Steel Outer Housing
•  Power Cord Length: 4.593′ ft.
•  Power Supply: 120V, 60Hz
• Product Dimensions (L x W H): 11.81’’ x 7.87’’ x 9.84’’ –inches

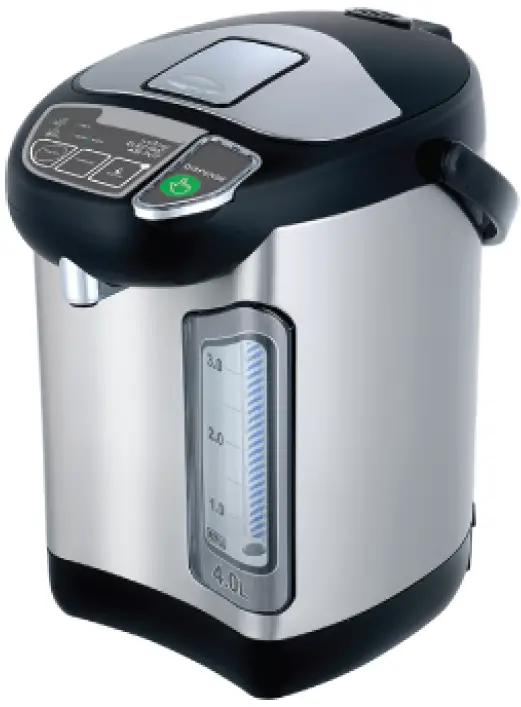

NCHUB244L Digital Hot Water Dispenser

TECHNICAL SPECS:

•  Heating Element: 750Watt
•  Capacity: 4L
• Electric Auto Dispense Amounts: 10oz – 16oz per 10seconds
• Temp. Adjustment: 149 / 185 / 208° Fahrenheit
• Construction Material: 304 Stainless Steel Inner Pot and #430 Stainless Steel Outer Housing
•  Power Cord Length: 4.593′ ft.-
• Power Supply: 120V, 60Hz
• Product Dimensions (L x W H): 11.81’’ x 7.87’’ x 11.81’’ –inches

NCHUB355L Digital Hot Water Dispenser

TECHNICAL SPECS:

• Heating Element: 750Watt
• Capacity: 5L
•  Electric Auto Dispense Amounts: 10oz – 16oz per 10seconds
•  Temp. Adjustment: 149 / 185 / 208° Fahrenheit
• Construction Material: 304 Stainless Steel Inner Pot and #430 Stainless Steel Outer Housing
•  Power Cord Length: 4.593′ ft.-
•  Power Supply: 120V, 60Hz
• Product Dimensions (L x W H): 11.81’’ x 7.87’’ x 13.78’’ –inches
