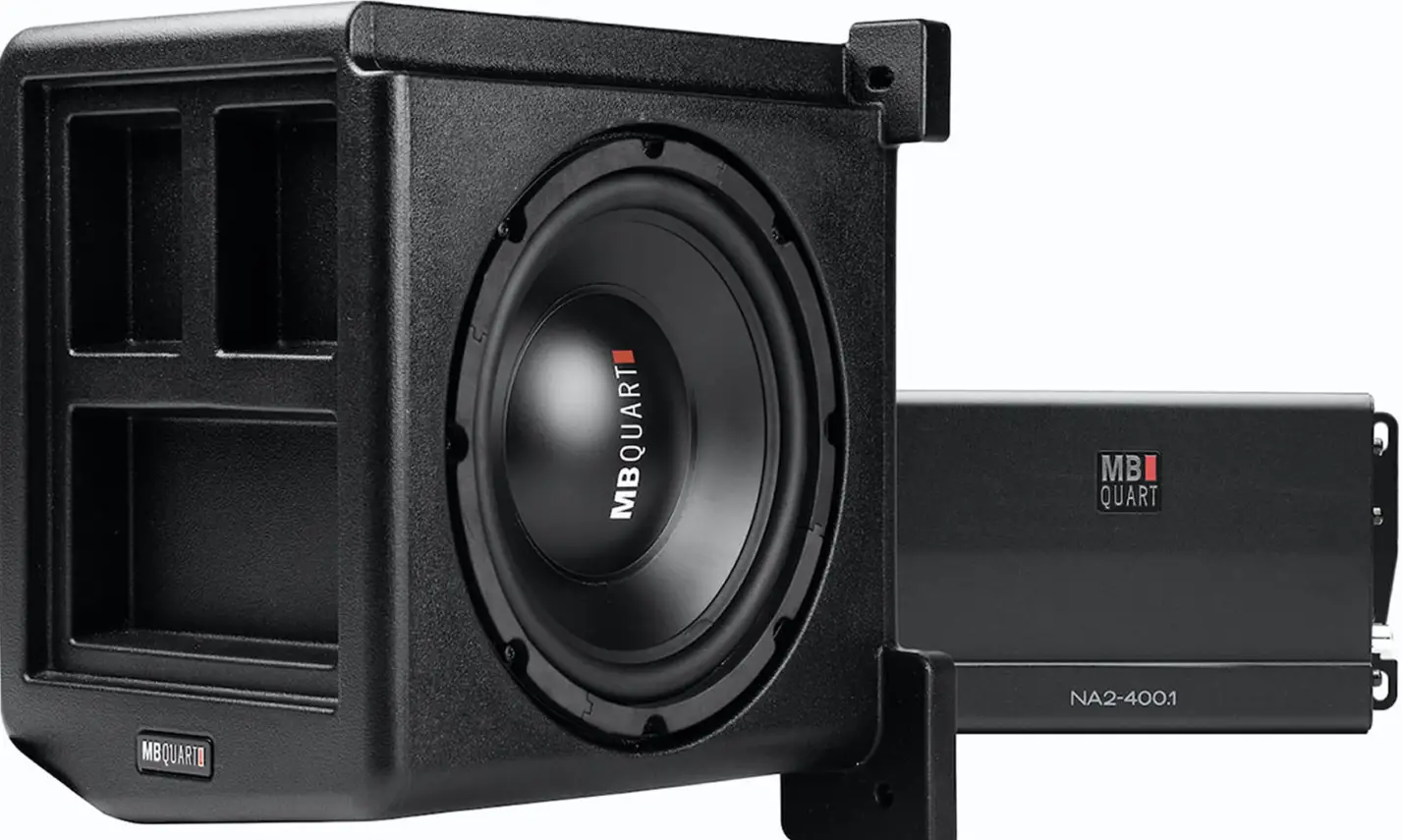

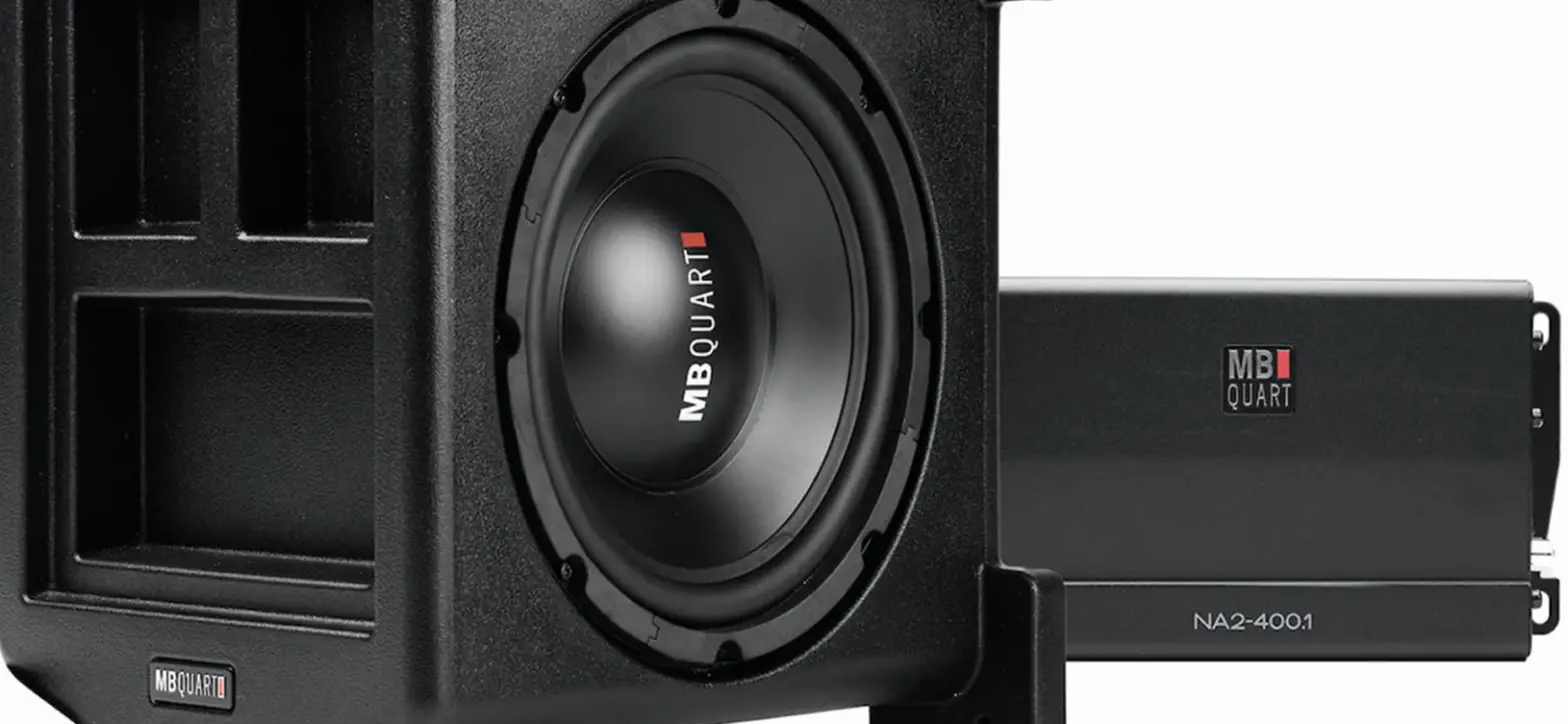

MB QUART MBQRG-SUB-1 400 Watt Polaris RANGER Specific Subwoofer Tuned System

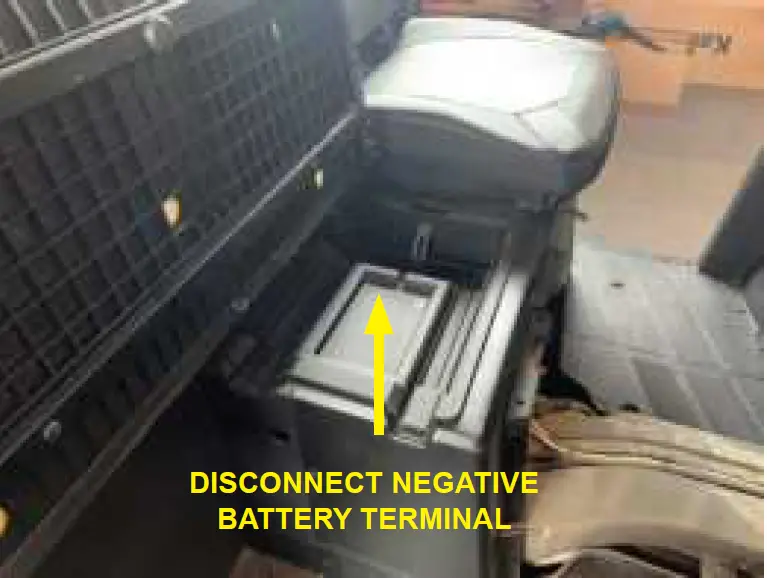

Before you begin, read through these instructions and check that all parts are present. Always disconnect negative battery terminal prior to installation. Please note that MB Quart cannot assume any responsibility for damage resulting from incorrect installation.

Disassembly

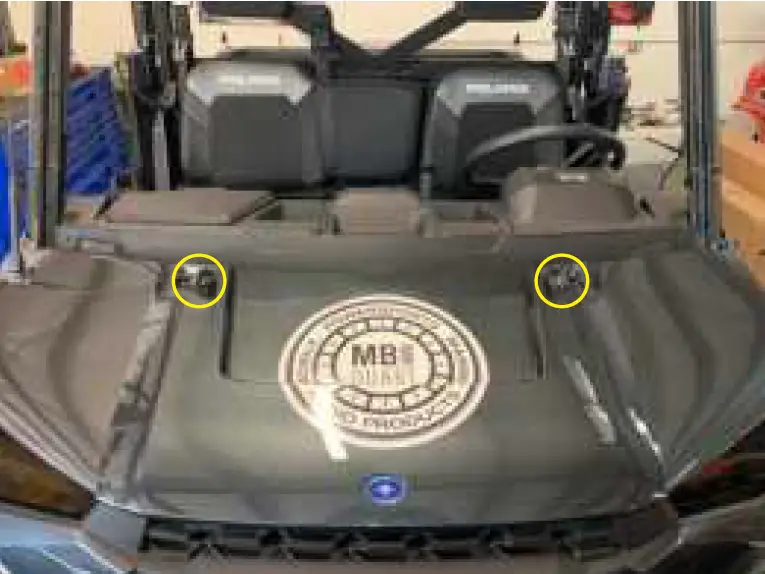

• Remove hood by turning two latches

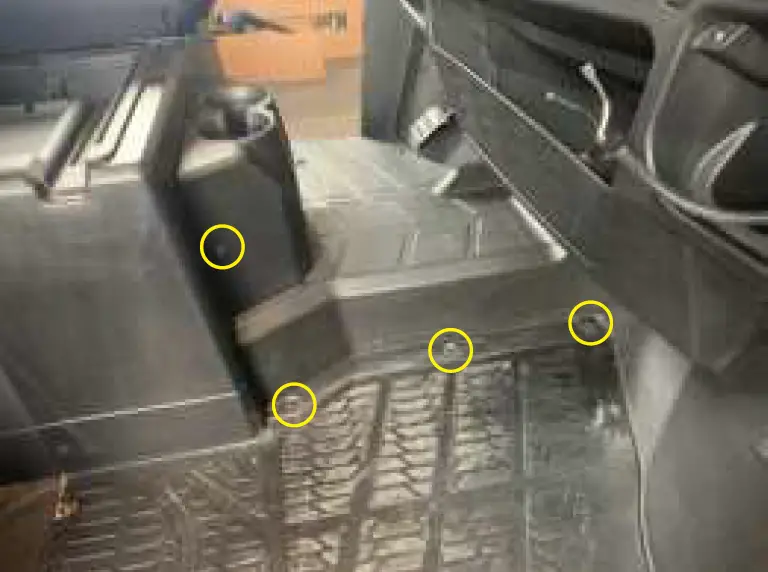

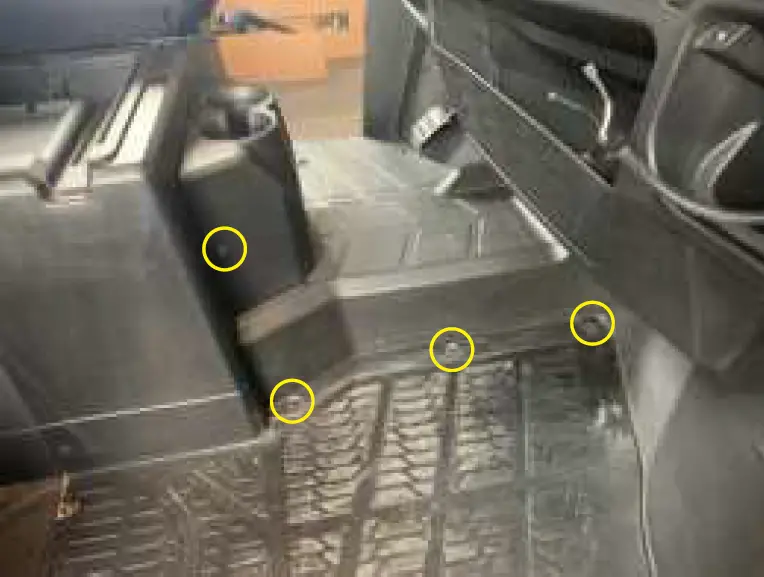

• Remove four push pins from the passenger side center console

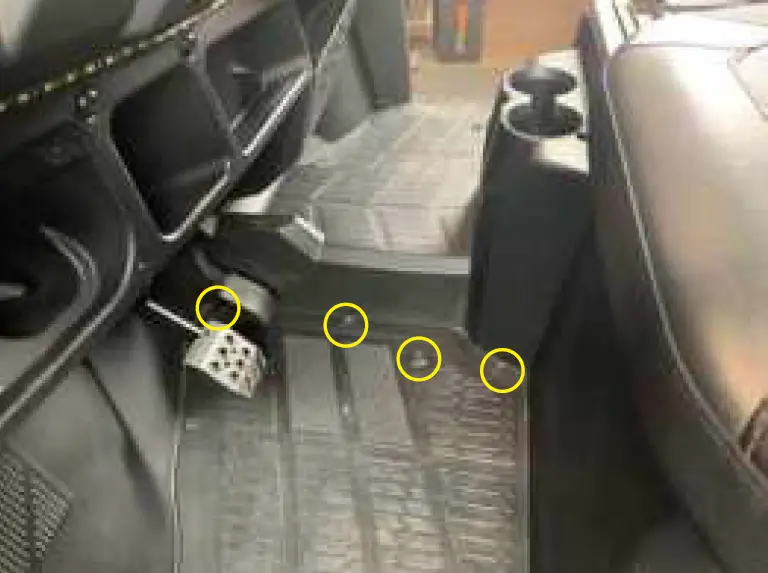

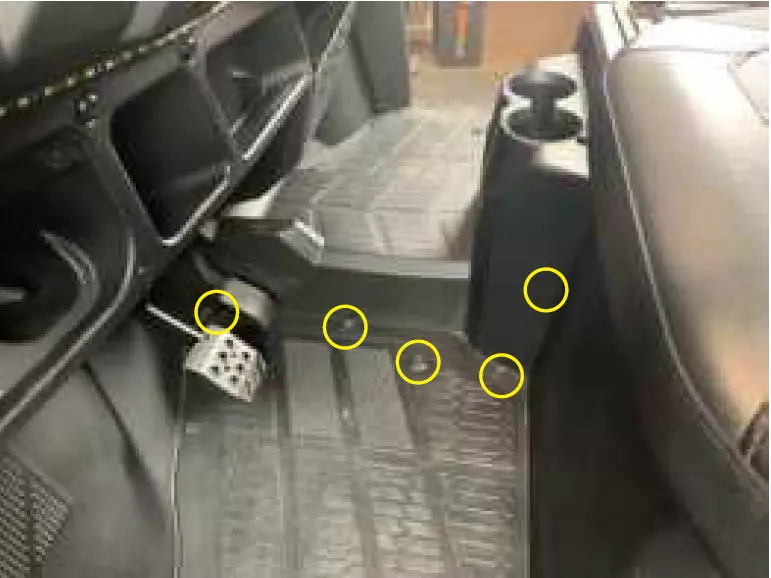

• Remove five push pins from the driver side center console

• Remove underseat tray from passenger side

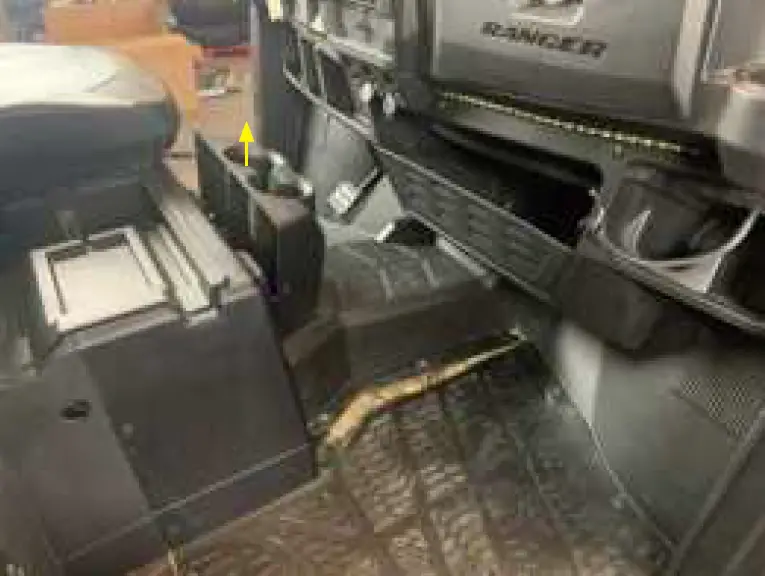

• Lift center console upward starting at cupholder and remove from vehicle


Harness Installation

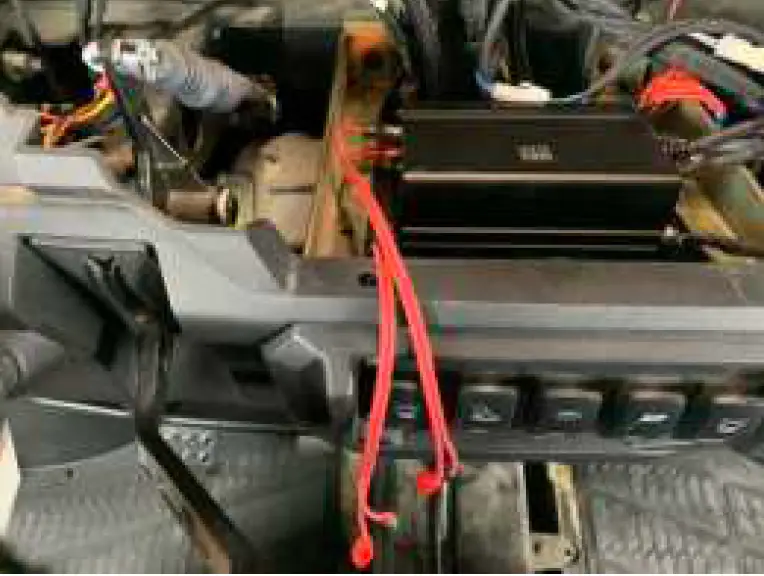

• Route the subwoofer extension harness extension harness from the middle of the dash out the grommet toward the front of the vehicle
• Pass the wires from the grommet to the radiator cap opening (if other wire present zip tie along)

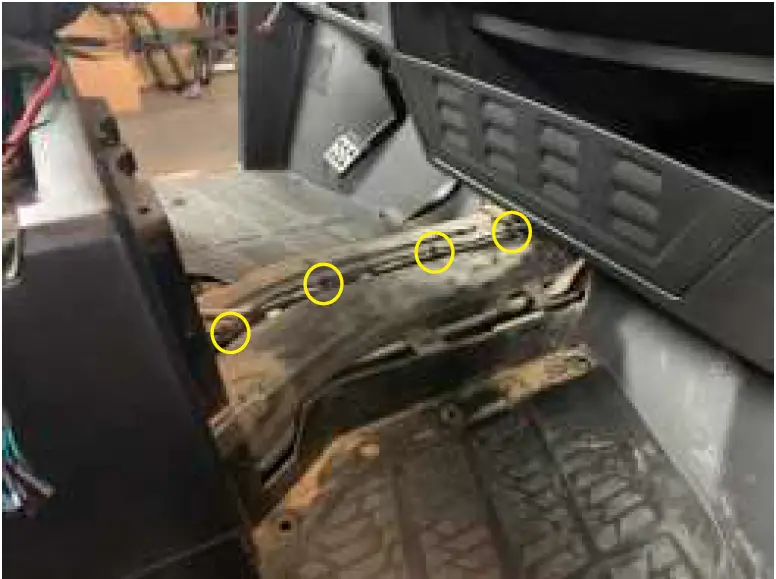

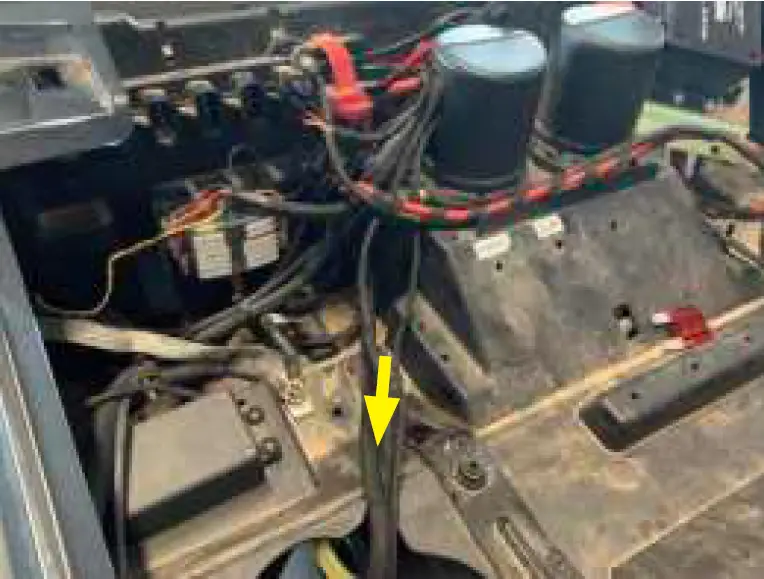

• Pass the wiring around any moving parts and down the frame toward the center console and secure in place with zip ties

• Run along air intake securing with zip ties to the power bus bar harness

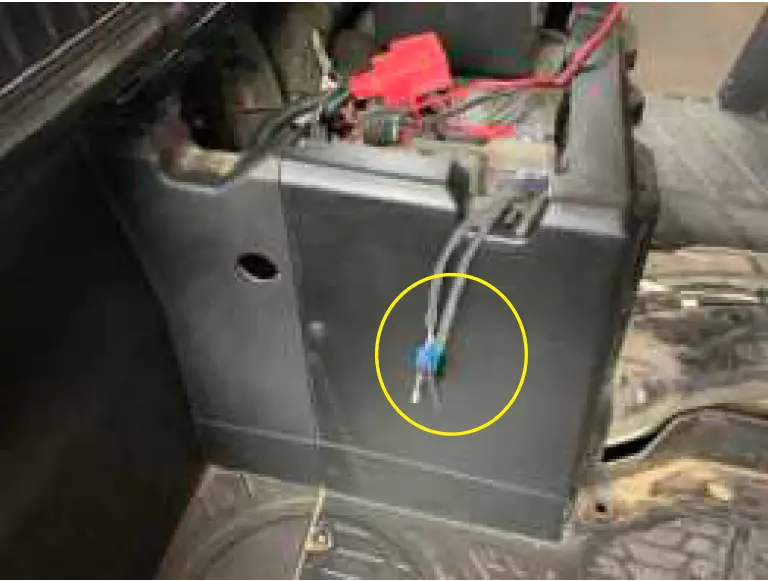

• Route subwoofer harness to the passenger side of the battery

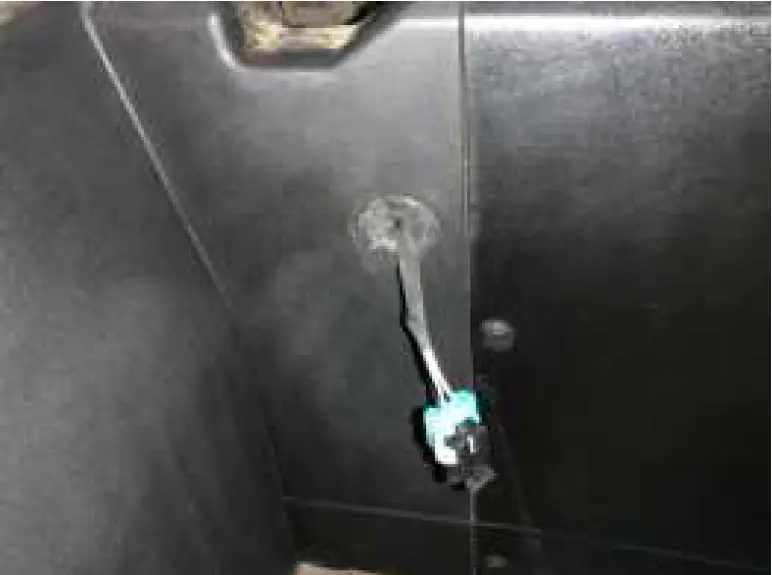

• Drill 1.25” hole and pass subwoofer connection through hole and place grommet

Amplifier Adjustment

Adjust the NA2-400.1 amplifier’s gain and crossover settings as picturedNote
Turn Gain all to the last “L” on Level HPF to 100Hz going just past “P” on LP LPF Subsonic set to 35Hz going to “S” on Subsonic Boost 0dB

Amplifier Installation

• Plug in power harness pigtail to amplifier and make appropriate power, ground, and remote connections

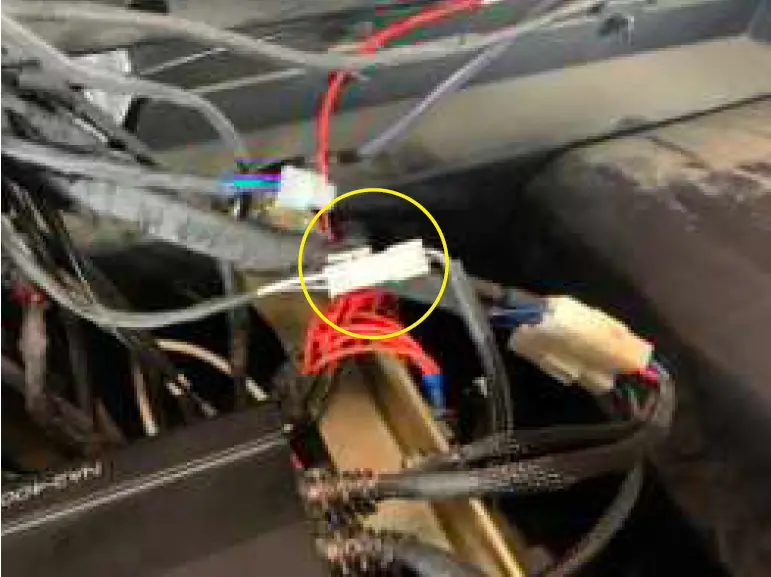

• Connect the subwoofer extension harness to the NA2-400.1 amplifier harness

• Connect RCAs to the NA2-400.1 amplifier from your source unit


Subwoofer Installation

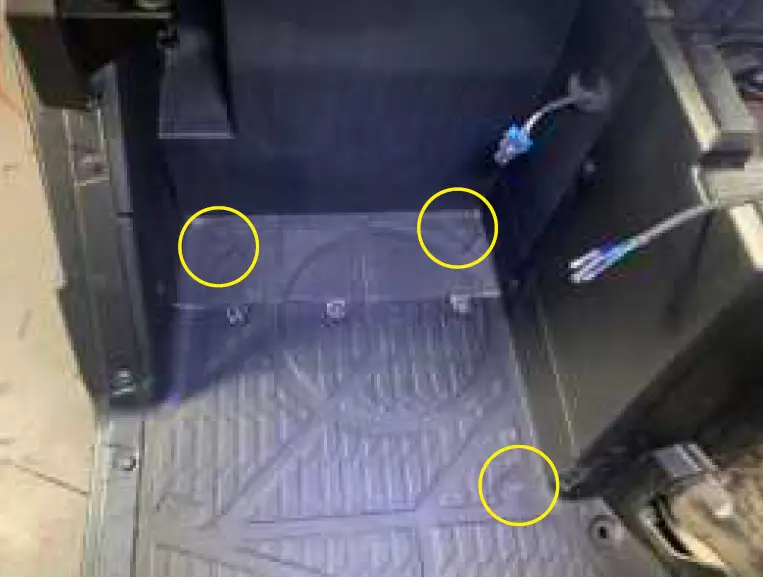

• Drill three 1/8” holes at marked indents in floor (only drill deep enough to get through first layer of material)

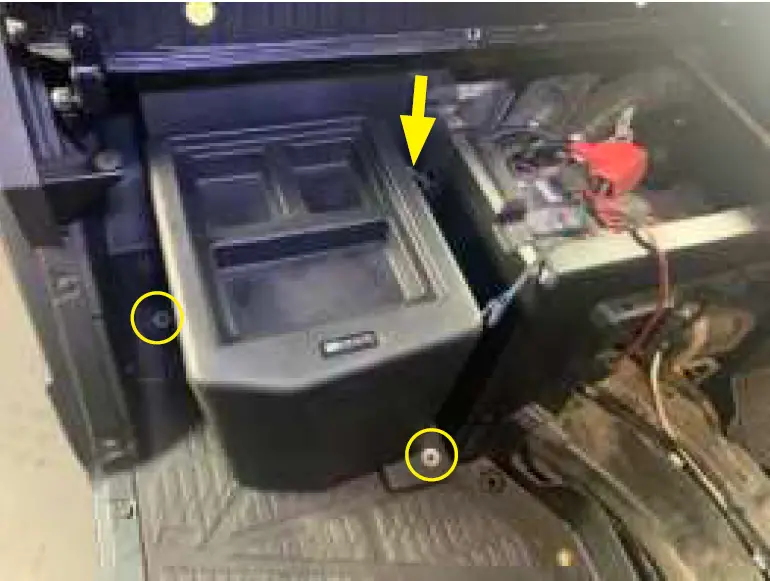

• Place subwoofer enclosure under passenger seat and secure with three high-low T25 Torx screws and washers

Note
Use two picks to align enclosure with holes in vehicle and also use provided bit extension to reach rear screw where the arrow is

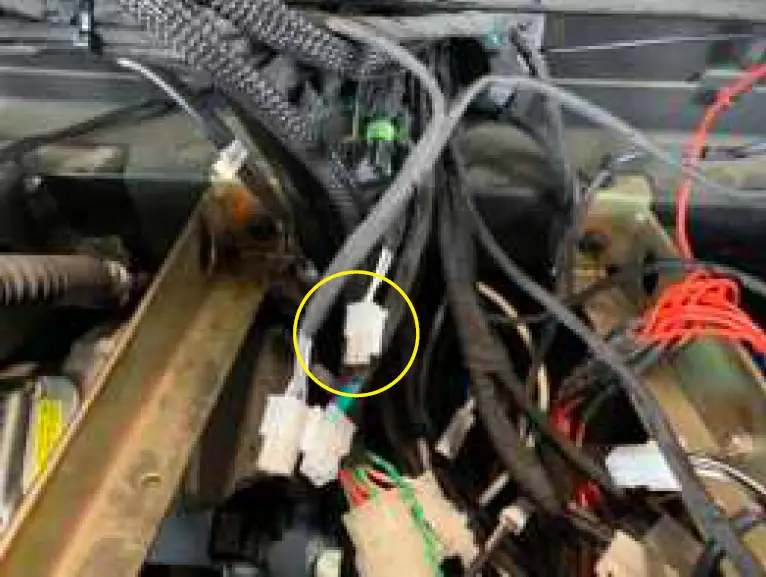

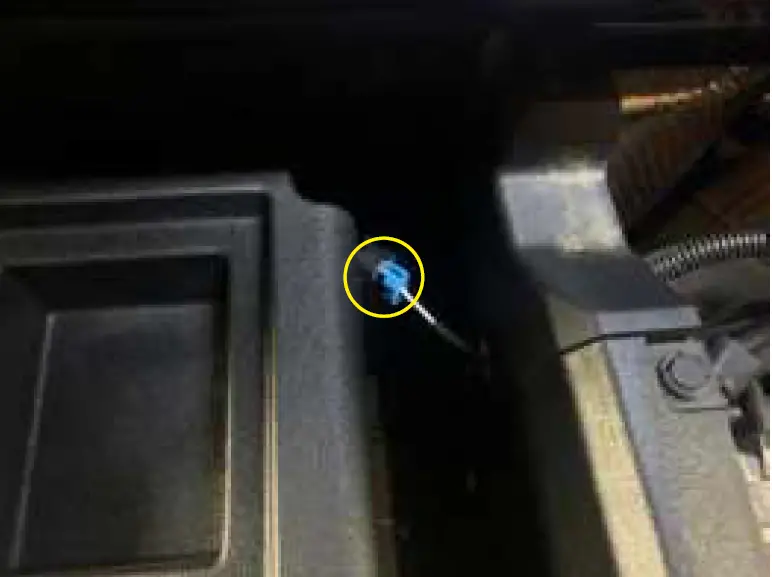

• Connect the subwoofer enclosure harness to the subwoofer extension harness

Reassembly

• Place center console in the vehicle sliding forward then down
• Insert four push pins on passenger side console

• Place five push pins on driver side center console

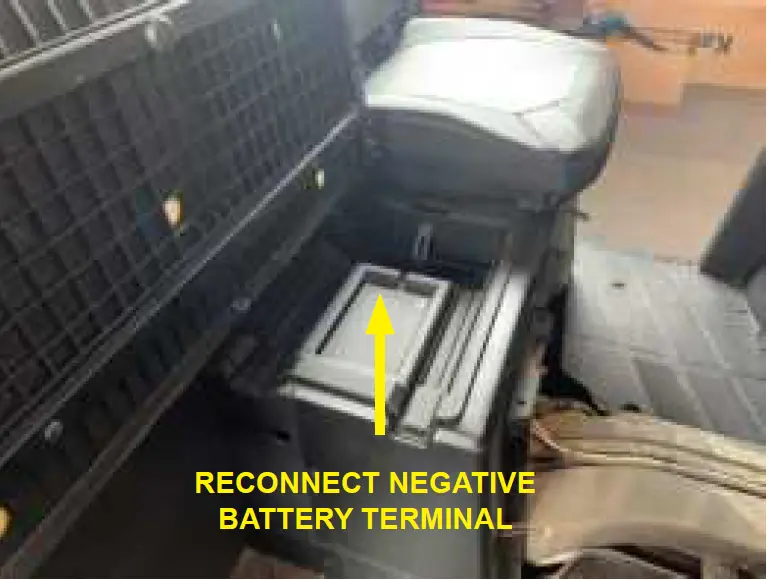

• Place battery cover into place

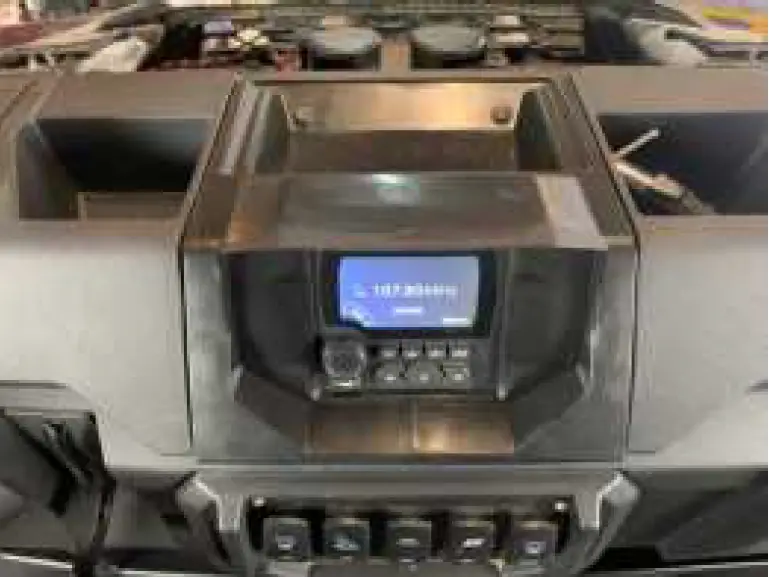

• Turn vehicle and radio on and enjoy the music
