Systec Therm Tydom Pro Smart Home Box User Manual

systec therm Tydom Pro Smart Home Box

www.deltadore.com

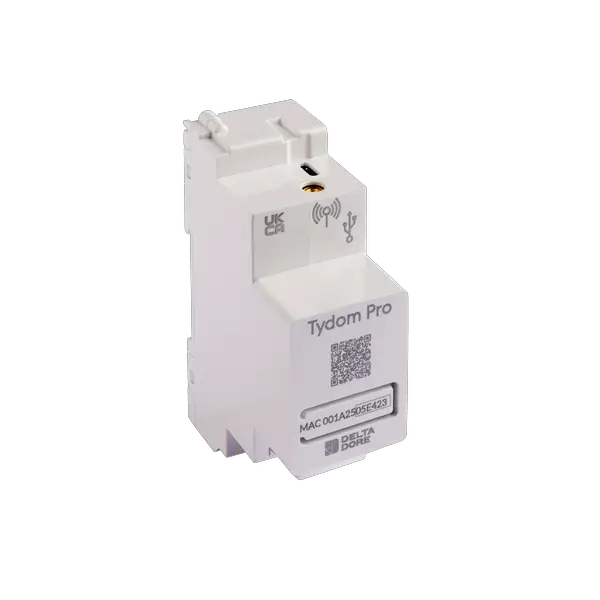

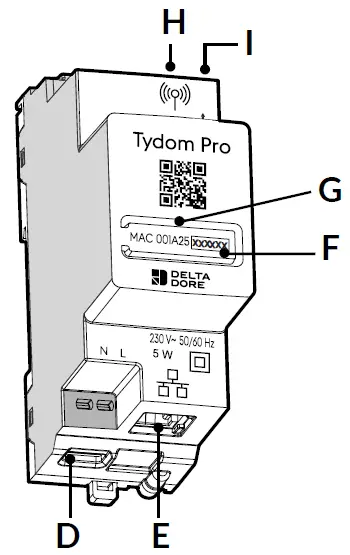

Tydom Pro

• Ethernet-Anschluss

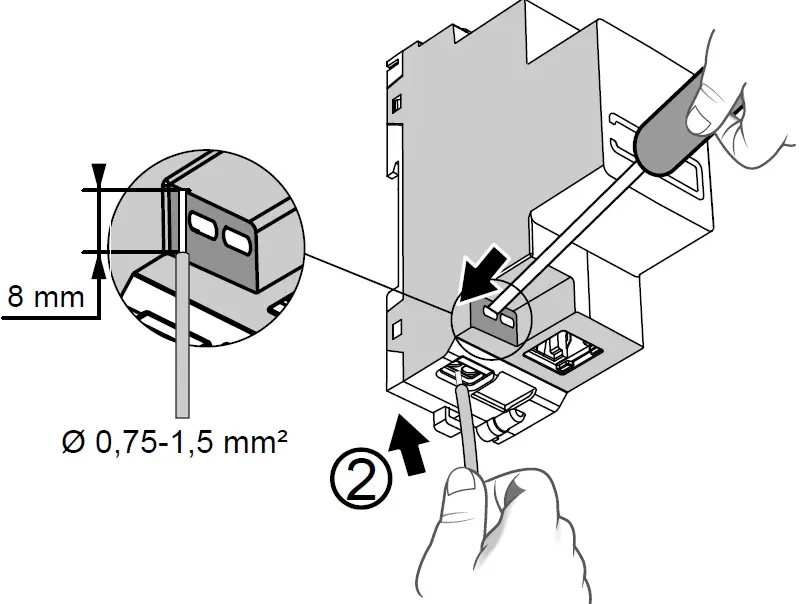

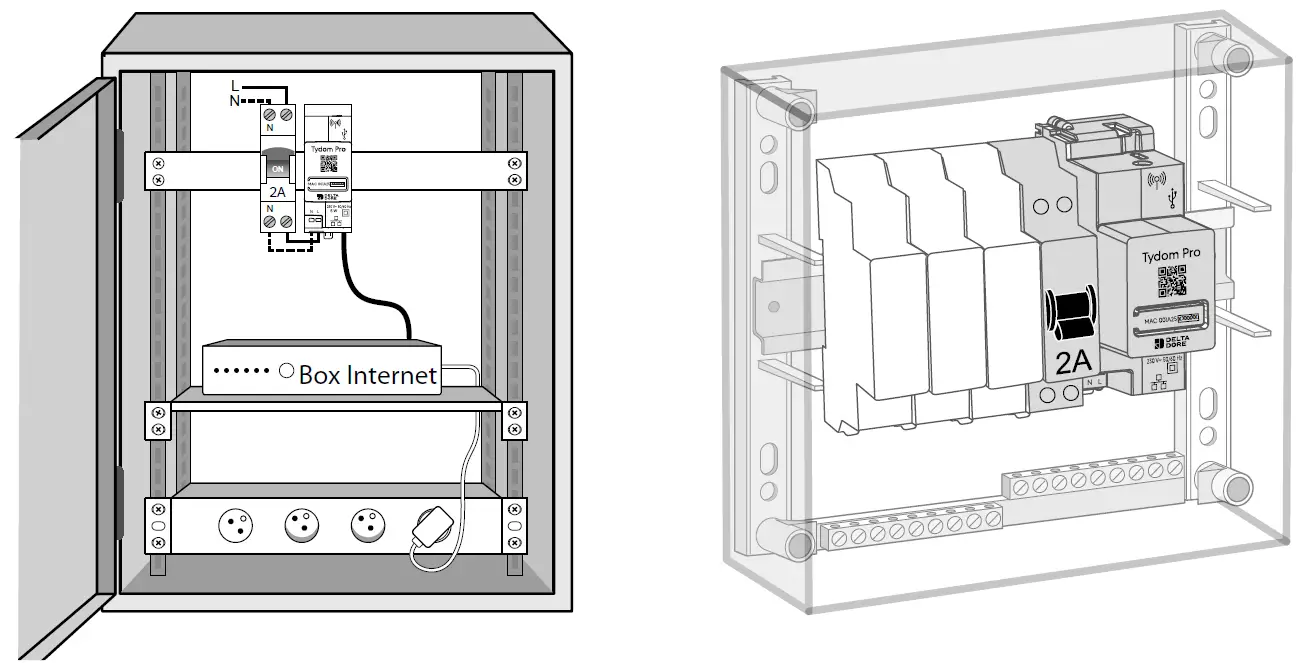

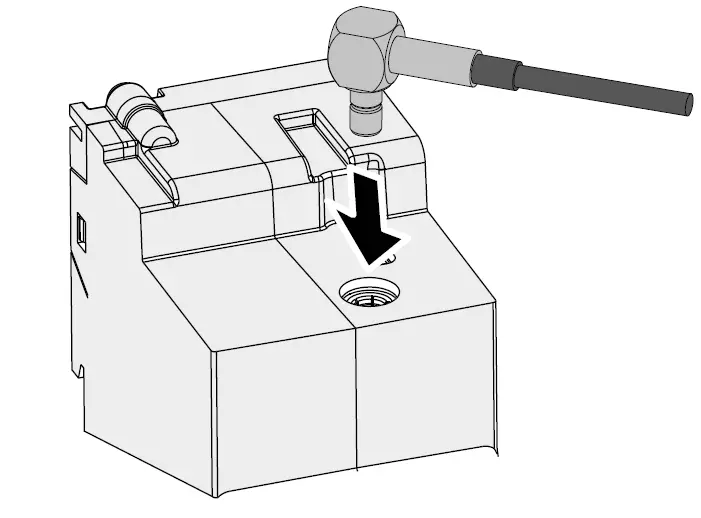

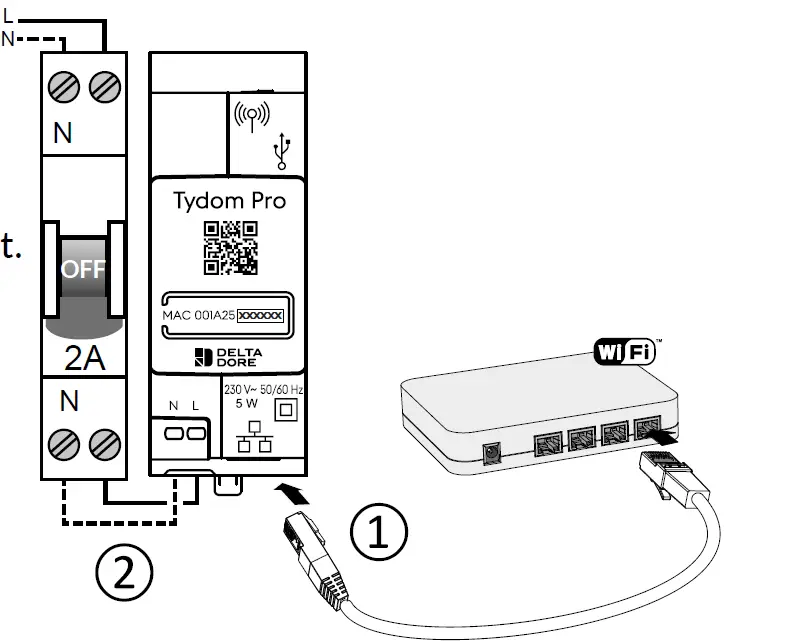

Installation

Association

• Switch on the installation. Press the receiver button for 3 seconds until its LED flashes. Release.
• Send the association command to the transmitter (refer to the user guide).
• Make sure that the receiver LED is no longer flashing. The products are associated.

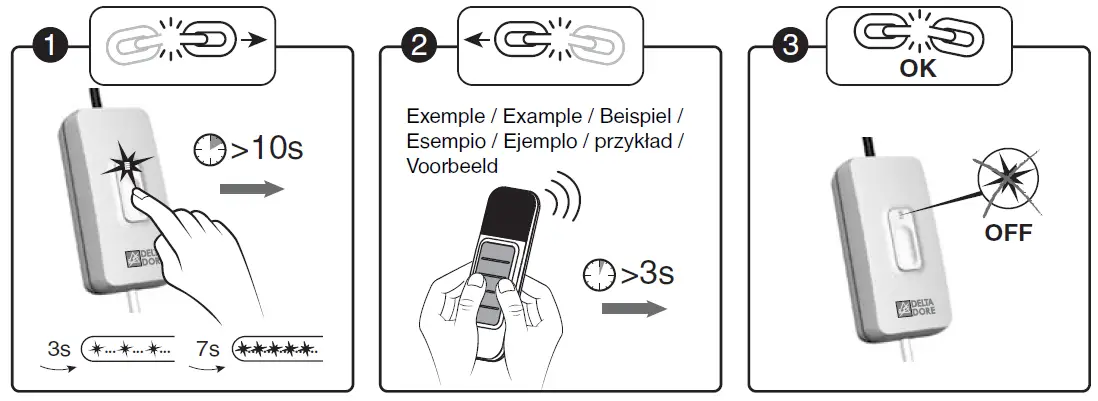

 Remove an association

• Press and hold for 10 seconds :
  • after 3 seconds, the LED flashes slowly.
  • after 7 seconds, the LED flashes quickly. Release.
• Confirm on the transmitter (refer to the user guide).
• Make sure that the receiver LED has stopped flashing. The products are no longer associated.

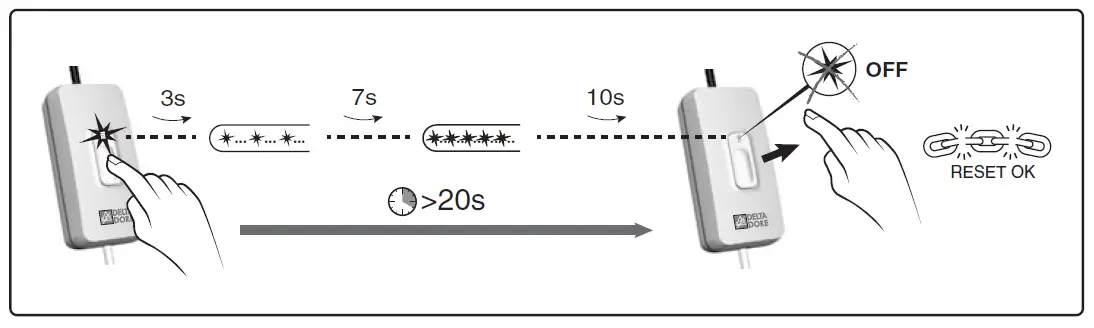

 Remove all associations

Hold down the receiver button for 20 seconds. After 3 seconds, the LED flashes slowly. After 7 seconds, the LED flashes quickly. Press and hold the button until the LED goes out. Release

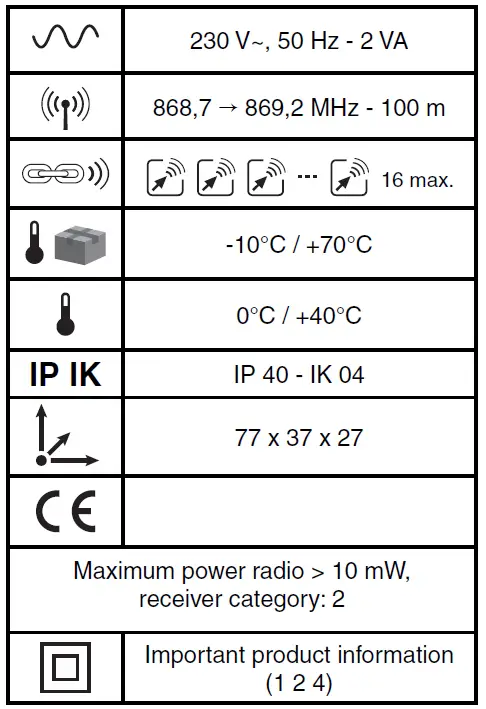

• Pollution level: 2
• Rated impulse withstand voltage: 2.5 kV
• Operation type: S1 continuous duty service S1
• Switch type: 1 single pole
• Number of operating cycles: 100,000
• Circuit cut-off: brownout
