SANGEAN SR-32 Pocket Radio
CAUTION
Do not allow this unit to be exposed to water, steam or sand. Do not leave the unit where excessive heat could damage such as in a parked car where the heat from the sun can build up even though the outside temperature may not seem too high.

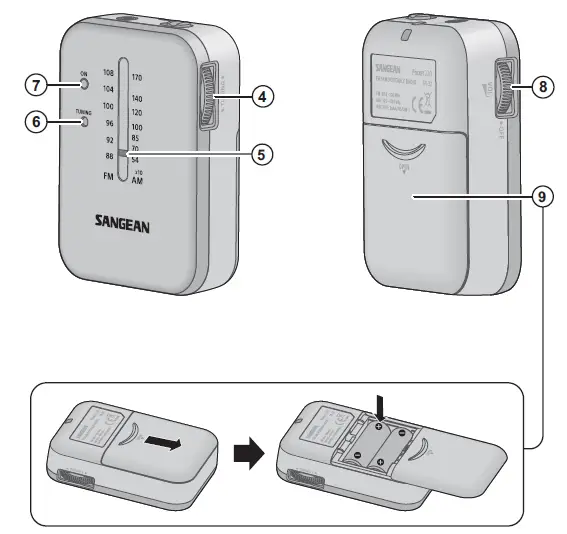

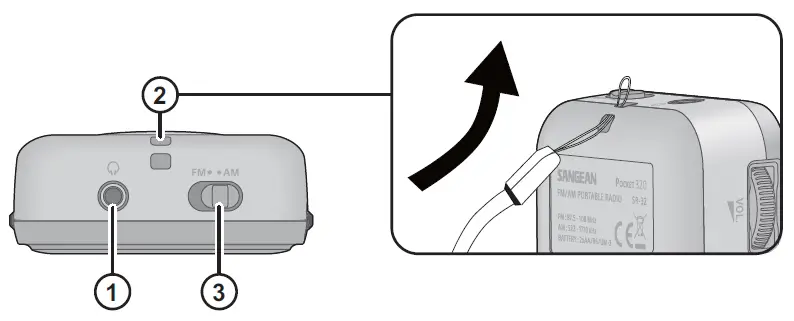

Controls
| 1 | Headphone socket |
| 2 | Strap holder |
| 3 | Frequency Band switch |
| 4 | Tuning control |
| 5 | Tuning scale |
| 6 | Tuning LED indicator |
| 7 | Power indicator |
| 8 | Volume On / Off control |
| 9 | Battery compartment |
Power supply
To insert the batteries, first open the battery cover by sliding it in the direction shown by the arrow. Insert
two AA size batteries into the compartment. Ensure all batteries are inserted with correct polarity as shown on the inside of the battery compartment.
Headphone Input
Plug your headphones or earbuds into the headphone socket for private listening.
Volume On / Off control
Turn on the power by switching the Volume On / Off control switch. Adjust it to the desired level of sound. Rotating the Volume control clockwise will increase the sound level and the color of the power indicator will be changed. When the power indicator turns red, this indicates that the current volume is too high.
IMPORTANT
Excessive sound pressure from Earbuds or Headphones can cause hearing loss.
To prevent possible hearing damage, do not listen at high volume levels for long periods of time.
Frequency Band switch
Set the Frequency Band switch to the desired Frequency Band.
Tuning control
Slowly rotate the tuning control to select the required station. The tuning indicator will light when the station is correctly tuned.
Tuning scale
Rotate the tuning control until the tuning scale corresponds to the frequency of the required station.
Specifications
| Battery | 2 X AA (UM-3 / R6) size |
| Frequency coverage | FM 87.5–108 MHz |
| AM 522–1710 kHz | |
| Output Power | 1mW 32ohm |
| Headphone socket | 3.5mm dia. (mono) |
| Operating temperature range | 0°C to +35°C |

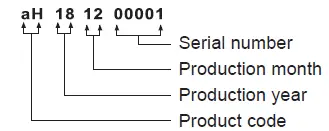

| ※ The barcode label on the product is defined as below: | |
 |  |
Sangean reserves the right to amend the specifications without notice.
If at any time in the future you should need to dispose of this product please note that: Waste
electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
