Operating instruction

CAUTION:
Do not allow this unit to be exposed to water, steam or sand. Do not leave the unit where excessive heat could damage the unit, such as in a parked car where the heat from the sun can build up even though the outside temperature may not seem too high.

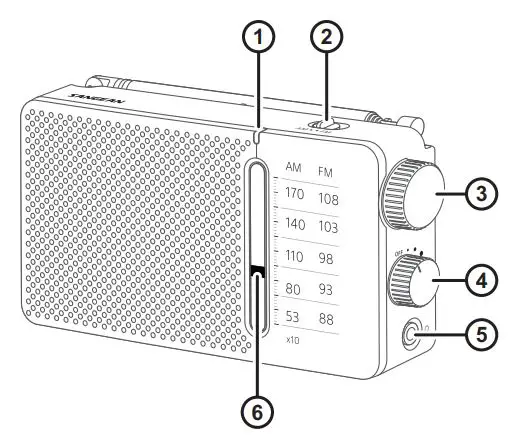

Controls

Tuning LED indicator
Frequency Band switch
Tuning control
Volume On / Off control
Headphone socket
Tuning scale

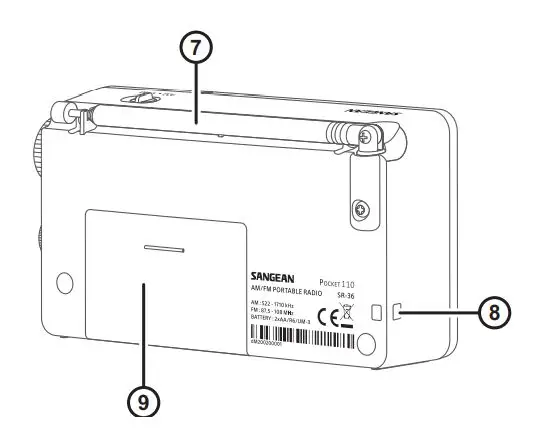

Telescopic antenna
Strap holder
Battery compartment

Power supply

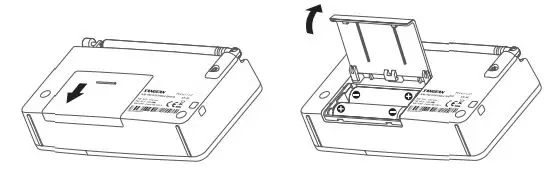

To insert the batteries, first open the battery cover by sliding it in the direction shown by the arrow. Insert two AA size batteries into the compartment. Ensure all batteries are inserted with correct polarity as shown on the inside of the battery compartment.

Headphone Input

Plug your headphones or ear buds into the headphone socket for private listening. This will disconnect the speaker.

Telescopic antenna

The telescopic antenna is for FM band reception. Extend and rotate it for the best FM reception. There is a separate directional antenna built into the radio for AM reception. To achieve the best AM reception, it may be necessary to rotate the radio.

Volume On / Off control

Turn on the power by rotating the Volume On / Off control. Adjust it to the desired level of sound. Rotating the Volume control clockwise will increase the sound level.

IMPORTANT:

● Excessive sound pressure from Ear buds or Headphones can cause hearing loss.

● To prevent possible hearing damage, do not listen at high volume levels for long periods of time.

Frequency Band switch

Set the Frequency Band switch to the desired Frequency Band.

Tuning control

Slowly rotate the tuning control to select the required station. The tuning indicator will light when the station is correctly tuned.

Tuning scale

Rotate the tuning control until the tuning scale corresponds to the frequency of the required station.

Specifications

Battery	2 X AA (UM-3 / R6) size

Frequency coverage
AM	522-1710 kHz
FM	87.5-108 MHz

Loudspeaker	2-1/4 INCH 8Ohm 0.3W

Output Power	120mW 8Ohm

Headphone socket	3.5mm dia. (mono)

Operating temperature range

0°C to +35°C

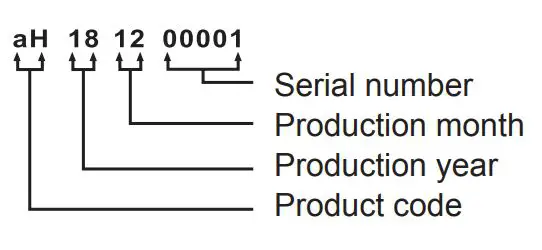

※ The barcode label on the product is defined as below:

The company reserves the right to amend the specifications without notice.

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive).
