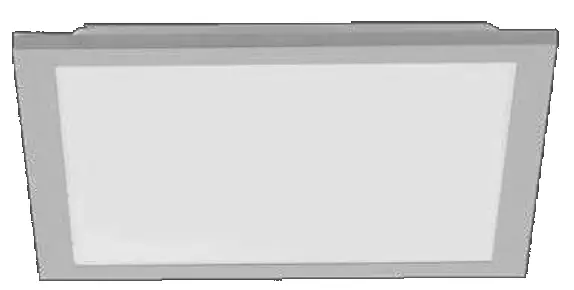

Paul logoLeuchten Direkt Paul Neuhaus Flag LED Ceiling Light

996458- FLAT

Flag LED Ceiling Light

This product contains a light source of energy efficiency class <E>.

LED18 W
2.200 Im
Paul Neuhaus Flag LED Ceiling Light - fig 120 W
1.400 Im
t20.000 h
Tk2.700 – 5.000 K
Paul Neuhaus Flag LED Ceiling Light - fig 215.000 x
Paul Neuhaus Flag LED Ceiling Light - fig 3<0,55

Paul Neuhaus Flag LED Ceiling Light - fig

996458

230V / SOHz~
LED 1x LED-Board 72V DC/18W

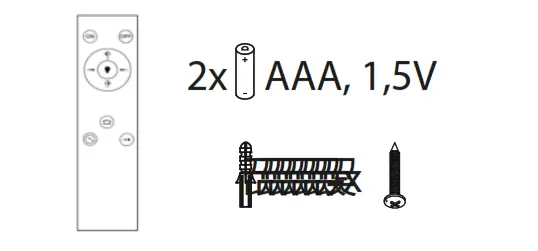

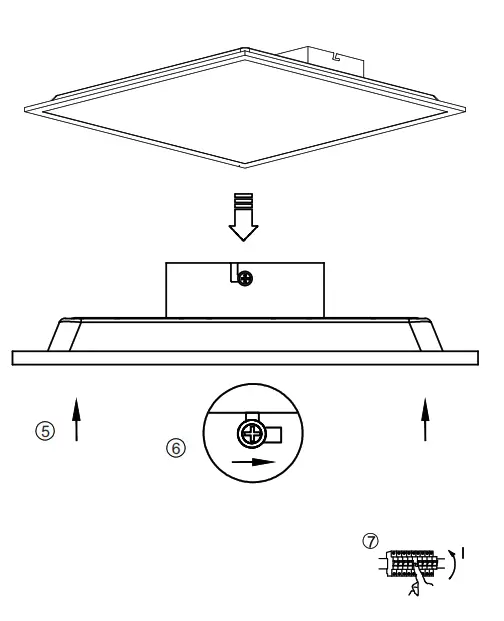

Paul Neuhaus Flag LED Ceiling Light - fig 7Paul Neuhaus Flag LED Ceiling Light - fig 9

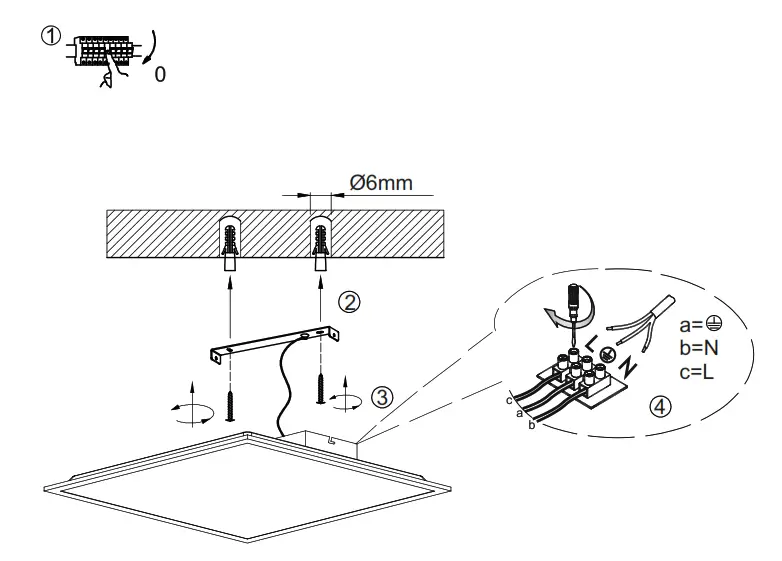

Paul Neuhaus Flag LED Ceiling Light - fig 8Paul Neuhaus Flag LED Ceiling Light - fig 10

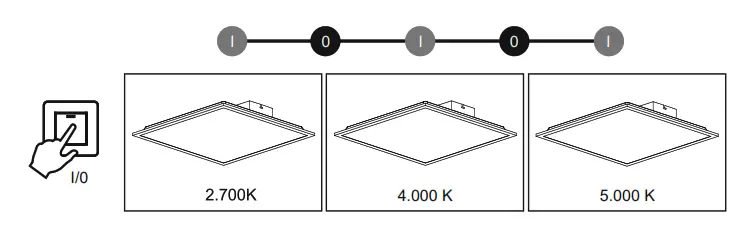

Operation via wall switch Memory function:

lf you turn off the lamp via a wall switch and turn it on after >3 seconds the light lights up in the last mode. (color temperature, brightness)
CCT:  The color temperature can be changed in 3 steps by switching on / off several times quickly: 2.700 K / 4.000 K / 5.000 K

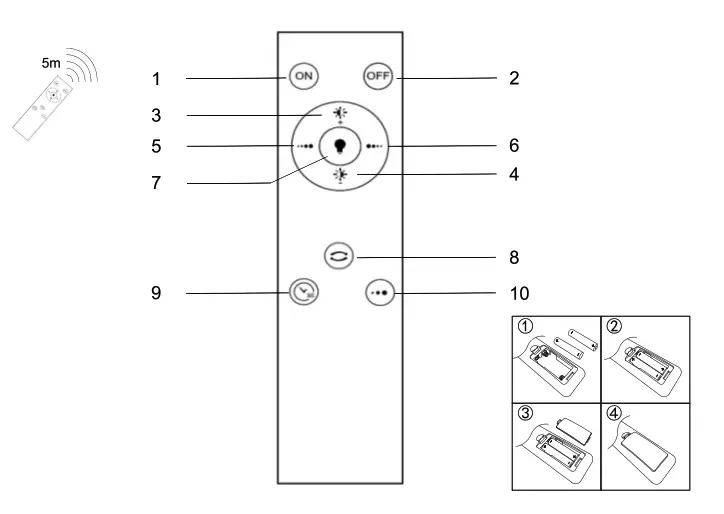

Paul Neuhaus Flag LED Ceiling Light - fig 11Operation via remote control

  1. On
  2. Off
  3. Increase lamp brightness from 10% to 100%.
    Long press for stepless dimming.
  4. Reduce lamp brightness from 100% to 10%. Long press for stepless dimming.
  5.  Increase the color temperature.
  6. Reduce the color temperature.
  7. Night light (10% / 2.700 K)
  8. All lights in the infrared range of the remote control will be set to the same color temperature which was selected lastly with the remote control.
  9. Timer (Lamp tums off after 30 seconds.)
  10. 3-step color temperature (2.700 K / 4.000 K / 5.000 K)

Note: An unlimited number of lights can be controlled with the remote control, as long as they are in the infrared range.

LeuchtenDirekt
LeuchtenDirekt GmbH Olakenweg 36
D-59457 Werl
Hold BOTH  72 +49(0)2922 9721 9290

1010music 204 Nanobox Fireball Wavetable Synthesizer Module - Contact [email protected]
www.Ieuchtendirekt.de

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
