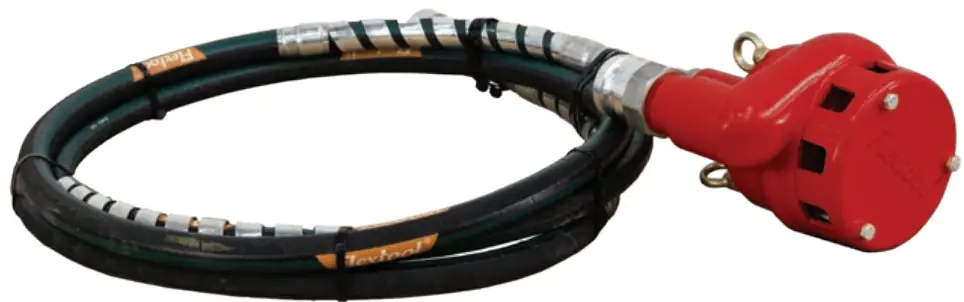

FP212G Flextool Submersible Pumps
Pump Head
Pump Head – Complete Assembly (All Types)
Pump Head (All Types)
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | NPS06170-UNIT | FLX EYE NUT 0.375” BSW (610510) | 3 | |
| 2 | NPS07469-UNIT | FLX CAMLOCK ADAPTOR 50MM (206308) | 1 | Suits FP212G & FP212A Only |
| 3 | NPS06169-UNIT | FLX STRAINER ALUMINIUM (206311) | 1 | Suits FP212G & FP212A |
| NPS09522-UNIT | FLX STRAINER CAST IRON (206321) | 1 | Suits FP212C | |
| 4 | NPS06902-UNIT | FLX BOLT 0.375” BSW x 2.5” (590425) | 3 |
Assembly / Service Kits – Pumps Head (All Types)
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | NPS06170-UNIT | FLX EYE NUT 0.375” BSW (610510) | 3 | |
| 2 | NPS07469-UNIT | FLX CAMLOCK ADAPTOR 50MM (206308) | 1 | Suits FP212G & FP212A Only |
| 3 | NPS06169-UNIT | FLX STRAINER ALUMINIUM (206311) | 1 | Suits FP212G & FP212A |
| NPS09522-UNIT | FLX STRAINER CAST IRON (206321) | 1 | Suits FP212C | |
| 4 | NPS06902-UNIT | FLX BOLT 0.375” BSW x 2.5” (590425) | 3 |
| Item No. | Product Code | Description | Qty | Remarks |
| AS-1 | NPS06127-UNIT | FLX ASSY PUMP HEAD GENERAL (206300) | 1 | Suits FP212G (General Purpose) |
| NPS08495-UNIT | FLX ASSY PUMP HEAD ABRAISIVE (206300PA) | 1 | Suits FP212A (Abrasion Resistant) | |
| NPS09701-UNIT | FLX ASSY PUMP HEAD CHEMICAL (206300PC) | 1 | Suits FP212C (Chemical Resistant) | |
| AS-2 | NPS08498-UNIT | FLX ASSY PUMP HEAD TOP ALUMINIUM (206390) | 1 | Suits FP212G &F P212A |
| NPS01585-UNIT | FLX ASSY PUMP HEAD TOP CAST IRON (206391) | 1 | Suits FP212C | |
| AS-3 | NPS06255-UNIT | FLX ASSY PUMP BODY ALUMINIUM (206380) | 1 | Suits FP212G |
| NPS08496-UNIT | FLX ASSY PUMP BODY CAST IRON (206381) | 1 | Suits FP212A & FP212C |

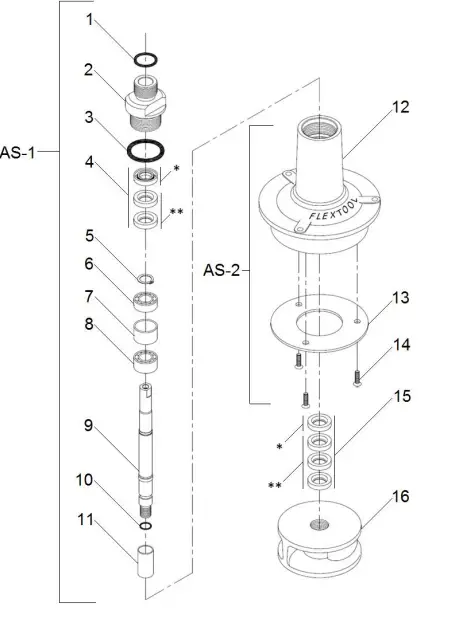

Pump Head – Top Assy (All Types)
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | See Remarks | FLX O-RING 1.049” x 0.103” (510433) | 1 | Use SK-1 |
| 2 | NPS06131-UNIT | FLX HOUSING ADAPTOR (206301) | 1 | |
| 3 | See Remarks | FLX O-RING 1.687” x 0.139” (510434) | 1 | Use SK-1 |
| 4 | See Remarks | FLX SEAL 0.75” x 1.25” x 0.25” (530111) | 3 | Use SK-1 |
| 5 | See Remarks | FLX CIRCLIP EXTERNAL 20MM (670211) | 1 | Use SK-1 |
| 6 | See Remarks | FLX BEARING NSK 6204 (550501) | 1 | Use SK-1 |
| 7 | See Remarks | FLX SPACER (206302) | 1 | Use SK-1 |
| 8 | See Remarks | FLX BEARING NACHI 5204 (550559) | 1 | Use SK-1 |
| 9 | NPS08489-UNIT | FLX SPINDLE (206303) | 1 | |
| 10 | See Remarks | FLX O-RING 0.626” x 0.103” (510435) | 1 | Use SK-1 |
| 11 | See Remarks | FLX SLEEVE (206304) | 1 | Use SK-1 |
| 12 | See Remarks | FLX HOUSING ALUMINIUM (206305) | 1 | Use AS-2 (Suits FP212G & FP212A) |
| See Remarks | FLX HOUSING CAST IRON (206315) | 1 | Use AS-2 (Suits P212C) | |
| 13 | See Remarks | FLX WEAR PLATE (206306) | 1 | Use AS-2 |
| 14 | See Remarks | FLX SCREW CSK M6X12 (633509) | 3 | Use AS-2 |
| 15 | See Remarks | FLX SEAL 1” x 1.625” x 0.375” (530510) | 4 | Use SK-1 |
| 16 | NPS06476-UNIT | FLX IMPELLER CAST IRON (206307) | 1 |
Assembly / Service Kits – Pumps Head Top Assy (All Types)
| Item No. | Product Code | Description | Qty | Remarks |
| AS-1 | NPS08498-UNIT | FLX ASSY PUMP HEAD TOP ALUMINIUM (206390) | 1 | Suits FP212G & FP212A |
| NPS01585-UNIT | FLX ASSY PUMP HEAD TOP CAST IRON (206391) | 1 | Suits FP212C | |
| AS-2 | NPS06128-UNIT | FLX ASSY HOUSING ALUMINIUM (206392) | 1 | Suits FP212G & FP212A Inc Items: 12 – 14 |
| NPS02229-UNIT | FLX ASSY HOUSING CAST IRON (206393) | 1 | Suit: P212C Inc Items: 12 – 14 |

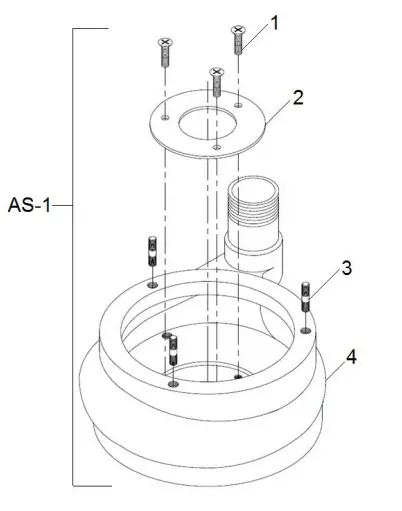

Pump Head – Body Assy (All Types)
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | See Remarks | FLX SCREW CSK M6X12 (633509) | 3 | Use AS-1 Not used on Cast Iron Pump Body |
| 2 | See Remarks | FLX WEAR PLATE (206309) | 1 | Use AS-1 Not used on Cast Iron Pump Body |
| 3 | NPS06303-UNIT | FLX STUD SS 0.375” BSW x 1.7” (590392) | 3 | |
| 4 | See Remarks | FLX BODY HOUSING ALUMINIUM (206310) | 1 | Use AS-1 (Suits FP212G) |
| See Remarks | FLX BODY HOUSING CAST IRON (206320) | 1 | Use AS-1 (Suits P212A & P212) |
Assembly / Service Kits – Pumps Head Body Assy (All Types)
| Item No. | Product Code | Description | Qty | Remarks |
| AS-1 | NPS06255-UNIT | FLX ASSY PUMP BODY ALUMINIUM (206380) | 1 | Suits all FP212G |
| NPS08496-UNIT | FLX ASSY PUMP BODY CAST IRON (206381) | 1 | Suits all FP212A & FP212C |
Flexshaft

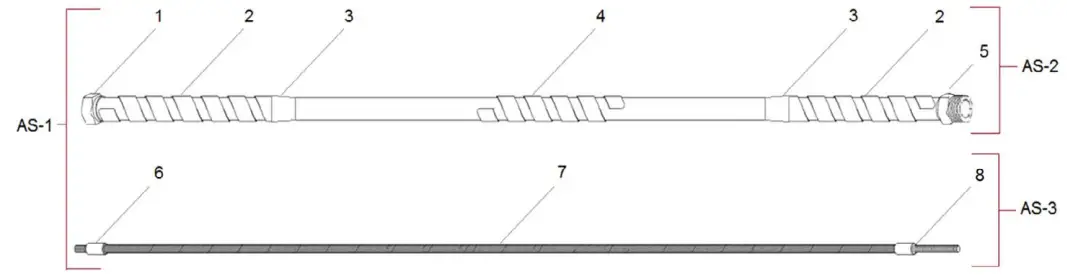

Flexshaft (All Types)
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | See Remarks | FLX FERRULE PUMP END 32MM (206103) | 1 | Use AS-1 or AS-2 |
| See Remarks | FLX FERRULE PUMP END 38MM (206108) | 1 | Use AS-1 or AS-2 | |
| 2 | See Remarks | FLX END SUPPORT SPRING 32MM (206102) | 2 | Use AS-1 or AS-2 |
| See Remarks | FLX END SUPPORT SPRING 38MM (206105) | 2 | Use AS-1 or AS-2 | |
| 3 | See Remarks | FLX COLLAR 32MM (340303) | 2 | Use AS-1 or AS-2 |
| See Remarks | FLX COLLAR 38MM (206112) | 2 | Use AS-1 or AS-2 | |
| 4 | See Remarks | FLX MIDDLE SUPPORT SPRING 32MM (206111) | 1 | Use AS-1 or AS-2 |
| See Remarks | FLX MIDDLE SUPPORT SPRING 38MM (206106) | 1 | Use AS-1 or AS-2 | |
| 5 | See Remarks | FLX FERRULE COUPLING END 32MM (310315) | 1 | Use AS-1 or AS-2 |
| See Remarks | FLX FERRULE COUPLING END 38MM (206104) | 1 | Use AS-1 or AS-2 | |
| 6 | See Remarks | FLX CORE END SCREW 13MM (206101) | 1 | Use AS-1 or AS-3 |
| See Remarks | FLX CORE END SCREW 15MM (206107) | 1 | Use AS-1 or AS-3 | |
| 7 | See Remarks | FLX INNER CORE 6M X 13MM (810124) | 1 | Use AS-1 or AS-3 |
| See Remarks | FLX INNER CORE 9M X 13MM (810155) | 1 | Use AS-1 or AS-3 | |
| See Remarks | FLX INNER CORE 6M X 15MM (810180) | 1 | Use AS-1 or AS-3 | |
| See Remarks | FLX INNER CORE 9M X 15MM (810183) | 1 | Use AS-1 or AS-3 | |
| 8 | See Remarks | FLX CORE END HEX 13MM (049210) | 1 | Use AS-1 or AS-3 |
| See Remarks | FLX CORE END HEX 15MM (053270) | 1 | Use AS-1 or AS-3 |
Assembly / Service Kits – Flexshaft (All Types)
| Item No. | Product Code | Description | Qty | Remarks |
| AS-1 | NPS01590-UNIT | FLX FLEXSHAFT ASSY 6M x 32MM (206946GZ) | 1 | Suits FP212G 6m long x 32mm casing diameter Inc Items: AS-2 & AS-3 |
| NPS01593-UNIT | FLX FLEXSHAFT ASSY 9M x 32MM (206949GZ) | 1 | Suits FP212G 9m long x 32mm casing diameter Inc Items: AS-2 & AS-3 | |
| NPS01592-UNIT | FLX FLEXSHAFT ASSY 6M x 38MM (206946CGZ) | 1 | Suits FP212A & FP212C 6m long x 38mm casing diameter Inc Items: AS-2 & AS-3 | |
| NPS01594-UNIT | FLX FLEXSHAFT ASSY 9M x 38MM (206949CGZ) | 1 | Suits FP212A & FP212C 9m long x 38mm casing diameter Inc Items: AS-2 & AS-3 | |
| AS-2 | NPS01586-UNIT | FLX CASING ASSY 6M x 32MM (206946G) | 1 | Suits FP212G 6m long x 32mm casing diameter Inc Items: 1 – 5 |
| NPS01588-UNIT | FLX CASING ASSY 9m x 32MM (206949G) | 1 | Suits FP212G 9m long x 32mm casing diameter Inc Items: 1 – 5 | |
| NPS01587-UNIT | FLX CASING ASSY 6M x 38MM (206946CG) | 1 | Suits FP212A &F P212C 6m long x 38mm casing diameter Inc Items: 1 – 5 | |
| NPS01589-UNIT | FLX CASING ASSY 9M x 38MM (206949CG) | 1 | Suits FP212A & FP212C 9m long x 38mm casing diameter Inc Items: 1 – 5 | |
| AS-3 | NPS01595-UNIT | FLX INNER CORE ASSY 6M x 13MM (206946Z) | 1 | Suits FP212G 6m long x 13mm core diameter Inc Items: 6 – 8 |
| NPS01598-UNIT | FLX INNER CORE ASSY 9M x 13MM (206949Z) | 1 | Suits FP212G 9m long x 13 mm core diameter Inc Items: 6 – 8 | |
| NPS01596-UNIT | FLX INNER CORE ASSY 6M x 15MM (206946CZ) | 1 | Suits FP212A & FP212C 6m long x 15mm core diameter Inc Items: 6 – 8 | |
| NPS01600-UNIT | FLX INNER CORE ASSY 9M x 15MM (206949CZ) | 1 | Suits FP212A & FP212C 9m long x 15mm core diameter Inc Items: 6 – 8 |
Coupling

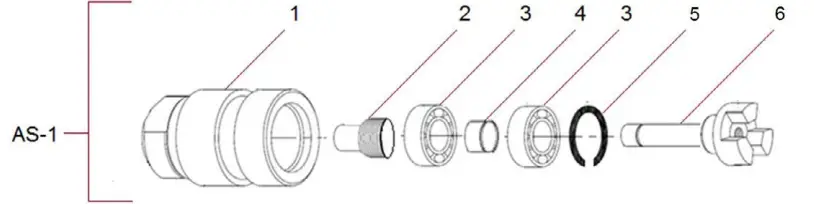

Coupling Assy (All Types)
Coupling (All Types)
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | See Remarks | FLX BEARING HOUSING (360421) | 1 | Use AS-1 |
| 2 | See Remarks | FLX HEX ADAPTOR (046310) | 1 | Use SK-1 |
| 3 | See Remarks | FLX BEARING (550102) | 2 | Use SK-1 |
| 4 | See Remarks | FLX SPACER (046330) | 1 | Use SK-1 |
| 5 | See Remarks | FLX CIRCLIP (670105) | 1 | Use SK-1 |
| 6 | See Remarks | FLX SPINDLE 3-TEETH (360422) | 1 | Use AS-1 |
Coupling (All Types) Assembly / Service Kits
| Item No. | Product Code | Description | Qty | Remarks |
| AS-1 | NPS01575-UNIT | FLX COUPLING ASSY (360420) | 1 | Inc Items: 1 – 6 |
