Pyle PLMRW8 8-Inch Outdoor Marine Audio Subwoofer

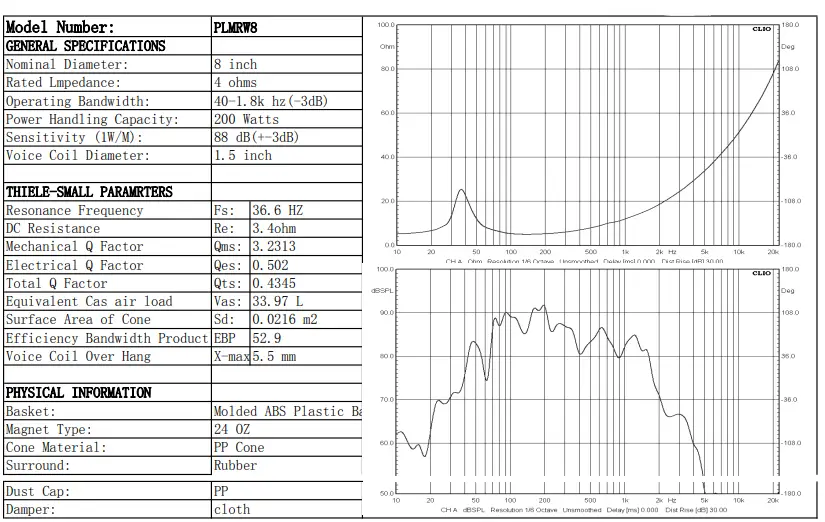

SPECIFICATION

DIMENSION

WHAT’S IN THE BOX

  • Outdoor Marine Audio Subwoofer

PRODUCT DESCRIPTION

Pyle Model : PLMRW8 8” Marine Subwoofer, 800 Watt Single 8″ 400 Watt White 4 Ohm Marine Subwoofer 8” High Quality Polypropylene Cone Water Resistant Construction Design 40 oz Magnet Structure 1.5” High Temperature Voice Coil 400 Watts Peak Power Frequency Response: 35-3.5K Hz 4 Ohm Impedance Sensitivity: 91 dB Overall Diameter: 8.5” Mounting Depth: 3.60” This 400-watt Pyle Hydra subwoofer will blow you out of the water! It’s constructed from water resistant plastic, supporting a 8′ high quality polypropylene cone. The 40 oz. magnet structure and 1.5′ high temperature voice coil boom with power and achieve a frequency response of 35 Hz to 3.5 kHz.

LEGAL DISCLAIMER

Warranty does not cover misuse of product.

FEATURES

  • 400 WATT POWER: Pyle’s 8 Inch Marine Subwoofer offers a peak power of 400 watts w/ 4ohm impedance. It lets you pump out some great low frequency bass volume to enhance the party vibe making it a great addition to your marine music audio system
  • FOR ENHANCED SOUND: The Hydra subwoofer is a great addition to your marine stereo sound system. No sound system is complete without the perfect subwoofer for complimentary bass so don’t deprive your boat from the absolute best sound you can get
  • WATER-RESISTANT: The professional compact loud speaker system features a marine grade waterproof plastic case construction making it safe to be installed and used in places where moderate water splashes occur such as in marine vehicles
  • SUPERIOR POWERFUL SOUND: The white outdoor bass speaker features an 8” high quality polypropylene cone. The 40 oz. magnetic structure and 1.5” high temperature voice coil boom w/ power and achieve a frequency response of 35 Hz to 3.5 kHz
  • 8” SINGLE SUBWOOFER: The boat subwoofer can be installed under or in front of the compartment or helm, behind the helm seat or you can mount them inside a box or cooler. The subwoofer has an overall diameter of 8.5” and 3.60” mounting depth

Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.

WARRANTY & SUPPORT

If you’d like a copy of the manufacturer’s warranty for a product found on Amazon.com, you can contact the manufacturer directly or visit their website for more information. Manufacturer’s warranties may not apply in all cases, depending on factors like the use of the product, where the product was purchased, or who you purchased the product from. Please review the warranty carefully, and contact the manufacturer if you have any questions.

FAQs

Where should a Pyle PLMRW8 subwoofer be placed on a boat?

Even if you use a box, marine subs are the best option for boat installation. It’s because materials that are resistant to salt and water were used in their creation. The subwoofer can be mounted in the marine boat’s first compartment.

How can I make my Pyle PLMRW8 subwoofer sound better?

Your subwoofer should be positioned facing outward into the rest of the room and within 8–12 inches of a wall for the best sound quality. Consider positioning your subwoofer in the room’s corner for even greater output, as this placement can greatly improve the overall sound.

Will a Pyle PLMRW8 sub improve sound quality?

Smaller speakers are therefore able to reproduce sound in a more palatable frequency range. In essence, subwoofers lessen the workload placed on full-range speakers, enhancing their overall performance and enabling them to reproduce high-quality sound without distortion.

How many Pyle PLMRW8 subwoofers do I need in my boat?

Many people mistakenly believe that having more than one subwoofer is unnecessary or undesirable because they don’t want “too much bass.” However, adding a second subwoofer will actually have the opposite effect, ensuring consistent audible performance and improving the listening experience regardless of the environment.

Where should you not put a Pyle PLMRW8 subwoofer?

Subwoofers should never be placed in cabinets. If you’re using a soundbar, place your subwoofer in the middle or to one side. Keep the subwoofer four to five feet from one of the larger speakers but off to one side. Submarines with rear or side ports should be kept at least twice as far away from walls as the port’s diameter.

How long are Pyle PLMRW8 subwoofers good for?

A subwoofer can last anywhere from 5 to 14 years. The average person should be able to get 10+ years out of their subwoofer if it is well-maintained and not misused.

Is it OK to leave Pyle PLMRW8 subwoofer on all the time?

Yes, as long as your subwoofer has an auto standby feature, you can leave it on constantly. Subwoofers that are in standby use less energy and last longer. Older subwoofers without this feature should be unplugged when not in use because heat created by electricity escaping causes the amplifier to become hotter than usual.

What makes a Pyle PLMRW8 subwoofer powerful?

The subwoofer in question’s wattage determines its power; a higher wattage indicates a more potent subwoofer.

What level should Pyle PLMRW8 subwoofer be?

The “normal” or “0 degrees” position is typically appropriate if the subwoofer is in the same plane as the front speakers. When the bass level matches that of your other speakers, adjust the volume or level.

What is the best frequency for Pyle PLMRW8 subwoofer?

For consumer products, a subwoofer’s typical frequency range is between 20 and 200 Hz; for professional live sound, it is between 100 and 80 Hz; and for THX-certified systems, it is between 80 and 100 Hz. As they are designed to complement the low-frequency range of loudspeakers that cover the higher frequency bands, subwoofers are never used on their own.

Do Pyle PLMRW8 subwoofers use a lot of electricity?

The majority of subwoofers need between 150 and 1000 watts to reproduce the sound they are receiving. Although the power can be increased by using an amplifier, it is best to stick with speakers that only need around 20 watts if you just want something small and portable.

How many channels do you need for a Pyle PLMRW8 subwoofer?

For each speaker you want to amplify, you generally need one channel. A single-channel amplifier will do the trick if you’re adding a subwoofer to an existing setup.

How do I power my Pyle PLMRW8 boat subwoofer?

A power and ground wire must be used to connect the amp to the boat battery. Simply buy an amp kit for power, ground, and lead wires for powered subs. Run the wires to the remainder of your system and the boat battery after that.

Do Pyle PLMRW8 subwoofers need a break-in period?

Therefore, a break-in period is necessary for subwoofers to produce the best sound. Imagine it as if you were getting out of bed in the morning and taking a few minutes to scroll through your phone to wake up completely.

Is a Pyle PLMRW8 subwoofer necessary on a boat?

Actually, the answer to that question is quite arbitrary and highly dependent on your listening preferences. Without a subwoofer, high-quality full-range marine speakers can provide very good bass response. In fact, some would contend that the overuse of bass ruins the quality and accuracy of sound reproduction.
