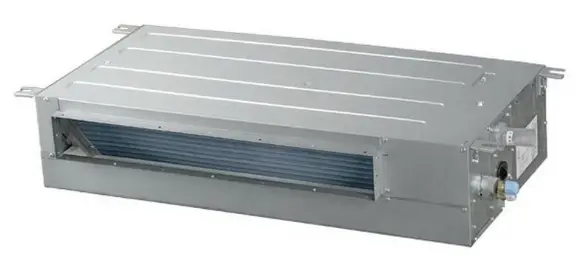

Haier ADH071M1ERG Ducted Low Profile Air Conditioner
Product Information: Ducted, Low Profile, 7.1 kW Air
Conditioner
The ADH071M1ERG is a ducted air conditioner with a low-profile design and a cooling capacity of 7.1 kW. It also has a heating capacity of 8.0 kW and a range of features including a 24-hour timer, auto restart, bluefin coils, condensate pump, DRED (Demand Response) readiness, MEPS approval, self-diagnostics, and a central controller. The air conditioner comes with optional accessories such as an IR controller and a Wi-Fi controller.
Specifications
- Height: 250mm
- Width: 1050mm
- Depth: 720mm
- Capacity: 7.1kW (cooling), 8.0kW (heating)
- Consumption: COP 4, EER 3.5
- Features: 24-hour timer, auto restart, bluefin coils, condensate pump, DRED (Demand Response) ready, MEPS approved, motor type, self-diagnostics
- Sensor panel, sleep mode, standard controller, standard panel,
- Wi-Fi controller compatible
- Performance: Airflow, DC inverter, self-cleaning evaporator, sound power, sound pressure
- Power requirements: Power supply – 220-240vac; Supply frequency – 50/60Hz
- Product dimensions: Depth – 720mm; Height – 250mm; Net weight – 31.2kg; Width – 1050mm
- Warranty: 5 years (parts and labor)
- SKU: 51081
Product Usage Instructions
To use the ADH071M1ERG air conditioner, follow these steps:
- Ensure the power supply is connected to the air conditioner and that the supply frequency is set to 50/60Hz.
- Use the central controller or optional IR controller/Wi-Fi controller to set the desired temperature, fan speed, and other settings.
- The air conditioner will automatically adjust its settings to maintain the desired temperature.
- To use the 24-hour timer, set the desired on/off times using the controller.
- To activate sleep mode, press the sleep button on the controller. This will adjust the temperature and fan speed for optimal sleeping conditions.
- If the air conditioner shuts off due to a power outage or other issue, it will automatically restart once power is restored.
- The self-diagnostic feature will alert you to any issues with the air conditioner and provide guidance on how to resolve them.
- Clean the self-cleaning evaporator regularly to ensure optimal performance.
Please note that the dimensions and specifications of this air conditioner may change at any time due to our policy of continuous improvement. To ensure that you have the most up-to-date information, please contact Fisher & Paykel’s Customer Care Centre.
DIMENSIONS
| Height | 250 |
| Width | 1050 |
| Depth | 720 |
Accessories
| Central controller | Optional |
| IR Controller | Optional |
Capacity
| Cooling capacity (kW) | 7.1kW |
| Heating capacity (kW) | 8.0W |
Consumption
| COP | 4 |
| EER | 3.5 |
Features
- 24-hour timer •
- Auto restart •
- Bluefin coils •
- Condensate pump •
- DRED (Demand Response) ready •
- MEPS approved •
- Motor type
- DC motor
- Self diagnostics •
- Sensor panel
- PB-950MB
- Sleep mode •
- Standard controller YR-E17
- Standard panel PB-950KB
- Wi-Fi controller compatible •
Performance
| Airflow | 402l/s |
| DC inverter | 180° sine wave |
| Self-cleaning evaporator | • |
| Sound power | 58dBA |
| Sound pressure | 48dBA |
Power requirements
| Power supply | 220-240vac |
| Supply frequency | 50/60Hz |
Product dimensions
| Depth | 720 |
| Height | 250 |
| Net weight | 31.2kg |
| Width | 1050 |
Warranty
| Parts and labor | 5 years |
| SKU | 51081 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
