Hansgrohe Shower Fitting Rebris S Installation Guide

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The product may only be used for bathing, hygienic and body cleaning purposes.
The hot and cold supplies must be of equal pressures.

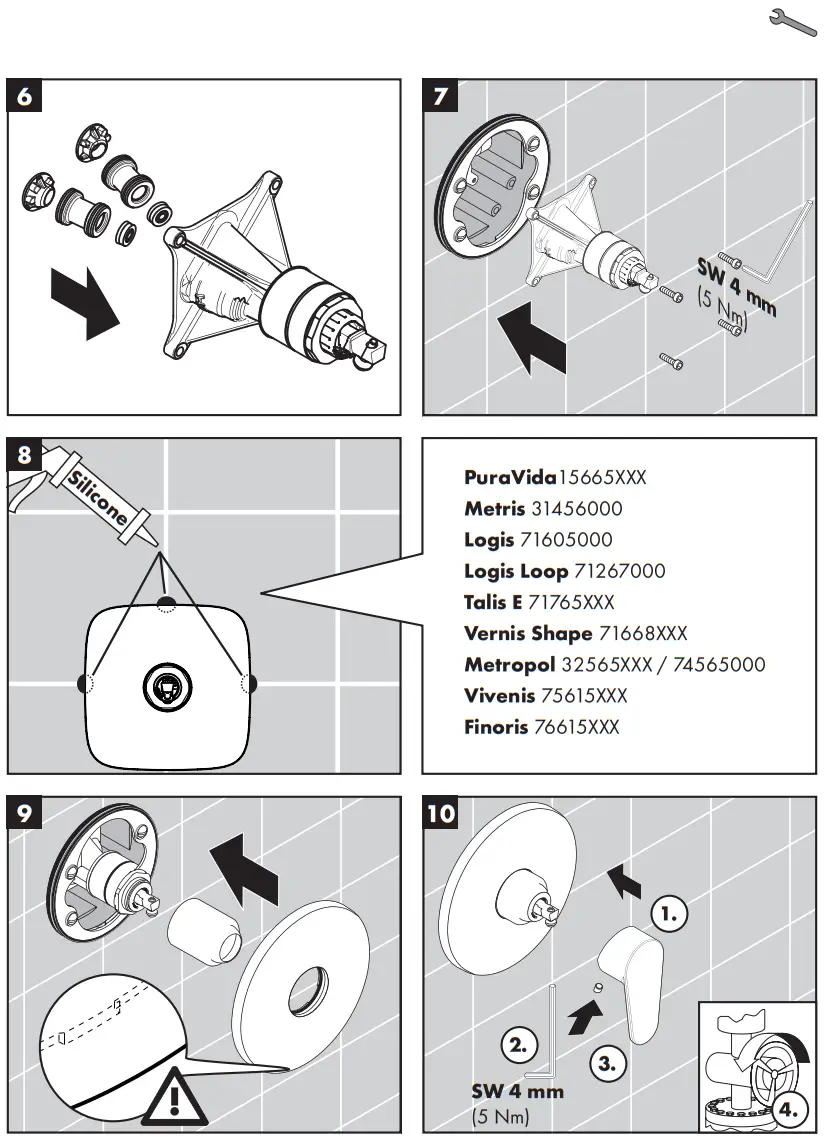

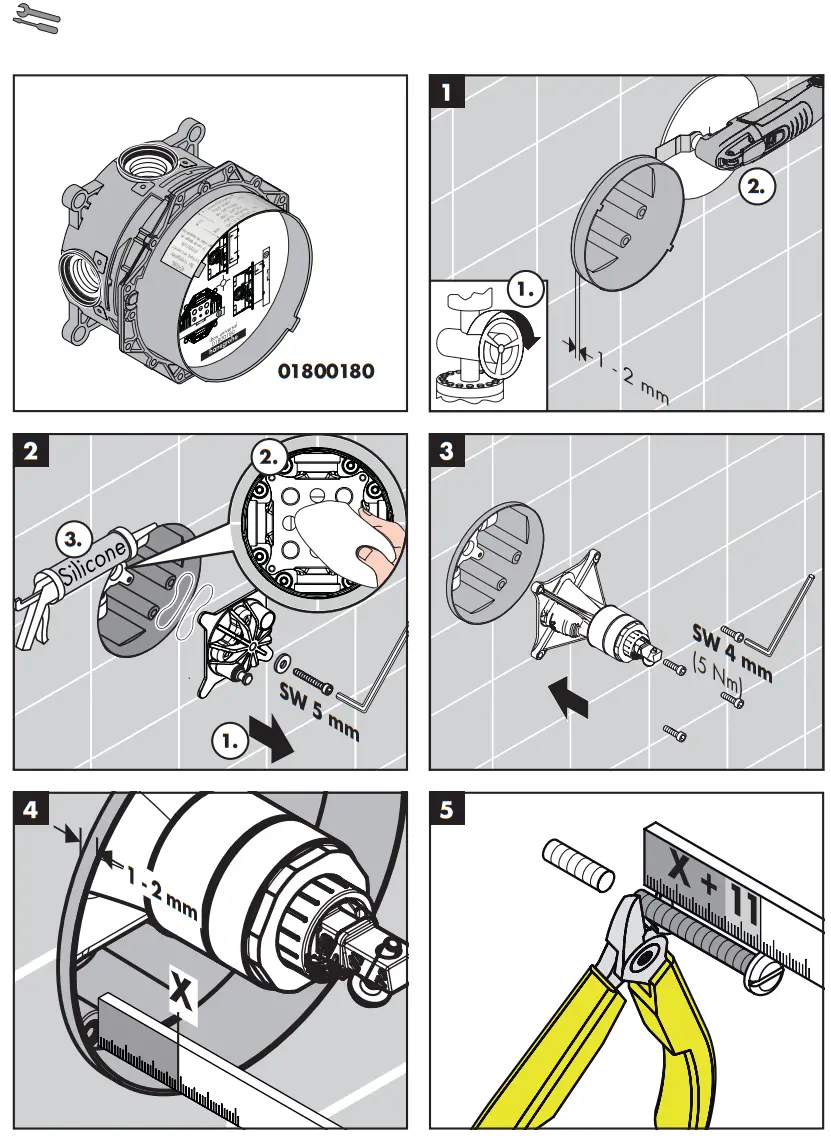

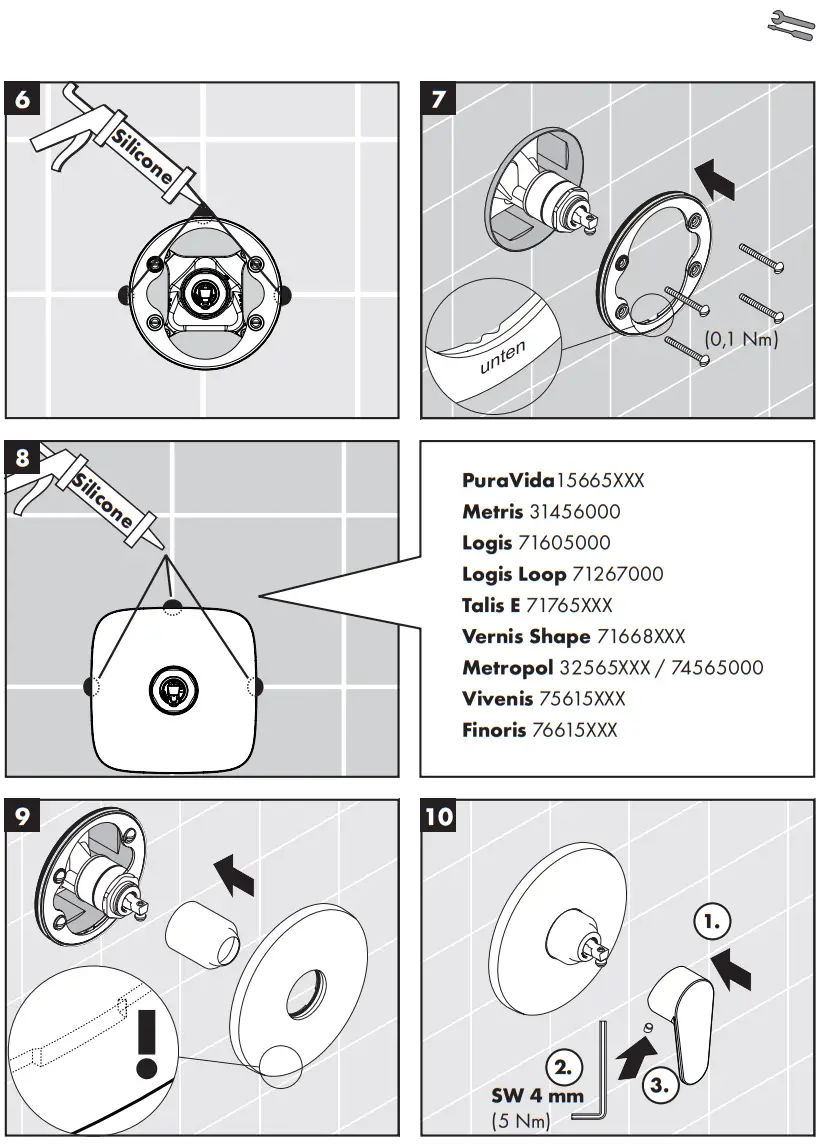

Installation Instructions

• Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honored.
• The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
• The plumbing codes applicable in the respective countries must be observed.

Technical Data

The product is exclusively designed for drinking water!

Symbol description

	Do not use silicone containing acetic acid!

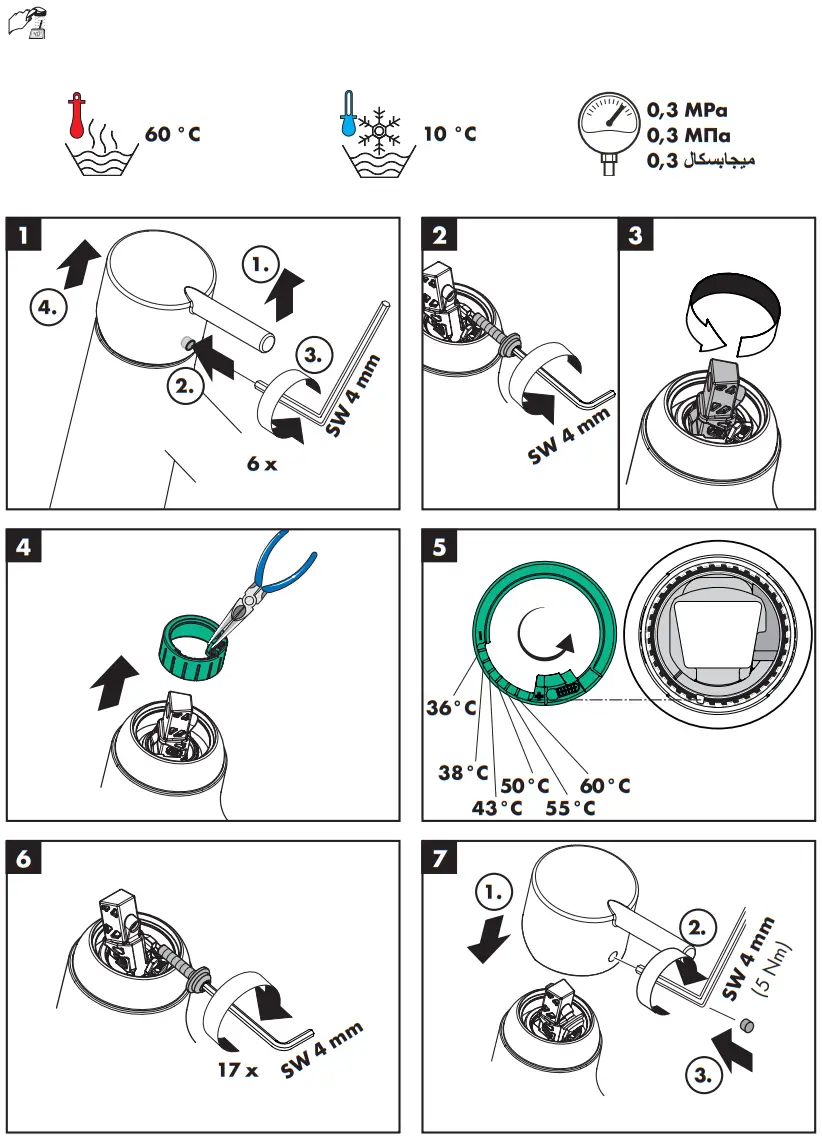

	Adjustment (see page 36) To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended.

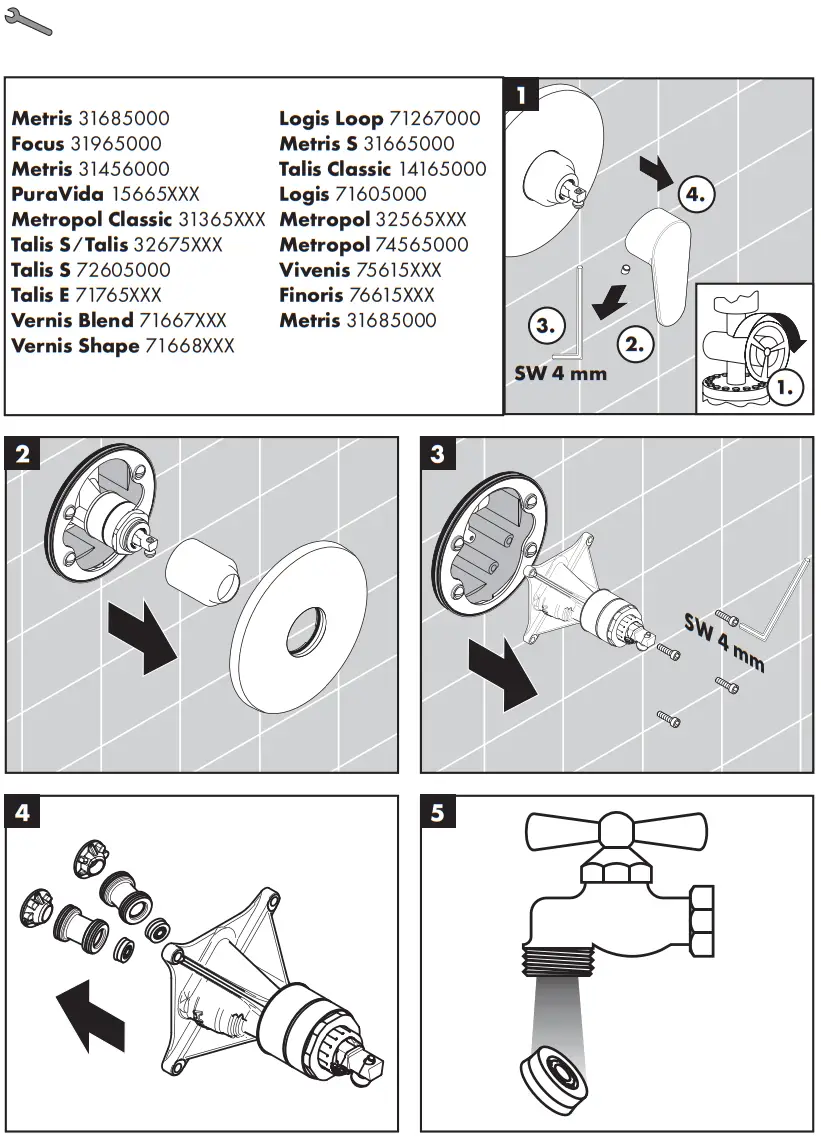

	Maintenance (see page 38)

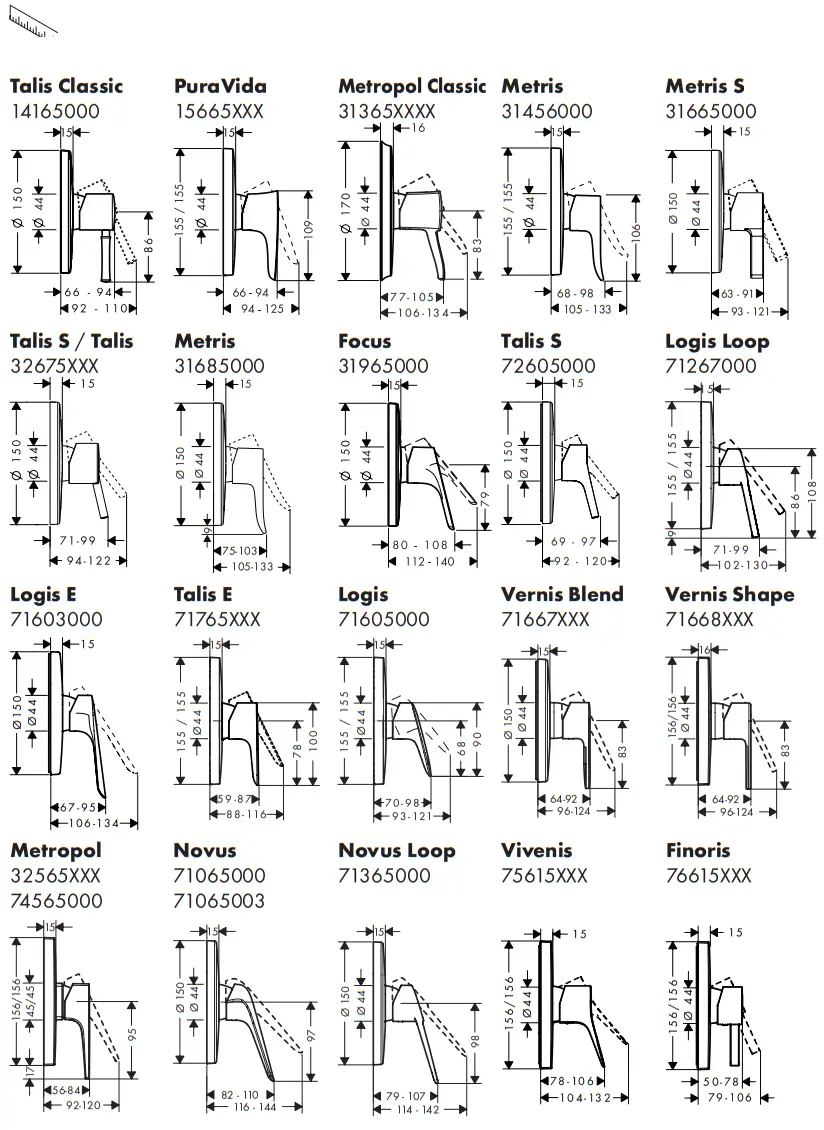

	Dimensions (see page 40)
	Flow diagram (see page 41) free flow

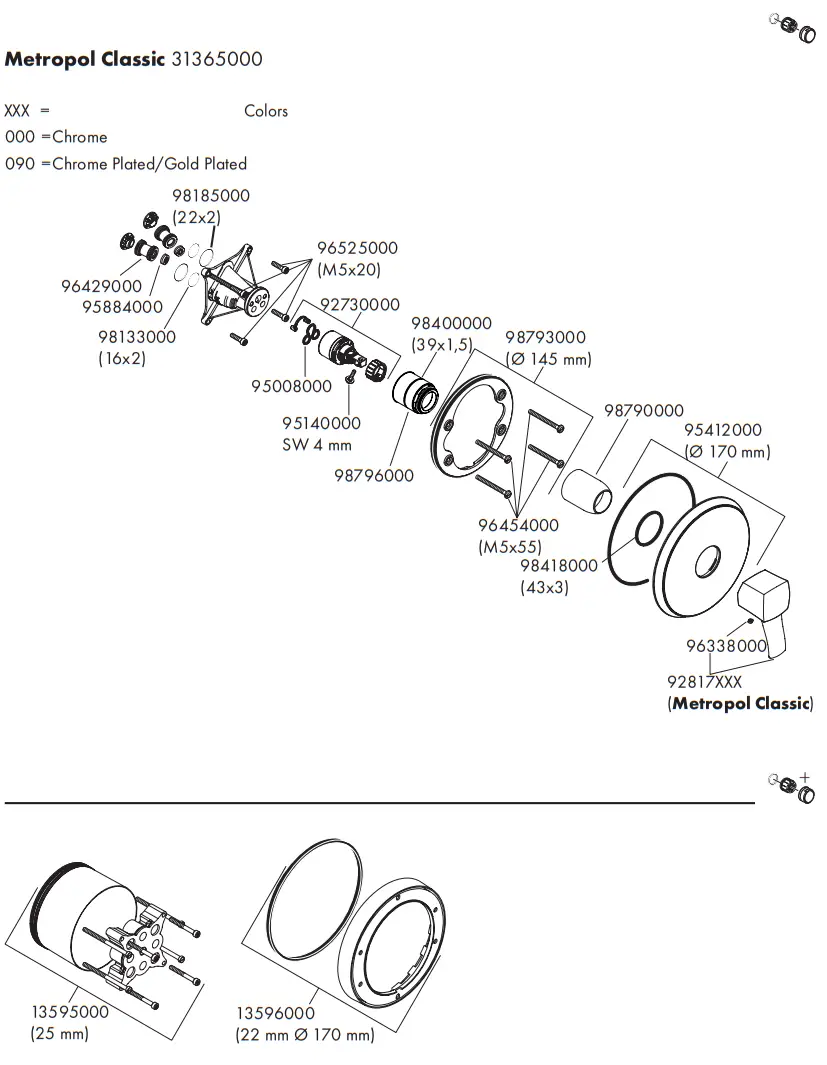

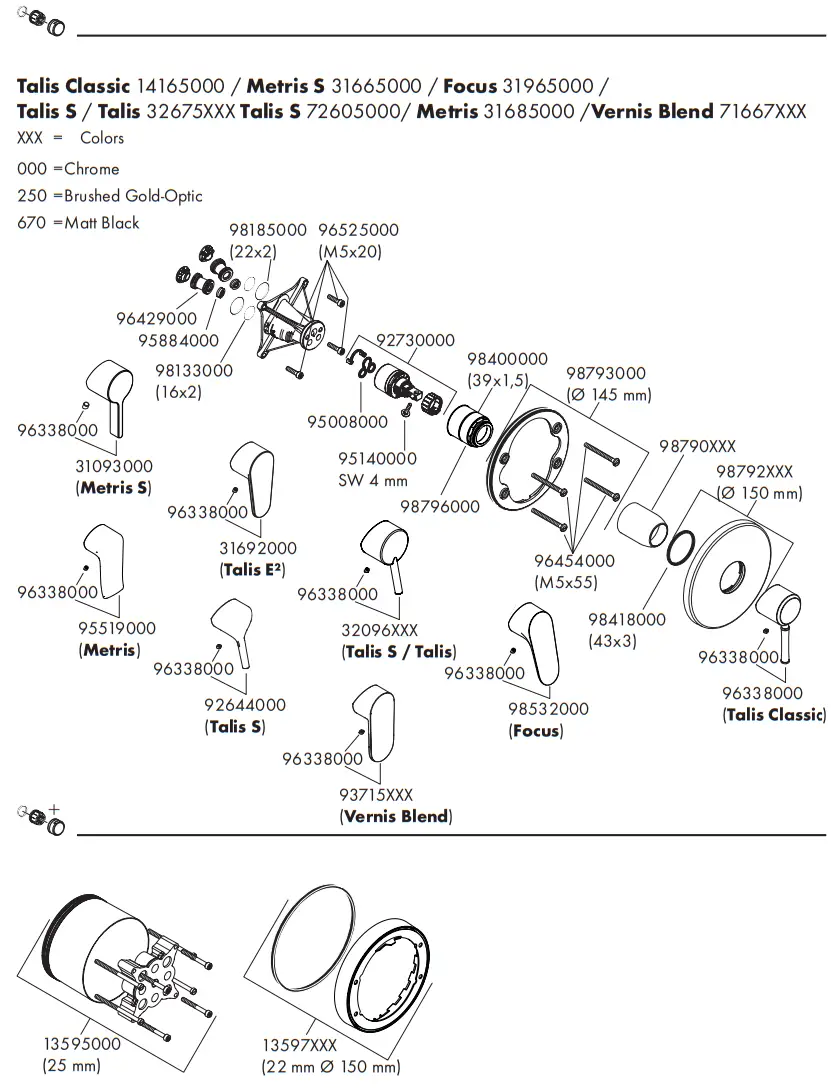

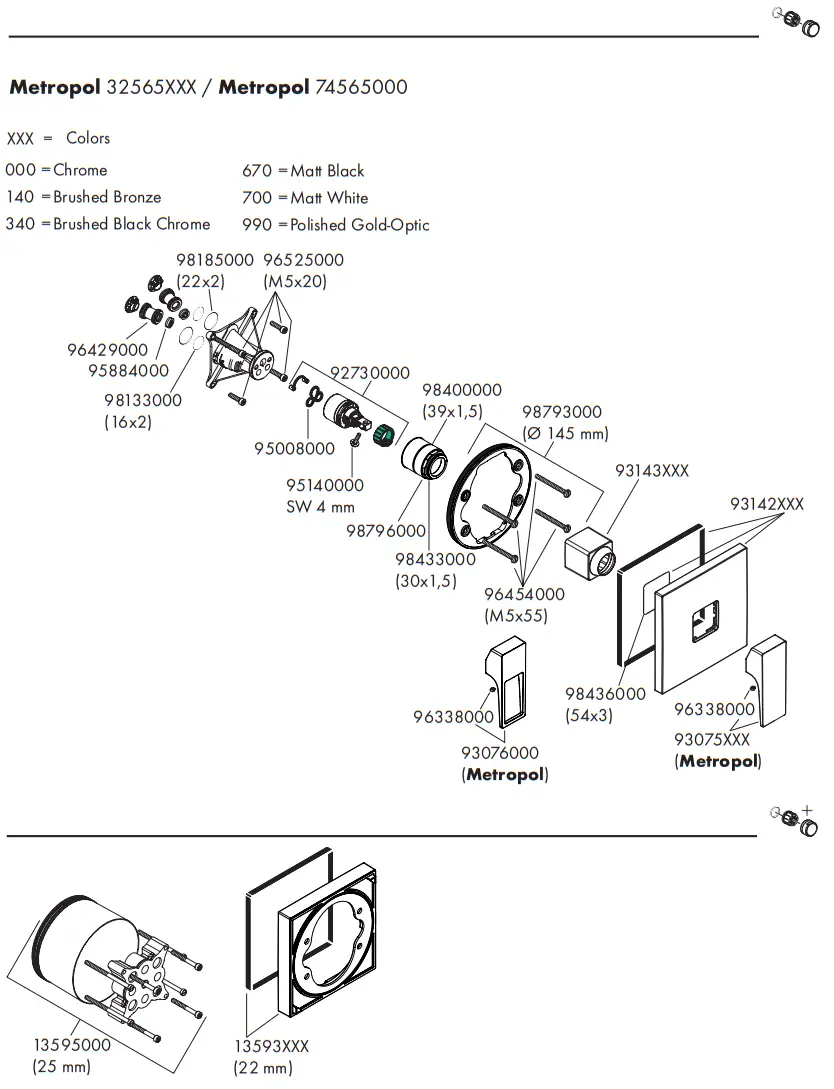

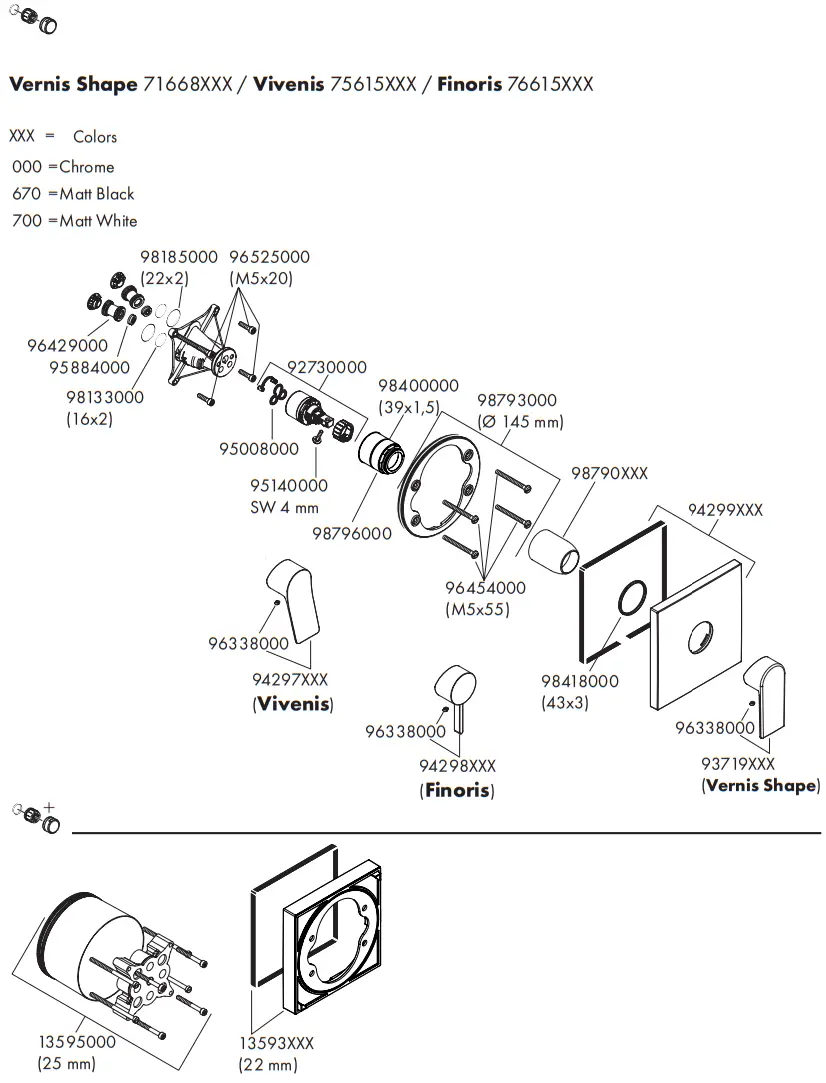

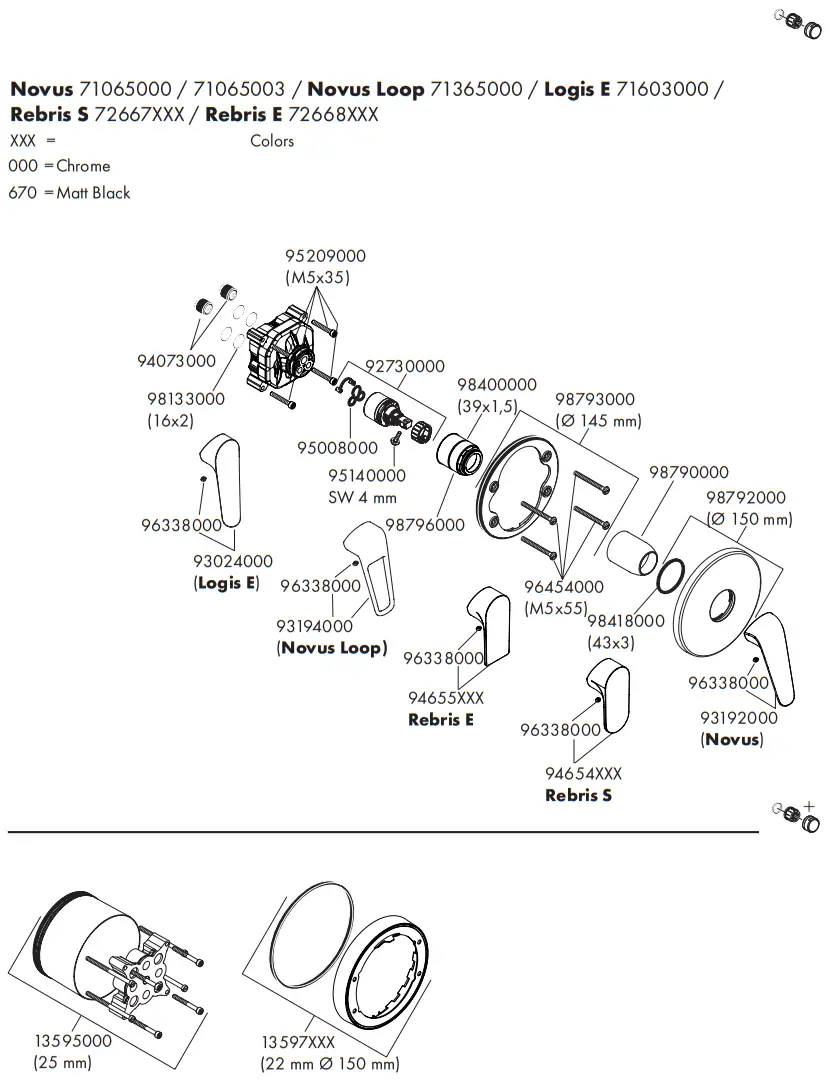

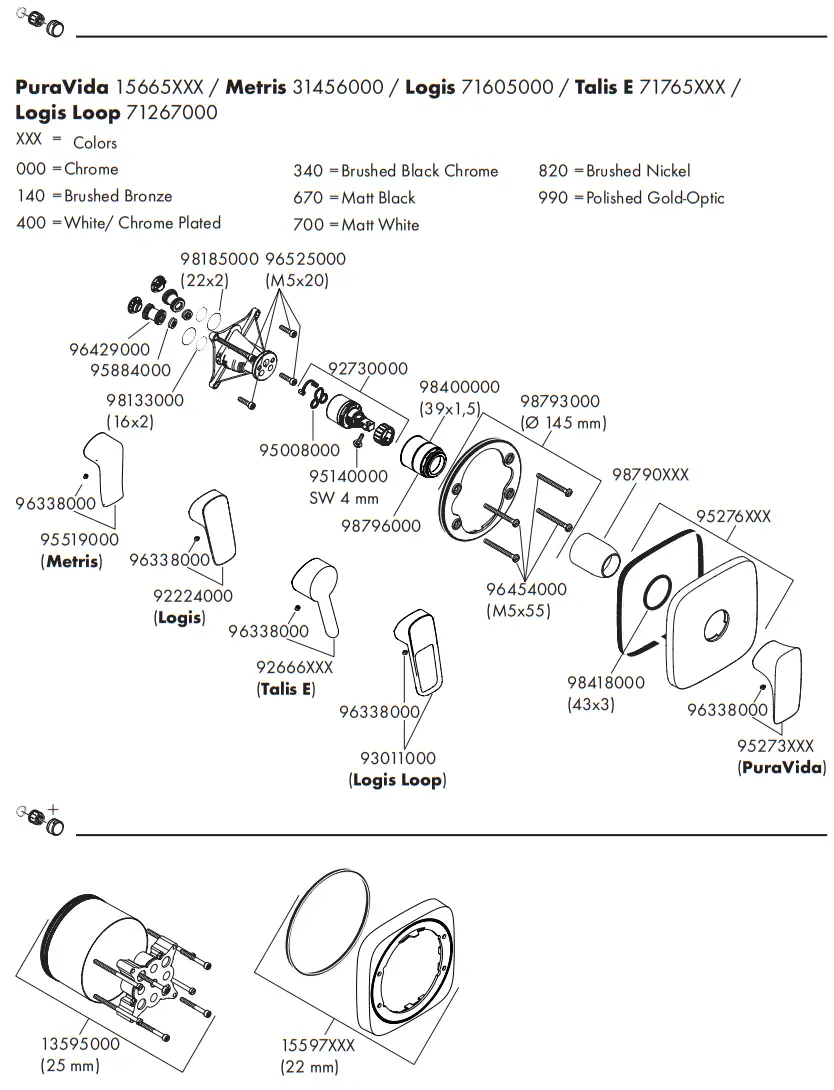

	Spare parts (see page 42)
	Special accessories (see page 42) order as an extra • extension 25 mm #13595000 • Extension Set 22 mm (when wall is not deep enough)#15597XXX, #13597XXX, #13596000, #13593XXX
	Cleaning (see page 37)
	Operation (see page41)
	Test certificate (see page 48)
