Milesight Ur32l Industrial Router Lite Series User Guide

Milesight UR32L Industrial Router Lite Series

Safety Precautions

Milesight will not shoulder responsibility for any loss or damage resulting from not following the instructions of this operating guide.

•  The device must not be modified in any way.
•  Do not place the device close to objects with naked flames.
•  Do not place the device where the temperature is below/above the operating range.
•  Do not power on the device or connect it to another electrical device when installing.
•  Check lightning and water protection when used outdoors.
•  Do not connect or power the equipment using cables that have been damaged.

Related Documents
This Start Guide only explains the installation of Milesight UR32L router. For more functionality and advanced settings, please refer to the relevant documents as below.

The related documents are available on the Milesight website: https://www.milesight-iot.com

Declaration of Conformity

UR32L is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and RoHS.

All rights reserved: All information in this guide is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or part of this user guide by any means without written authorization from Xiamen Milesight IoT Co., Ltd.

Packing List

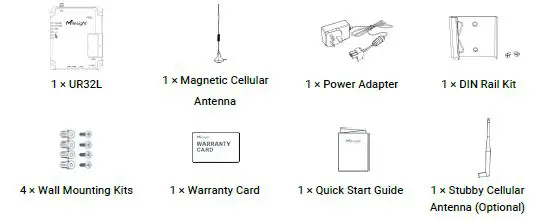

Before you begin to install the UR32L router, please check the package contents to verify that you have received the items below.

If any of the above items is missing or damaged, please contact your sales representative.

Hardware Introduction

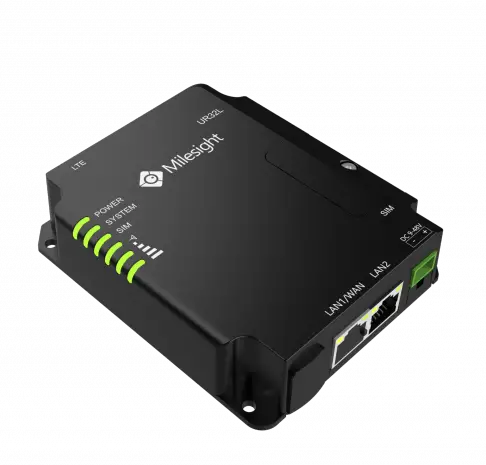

Overview

1. Cellular Antenna Connector
2.  LED Indicator Area
   1. POWER: Power Indicator
   2. SYSTEM: Status Indicator
   3. SIM : Status Indicator
3. Ethernet LAN1/WAN Port
4. Ethernet LAN2 Port
5. Power Connector
6. SIM and Reset Button Holder

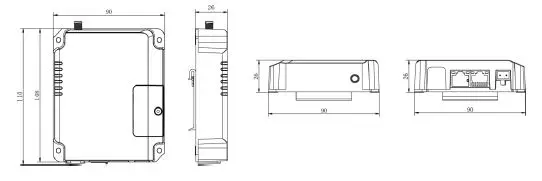

Dimensions (mm)

LED Indicators

Reset Button

Reset button is under the SIM slots.

Ethernet Port Indicator

Hardware Installation

Environmental Requirements

•  Power Input: 9-48 VDC (48 VDC is needed for PoE output)
•  Power Consumption: Typical 1.8 W (Max 2.2 W)
•  Operating Temperature: -40°C to 70°C (-40°F -158°F)
•  Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F

SIM Card Installation

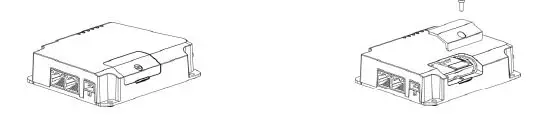

A. Unscrew the cover of the SIM card then take it off.
B. Put SIM card into the slot and screw it up.

Antenna Installation

Rotate the antenna into the antenna connector accordingly.
The external antenna should be installed vertically always on a site with a good signal.

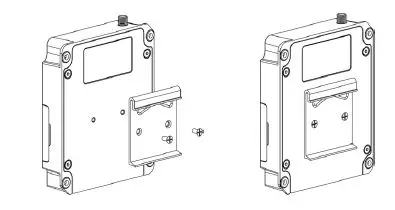

Router Installation

Use 4 pcs of M3 × 6 flat head Phillips screws to fix the router on the wall.
Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m.

Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m.

Log in the Web GUI of Router

Please connect PC to LAN port of UR32L router. PC can obtain an IP address, or you can configure a static IP address manually. The following steps are based on Windows 10 operating system for your reference.
IP Address: 192.168.1.1
Username: admin
Password: password

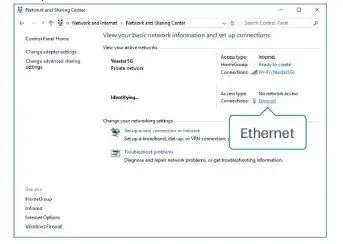

A. Go to “Control Panel” → “Network and Internet” → “Network and Sharing Center”, then click “Ethernet”
(May have different names).

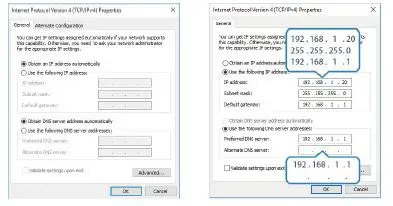

B. Go to “Properties” → “Internet Protocol Version 4(TCP/IPv4) ”, select “Obtain an IP address automatically” or “Use the following IP address”, then assign a static IP manually within the same subnet of the device.

C. Open a Web browser on your PC (Chrome is recommended), type in the IP address 192.168.1.1, and press Enter on your keyboard.
D. Enter the username, password, and click “Login”.If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes.

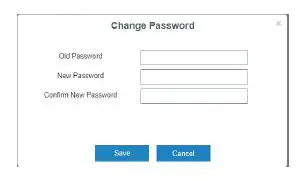

E. When you login with the default username and password, you will be asked to modify the password. It’s suggested that you change the password for the sake of security. Click “Cancel” button if you want to modify it later.

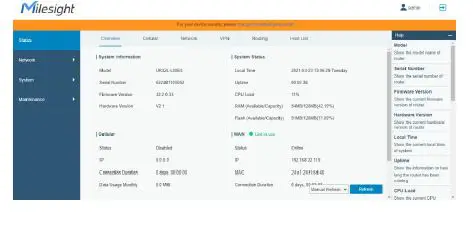

F. After you login the Web GUI, you can view system information and perform configuration on the router.

Network Configuration

This chapter explains how to connect UR32L to network via WAN connection or cellular.

Ethernet WAN Configuration

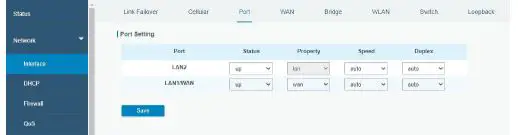

A. Go to “Network > Interface > Port” to change LAN1 to WAN port.

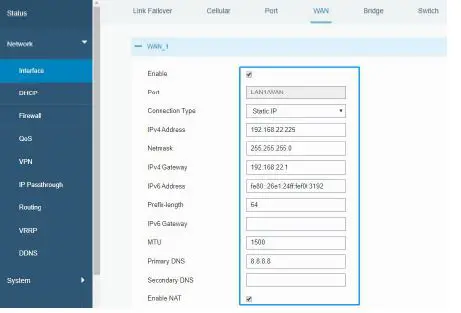

B. Go to “Network > Interface > WAN” to select connection type and configure WAN parameters, click “Save & Apply” button to make the changes take effect.

C. Connect WAN port to another network devices like modem.

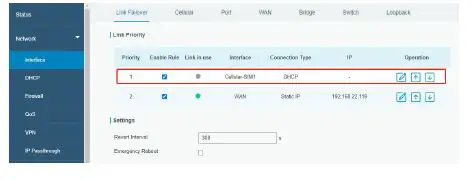

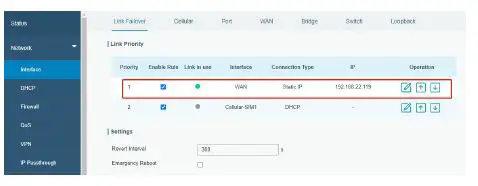

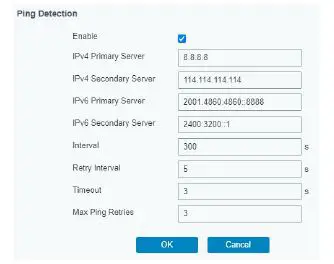

D. Go to “Network > Interface > Link Failover” to rise the WAN priority to 1.
E. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR32L router.

Cellular Connection Configuration

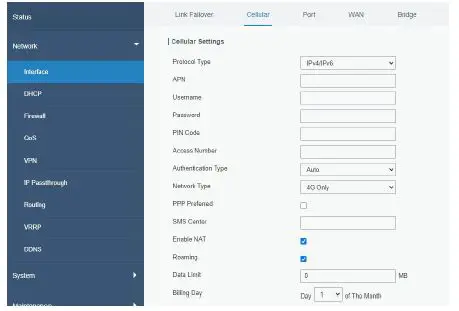

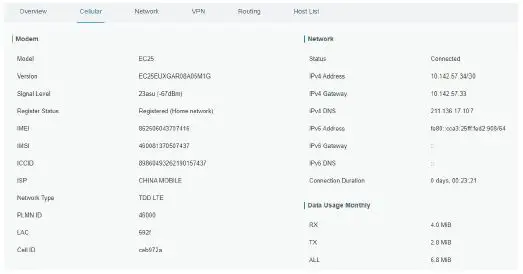

A. Go to “Network > Interface > Cellular > Cellular Setting” to configure APN, PIN code or other cellular info, click “Save” and “Apply” to save the configuration.
