Nextorch Ul360 Pocket Lantern With Magnetic Base User Manual (+ PDF)

UL360 Pocket Lantern with Magnetic Base
User Manual
Learn more on
www.nextorch.com

Contents hide

6 CONTACT WITH NEXTORCH DESIGNER

7 Documents / Resources

7.1 References

8 Related Posts

SPECIFICATIONS

ANSI / PLATO-FL1	High	Low
flight Output	70 I’m	10 I’m
Run Time	3 h 15 min	30 h
Beam Distance	5 m / 16.4′
Impact Resistance	1 m
Submersible	IPX4
Weight and Dimensions	Weight: 40 g / 1.41 oz (Without Battery)
	Size: 78 mm x 34 mm x 21 mm
Material	Light Source: CREE XP-G2 Neutral White LED

	PC

The above-tested specifications are strictly based on the standard of ANSI / PLATO-FL1.
We tested UL360 with a 1 × AA battery in 22℃±3℃. The specifications might be different when using a different battery or testing in a different environment.

FEATURES

CREE XP-G2 Neutral White LED, max output up to 70 lumens， with a reach of 5 meters beam diameter.
Powered by 1× AA battery, max runtime up to 30 hours.
Compact and lightweight, handy to carry around.
Rotate 360 degrees to point to the desired angle for comfortable lighting.
The magnetic base attaches to metal surfaces.

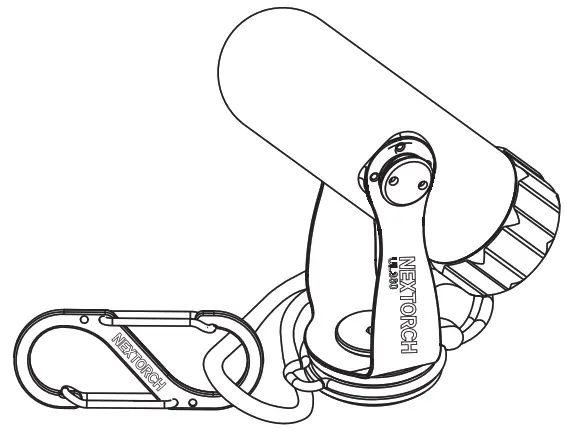

Comes with S-Biner and elastic strap supporting multi-function quick attach.

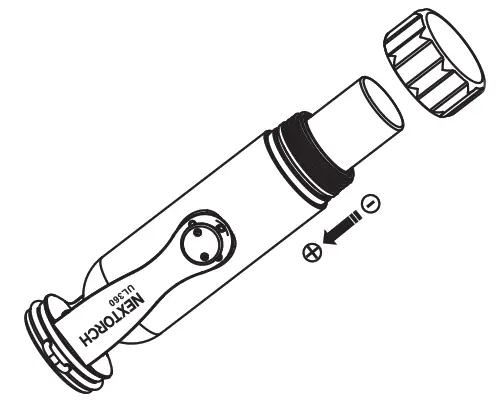

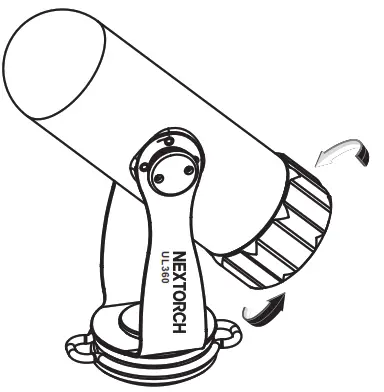

QUICK START GUIDE

● Battery Installation	● ON/OFF / MODE SWITCH

NOTICE

Do not dismantle the bulb assembly.

MAINTENANCE

Being infected with seawater or any corrosive chemicals, please rinse immediately with clean water.
Please use high-quality batteries; Remove batteries when not working for a long time, and then store them in a cool dry place.
Replace waterproof O-ring immediately when considering the damage with use.

WARRANTY

NEXTORCH warrants our products to be free from any defects in workmanship and/or materials for a period of 15-day from the date of purchase. We will replace it. NEXTORCH reserves the right to replace an obsolete product with the current production, model.
NEXTORCH warrants our products to be free of defects for 5 years of use. We will repair it.
The warranty excludes other accessories, but rechargeable batteries are warranted for 1year from the date of purchase.
In the event that any issue with a NEXTORCH product is not covered under this warranty, NEXTORCH can arrange to have the product repaired for a reasonable fee.
You could access to NEXTORCH website (www.nextorch.com) to gain warranty service information by scanning the following QR code. You could also:
Email us at [email protected]
Call us: 0086-400-8300-799
OR contact your local dealer/distributor.

http://www.nextorch.com/en/index.php/aftersales

CONTACT WITH NEXTORCH DESIGNER

In order to improve NEXTORCH, we appreciate you could offer our designers your after-use feedback and creative suggestions by scanning the following QR code. Thank you!
