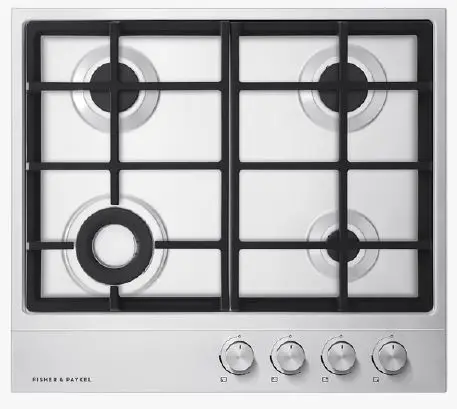

FISHER PAYKEL CG604DLPX1 60cm Gas on Steel Cooktop LPG

FISHER PAYKEL CG604DLPX1 60cm Gas on Steel Cooktop LPG

Series 7 | Contemporary
Stainless Steel | LPG

All the essentials in a compact cooktop, including a wok burner for high heat cooking.

  • Four burners including a wok burner
  • A flame-failure safety device; if the flame goes out, the gas turns off
  • Flat cast iron trivets so pots and pans can easily slide across elements

DIMENSIONS

Height64mm
Width600mm
Depth530mm

FEATURES & BENEFITS

PRECISE CONTROL
The consistent flame and heat distribution of the burners, including the wok burner, combined with highly responsive dials offer precise heat control. Perfect a slow simmer for sauces or an intense heat for searing steaks.

EASY HANDLING
With flat cast iron grates, pots and pans can easily be slid across elements, coming in handy in busy cooking environments.

SAFE AND SOUND
The flame failure safety device automatically turns off the gas if the flame is accidentally extinguished.

COMPLEMENTARY DESIGN
The brushed stainless steel and polished metal trim has been designed for durability but also provides a modern, stylish finish, matching the Fisher & Paykel family of kitchen appliances.

EASY CLEANING
The stainless steel component is easily accessible and quick to clean. Cast iron trivets provide a durable and stable cooking platform. Their rubber feet prevent them from scratching the cooktop.

HANDY ACCESSORIES
This cooktop comes with a small pan support and wok stand to complement different cooking styles.

SPECIFICATIONS

Accessories

Wok stand

Burner ratings

Auxiliary burner (LPG)1.10kW
Semi-rapid burner power2.36kW
Wok burner power3.33kW

Burners

Number of burners4

Cleaning

Easy clean cooktop design
Quick component removal

Controls

Ergonomic control dials
Toughened fused glass
Turned stainless dials

Performance

Cast iron trivets
Electronic ignition
Exceptionally low
LPG/Town gas models
Quick connect gas valves

Product dimensions

Depth530mm
Height64mm
Width600mm

Safety

Flame failure system
Spill containment1L

Warranty

Parts and labour2 years
SKU81449

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
