QUICK REFERENCE GUIDE > CG905DWLPFCX3
Gas on Steel Cooktop, 90cm,
Flush Fit, LPG

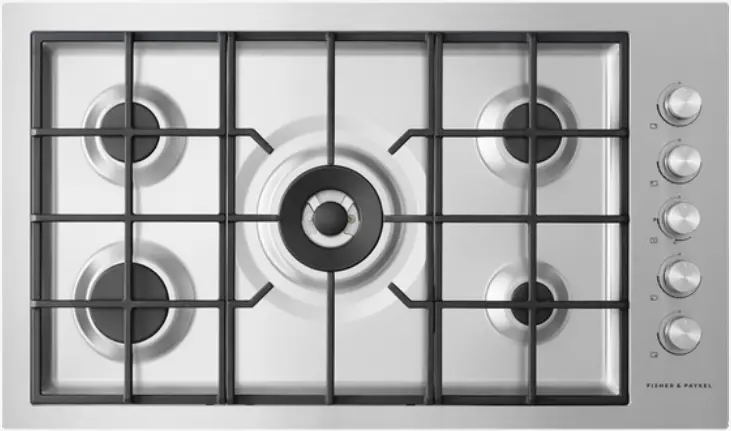

CG905DWLPFCX3 LPG Gas on Steel Cooktop
Series 9 | Contemporary
Stainless Steel | LPG
Designed to fit flush into your kitchen benchtop, this large cooktop creates a seamless look and easy cleaning.
- With five burners including a wok burner
- A flame-failure safety device; if a flame goes out, the gas turns off

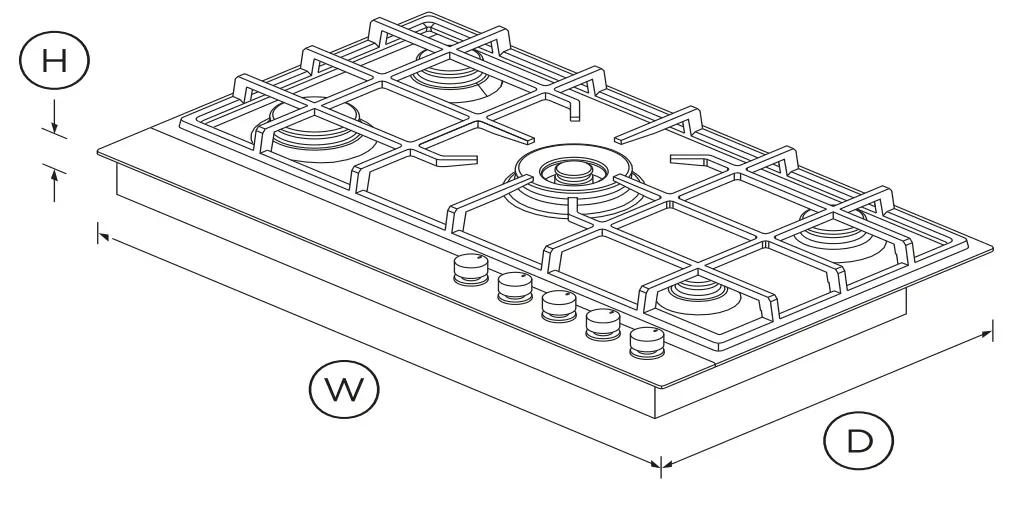

DIMENSIONS
| Height | 76mm |
| Width | 900mm |
| Depth | 530mm |
FEATURES & BENEFITS
Fits flush
The gas burners are recessed into the work surface, leaving the trivets flush and providing an integrated kitchen bench with a seamless look.
Clever cooking results
The consistent flame and heat distribution of the dual flame wok burner, combined with highly responsive dials, offer precise heat adjustment that can perfect a slow simmer for sauces or an intense heat for searing steaks.
Complementary design
The brushed stainless steel has been designed for durability but also provides a modern, stylish finish, matching the Fisher & Paykel family of kitchen appliances.
Safe and sound
Intuitive dials glow red for on and white for off, showing from a distance which burners are lit. The flame failure safety device automatically turns off the gas if the flame is accidentally extinguished.
Easy cleaning
The stainless steel component is easily accessible and quick to clean. Cast iron trivets provide a durable and stable cooking platform, with rubber feet to prevent them from scratching the cooktop.
Handy accessories
This cooktop comes with small pan support and a wok stand to complement different cooking styles.
SPECIFICATIONS
Accessories
| Small pan support | • |
| Wok stand | • |
| Burner ratings | |
| Auxiliary burner (LPG) | 4.2MJ/h |
| Rapid burner (LPG) | 10.5MJ/h |
| Semi-rapid burner power | 9.1MJ/h |
| Wok burner (LPG) | 6kW |
| Wok burner (natural gas) | 21.5MJ/h |
| Wok burner power | 21.5MJ/h |
| Cleaning | |
| Easy clean cooktop design | • |
| Quick component removal | • |
| Controls | |
| Burner indicator lights | • |
| Dual wok control | • |
| Laser etched graphics | • |
| Metal illuminated dials | • |
| Turned stainless dials with | • |
| Performance | |
| Both LPG & NG models | • |
| Cast iron trivets | • |
| Electronic ignition | • |
| Quick connect gas valves | • |
| Power requirements | |
| Amperage | 10A |
| Supply voltage | 230 – 240V |
| Product dimensions | |
| Depth | 530mm |
| Height | 76mm |
| Width | 900mm |
| Safety | |
| Flame failure system | • |
| Spill containment | 2L |
| Warranty | |
| Parts and labour | 2 years |
| Zones | |
| Number of elements | 5 |
| SKU | 81381 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
