Honeywell Cq100a1047 Water Heater Thermocouple User Manual

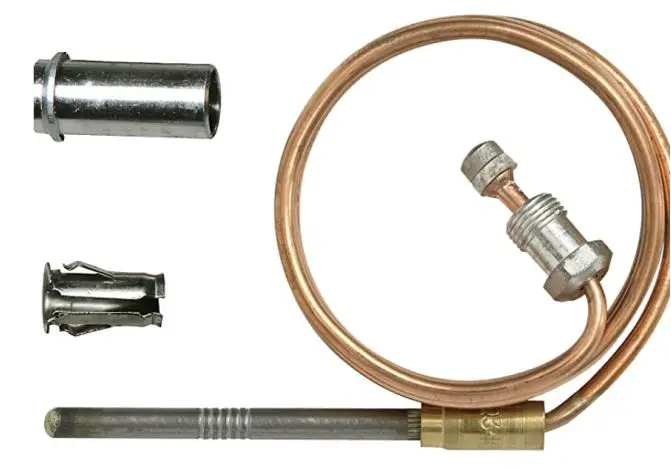

Honeywell CQ100A1047 Water Heater
Thermocouple User Manual

Universal Adapter

Fits twist-in, clamp-in and push- in type pilot burners

• Push-in Burner:
  ♦ No adapter required. Insert thermocouple In pilot burner. Push thermocouple up into position.
• Twist-In Burner:
  ♦ Slide adapter on thermocouple. Insert thermocouple in pilot burner.
  Tighten nut.
• Connect other end to gas This is an electrical connection that must be clean and dry. Tighten connector 1/4 turn past “finger tight.”
