Jamara 460361 Ride On Mercedes Benz Instructions

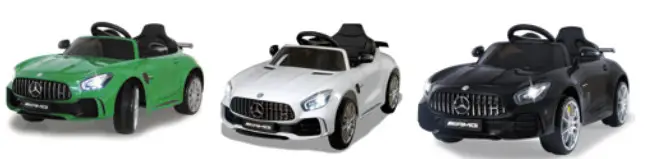

Ride on
Mercedes-AMG GT R

No. 460361 green
No. 460362 white
No. 460548 black

460361 Ride on Mercedes Benz

General information
JAMARA e.K. is not liable for any damage caused to the product itself or through this, provided this is due to improper operation or handling errors. The Customer alone  bears the full responsibility for the proper use and handling, including without limitation, the assembly, the charging process, the use and choice of the operation area. Please  refer to the operating and user instructions, it contains important information and warnings.

Suitable for children over 3 years.
Warning: Not suitable for children under 36 months. RISK OF SUFFOCATION!
Contains small parts which can be swallowed. Keep away necessarily from children
Due to its top snot intended for use by individuals (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge.

• Depending on development, a minimum age of 4 years could be appropriate
• Maximum weight: < 25 kg

Before assembly

•  Adult required for assembly. Keep children away while assembling.
• Tools (not included) needed for assembly: screwdriver.

 Certificate of Conformity

Hereby JAMARA e.K. declares that the products “Mercedes-AMG GT R, No. 460361, No. 460362, No. 460548“ comply with Directives 2014/35/EU,  2014/53/EU, 2011/65/EU and 2009/48/EC. The full text of the EU Declaration of Conformity is available at the following Internet address:
www.jamara-shop.com/Conformity

Read the complete instructions and security instructions carefully before using the model.

To prevent accidents and injuries, DO NOT leave your Child unattended during  operation of the vehicle. Never let your Child out of your sight while the driving a vehicle .

DO NOT use the vehicle on public roads or places or other dangerous locations.
ONLY operate the Ride On Car in places such as private parking, private land or other safe locations. Make sure that no person or animal is endangered.
– The model stops after releasing the accelerator, independently on a horizontal surface. The vehicle has no brake or parking brake. Do not operate the vehicle uphill or downhill, and secure it when parking.

DANGER

• For safe driving, you should make sure that your Child understand and adheres to the following rules:
  – Always sit tight, do not get up during the ride.
  – Never take additional Children for a ride. (The vehicle is only suitable for 1 person)
  – Hold tight.
  – Never drive without shoes.
  – Never drive in the dark.
  – To be used with protective equipment.
• Keep hands, hair, loose clothing and any other item away from any rotating parts.
• The Model should not be used in rooms or halls with high humidity, in the rain or on wet surfaces. Risk of malfunction or damage to electronics and housing.
• The model is not water- or splash-proof. Only operate on asphalted surfaces (such as paving stones). The model is not suitable to be operated in grass or loose soil.

Attention!
Keep the not mounted kit away from small children as it contains swallowable parts.
It must be assembled or checked by adult to make sure the car is assembled on the right way before playing.

Only use in direct supervision of an adult!
To control the vehicle a minimum skill level and caution is needed. Make sure you are familiar with the operation of the model and its characteristics. The model is heavy. This  is an increased risk of injury and damage in the event of loss of control. Avoid any kind of intentional or unintentional collisions with objects or hazards to persons.

• Model
• Transmitter
• Battery pack
• Charger
• Audio connection cable
• Assembly tool
• Instructions

Parts

1 Chassis	5 Front wheel 2x	9 Windshield	13 Screws 1x Ø4×12
2 Steering wheel	6Transmitter	10 MP3 Cable	14 Split pin
3 Rearview mirror 2x	7 Driving wheels 2x	11Charger	15 Washer 6x Ø 10 mm
4 Wheel cap 4x	8 Rear Spoiler	12 Screws 1x Ø5×38	16 Nut

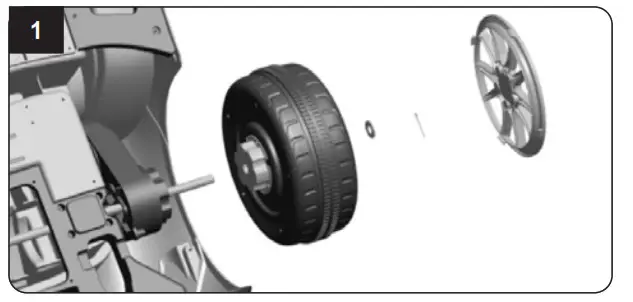

1. Assembly of the rear wheels

• Place the body with the underside facing up.
•  Attach a drive wheel (6) to the gear unit.
• Slide a washer (14) onto the rear axle.
• Fix the whole thing with a plit pin (13). Bend the ends of the split pin back using a pair of pliers.
• Finally, put a cover (4) on the wheel
• Repeat this on the other side.

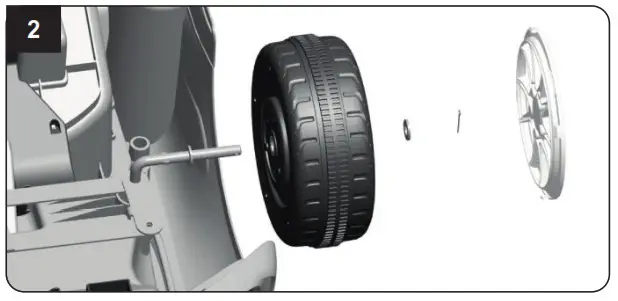

2. Assembly of the front wheels

• Attach a wheel (5) onto the axle.
• Slide a washer (14) onto the axle.
• Fix the whole thing with a plit pin (13). Bend the ends of the split pin back using a pair of pliers.
• Finally, put a cover (4) on the wheel
• Repeat this on the other side.

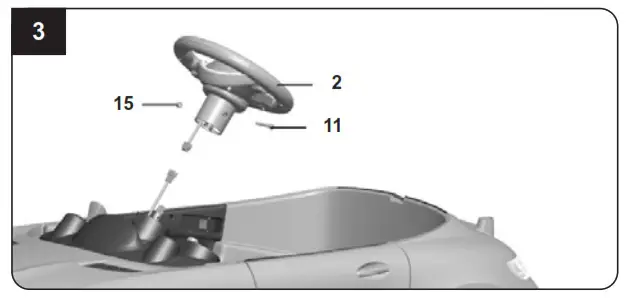

3. Steering wheel assembly
Connect the cable from the steering wheel to the cable of the dashboard. Install the steering wheel (2) in the Intended position and secure it with the locking screwand (11)  and nut (15).

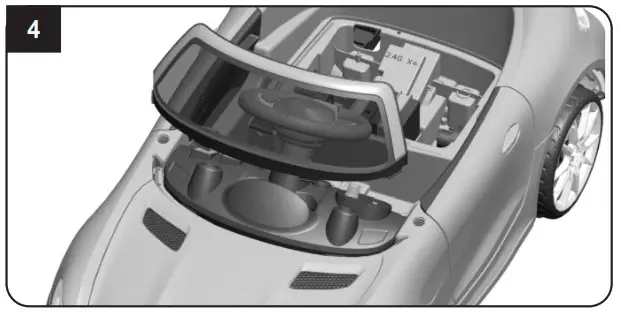

4. Attach the Windshield
Insert the tabs on the windshield (8) in the slots on the vehicle body, push until you hear it click into place.

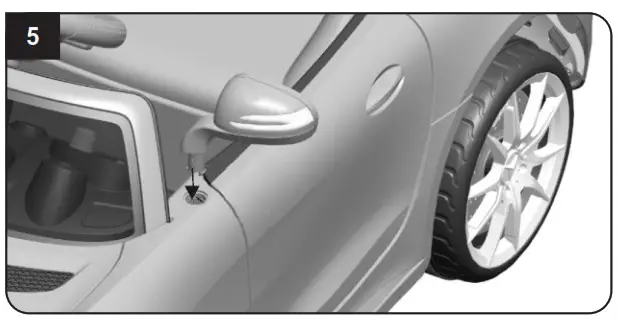

5. Attach the view mirrors
Install wing mirror (3) to the designated position, and fasten it.

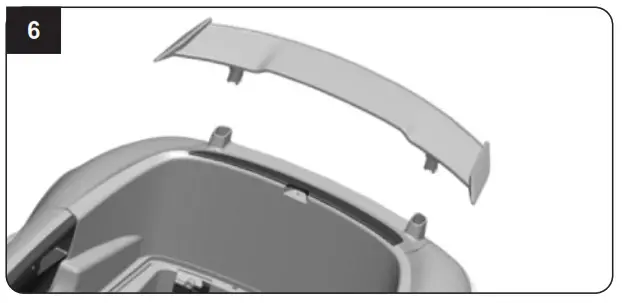

6. Attach the rear Spoiler
Press the pins of the rear Spoiler (7) into the grooves at the rear of the body.

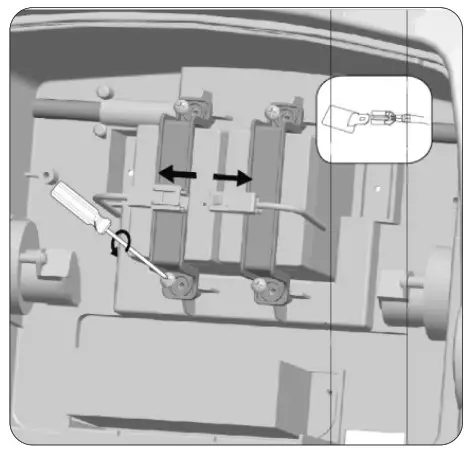

Battery connection

• Connect all connectors as shown. Only plug matching connectors into eachother and be sure not to reverse the polarity.
• Make sure the red wire is well connected with the red terminal on the battery, and same as the black one.

Only use with 12V 1000mAh charger, Ord. No. 412978

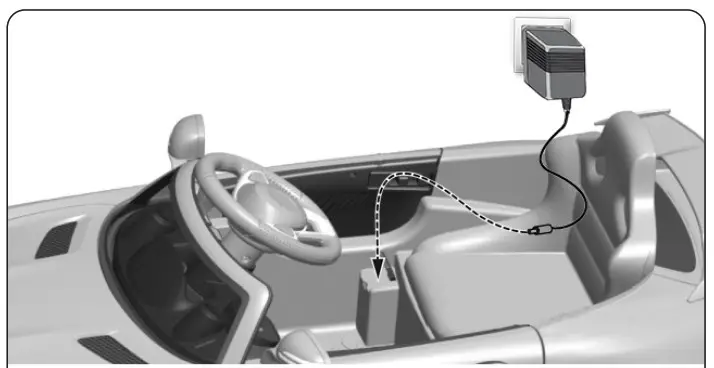

 Charging Your Vehicle

• The power swich must be turned in OFF position when charging.
• Insert the charger (4) into the socket – the LED lights up green. Connect the charger to the charging socket.
• The LED on your charger lights up red as long as the battery is being charged. If the LED lights green again, the battery is fully charged.
• The charge time is 9 hours.
• Do not charge the battery more than once within 24 hours.
• Charger and battery heat up during the charging process.

Warning!

• The charger is not a toy. Only use the charger supplied.
• The battery may only be charged by or under the supervision of an adult.
• The terminals must not be short-circuited.
• The charger must be checked regularly for damage to the cable, plug, housing and other parts. If any damage is found, the charger must not be used until the damage has  been repaired.
•  Let the model cool off sufficiently after each use before putting it back into operation.
  When using an additional batteries let it cool off for minimum 15 minutes until the model is operated again. Overheating can damage the electronics or may result in fire.
• Always disconnect the model from the charger immediately after charging. Always disconnect the charger from the power supply immediately after disconnecting the model. Inserting the rechargeable model or charger after charging will result in damage tothe model, charger or the power supply (fire hazard).
• Use the charger only in dry rooms..

Caution!
Always switch off the model immediately after each use. Immediately after each use the battery should be disconnected from the model. The battery can be deeply discharged by leaving it switched on accidentally or leaving it plugged in. Deep discharge causes the battery to lose power or can be damaged to such an extent that charging or discharging is no longer possible or the battery can self-ignite during charging or discharging (fire hazard). Never attempt to charge or discharge deeply discharged batteries. The battery voltage should never fall below 11,9 volts to avoid deep discharge. The fully charged battery has a voltage of approx. 13 Volt. After use, the intact battery should be fully charged immediately after a cooling phase of at least 10 minutes but at the latest after 12 hours to avoid subsequent deep discharge by self-discharge. If the battery is not used or stored for a longer period of time, the battery should be checked for voltage (min. 12,3 volts) or damage at least every 3 months and charged or disposed of if necessary.

Description of the functions on the transmitter
This transmitter has following function:

1. Forward
2. Backward
3. Binding button
4. right
5.  left
6. Speed adjustment
7.  Stop (Transmitter and model are non functional)
8. Speed display

Fitting the transmitter batteries
Open the battery compartment cover on the back of the transmitter and put 2 AAA batteries making sure that it is corectly put in. Then close the cover.
Binding of transmitter and model
If the model does not respond to the transmitter, press the connection button until the speed info is permanently lit and does not blink anymore.If this does not work, repeat the process.

Battery warning:
Non-rechargeable batteries are not to be recharged!
Do not open!
Do not dispose of in fire!
Do not mix old and new batteries!
Do not mix alkaline batteries, standard (carbon-zinc) or rechargeable batteries!
Rechargeable batteries are to be removed from the toy before being charged!
Rechargeable batteries are only to be charged under adult supervision!
The supply terminals are not to be short-circuited!

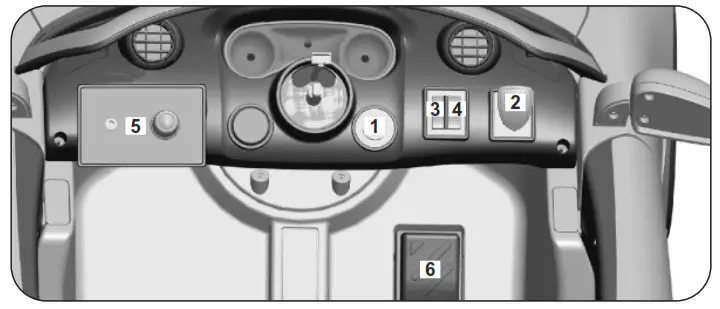

 Functions

1. ON/Off switch With the ON / OFF switch you start the vehicle.
2. Shift Lever
   Forward:
   Press the “Forward-backward switch” on the “Forward” position.
   Press the “Foot pedal”, the model drives forward.
   Reverse:
   Press the “Forward-backward switch” on the “Backward” position.
   Press the “Foot pedal”, the model drives backward.
   IMPORTANT! Always stop vehicle when changing the direction to avoid damage the gears and motor.
3. Light button
4. Speed
   High speed – Fast speed
   Low speed – Slow speed
5. Sound and connecting external audio sources
6. Foot pedal To move the car, press the pedal down.
   To brake or slow down, release pressure from the pedal.

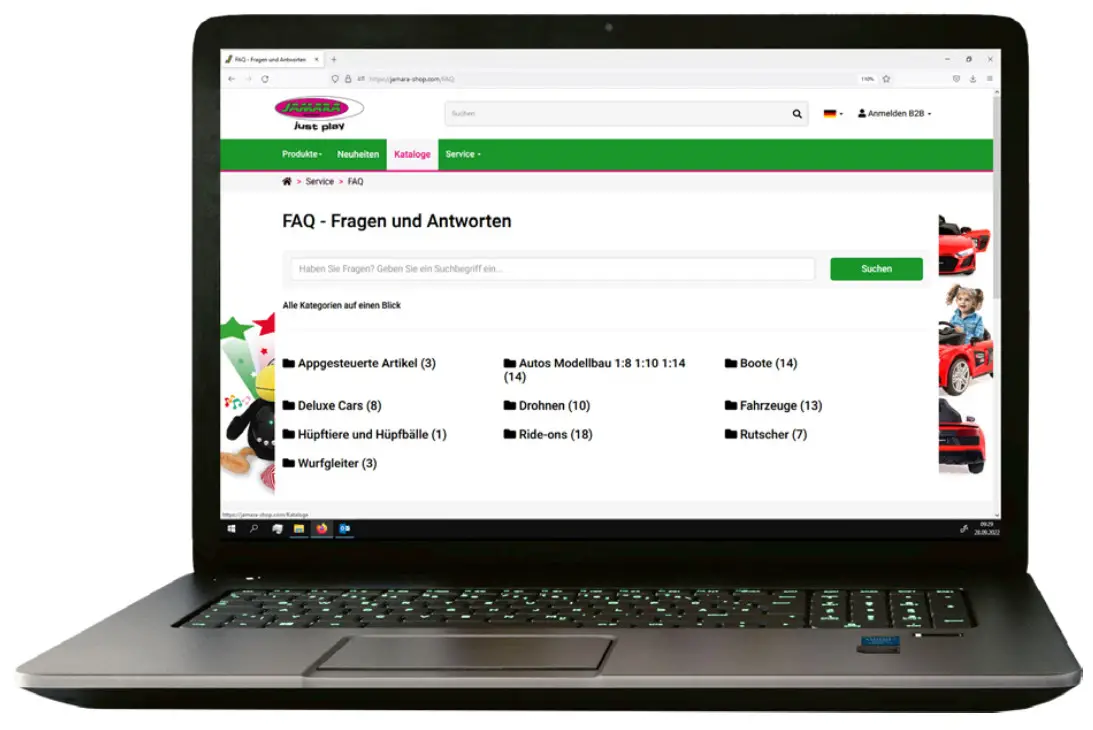

You can find further solutions to problems on the Internet in our FAQ at: https://jamara-shop.com/FAQ

Spare parts

	No. 412620 12V 4,5 Ah Battery		No. 412671 Transmitter
	No. 412647 On/Off switch	No illustration	No. 412676 Rubber seal

	No. 412978 12V 1000mAh Charger	No illustration	No. 404642 On/Off switch
	No. 412669 Soundboard		No. 412670 Wheel front/rear
	No. 412672 Transmission		No. 412675 Gear shift
	No. 412968 Receiver electronics		No. 413015 Seat

Disposal restrictions

Batteries and accumulators must not be disposed of in domestic waste. You are obliged to dispose of batteries (seperate collection) appropriately. After use you can return  batteries free of charge to the retail store. As batteries contain substances that can be irritant, can cause allergy and are highly reactive, separate collections and proper  recycling is important to the environment and to your health. If the batteries are marked with a chemical symbol Hg, Cd or Pb below the crossed-out waste bin on wheels it  refers to that more than 0.0005% of mercury (Hg), more than 0.002% of cadmium (Cd) or more than 0.004% Lead (Pb) is included.

Disposal restrictions
Electrical appliances must not be disposed of in domestic waste and must be disposed of separately.
You are obliged to take out the batteries, if possible, and to dispose of the electrical equipment at the communal collection points. Should personal data be stored on the  electrical appliance you must remove them by yourself.
