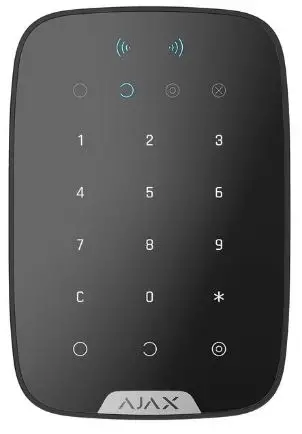

AJAX 26077 KeyPad Combo Wireless Touch Keyboard
Product name
Touch keypad KeyPad Plus is a wireless touch keypad supporting proximity cards/tags and featruring built-in siren.
| Sensor type | Capacitive |
| Tamper protection | Yes |
| Protection against passcode guessing | Yes |
| Frequency range | 905-926.5 MHz FHSS (complies with part 15 of the FCC rules) |
| Maximum RF output power | 13.56 mW |
| Radio signal range | Up to 5,500 ft (line-of-sight) |
| Cards/tags support | MIFARE DESFire EV1, EV 2 ISO14443-А (13.56MHz) |
| H-field strenght at 30 ft | 15dBμA/m (limit 42 dBμA/m) |
| Siren alarm volume | Adjustable 81-105 dB at a distance of 3 ft |
| Power supply | 4 x CR123 batteries |
| Battery life | Up to 3 years |
| Operating temperature range | From 14 to 104 °F |
| Operating humidity | Up to 75% |
| Dimesions | 4.53 х 7.16 x 1.06 ″ |
| Weight | 9.7 oz |
Complete Set
- KeyPad Combi;
- SmartBracket mounting panel;
- Battery CR123 (pre-installed) – 4 pcs;
- Installation kit;
- Quick Start Guide
FCC Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for com-pliance could void the user’s authority to operate the equipment. To maintain compliance with FCC’s RF Exposure guidelines, this equip-ment should be installed and operated with a minimum distance of 20 cm between the radiator your body: Use only the supplied antenna. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful in-terference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
ISED Regulatory Compliance
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the fol-lowing two conditions:
- This device may not cause interference.
- This device must accept any interference, including interfer-ence that may cause undesired operation of the device.
To maintain compliance with ISED’s RF Exposure guidelines, this equipment should be installed and operated with a minimum distance of 20 cm between the radiator your body: Use only the supplied antenna.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Warranty
Warranty for Ajax devices is valid for two years after the purchase date and does not apply to the supplied battery. If the device does not work correctly, you should first contact the support service—in half of the cases, technical issues can be solved remotely! The full text of the warranty is available on the website: ajax.systems/warranty User Agreement: ajax.systems/end-user-agreement Technical support: [email protected] Manufacturer: “AS Manufacturing” LLC. Address: 5 Sklyarenka Str., Kyiv, 04073, Ukraine. www.ajax.systems
