Handling the remote controller

Location of the remote controller

• Keep the remote controller where its signals can reach the receiver of the indoor unit (a distance of 8m is allowed)
  .

CAUTIONS

• The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the indoor unit.
• Prevent any liquid from falling into the remote controller. Do not expose the remote controller to direct sunlight or heat.
• If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air conditioner may not function properly. Use curtains to prevent the sunlight from falling on the receiver.
• If other electrical appliances react to the remote controller, either move these appliances or consult your local dealer.

Replacing batteries

The remote controller uses two alkaline dry batteries (R03/LR03X2)

1.  Slide the cover of the battery compartment off according to the arrow direction, then replace the old batteries with new ones.
2. Insert the new batteries, making sure that the(+) and (-) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.


NOTE:

• Do not mix old and new batteries or batteries of different types.
• Do not leave the batteries in the remote controller if they are not going to be used for 2 or 3 months. Do not dispose batteries as unsorted municipal waste.
• Collection of such waste separately for special treatment is necessary.

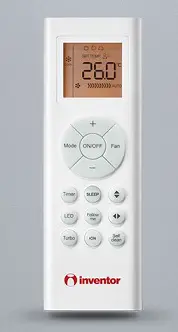

Remote controller specification

Features of Remote Controller buttons

NOTE:
After installing the batteries and during the first 30 seconds period, press and hold the remote controller’s corresponding buttons* for 5 seconds to enter the Hotel Menu
settings. The LCD window will display F1.

• for RG57 controller: MODE, FAN and TIMER ON
• for RG66 controller: MODE and FAN
• for RG10 controller: POWER and SWING


IMPORTANT:

The remote controller is only enabled within10 minutes after the indoor unit is powered on, and the indoor unit must be switched off.

POWER OFF button: Press this button to turn off the unit
MODE button: Used to modify the selected function. Press this button to enter the parameter setting interface, and the parameter to be modified will be kept flashing. Using TEMP ”q” & ”p” button to TEMP button: Used to choose functions or adjust parameters.
On parameter unadjustable interface, press thebutton to select the specified function in a range of F1 ~ F9 and E1~E9. Then pressing the
MODE button to enter the parameter modifying interface, the relevant parameter flashes, pressing button to adjust the paramter.e parameter or choosing the other parameter in conjuction with FAN & TIMER OFF button.
TIMER ON / FAN button: Press this button to confirm the setting parameter and transmit the singal to the machine.

FAN & TIMER OFF button: On parameter setting interface, pressing FAN &
TIMER OFF button to select parameter to be modified.

How to set up the functions

NOTE:

The indoor unit will beep for 2 seconds indicating the function being set up successfully.

› Auto-start function

1.  Press button to choose “F1”.

2. Press MODE button. Then press  button to choose “ On” or “Off”

3. Press TIMER ON or FAN button, and the Auto-start function on/off setting has finished.


› Heating temperature compensation

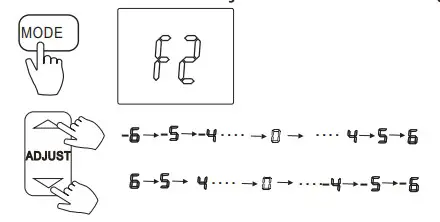

1. Press button to choose “F2”
   .
2. Press button to choose “F2”.

3. Press TIMER ON or FAN button.


› Anti-cold air function

Intelligent anti-cold air function setting:

NOTE:

The parameter of intelligent anti-cold air is changed with the room temperature. After the room temperature raised, the temperature of anti-cold air would raise too, which can make you feel more comfortable. After the room temperature decreased, the anti-cold air temperature would decrease too, which can improve the fan speed and bring fast heating operation.

1. Press button to choose “F3” .

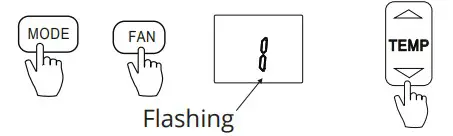

2. Press MODE button. Press FAN button to to choose parameter. Then press button to select “1” .

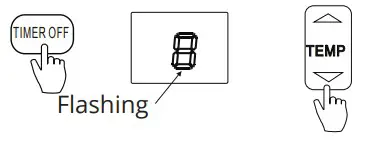

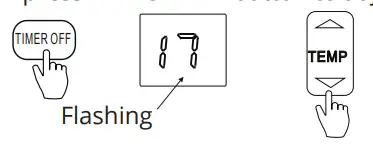

3. Press TIMER OFF button to adjust the parameter. The parameter keeps flashing. Then press button to adjust the parameter in the range of 17ºC~21ºC.

4. Press TIMER ON or FAN button to confirm.


General Anti-cold air function setting:

NOTE:

The parameter of general anti-cold air is fixed regardless of room temperature.

1. Press button to choose F3.

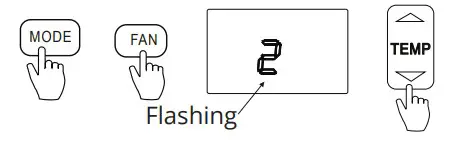

2. Press MODE button. Press FAN button to to choose parameter . Then press button to select 2 .

3. Press TIMER OFF button to adjust the parameter. The parameter keeps flashing. Then pressbutton to adjust the parameter in the range of 8ºC~28ºC.

4. Press TIMER ON or FAN button to confirm


› Speed control of indoor fan motor after the set temperature reached

1. Press button to choose “F4” .

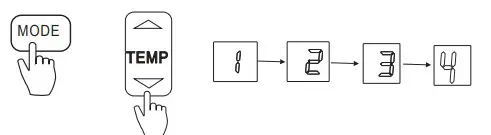

2. Press MODE button. Then press button to select “1”, “2”, “3” or “4”.


Indicates stopping fan motor
Indicates operating at lowest fan speed
Indicates operating at setting fan speed
Indicates cycle on-off function

3. Press TIMER ON or FAN button

› Louver angle memory function

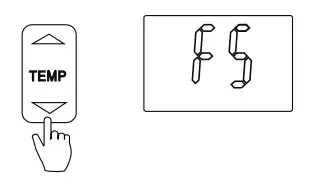

1. Press  button to choose “F5”
   .

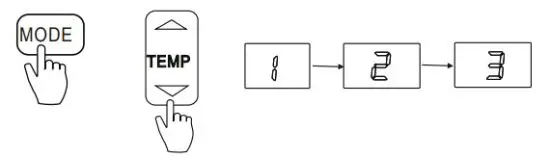

2. Press MODE button. Then press ”q” & ”p” button to select “1”, “2” or “3”.

   Indicates cancelling memory function.
   Indicates the louver angle memory function is enabled under switching off or power failure.
   Indicates the louver angle memory function is enabled under switching off, disabled under power failure.
3. Press TIMER ON or FAN button to confirm.


› Heating only or Cooling & Heating setting

1. Press button to choose “F6”

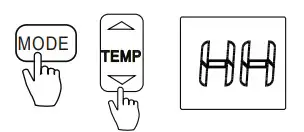

2. Press MODE button. Then press button to select “HH” or “CH”. (HH: Heating only, CH: Cooling & Heating)

3. Press TIMER ON or FAN button to confirm.

› Cooling temperature compensation

1. Press  button to choose “F7” .

2. Press MODE button. Then press button to choose the parameter in a range of -2ºC~2ºC.
3. Press TIMER ON or FAN button to confirm.

› Cooling temperature compensation

1. Press button to choose “F8” .

2. Press MODE button. Then press button to choose “on” or “off”.
3. Press TIMER ON or FAN button to confirm.

› Filter Replacement Reminder

1. Press ”q” & ”p” button to choose “E1”

2. Press MODE button. Then press button to choose “on” or “off”.
3. Press TIMER ON or FAN button to confirm.

› Lowest temperature setting

1. Press button to choose “E2”
   .
2. Press MODE button. Then press button to set the temperature in a range of 17ºC to 24ºC.
3. Press TIMER ON or FAN button to confirm.

› High temperature setting

1. Press button to choose “E3”.

2. Press MODE button. Then press button to set the temperature in a range of 25ºC to 30ºC.
3. Press TIMER ON or FAN button to confirm.

› Special Anti-cold air function setting

1. Press button to choose “E4”.

2. Press MODE button. Then press button to choose “on” or “off”.
3. Press TIMER ON button to confirm.

Point check function

Press the “LED DISPLAY” button (“Mute” button for some remote controllers) of remote controller three times and then press “AIR DIRECTION” button (“Swing” button for some
remote controllers) three times within 10 seconds, the buzzer ring last 2 seconds,the air conditioner will enter the information enquiry status. After that, press the “LED DISPLAY” button to enquiry the next one information and press the “AIR DIRECTION” button to enquiry the last one information. When the air conditioner enter the information enquiry status, it will display the code name in 2 seconds, the details are as follows:

When the air condtioner enter the information enquiry status, it will display the code value
in the next 25s after display name is displayed, the details are as follows,
