ORTLIEB Fork-Pack Plus Backpacking Bag
PRODUCT INFO

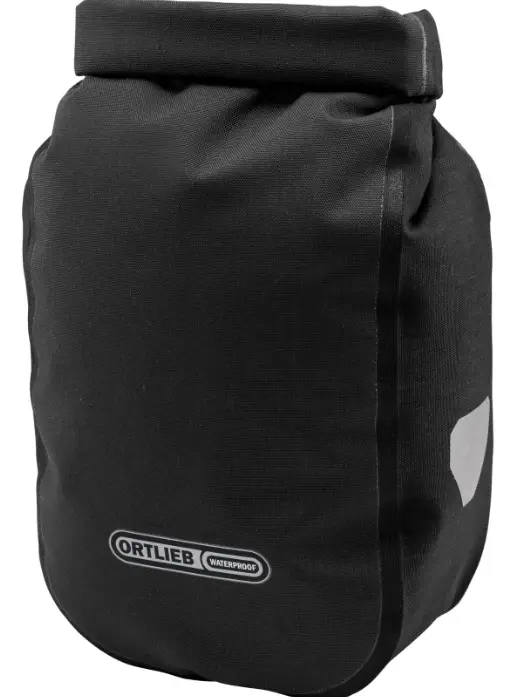

FORK-PACK PLUS
Waterproof fork bag with roll closure
Quick-Lock S adapter plate incl. mounting accessories (included in delivery)

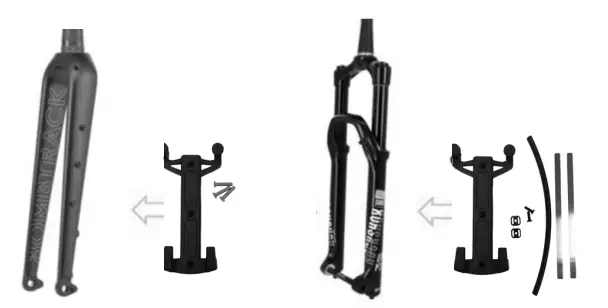

Quick-Lock S adapter system for bicycle forks with eyelets
Quick-Lock S adapter system for suspension forks
| height cm/in. | width cm/in. | depth cm/in. | vol L/cu.in. | weight g/oz. | max. load kg/lbs | |
| 30,5/12.0 | 19,5/7.7 | 13/5.1 | 5,8/350 | 325/11.5 (adapter included) | 3/6.6 | |
SPECIFICATIONS:

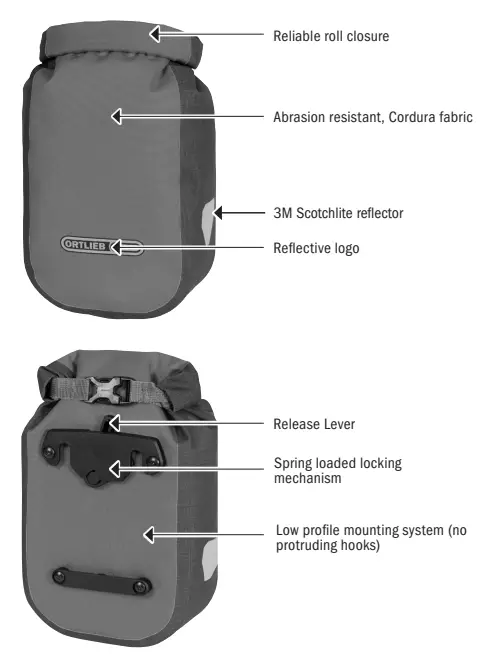

- Ultralight, waterproof bag (single pocket) with roll closure
- The Fork-Pack is primarily designed for attachment to bicycle forks, but it can be mounted on non-tapered vertical tubes with a consistent diameter, e.g. Kick Style Scooters
- Abrasion-resistant, Cordura fabric
- Allows additional luggage to be carried on bikes using the Quick-Lock S (QLS) adapter system
- Adapter is compatible with forks with eyelets and tubes with constant diameter from 30 mm to 42 mm
- The Quick Lock S mounting bracket may be bolted directly to a forks with „braze-on“ eyelets or attached to vertical tubes using the supplied band-clamps
- Ultra fast installation, with one click the bag snaps in to place
- The removal is just as fast, simply move the release lever and pull the bag upwards
- The robust Quick-Lock S mounting plate remains mounted to the bicycle
- Low profile locking elements ensure snag free use
- Internal stiffener
- Reflective ORTLIEB logo
- Maximum load 3 kg / 6.6 lbs.

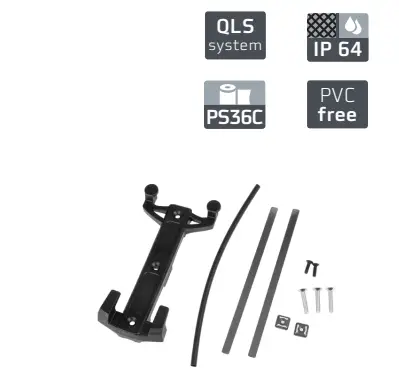

Contents: Fork-Pack (240g/8.5oz) with QLS adapter plate (85g/3.0oz), mounting accessories, hardware and instructions
Optional accessories: QLS Mounting-Set Fork-Pack (Art. E235) e.g. for use on a second bike; Fork-Pack Adapter 45° to 30° (No. E240) for adjusting the mounting angle of the QLS bracket on specific bicycle front forks
Attention:
- Not suitable for mounting to carbon forks without „braze-on“ eyelets, tapered fork blades or frame tubes
- If the product is completely submerged, water can penetrate through the closure
Note: In order to meet standard IP64 (6=dustproof, 4=protected against splash water coming from all directions) the roll closure must be rolled at least 3-4 times. Once submerged, the bag is not waterproof.
