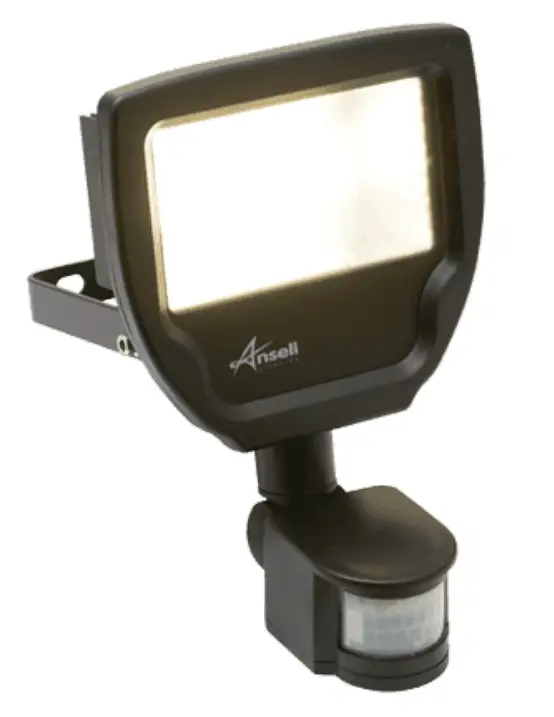

Ansell A700000009925046 Polycarbonate Floodlight PIR Cool White 20W Black
Ansell A700000009925046 Polycarbonate Floodlight PIR Cool White 20W Black

Introduction

  • Compact and economic polycarbonate LED floodlight suitable for semi commercial applications
  • Polished faceted reflector and textured glass for optimum performance
  • Pre-wired with 1 metre of rubber insulated cable for ease of installation (500mm for 10W)
  • Polycarbonate spike accessory allowing installation into lawn and garden applications
  • PIR versions complete with manual override facility
  • Non-dimmable

General Information

  • Lamp Type LED
  • IP Rating IP65
  • IK Rating IK08
  • Class Protection 2
  • Internal / External Internal / External
  • Surface / Recessed / Suspended Surface
  • Warranty (Years) 2
  • Material Polycarbonate

Technical Information

  • Wattage 20W
  • Lumens Delivered 1900lm
  • Lm/W 96lm/W
  • Beam Angle 75×90
  • CRI 80
  • CCT 4000K
  • Input 220/240V
  • Hertz 50/60Hz
  • Operating Temp -15°C to 40°C
  • Lumen Depreciation L70 51,000h
  • Power Factor 0.9

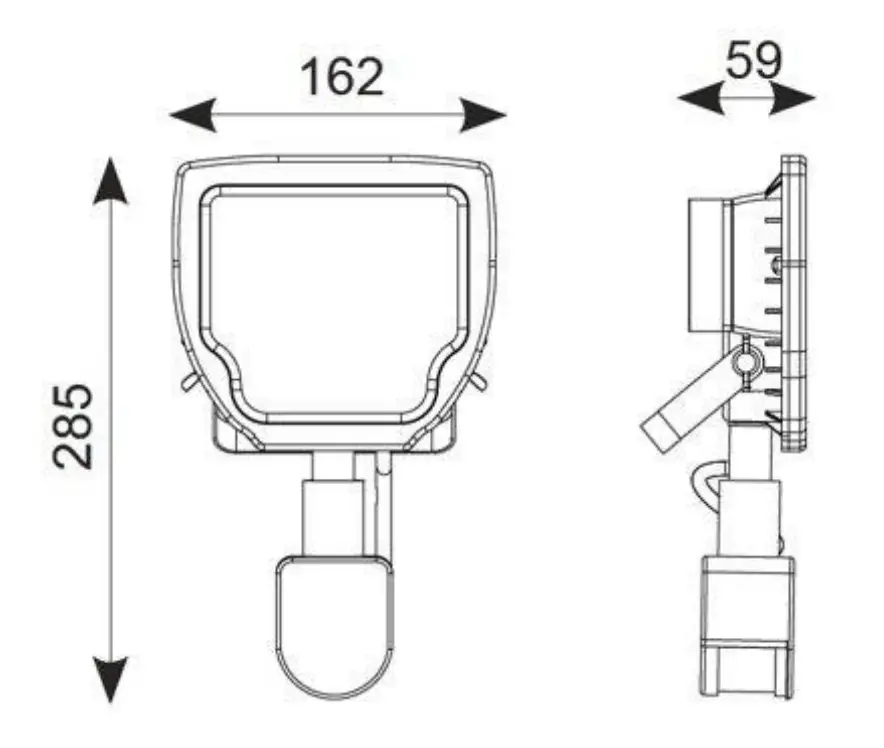

Dimension

Dimension

Customer Support

www.anselluk.com
Warrington: +44 (0) 1942 433333
Belfast: +44 (0) 2890 773750
