Kids LED Light
Bluetooth Headphones
USER’S MANUAL

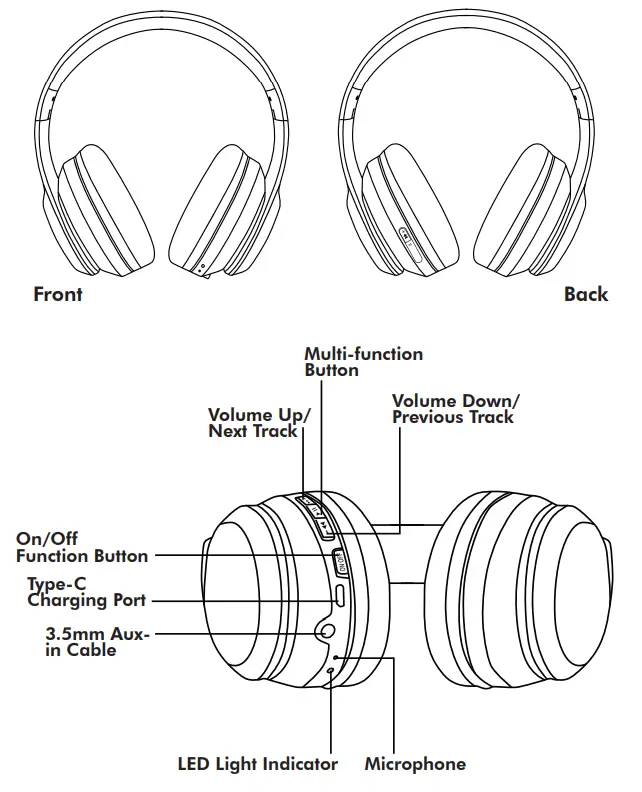

Overview
Functions & Features
- Wireless compatible with iOS/Android
- Up to 13-14 hours total playtime with LEDlight (About 2-3 hours charging time).
- Built-in microphone.
- Strong, adjustable design for comfort and durability.
- Foldable, portable design.
Technical Specifications
- Profiles supported: HFP/AVRCP/A2DP/SMP
- Working range: 8-10M
- Resistance: 32Ω±15%
- Sensitivity: 95±3dB
- Frequency range: 20HZ-20KHZ
- Charging voltage: 5V
- Charging current: 500mAh
- Driver size: 40mm

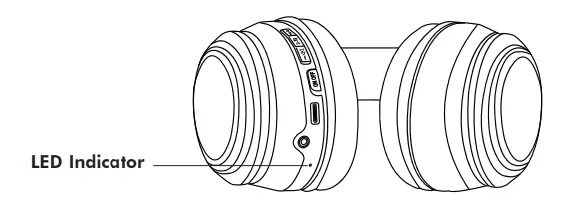

LED Indicator
LED Indicator
| Pairing Connected Disconnected Music Playing Music Pause Standby Mode Incoming Call | Incoming Call Flashing RED & BLUE Blue light stays on Flashing RED & BLUE Blue light flash 1 time per 3 seconds Blue light stays on (After 3 Secs based on Android system/7 Secs based on iOS system) Blue light stays on Blue light stays on when playing or pause status. Blue light flash 1 time per 3 Secs when power on status |

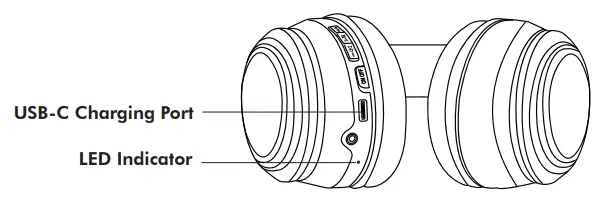

Charging Indicator Light
Charging: RED light stays on
Fully Charged: RED light turns off
When the battery is running low, the LED indicator light will start flashing red and the headphones will issue an audible warning. To recharge the headphones, insert the USB
charging cable into the port on the earcup and connect with a compatible power source (laptop, computer, or via a mains plug adapter). To indicate that the headphones are charging, the LED indicator light will show static red turns off when fully charged.

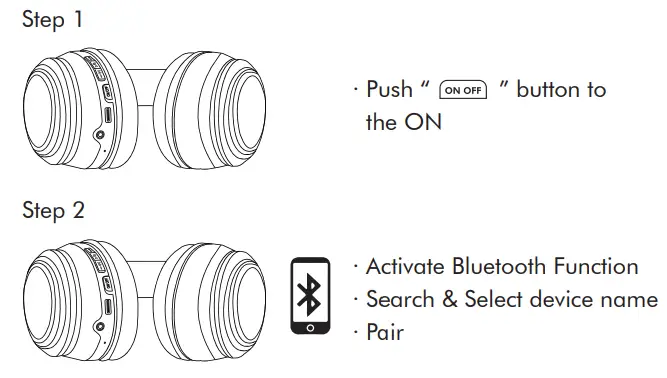

First Time Set Up
User Instructions
Turn On
To turn ON the wireless headphones, press the “
” function button. The LED indicator light will flash red and blue alternately until the headphones are successfully connected.
Turn Off
To turn OFF the wireless headphones, press the “ ” function button.gty5ryg56tgh56hyg5rtygh56r6hyg5rtyg5rght
Wireless Mode
Press the “ ” function button to turn on. The LED indicator light will flash red and blue alternately until the headphones are successfully connected. Ensure that the
headphones are no more than 10 meters away from the device you want to pair. Used the Bluetooth search list on your device to find and select the device name to pair with the headphones. To confirm you have paired the headphones successfully with your device, the LED indicator light will show static blue.
Power Status
When the headphones are connected with an iOS device (and SOME Android devices), the current power status of the headphones will be shown in the upper right corner of the device screen.
Line-in Mode
To listen via the AUX-in cable, insert the cable into the lineout port on the right earcup. If you would like to listen to music wirelessly, you need to remove the AUX-in cable and turn on the wireless mode.

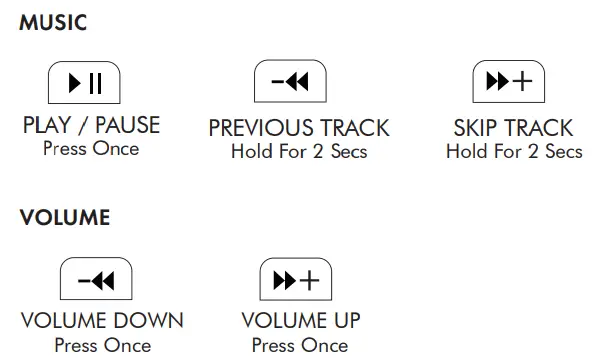

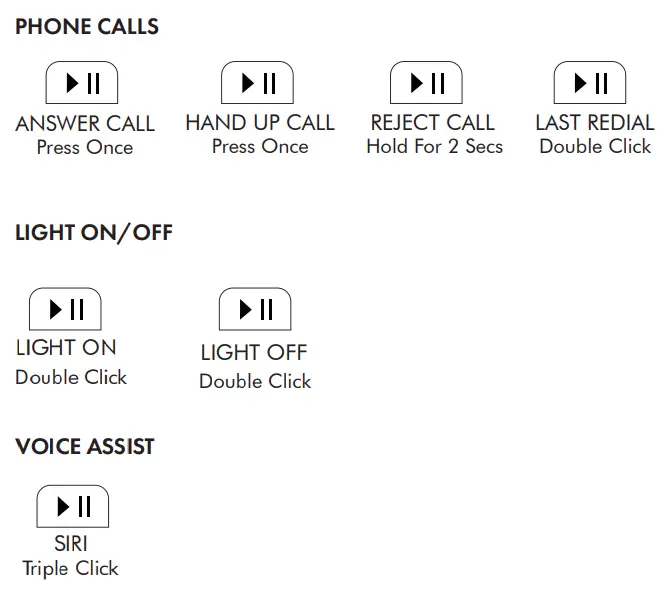

Control Functions
| No. | Function | Functional Requirements | Voice Prompt | Indicator Light |
| 1 | Power On | Push ” ” button to the ON | Power On | Blue light stays on 1 second then flashing Blue & Red |
| 2 | Power Off | Push ” ” button to the OFF | – | – |
| 3 | Pairing Mode | The device automatically enters the pairing mode after power on | Pairing | Flashing Blue & Red |
| 4 | Pairing Su- ccessfully | – | Connected | Blue light stays on |
| 5 | BT Discon- nected | – | Disconnected | Flashing Blue & Red |
| 6 | Music Play | Press once the ”  ” button | – | Blue light flash 1 time per 3 seconds |
| 7 | Music Pause | Press once the “” button |
– | Blue light stays on after 3 seconds (Based on Andriod system) Blue light keeps on after 7 seconds (Based on iOS system |
| 8 | Next Track | Long press ”  ” button for 2 seconds | – | – |
| 9 | Previous Track | Long press “ ” button for 2 seconds | – | – |
| 10 | Volume Up | Press once “” button | DU DU (Maximum) | – |
| 11 | Volume Down | Press once ” ” button | DU DU (Minimum) | – |
| 12 | Automatic Reconnect After Power On | Push “” button to the ON,the device will be automatic pair with the last connection | Connected | Blue light stays on |
| 13 | Over- distance Disconnected | The device will disconnect from the phone when it over-distance | Disconnected | Flashing Blue & Red |
| No. | Function | Functional Requirements | Voice Prompt | Indicator Light |
| 14 | Over- distance Reconnect | If the device has been disconnected from your phone for less than 5 minutes, they can reconnect again if it comes back within the valid range. | Connected | Blue light stays on |
| 15 | Last Redial | Four click ” ” button | – | – |
| 16 | Call Status | – | – | Blue light flash 1 time per 3 seconds |
| 17 | Answer Call | Press once the “” button when power on status | Incoming call | Blue light flash 1 time per 3 seconds |
| Press once the “” button when playing or pause status | Incoming call | Blue light stays on | ||
| 18 | Hand Up Call | Press once the “” button | DU | – |
| 19 | Reject Call | Long press the “” button for 2 seconds. | – | – |
| 20 | Low Battery Clarm | It will prompt when the battery voltage is low to 3.4V. | Battery Low (Every 20 seconds) | Red light flash 1 time per 10 seconds |
| 21 | Low Battery Power Off Automatic | Power off automatically when the battery voltage islower than 3.3V. | Power Off | – |
| 22 | Charging Mode | – | – | Red light stays on |
| 23 | Fully Charged | – | – | Red light off |
| 24 | Charging Automatic Power Off | Plug in the charging cable to charge when power on. | Power off | Red light stays on |
| 25 | AUX-in Mode | Plug in the aux-in cable and the device will power off automatically. | Power off | Red light flash 2 times |
| No. | Function | Functional Requirements | Voice Prompt | Indicator Light |
| 26 | Automatic Power Off | If the device is not connected within five minutes, it will automatically shut down | Power off | Red light flash 2 times |
| 27 | Light On | Double click ” ” button | – | RGB light cycle flash display |
| 28 | Light Off | Double click ” ” button | – | – |
| 29 | Activate Siri | Double click ” ” button | DU | Blue light stays on |
