Homedepot Memr3036blb Rectangular Frameless Wall Mount Anti-fog Dimmable Led Lighted Bathroom Vanity Mirror User Manual

HOMEDEPOT MEMR3036BLB Rectangular Frameless Wall Mount Anti-Fog Dimmable LED Lighted Bathroom Vanity Mirror

WARNING AND SAFETY INSTRUCTIONS

Before assembling your LED Lighted Mirror fixture, please make sure that you carefully read through this instruction sheet, refer back to them during installation to ensure your product is fitted safely and correctly. Keep these instructors for future use.

WARNING Risk of Fire and Electric Shock

• All fittings must be installed in accordance with current IEE wiring regulations. If in doubt, consult a qualified electrician.
• Switch off the electrical supply at the main circuit board BEFORE installation and maintenance.
• Suitable for indoor use only. This product should be pensioned well away from curtains and fabrics. Never cover the mirror.
• Regularly check the cord, the transformer and all other parts for damage. If any part is damaged the product should not be used.

INSTALLATION SAFETY

• Inspect the product immediately upon receipt for the transit damage or missing parts. Handle the product with care and protect against knocks to all sides and edges of the glass.
• Ensure there are no hidden pipes or cables in the wall before drilling.
• Wear suitable eye protecon when drilling. Take care if drilling on led surfaces in case the drill slips.

CAUTION
The light source of this product is non-changeable light diodes (LED). Do not disassemble the product, as the light diodes can cause damage to the eyes.
NOTE: The important safeguards and instrucons that appear in this manual are not meant to cover all possible condions and situaons that may occur. It must be understood that common sense, cauon and care, are factors that can’t be built into any product. These factors must be supplied by the person(s) caring for and operang the fixture. Do not install this fixture in hazardous locaons.

CHECK PRODUCT LIST AFTER OPENING THE PACKAGE

• LED Lighted Mirror –1pce
• Screw –2pcs
• Expansion Tube  –2pcs
• Installation Manual    –1pce
• Returning Guide      –1pce
• Extended warranty form    –1pce

TOOLS YOU MAY NEED

INSTALLATION MANUAL

Step 1:

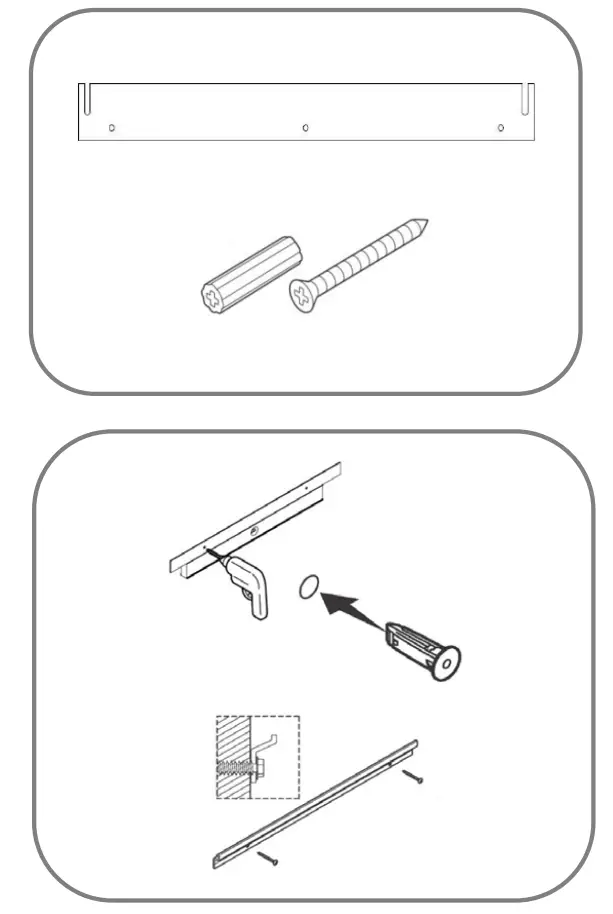

Use an I-Beam level to mount the included mounting bracket with 3 screws (Use anchor when it’s installed on drywall, concrete or tile surface).

Step 2:

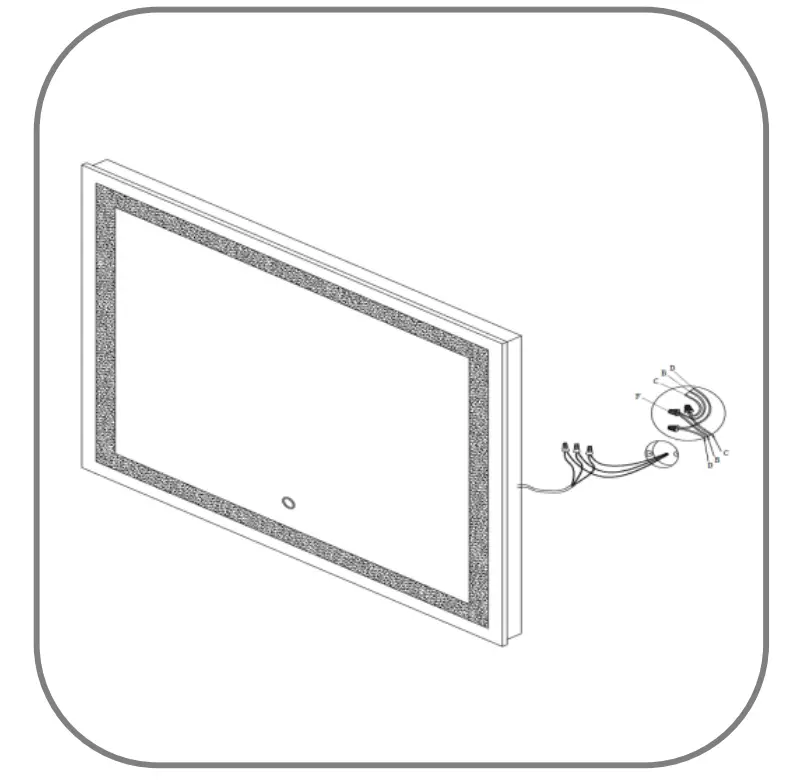

Make sure the circuit breaker for the power source of the mirror is off. Then connect the neutral (White), hot (black) and ground (copper wire or Green) wire between the mirror and the junction box.

Step 3:

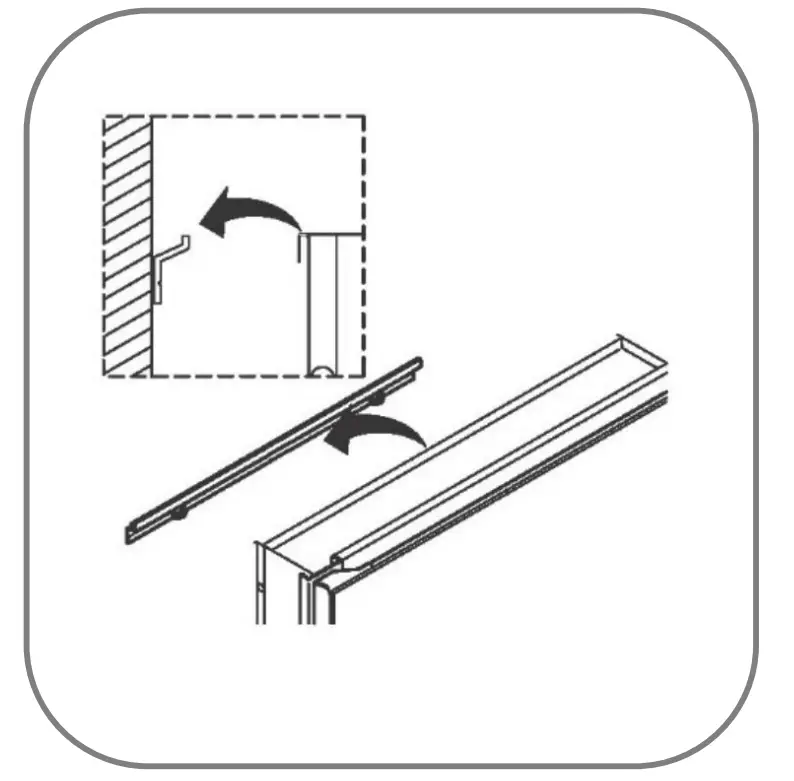

Hang the mirror with desired placement by mirror Z-bar on to the mounting bracket.

OPERATION INSTRUCTION

ON/OFF Function

Color temperature Function

Anti-Fog /time adjustment Function
