Aoorify LED Bathroom Mirror Wall Mounted 28 x 36 Inch

Dimmable Anti Fog Vanity Mirror User Guide

INSTALLATION INSTRUCTION

BEFORE YOU START, HERE IS SOME IMPORTANT INFORMATION.

DANGER: Before installation, make sure the main power is cut off.

WARNING: Installation must be performed by a qualified licensed electrician.

IMPORTANT

• This product contains glass parts. Take care while fitting or handling to prevent personal injury or damage to the product; If the glass is broken, please stop using it and replace it from agent or manufacturer.
• Ensure the mounting surface is dry and strong enough to bear four times the weight of the product for the safe fitting.
• Special care should be taken when drilling walls to avoid hidden pipes or electrical cables.
• The product covers the outlet box and the wirings after installation.

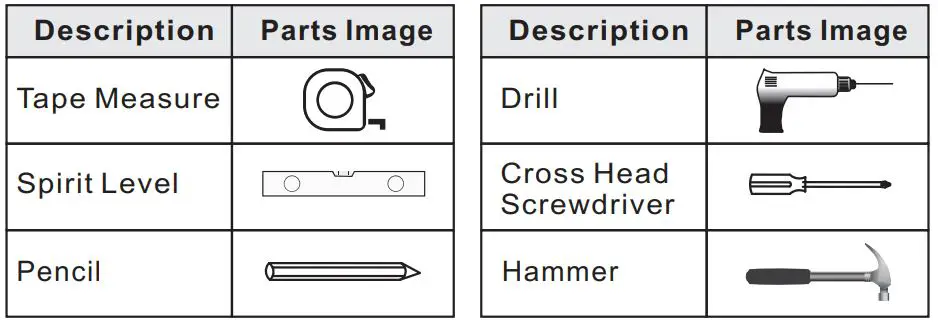

TOOLS REQUIRED

MAINTENANCE

• Wipe clean with a soft, dry cloth. Never use abrasives or chemical cleaners.
• Please put a soft cushion under the mirror while you take the mirror down from the wall.

INSTALLATION STEPS

STEP 1

CUT OFF THE MAIN POWER SUPPLY.

STEP 2

Place the metal ‘Z’ bar against the wall and mark the suitable position of the screw holes ensuring it is level.

STEP 3

Drill the holes and put in the wall plugs for ‘Z’ bar.
Screw the metal ‘Z’ bar onto the wall with the mounting screws supplied.

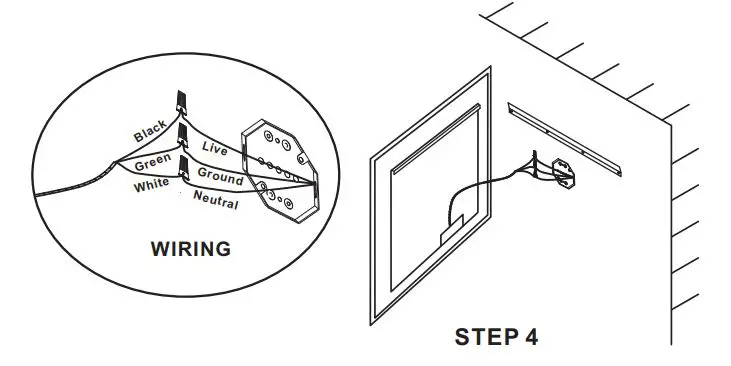

STEP 4

Connect the wires of mirror with the main power by the wire connectors.

BLACK WIRE — POWER SUPPLY L (LIVE)
WHITE WIRE — POWER SUPPLY N (NEUTRAL)
GREEN WIRE — POWER SUPPLY E (EARTH)

ATTN: Some models are designed without Earthing.

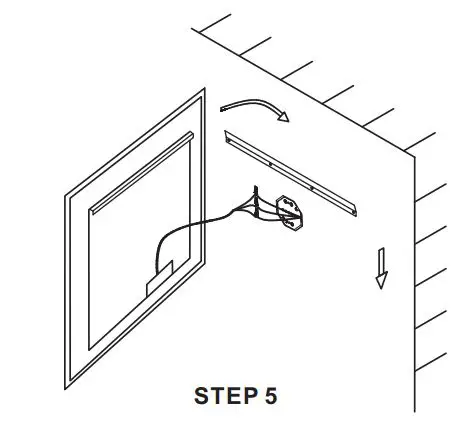

STEP 5

Hang the mirror onto the ‘Z’ bar until they are completely stuck.

MANUAL TO LED MIRROR WITH INFRARED SENSOR SWITCH

1. Turn on and off the light by swiping your hand across the sensor. MANUAL TO LED MIRROR WITH INFRARED SENSOR SWITCH
2. Keep your hand in front of sensor to change color temperatures (CCT) or the brightness (Dimming).

• Point 1 for LED mirror with ON/OFF only.
• Point 1-2 for LED mirror with ON/OFF and CCT changing or Dimming.

NOTICE:

• Only one mode CCT or Dimming available on a mirror.
• The product must be installed with a minimum distance of 25cm between the infrared sensor and any adjacent wall/countertop or any obstruction to ensure the correct function of the sensor.

MANUAL TO LED MIRROR WITH TOUCH SENSOR & CLOCK

1. Turn on and off the light by short-touching the button.
2. Adjust the color temperatures (CCT) by long-touching the button.
3. Adjust the brightness (Dimming) by long-touching the button again.
4. Repeat Point 2 & 3 by long-touching the button.
   • Point 1 for LED mirror with ON/OFF only.
   • Point 1-4 for LED mirror with ON/OFF and CCT changing & Dimming.
5. Entry the Clock Setting while the light are turned off.
6. Long-touch the button and the Hour will flash, then short-touch to set up the Hour.
7. Wait for 5s after setting up the Hour, then the Minute will flash.
   Short-touch to set up the Minute.
8. Wait for 5s and the time will be saved.
9. The clock shows for 5s, and shift to the temperature showing for 2s, then go back to show the clock.
   • Point 5-9 for LED mirror with Clock and Temperature.
