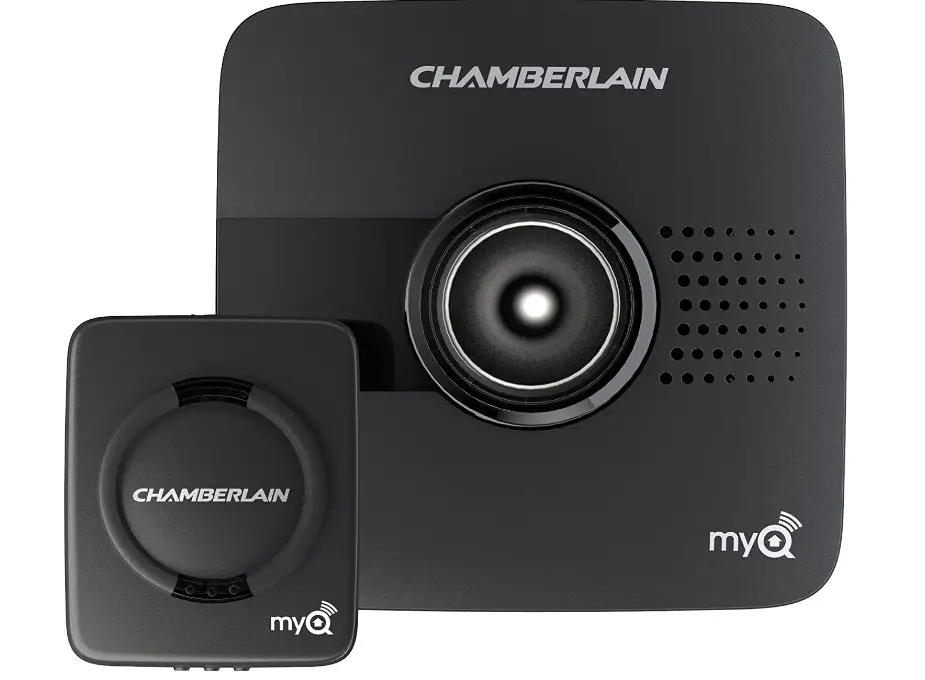

Chamberlain MYQ-G0201 MyQ-Garage Controls
Specifications
- ITEM WEIGHT: 15.2 ounces
- PRODUCT DIMENSIONS: 4.4 x 1.28 x 4.4 inches
- MATERIAL: plastic, metal
- SHAPE: Square
- POWER SOURCE: Corded-Electric
- WATTAGE: 3 watts
- BATTERY CELL: Type Lithium Ion
- AVERAGE BATTERY: Life 3 years
- BATTERIES: 1 Lithium Metal batteries
- BRAND: CHAMBERLAIN
Introduction
Using your smartphone, you may open and close your garage door from anywhere. Obtain notifications each time the garage door opens and closes. You are connected and in charge with Chamberlain’s MyQ Garage, your smartphone, Wi-Fi, and any compatible garage door opener. The Chamberlain MyQ smartphone app is available without a cost or subscription.
System Requirements

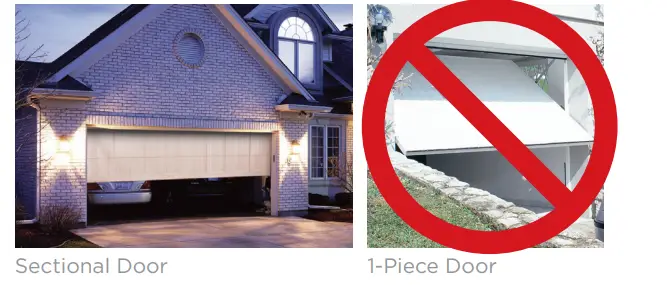

Sectional Garage Door
Wi-Fi Signal in the Garage
The range of your Wi-Fi will depend on the thickness and number of walls, doors or other barriers between your router and garage, but the average range is about 50-100 feet from the Wi-Fi router. To test if it will work, take your smartphone into the garage and turn on Wi-Fi to be sure you get a signal. If you don’t get enough range, you can add a Wi-Fi range extender readily available at most consumer electronics stores.
Compatible Garage Door Opener

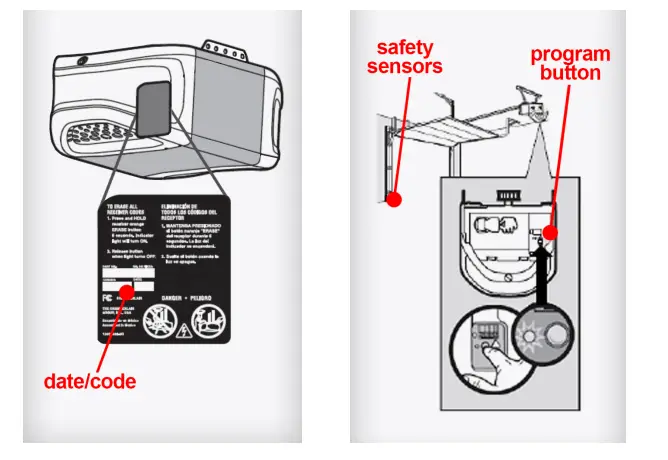

Your garage door opener must have safety reversing sensors which can be found at the bottom of the track of the door. These sensor prevent the door from closing when there is something blocking the path of the door.
Most garage door openers manufactured by the following brands are compatible: Chamberlain, Craftsman, Genie, LiftMaster, Linear, Overhead Door, Raynor, Stanley, Wayne Dalton.
Chamberlain
all garage door openers with the following program button colors on the motor portion of the operator: yellow, purple, orange, green and red.
Craftsman
All garage door openers with the following program button colors on the motor portion of the operator: yellow, purple, orange, green and red.
Genie
all garage door openers manufactured after 1996 (Intellicode 1 and Intellicode 2)
LiftMaster
all garage door openers with the following program button colors on the motor portion of the operator: yellow, purple, orange, green and red.
Linear
all garage door openers
Overhead Door: all garage door openers manufactured after 1996 (Intellicode 1 and Intellicode 2)
Raynor
all garage door openers with the following program button colors on the motor portion of the operator: yellow, purple, orange, green and red.
Stanley
all garage door openers with a program (remote transmitter learn) button on the motor portion of the operator
Wayne Dalton
Most models including Classic Drive, DoorMaster, iDrive, ProDrive and Quantum.
Others that are also compatible if manufactured after 1993
- Access Master
- AssureLink
- BuildMark
- Do-It
- Do-It
- Garage Access
- Master Mechanic
- True Value
Smartphone or Tablet
iPhone®3GS, iPhone 4, iPhone 4S and iPhone 5 iPod touch® (4th and 5th generation) iPad® can run the iPhone version of the app Android Smartphones Most Android Tablets Blackberry, Windows and Other Devices use www.mychamberlain.com/mobile All trademarks are property of their respective owners.
Frequently Asked Questions
Do I need two packages of this if I have two garage doors? or does the hub manage multiple sensors?
Yes. You can buy the sensors you need for garage doors right here on Amazon. Each door can be given a name and controlled separately using the app.
Can the door close automatically with this setting? (For instance, automatic closing after 15 minutes of use)
Although it seems like a wonderful function, there is a drawback. A few years ago, I had a similar gadget installed on my outdated door openers (it would automatically lower them after a preset time). But it didn’t work, so the garage doors kept opening and closing. When the door openers started smoking while I wasn’t home, my spouse became alarmed and dialled the fire service.
You could have simply turned the switch off, I said.
Is it possible to connect the MYQ-G0201 to a secure Wi-Fi network?
A secure Wi-Fi network can absolutely be accessed by the MYQ-G0201.
Does Amazon Echo support it?
It’s compatible with Samsung smart devices. Therefore, a pass-through is possible if you have the Alexa skill for Samsung smart devices.
How safe is this item? Which encryption algorithm does it employ?
I’ve been unable to determine the encryption method. We have set up the Internet Gateway for a Chamberlain garage door opener as well as the independent sensor for a Genie garage door opener. With our Android devices, both operate without a hitch. Since they connect via Wi-Fi, I would predict that the security would be based on the level of security configured at your router. Fantastic stuff
Does this item function on the iPhone 6?
Works flawlessly. My wife and my phone receive the alerts without any issues.
Will the Linear garage door opener function with it?
Yes, all Linear garage door openers should function with it, according to the manufacturer’s website.
Will it open my garage door automatically?
To open and close the door, you will utilise the app on your phone. Using the app, you can keep an eye on things from anywhere you have service and open or close as necessary.
Does it function on the iPhone 7?
Yes, I have an iPhone 7 Plus with 10.3 OS, and it works fine!
What about a sliding garage door?
To detect if the door is open, the sensor (a smaller square) attached to the door must be tilted sideways. The system won’t ever see a sideways sliding door as being open. (Comparable to a vertical door that doesn’t topple over but just slides up.) Even if you can still “press the button,” you won’t be able to see the outcome.
