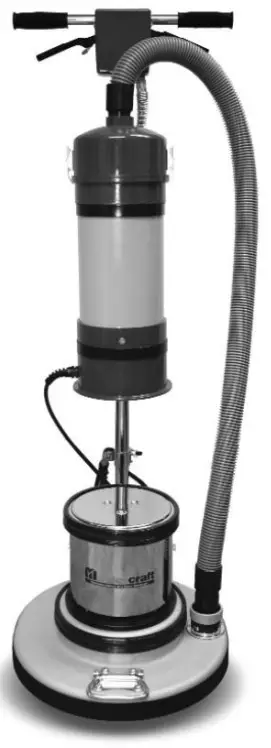

MD17E-DS0BV Dustless Sander

Real and Follow All Instructions, Warnings & Cautions Before Lsing This Machine
This floor sander will afford you many years of trouble-free operating satisfac­tion, provided it is given proper care. All parts have passed rigid quality control standards prior  to being assembled to produce the finished product. Prior to packaging, the vacuum was again inspected for assurance of flawless assembly.
Your floor sander is protectively packed to prevent damage in shipping. We recommend that upon deliv­ery, unpack the sander and inspect it for any possible damage. Only a  visu­al examination will reveal damage that may have occurred.
If damage is discovered, immediately notity the transportation company that delivered your sander. As a shipper, we are unable to report claims for con­ cealed damage. You  must originate any claims within 5 days.

This manual is for your protection and information. PLEASE READ CAREFULLY since failure to follow precautions could result in discomfort or injury.
Treat this floor sander as you would any other high grade precision made product. Dropping, unreasonable bumping across thresholds and other misuses may result in a  damaged unit which is not be covered by warranty.

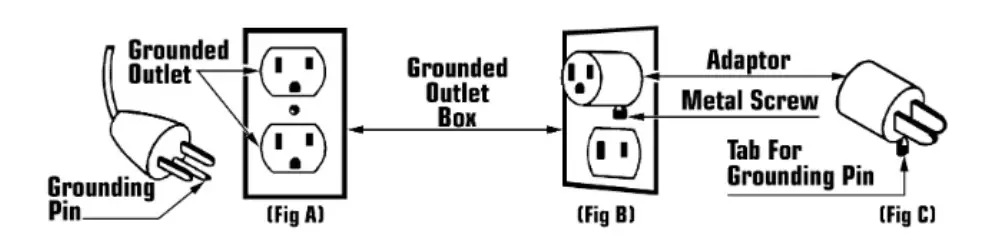

GROUDING METHODS

This floor sander is designed to move from side to side. Raise handle slightly to guide right. As handle is raised high­ er, the faster it will move to the right.
Lower the handle to guide left. Likewise, the more you lower handle, the faster it will move to the left.
Plug in the power cable. With pad driver in position, adjust handle and lock into a comfortable operating position.
Place hands on handle grips and squeeze trigger locks beneath grips.
This will activate the motor and start pad driver operating.
Begin operating this floor sander at the closet possible point to an electri­cal outlet and work away from the out­ let. This will prevent running over the electrical cord.

PAD DRIVER INSTALLATION

1. Unplug power cable and LOCK handle in upright position.
2. Tilt the floor sander back until the handle is laying on the floor and underside of the machine  is fullyexposed.

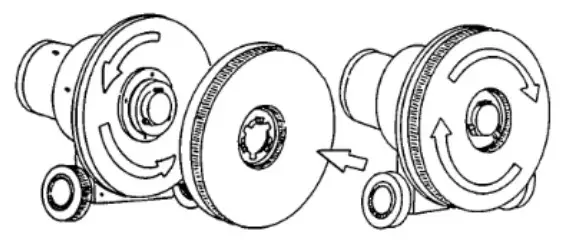

3. Holding the pad driver in both hands straddling the motor with your back to the handle, bend over and fit the three slots of the clutch plate over the three lugs of the  drive plate.
4. Turn the pad driver counterclock­ wise as far as it will go.It is now seated and ready for operation.

To Remove:
Disengage the clutch plate slots from drive plate lugs by turning clockwise.

CAUTION

Disconnect wall plug before leaving floor sander unattended to prevent accidental startup.
DO NOT operate this sander without brush or pad driver and pad in place.Never attempt to lock
pad driver on floor sander by positioning (JUMPING) running floor sander on unattached pad driver.
DO NOT leave a plugged in floor sander unattended.

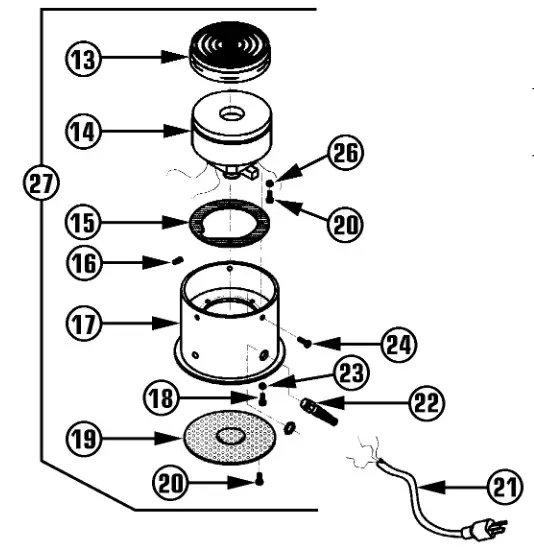

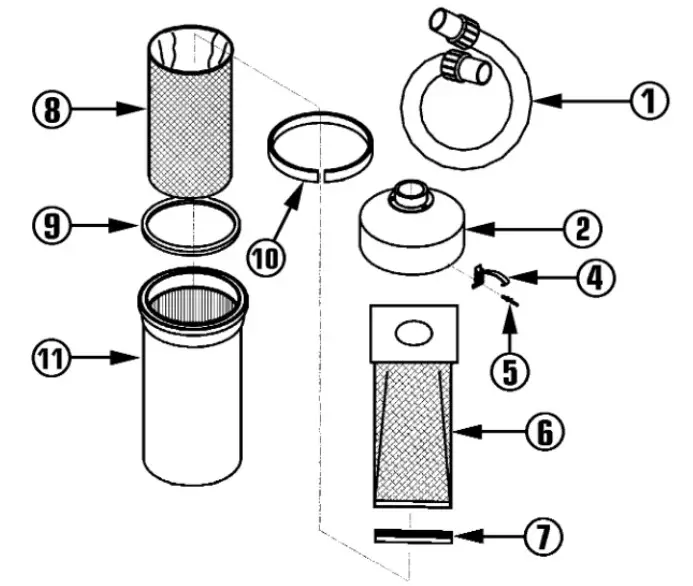

VACLUM ASSEMBLY DRAWING E PARTS LIST
