Overview

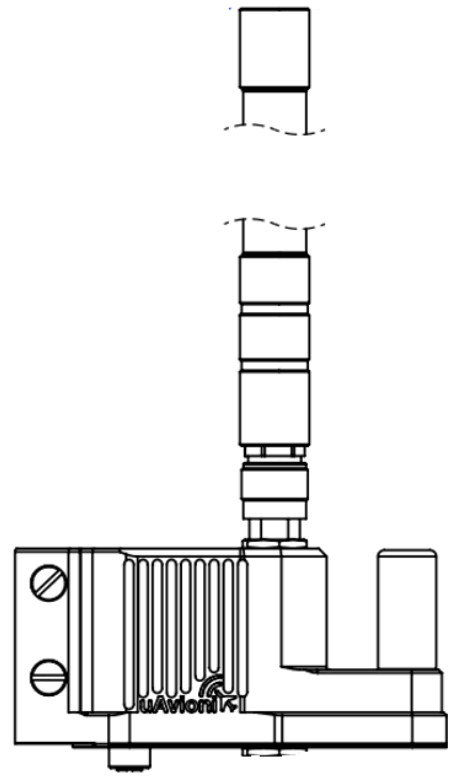

ping station is an environmentally protected, networked dual-link ADS-B receiver.
It can be configured for use in both internet-connected and disconnected environments and provides an extensible platform for collecting and processing surveillance data.
A single Ethernet port provides data connectivity and power to the device using Power-over-Ethernet (PoE). The device contains a DHCP client and accepts DHCP leases based on the existing network policy. To determine the assigned device address please consult your network administrator.
Surveillance data may be consumed using the methods detailed here.

Data Class

Data is received by pingStation and undergoes processing. The received aircraft data is parsed and assembled, it may contain information derived from a number of packets. This information may be JSON, CompressedVRS, or ASTERIX CAT021 formatted and is stateless and fully self-describing.

2.1 JSON Traffic object
The pingStation delivers fields in the traffic table that is valid where field validity can be determined. This includes coordinates, altitude, heading, velocity, callsign, squawk, vertical velocity, and barometer difference. The JSON array of fields is dynamic.
The JSON document consists of an array of aircraft containing the following fields:

Field NameData TypeDescription
ICAO address%02X%02X%02XICAO of the aircraft
trafficSource%d0 = 1090ES
1 = UAT
add%fLatitude expressed as decimal degrees
London%fLongitude expressed as decimal degrees
altitude%ldGeometric altitude or barometric pressure altitude in millimeters
headingDE2%dCourse over the ground in centi-degrees
horVelocityCMS%luHorizontal velocity in centimeters/sec
verVelocityCMS%ldVertical velocity in centimeters/sec with positive being up
squawk%dSquawk code
altitudeType%dAltitude Source
0 = Pressure
1 = Geometric
emitter type%dCategory type of the emitter
0 = No aircraft type information 1 = Light (ICAO) < 15,500 lbs
2 = Small – 15,500 to 75,000 lbs
3 = Large – 75,000 to 300,000 lbs 4 = High Vortex Large (e.g., B757) 5 = Heavy (ICAO) – > 300,000 lbs
6 = Highly Maneuverable > 5G acceleration and high speed 7 = Rotorcraft
8 = (Unassigned)
9 = Glider/sailplane 10 = Lighter than air
11 = Parachutist/sky diver
12 = Ultralight/hang glider/paraglider 13 = (Unassigned)
14 = Unmanned aerial vehicle
15 = Space/trans-atmospheric vehicle 16 = (Unassigned)
17 = Surface vehicle-emergency vehicle 18 = Surface vehicle-service vehicle
19 = Point Obstacle (includes tethered balloons) 20 = Cluster Obstacle
21 = Line Obstacle
22-39 = (Reserved)
sequenceNumber%dAuto incrementing packet sequence number
pingStationGuid%02x%02x%02x%02x
%02x%02x%02x%02x
Unique pingStation identifier
utcSync%dUTC time flag
timeStamp%sThe timing packet was processed on the pingStation ISO 8601 format: YYYY-MM-DDTHH:mm:ss:ffffffffZ
time receptions%luRaw GPS second counter that the pingStation was in when the ADSB packet was delivered.
timeOfReceptionNS%luThe number of nanoseconds into the current GPS PPS pulse that the packet received.

A field called “detail” may be present containing the following data:

Field NameData TypeDescription
Common Fields to 1090ES and UAT
navIntegrity%dNavigation integrity category (NIC)
0 = RC >=37.04 km (20 NM) Unknown Integrity
1 = RC < 37.04 km (20 NM) RNP-10 containment radius 2 = RC < 14.816 km (8 NM) RNP-4 containment radius 3 = RC < 7.408 km (4 NM) RNP-2 containment radius
4 = RC < 3.704 km (2 NM) RNP-1 containment radius 5 = RC < 1852 m (1 NM) RNP-0.5 containment radius
6 = RC < 1111.2 m (0.6 NM) RNP-0.3 containment radius 7 = RC < 370.4 m (0.2 NM) RNP-0.1 containment radius 8 = RC < 185.2 m (0.1 NM) RNP-0.05 containment radius 9 = RC < 75 m and VPL < 112 m e.g., SBAS, HPL, VPL
10 = RC < 25 m and VPL < 37.5 m e.g., SBAS, HPL, VPL
11 = RC < 7.5 m and VPL < 11 m e.g., GBAS, HPL, VPL
12 = (Reserved) (Reserved) 13 = (Reserved) (Reserved) 14 = (Reserved) (Reserved) 15 = (Reserved) (Reserved)
accuracy%dNavigation accuracy category (NAC)
0 = Unknown or >= 10 m/s Unknown >= 50 feet (15.24 m) per second
1 = < 10 m/s < 50 feet (15.24 m) per second
2 = < 3 m/s      < 15 feet (4.57 m) per second
3 = < 1 m/s      < 5 feet (1.52 m) per second
4 = < 0.3 m/s < 1.5 feet (0.46 m) per second 5 = (Reserved) (Reserved)
6 = (Reserved) (Reserved)
7 = (Reserved) (Reserved)
verVelocitySrc%dVertical velocity source 0 = Pressure
1 = Geometric
emergency status%dEmergency status 0 = No-Emergency
1 = General Emergency 2 = Lifeguard/Medical 3 = Min Fuel
4 = No Comm
5 = Unlawful Interference
6 = Downed Aircraft
sysIntegrityLevel%dSource Integrity Level (SIL) – indicates the probability of the reported horizontal position exceeding the containment radius defined by the NIC
sysDesignAssurance%dSystem Design Assurance (SDA) – indicated the probability of an ADS-B system malfunction causing false or misleading position
airGroundState%dAirborne or ground
0 = Airborne subsonic condition
1 = Airborne supersonic condition
2 = On ground condition
svHeadingType%dTrack angle from heading 0 = Data Not Available
1 = True Track Angle 2 = Magnetic Heading
3 = True Heading
verticalVelType%dVertical rate information 0 = Pressure
1 = Geometric
navPositionAccuracy%dThe reported State Vector has sufficient position accuracy for the intended use (NACp)
0 = EPU >= 18.52 km (10 NM)
1 = EPU < 18.52 km (10 NM)
2 = EPU < 7.408 km (4 NM)
3 = EPU < 3.704 km (2 NM)
4 = EPU < 1852 m (1NM)
5 = EPU < 926 m (0.5 NM)
6 = EPU < 555.6 m (0.3 NM)
7 = EPU < 185.2 m (0.1 NM)
8 = EPU < 92.6 m (0.05 NM)
9 = EPU < 30 m and VEPU < 45
10 = EPU < 10 m and VEPU < 15
11 = EPU < 3 m and VEPU < 4 m
12 = (Reserved)
13 = (Reserved)
14 = (Reserved)
15 = (Reserved)
navVelocityAccuracy%dThe least accurate velocity component being transmitted (NAC)
0 = Unknown or >= 10 m/s Unknown or >= 50 feet (15.24 m) per second
1 = < 10 m/s   < 50 feet (15.24 m) per second
2 = < 3 m/s   < 15 feet (4.57 m) per second
3 = < 1 m/s  < 5 feet (1.52 m) per second
4 = < 0.3 m/s  < 1.5 feet (0.46 m) per second 5 = (Reserved) (Reserved)
6 = (Reserved) (Reserved)
7 = (Reserved) (Reserved)
navIntegrityBaro%dBarometer checked (NICbaro)
0 = Barometric Pressure Altitude has NOT been cross-checked
1 = Barometric Pressure Altitude has been cross-checked
geoVerticalAccuracy%dGeometric Vertical Accuracy (GVA) 0 Unknown or > 150 meters
1  ≤ 150 meters
2  ≤ 45 meter
tcasAcasOperating%dThe aircraft is fitted with a TCAS (ACAS) computer and the computer is turned on and operating in a mode that can generate Resolution Advisory (RA) alerts
tcasAcasAdvisory%dTCAS II or ACAS computer is currently issuing a Resolution Advisory
identSwActive%dThe ident switch is activated
atcServicesRecvd%dATC pilot message mode setting 0 = Not receiving ATC messages
1 = Receiving ATC messages
magHeading%dTrue north or magnetic north 0 = True north
1 = Magnetic north
utcCoupledCondition%dRepresents if the Ground Station is UTC-Coupled 0 = Ground Station is not UTC coupled
1 = Ground Station is UTC coupled
1090ES Specific Fields
surveilStatus%dSurveillance status 0 = No Condition
1 = permanent alert 2 = temp alert
3 = SPI
baroaltDiffMM%ldDifference between the pressure altitude and the GNSS altitude in mm
1090esMopsVersion%d1 = DO-260A
2 = DO-260B
UAT Specific Fields
secondaryAltType%dAltitude source 0 = Pressure
1 = Geometric
secondaryAltitudeMM%ldGeometric altitude or barometric pressure altitude in millimeters
tisBSiteId%dThe tisBSiteId is unit-less and is from the transmitted TISb UAT message signifies which uplink tower transmitted the TISb frame
transmitMSO&dthe transmitMSO is the 6bit field from the transmitted UAT message which should signify which MSO the message was transmitted in. MSOs can range from 0 to 3951 but only transmit the 6 LSBs of the actual MSO if transmitted.
The received range is from 0 – 63.
address qualifier%dDefines the type of target that delivered the data 0 = ADS-B target with ICAO 24-bit
1 = Reserved for National use
2 = TIS-B target with ICAO 24-bit address 3 = TIS-B target with track file identifier 4 = Surface Vehicle
5 = Fixed ADS-B Beacon 6 = (Reserved)
7 = (Reserved
uatMopsVersion%d1 = DO-282A
2 = DO-282B
call signed%d0 = Flightplan
1 = CallSign

2.2 JSON Status object
Periodic health and status JSON.

Field NameData TypeDescription
pingStationGuid%02x%02x%02x%02x
%02x%02x%02x%02x
Unique pingStation identifier
pingStationVersionMajor%dPINGSTATION_MAJOR_VERSION
pingStationVersionMinor%dPINGSTATION_MINOR_VERSION
pingStationVersionBuild%dPINGSTATION_BUILD_VERSION
timeStamp%sTime packet was received at the pingStation ISO 8601 format
pingStationLatDD%fFixed station latitude expressed as decimal degrees
pingStationLonDD%fFixed station longitude expressed as decimal degrees
pingStationAltType%d0 = Barometric Altitude 1 = GNSS Altitude
pingStationAltMM%dAltitude in mm
gpsStatus%dThe communication and health status of the pingStation GPS 0 = GPS not present or functioning
1 = Not locked 2 = 2D fix
3 = 3D fix
4 = DGPS fix
receiver status%dThe communication and health status of the pingStation receiver
0 = functioning normally
1 = excessive communication errors
2 = device not transmitting

2.3 CompressedVRS
pingStation3 supports ADS-B Target Reports encoded in the CompressedVRS Feed Format. The full specifications of this format can be found on The Virtual Radar Server website.
2.4 ASTERIX CAT021 ADS-B Report
pingStation3 supports ADS-B Target Reports via ASTERIX Category 021 (CAT021), whose full specification can be found on the EUROCONTROL website. Reports are composed of Data Items assembled in the order defined by the Field Reference Number (FRN) in the associated User Application Profile (UAP) and transmitted in the following layout within the Data Block:

CAT = 021LENFSPECItems of the first recordFSPECItems of the last record

where:

  • “CAT = 021,” or the Data Category, is a one-octet field indicating that the Data Block contains ADS-B reports;
  • “LEN,” or the Length Indicator, is a two-octet field indicating the total length in octets of the Data Block, including the CAT and LEN fields;
  • and “FSPEC” is the Field Specification, which is a field of up to seven octets that indicates which Data Items are to be transmitted in a record, with the presence of a Data

Item indicated by having its corresponding FSPEC bit set to ‘1’.
Of the fields specified by CAT021, pingStation3 uses the subset defined below.
The transmission of each field depends on the availability of valid data to populate that field as received by the pingStation3.

FRN Data ItemInformation
1I021/010Data Source Identification
2I021/040Target Report Descriptor
6I021/130Position in WGS-84 coordinates
7I021/131Position in WGS-84 coordinates, high res.
9I021/150Air Speed
10I021/151True Air Speed
11I021/080Target Address
12I021/073Time of Message Reception of Position
14I021/075Time of Message Reception of Velocity
16I021/140Geometric Height
17I021/090Quality Indicators
18I021/210MOPS Version
19I021/070Mode 3/A Code
21I021/145Flight Level
22I021/152Magnetic Heading
23I021/200Target Status
24I021/155Barometric Vertical Rate
25I021/157Geometric Vertical Rate
26I021/160Airborne Ground Vector
28I021/077Time of Report Transmission
29I021/170Target Identification
30I021/020Emitter Category
36I021/008Aircraft Operational Status

Protocols

3.1 UDP
The pingStation JSON and ASTERIX CAT021 data can be delivered as UDP to a specified host IP address and port number. The UDP destination and port number can be entered using the webpage interface at http://nnn.nnn.nnn.nnn/. As aircraft data is received into the pingStation, it is timestamped and formatted before being pushed to the UDP listener. Each UDP datagram contains a single aircraft update. The aircraft JSON data will contain the optional “detail” object.
Data will be continually streamed out to the UDP listener as aircraft updates arrive. Every 30 seconds a JSON status object will be delivered if the ping station is configured to send JSON over UDP. The data is dynamic in that only valid fields will be formatted and sent on to the UDP host.
To disable UDP send functionality, enter an IP address of 0.0.0.0 on the configuration webpage at http://nnn.nnn.nnn.nnn/.
3.2 TCP
The pingStation CompressedVRS and ASTERIX CAT021 data can be delivered as TCP to a specified host IP address and port number. The TCP destination and port number can be entered using the webpage interface at http://nnn.nnn.nnn.nnn/.
As aircraft data is received into the pingStation, it is timestamped and formatted before being pushed to the TCP listener. Each TCP payload contains a single aircraft update.
To disable TCP send functionality, enter an IP address of 0.0.0.0 on the configuration webpage at http://nnn.nnn.nnn.nnn/.
3.3 REST
The pingStation data can be accessed in a basic pull model using the REST protocol which will return the JSON formatted data. Data can be accessed by using the GET method to the pingStation URL (nnn.nnn.nnn.nnn).
The pingStation base URL is: http://nnn.nnn.nnn.nnn/api/v1/

Example resource paths are:
http://nnn.nnn.nnn.nnn/api/v1/traffic
http://nnn.nnn.nnn.nnn/api/v1/status
No GET query strings are currently supported to limit returned data sets.

JSON Example Sentences

4.1 Traffic Object

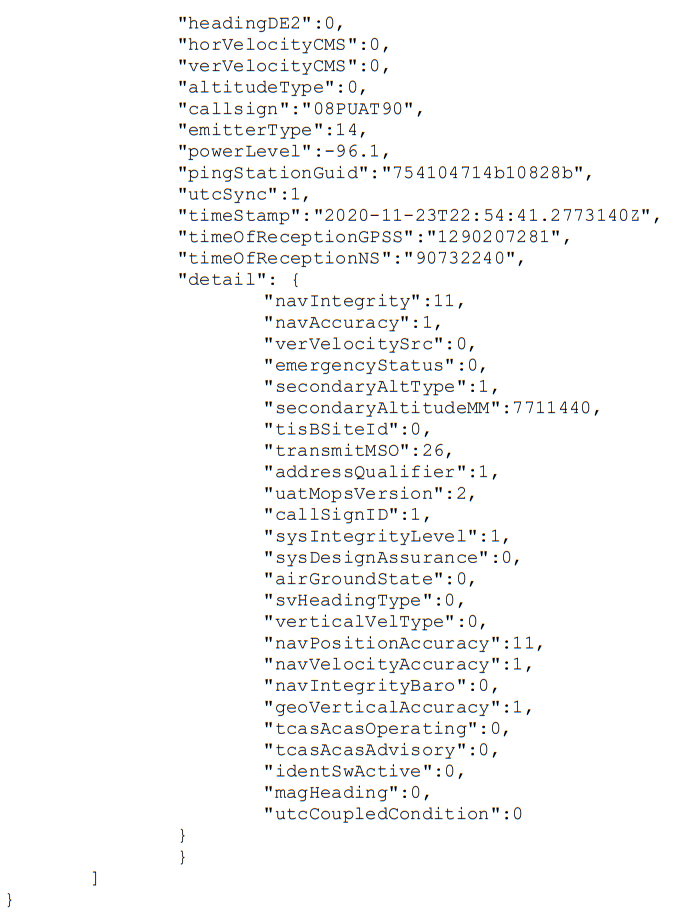

Uavionix 3ICD RevB ping Station - 1Uavionix 3ICD RevB ping Station - 2

4.2 Status Object

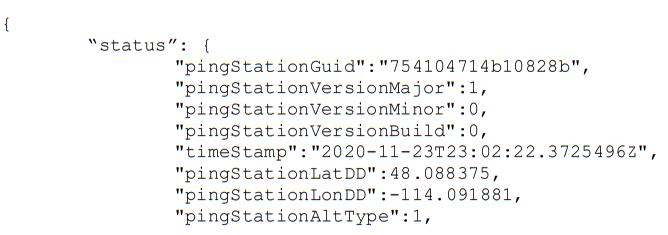

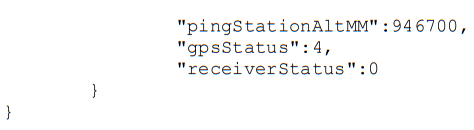

Uavionix 3ICD RevB ping Station - 3Uavionix 3ICD RevB ping Station - 4

ASTERIX CAT021 Example Packet

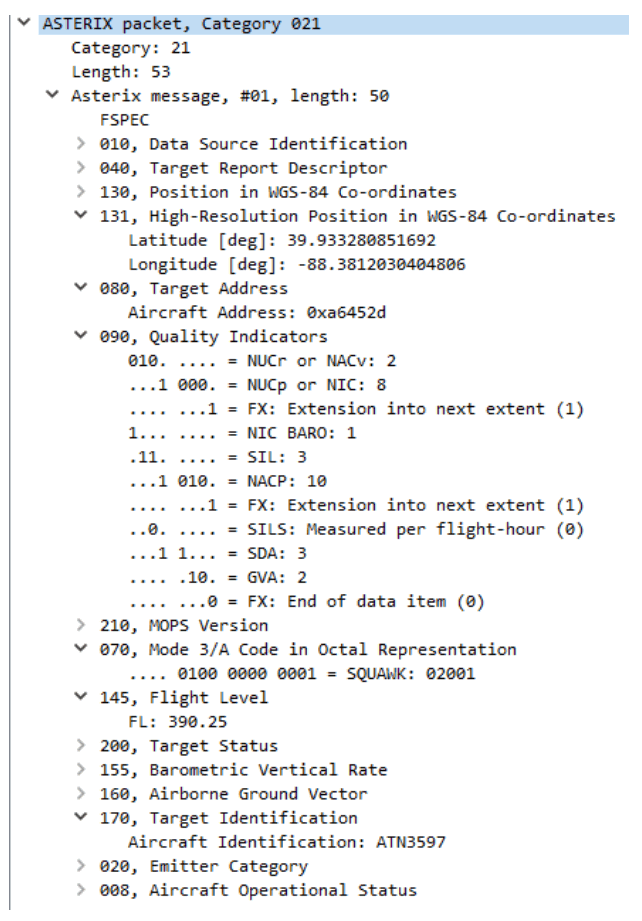

Uavionix 3ICD RevB ping Station - 5
