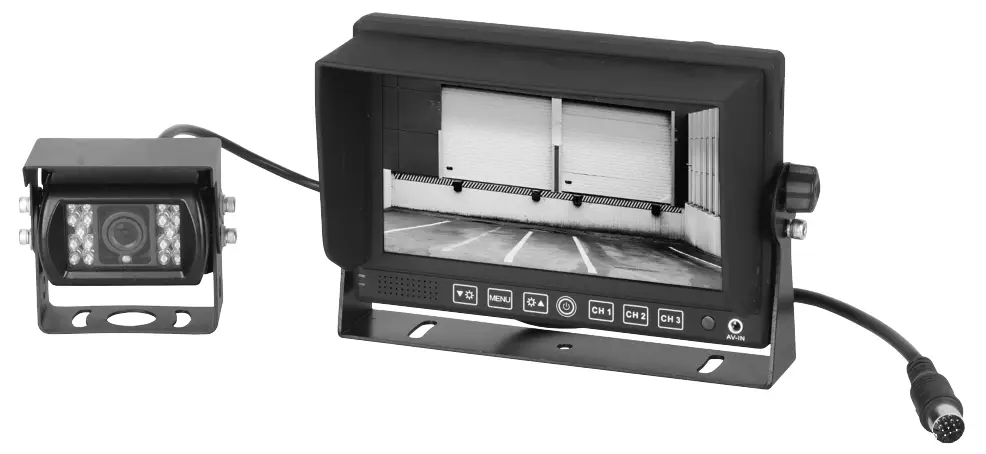

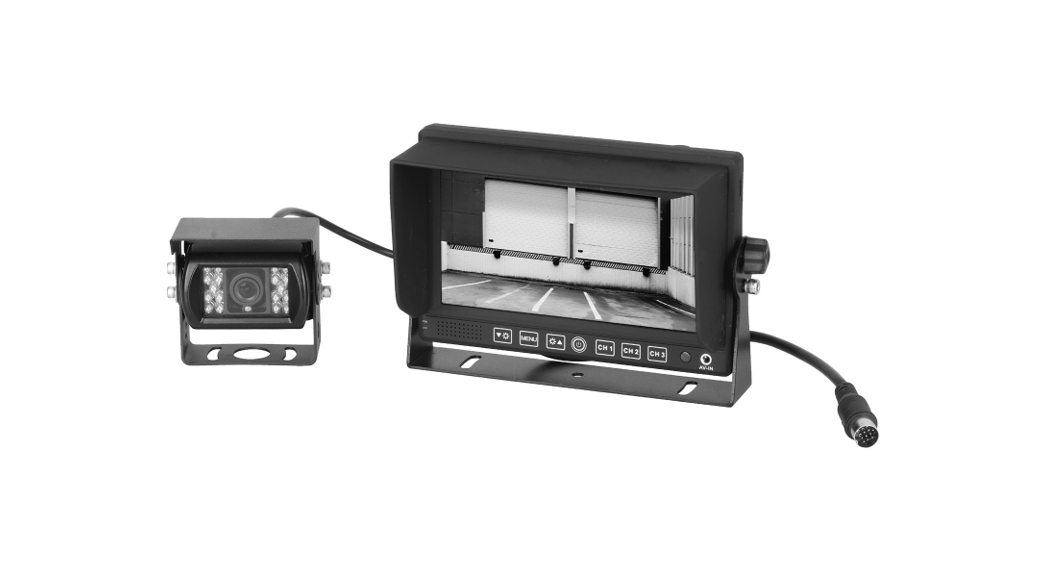

QM3742
Wired Reversing
Camera with 7” LC
Instruction Manual
MONITOR

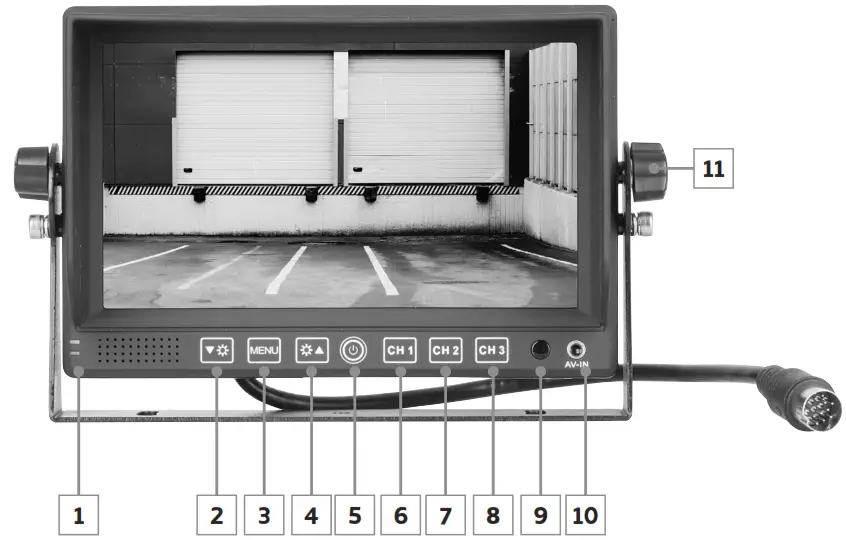

| 1 | Dimmer Sensor Window | 5 | Power Button | 9 | R/C Window |
| 6 | Channel 1 | 10 | AV-IN | ||
| 2 | Down Button | 7 | Channel 2 | 11 | Bracket Knob |
| 3 | Menu Button | 8 | Channel 3 | ||
| 4 | Up Button | ||||

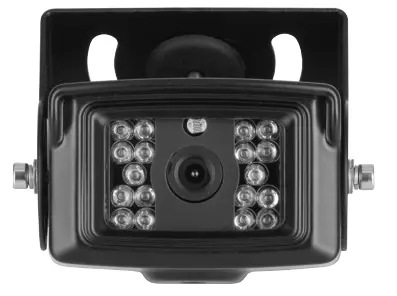

CAMERA:
- QC3536:
12V Infrared Reversing Camera with Mounting Bracket - CCD, 120° Viewing Angle
- High-Resolution Camer
MONITOR SPECIFICATIONS
| Display: | 7” |
| Aspect Ratio: | 16:9 |
| Luminance: | 300cd/m2 |
| Resolution: | 800 x 480 RGB |
| Audio & Video: | 3 ways video input, 2 ways audio input, 1 AV input from the front panel |
| System: | PAL/NTSC (Automatic) |
| Voltage: | 12-24V DC |
| Language: | English, Chinese |
| OSD Menu: | Display menu, Brightness, Colour, and Contrast adjustments |
| Built-in Speaker: | Yes |
| Bracket Accessories: | U type bracket |
| Sunshade: | Included and removable |
CAMERA SPECIFICATIONS:
| Sensor: | SHARP 1/4 CCD |
| Resolution: | 420 TV Line |
| Illumination: | 0.5Lux IR night vision |
| Viewing Angle: | 120° |
| Images: | Mirror & Original image |
| System: | PAL/NTSC |
| Waterproof Class: | IP68, Aluminium alloy shell |
| Anti-shock Class: | 4G |
| Power Supply: | 12V-24V DC |
| Maximum Current: | <250mA |
| Connector: | 4 pin/RCA |
| Working Temperature: | -30°C to 70°C |
| Dimensions: | 86.5(W) x 77(H) x 75(D)mm |

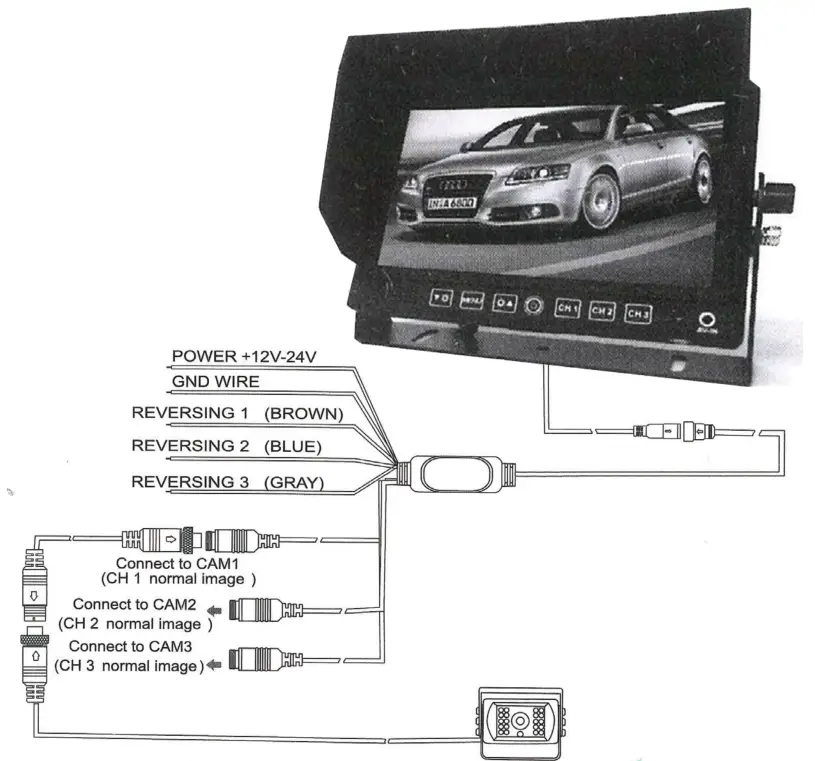

CONNECTION:
4 Pin (7”)

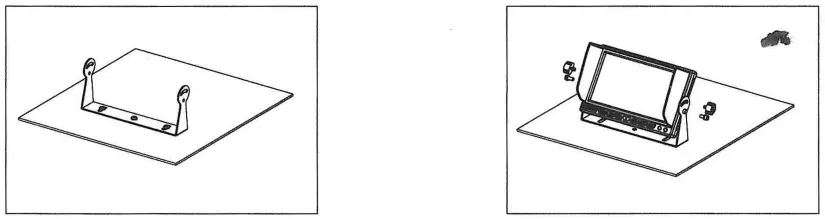

MONITOR STANDARD INSTALLATION:

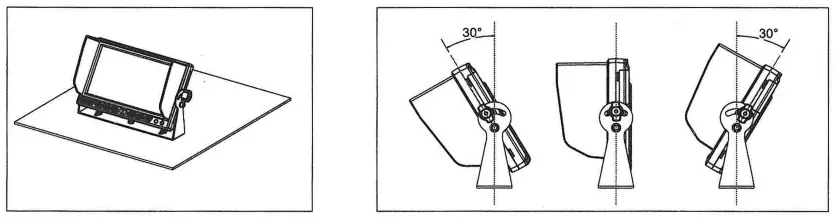

- Remove the screws from the side. Place the U-bracket where desired and lock it with screws as shown in the pictures.
- Place the monitor onto the U-bracket and tighten with screws
- Once the installation is completed, the monitor can be tilted 30° up or down.

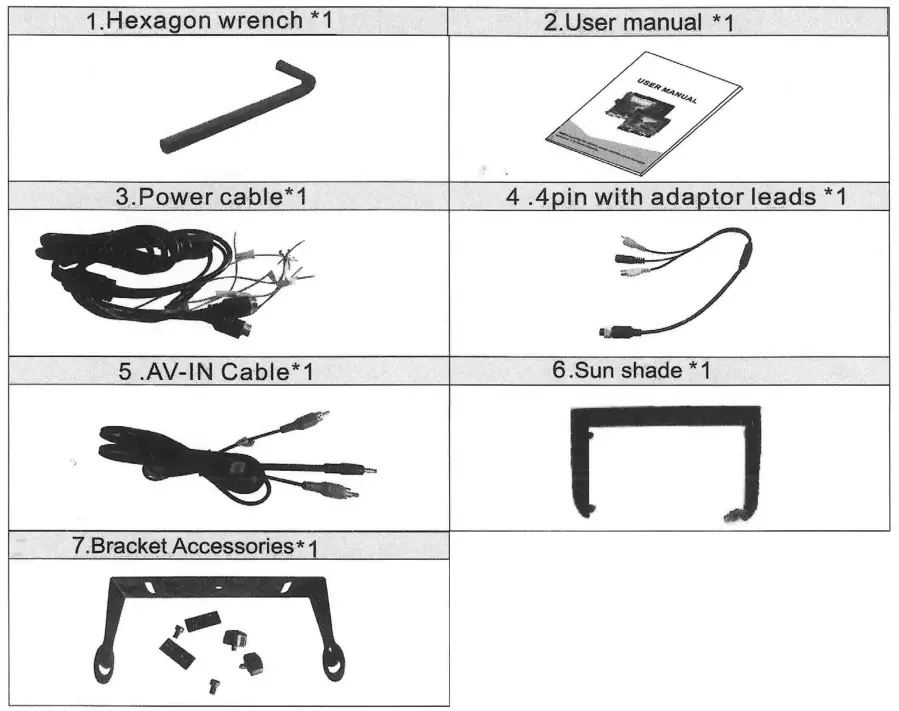

BOX CONTENTS:
NOTES:
Distributed by:
Electus Distribution Pty. Ltd.
320 Victoria Rd, Rydalmere
NSW 2116 Australia
www.electusdistribution.com.au
Made in China
