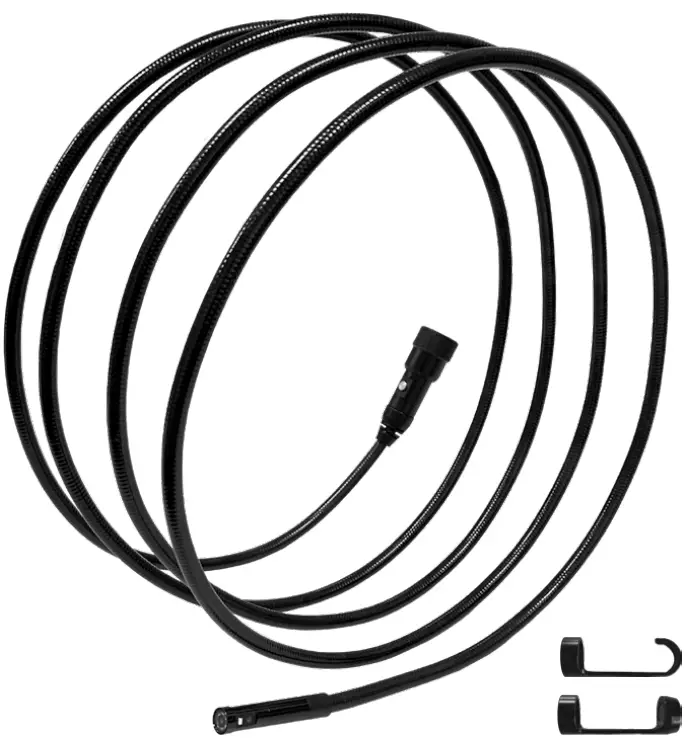

HD DuoCamera
082.280A HD Duo Camera
Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. These documents must be kept in a safe place and passed on together with the device.
Intended use
The HD DuoCamera is a camera unit for connection to the base VideoFlex HD unit. When combined with the base unit, colour video images are sent to the LCD for inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles.
General safety instructions
- The device must only be used in accordance with its intended purpose and within the scope of the specifications.
- The measuring tools and accessories are not toys. Keep out of reach of children.
- The structure of the device must not be modified in any way.
- Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
- The device must no longer be used if one or more of its functions fail or the battery charge is weak.
- The camera head is not acid-resistant or fireproof.
- It is absolutely vital to ensure that the HD DuoCamera does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
- The HD DuoCamera must not be used for medical examinations / examining people.
- Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
- The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.
Safety instructions
Using artificial, optical emission (OStrV)
LED outlet
– The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).
– When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.
Safety instructions
Dealing with electromagnetic radiation
– The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
– Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

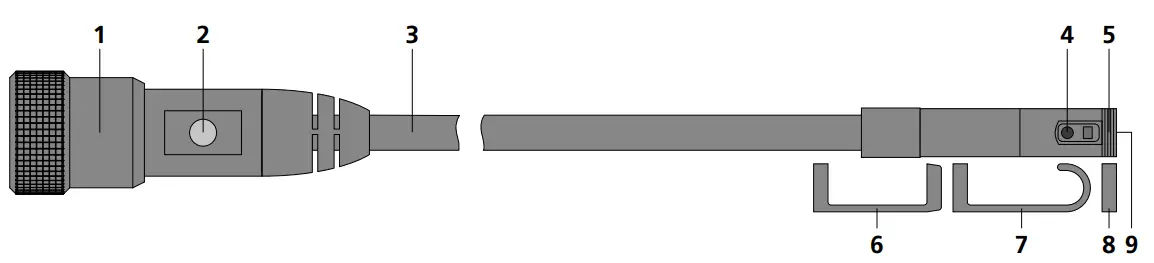

- Base unit connection
- Switch between front and side camera
- Flexible cable
- Side camera
- Connection magnet/hook tool
- Magnet
- Hook
- Thread protector
- Front camera

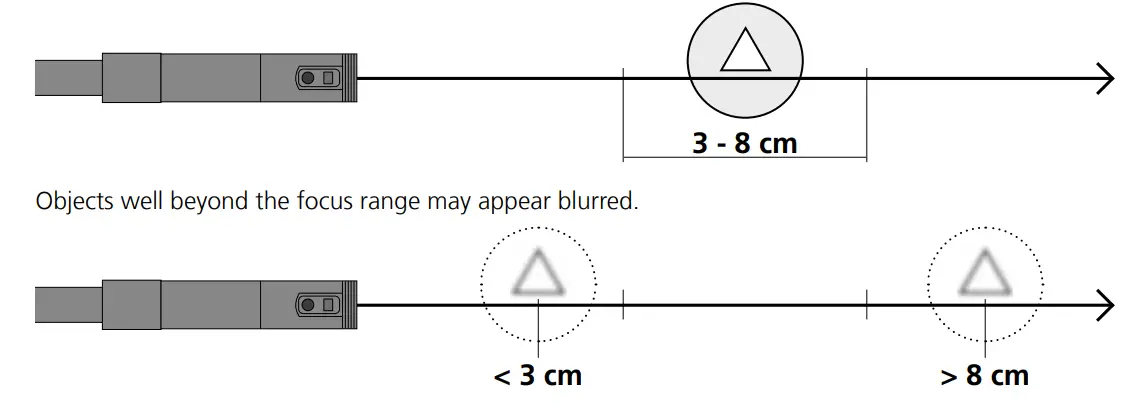

- Focal depth
The front camera on the HD DuoCamera delivers sharp images in a range between 3 and 8 cm from the camera head. The side camera has a depth of field of 2 to 5 cm from the camera head. Front camera illustration

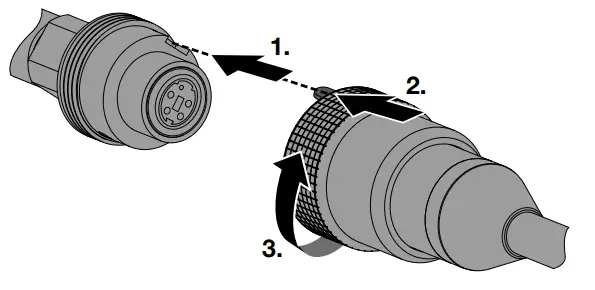

- Connection for flexible cable
- Switch between front and side camera
Information on maintenance and care
Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents.
Store the device in a clean and dry place.
Technical data
Subject to technical alterations. 22W31
| Camera head diameter | 7.9 mm |
| Camera probe protection class | IP 67 (immersion depth 1 m, 30 min.) |
| Number of LED lights | Front: 6 / Side: 1 |
| Camera resolution | 1280 x 720 Pixel |
| Field of view (FOV) | 80° |
| Depth of focus (DOE) | Front: 3 … 8 cm / Side: 2 … 5 cm |
| Probe diameter | 6 mm |
| Probe length | 3 m |
| Length camera head | 44 mm |
| Probe min. bending radius | 75 mm |
| Features | Resistant to oil and petrol accessories included: Magnet, hook |
| Operating conditions | 0°C … 50°C, max. humidity 85% rH, no condensation, max. working altitude 2000 m above sea level |
| Storage conditions | -10°C … 70°C, max. humidity 80% rH, no condensation |
| Weight | 348 g |
| Dimensions (W x H x D) | 3000 mm x 21 mm x 21 mm |
EU and UK directives and disposal
This device complies with all necessary standards for the free movement of goods within the EU and the UK.
This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials.
Further safety and supplementary notices at: http://laserliner.com
