V-tac Vt-7703 Led Rechargeable Desk Lamp Touch Dimmable Instruction Manual

V-TAC VT-7703 LED Rechargeable Desk Lamp Touch Dimmable

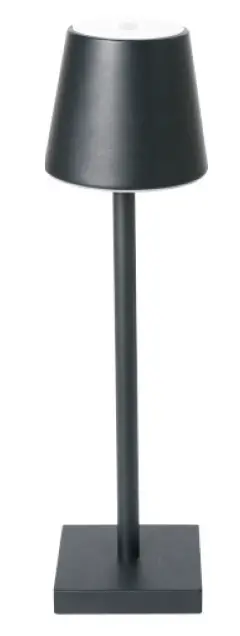

Product Information

The table lamp has a WEEE number of 80133970 and comes in four different unit colors: grey, gold, white, and black. The lamp has a brightness of 70-80LM and uses 3W of power. It has a beam angle and touch dimming level of 10-100%. The lamp is made of iron and has dimensions of 105x390mm. It comes with a rechargeable battery with a capacity of 4000mA, which takes 6-8 hours to charge and provides 8-10 hours of working time. The lamp also comes with a charging cable, instruction manual, and a warranty of 2 years.

Product Usage Instructions

1. Before installation, make sure to turn off the power.
2. This lamp is for indoor use only.
3. Place the lamp on a steady base only.
4. To switch the lamp on or off, tap the button at the top of the lamp.
5. For dimming function, make sure the light is on, tap on the touch button and hold for the light to increase the brightness. When turning on the lamp next time, the light brightness level will be the same as the last setting.
6. The lamp has a red color indicator when charging is in progress and a green color indicator when the battery is fully charged.
7. To clean the lamp, use a cleaning cloth and water to remove dust and soapsuds for filthy marks. Do not use high-volatility or high-corrosive liquid which can lead to discoloring or damaging the lamp.

If you have any queries or issues with the product, please reach out to the manufacturer at [email protected]. For more products or inquiries, please contact the distributor or nearest dealers of V-TAC Europe Ltd.

TECHNICAL DATA

INTRODUCTION

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other queries, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at your best. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. This product is warranted for manufacturing defects only.

WARNING!

1. Please make sure to turn off the power before starting the installation
2. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
3. For indoor use only

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

This marking indicates that this product should not be disposed of with other household wastes
Caution, risk of electric shock.

FEATURES

OPERATION CAUTIONS:

1. Please do not put the lamp on high-temperature surfaces, and do not use it in flammable or humid environments, to avoid breakdown, short circuits etc.
2. The adapter must be under the specialized range.
3. Please ensure to place the lamp on a steady base only

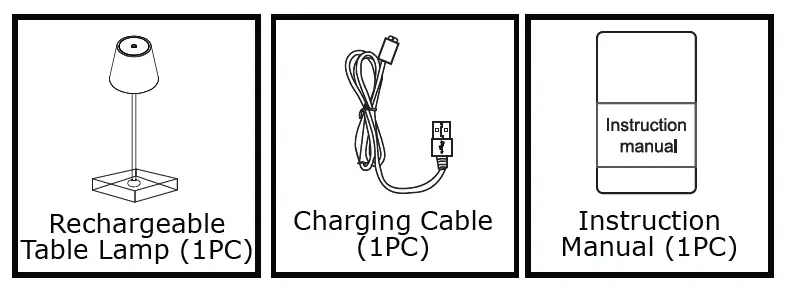

PACKAGE CONTENT

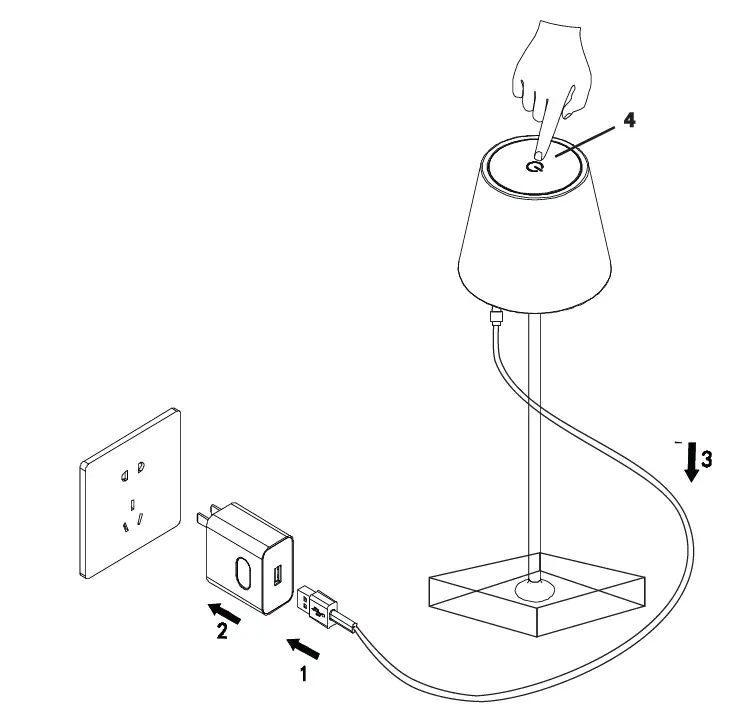

OPERATION GUIDE

1. Tap on the button at the top of lamp to switch on/off the lamp
2. For Dimming function – Make sure the light is ON, tap on the touch button and hold for the light to increase the brightness. When turning on the lamp next time, the light brightness level will be the same as the last setting

COLOR LED INDICATOR

1. RED COLOR INDICATOR – Charging is in progress.
2. GREEN COLOR INDICATOR – The battery is full charge

MAINTENANCE

1. Please clean the lamp once in every two months to keep it smooth and bright.
2. Use cleaning cloth and water to clean the dust
3. For filthy marks, please use cleaning cloth and soapsuds.
4. Please do not clean the lamp by high-volatility and high-corrosive liquid which can lead to discoloring or damaging the lamp

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
WEEE Number: 80133970
