ANTTUS ATS-U1 Audio Dongle User Guide
Quick Guide
- Open box and take out ATS-U1
- Set Bluetooth headset, speaker or TWS earbuds to pairing mode, and keep it close to ATS-U1

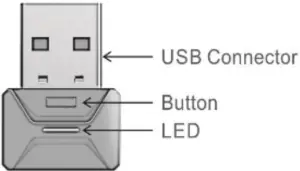

- Plug ATS-U1 into USB port of computer or gaming device, and LED start flashing I USB Connector n a quickly to enter pairing mode Button
- Wait for LED A to turn constant on and 1 LED ready to work
Product User Manual
| Function | User Action | LED Indication |
| Start up | Plug into USB port of PC or gaming device | LED flashing slowly |
| Pair with Bluetooth device | Press and hold button for 3 seconds | LED flashing quickly |
| Reconnect | Short press button | LED flashing slowly |
| Standby | – | LED off |
| Connected | – | LED on |
| Restore factory setting | Press and hold button for 8 seconds | LED flashing 3 times |
Warning Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.
