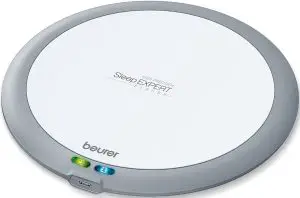

Beurer Se 80 Sleepexpert Sleep Sensor Instructions

beurer SE 80 SleepExpert Sleep Sensor Instructions

Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

WARNING

• This device may be used by children over the age of eight and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
• Children must not play with the device.
• Check that the device and the mains cable are in perfect working order before each usage. In the event of damage, the device must not be used.
• Cleaning and user maintenance must not be performed by children unless
  supervised.
• Disconnect the device from the mains supply during cleaning.
• Clean the device using only the methods specified.
• Do not use any solvent-based cleaning products.
• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

Dear customer,
Thank you for choosing a product from our range. Our name stands for high quality, thoroughly tested products for applications in the areas of heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage, beauty, air and baby.

With kind regards
Your Beurer team

Getting to know your device

When developing the Beurer SE 80 SleepExpert sleep sensor, we drew heavily on experience gained from the professional use of devices for measuring vital signs in hospitals and on many years of research.
This innovative, non-contact sleep sensor accurately and reliably records your sleep. This provides you with a deeper understanding of your sleeping behaviour, which will ultimately improve the quality of your sleep and life as a whole.

The SE 80 is placed under the mattress and records your heart rate, breathing rate and movements whilst you are sleeping. The device can then use these values to identify the various sleep phases that occurred at different times. It also creates a daily Sleep Score. To do so, an app uses the recorded values to calculate an index, which clearly indicates the quality of your sleep each night. With the free “beurer SleepExpert” app, you can view graphic displays of all the recorded values and compare these with one another. The diary function enables influencing factors such as sport or alcohol consumption to be taken into account.

Using the app provides you with the following functions

• Calculation of sleep quality and clear display of information with the Sleep Score
• Detection of the fall-asleep phase, wake-up frequency and sleep duration
• Clear overview of the individual sleep phases
• Fresh Wake function (gentle alarm function through detection of sleep phase)
• Personalised sleep tips adapted to your sleeping behaviour
• Sleep view/analysis view (daily/weekly/monthly view)
• Diary function
• Phases of the moon
• Link between your heart rate/breathing rate/movements
• Function to detect interruptions in your breathing

System requirements

• iOS ≥ 12.0, AndroidTM ≥ 8.0, Bluetooth® ≥ 4.0

Included in delivery

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer  or the specified Customer Service address.

• 1x sleep sensor
• 1x mains part plug
• 1x brief instructions
• 1x these instructions for use

Signs and symbols

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device:

Warning
Warning instruction indicating a risk of injury or damage to health
Important
Safety note indicating possible damage to the device/accessory
Dispose of packaging in an environmentally friendly manner
CE labelling
This product satisfies the requirements of the applicable European and national directives.
Product information
Note on important information
Read the instructions
Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE
The products demonstrably meet the requirements of the Technical Regulations of the EAEU.
Manufacturer

Intended use

Only use the sleep sensor to record sleeping behaviour. The sleep sensor is intended for private, indoor use only.

WARNING
This device must only be used for the purpose for which it was designed and in the manner specified in the instructions for use. Improper use can be dangerous. The manufacturer is not liable for damage resulting from improper or careless use.

Warnings and safety notes

Read the notes carefully! Non-observance of the following information may result in personal injury or material damage.

WARNING
General safety notes

• Keep packaging material away from children. Choking hazard!
• This device is not a medical product and is not suitable for diagnosing, treating, curing or preventing illnesses.
• Never operate the device if it is visibly damaged. A damaged device may lead to inaccurate measurement results.
• Only operate the device using the mains part plug included in delivery.
• Do not use the device together with a water bed.
• Keep the device away from nearby sources of vibration as these could lead to incorrect or inaccurate measurements.
• Ensure that the socket to which the device is connected is in close proximity to the bed.

IMPORTANT

• Protect the device against sunlight and impacts and do not drop it.
• Never shake the device.

Useful information about sleep

A restorative night’s sleep is of huge importance for our physical and psychological well-being; after all, it is during sleep that we process things such as new experiences and improve our mental and physical fitness.
Sleep researchers have even discovered that a person’s life expectancy increases by around 5 years if you regularly sleep for around 7.5 hours at night.

Healthy, restorative sleep is thus particularly important when you consider that we spend on average a third of our lives sleeping.
Most of us do not give a great deal of thought to the sleeping process, even if we sometimes experience problems with sleep. Only 55% of the total global population enjoys deep, restorative sleep.

Typical sleeping behaviour

It is very difficult to normalise sleeping requirements, since everyone has different requirements. Therefore, the most important thing is that we consider our sleep to be relaxing and restorative.
Naturally, this depends on whether you tend to sleep for long or short periods and rise early or stay up late.
Your nature, age and habits also play a key role.
On average, most young adults and adults sleep for between seven and nine hours a night, however this can vary.

Even if you only sleep for 6 hours a night, it is important that you go to bed and get up at fixed times.
As a rule, your sleep during the night is divided into the following recurring phases:

Impacts of lack of sleep
A lack of sleep can have a variety of physical and mental consequences. The impacts range from a lack of concentration, reduced mental capability and irritability to personality disorders. If your natural sleep rhythm is unsettled, human body functions such as breathing, blood pressure and metabolism can also be disrupted, weakening the immune system and accelerating the ageing process. Long-term studies have show that there is a link between cardiovascular disease and a sustained lack of sleep (regularly having less than 6 hours of sleep) or breathing disorders during sleep.

Device description

1. Function light (green)
2. Connection for mains part plug
3. Bluetooth® function light (blue)
4. Sensor plate
5. Mains part plug

Initial use

To set up the sleep sensor, proceed as follows:

1. Ensure that your smartphone is connected to the Internet.
2. Download the “beurer SleepExpert” app in the Apple App Store (iOS) or Google Play (Android). The sleep sensor can only be operated in conjunction with the “beurer SleepExpert” app.
   Note
   Depending on the settings for your smartphone, additional charges may be incurred for connecting to the Internet or transferring data.
3. Activate Bluetooth® on your smartphone.
4. Open the “beurer SleepExpert” app and register yourself (you only need to do this once).
5. Once registration is complete, the guide for setting up the SE 80 is launched in the app. After this the tutorial starts, which explains the displays and functions in the app and how to start recording your sleep.
   Follow the step-by-step instructions in the app:

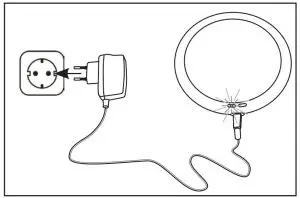

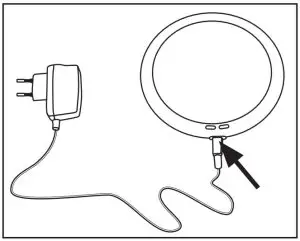

6. Connect the mains part plug to the sleep sensor.

7. Insert the other end of the mains part plug into a suitable socket. A green function light on the sleep sensor begins to light up.

8. Position the sleep sensor beneath your mattress at the shoulder position. There should be a gap of at least 15 cm between the sleep sensor and the edge of the bed. Ensure that the “beurer” logo on the sleep sensor is facing upwards. Arrange the cable of the mains part plug so that no-one will trip over it. Position the sleep sensor such that the connection for the mains part plug is facing the socket.


Note

If two people are sleeping in the bed, separate sleep recordings can be generated using two SE 80 devices. However, each SE 80 must be connected to a separate smartphone. It is not possible to connect two SE 80 devices to one smartphone. It is also possible to use the SE 80 with an electric underblanket. However, the SE 80 and the electric underblanket should not be in direct contact with one another. You should position the SE 80 underneath the mattress (as described above) and the electric underblanket on top of the mattress.

App features

Sleep statistics

Various sleep statistics are logged for every sleep recording.

The app shows:

• the actual duration of your sleep,
• how long you were in each sleep phase (light sleep, deep sleep, REM sleep, awake),
• your breathing rate/heart rate,
• the length of time it took you to fall asleep, how many times you woke up and for how long, and the total time spent in bed,
• personalised sleeping tips tailored to your sleep,
• the Sleep Score. To generate this, the app uses the recorded values to calculate an index (0 to 100), which informs you of the quality of your sleep each night. The higher the Sleep Score, the better you have slept.

Diary

Before recording your sleep, you can enter in the diary whether you drunk alcoholic or caffeinated drinks or exercised before going to bed.
Later on, this allows you to determine the effect of these actions on your sleep.

Fresh Wake

The settings of the “beurer SleepExpert” app allow you to configure a Fresh Wake. The Fresh Wake is a wakeup function with sleep phase recognition. As a result, during the configured wake-up period the sleep sensor ensures that you are not woken up if you are in the deep sleep phase. This ensures that you are woken up gently and make a bright start to the day.

Note

If you are not in the light sleep phase during the configured wake-up period, the alarm will sound at the last possible moment. In order to use the Fresh Wake function, an active internet connection is required.
Note for users of Apple devices: In order to use the Fresh Wake function, please enable the notifications for the “beurer SleepExpert” in the device settings.

Cleaning and maintenance

• Protect the device from knocks, damp, dust, chemicals, drastic changes in temperature, electromagnetic fields and nearby sources of heat (ovens, heaters).
• Clean the device with a soft, dry cloth. Do not use any abrasive cleaning products.
• Store the device in a dry, clean place, protected against dust and at a temperature of 5-40 °C.

What if there are problems?

Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life.
Dispose of the unit at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

Technical specifications

Subject to technical changes.
We hereby confirm that this product complies with the European RED Directive 2014/53/EU.
The CE Declaration of Conformity for this product can be found under: https://www.beurer.com/
web/we-landingpages/de/cedeclarationofconformity.php.

Warranty / Service

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as “Beurer”) provides a warranty for this product, subject to the requirements below and to the extent described as follows.

The warranty conditions below shall not affect the seller’s statutory warranty obligations which ensue from the sales agreement with the buyer.
The warranty shall apply without prejudice to any mandatory statutory provisions on liability.

Beurer guarantees the perfect functionality and completeness of this product.

The worldwide warranty period is 3 years, commencing from the purchase of the new, unused product from the seller.

The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use. German law shall apply.

During the warranty period, should this product prove to be incomplete or defective in functionality in accordance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions.

If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached “International Service” list of service addresses.

The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required.

A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with

• a copy of the invoice/purchase receipt, and
• the original product.

The following are explicitly excluded from this warranty:

• deterioration due to normal use or consumption of the product;
• accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cuffs, seals, electrodes, light sources, attachments and nebuliser accessories);
• products that are used, cleaned, stored or maintained improperly and/or contrary to the provisions of the instructions for use, as well as products that have been opened, repaired or modified by the buyer or by a service centre not authorised by Beurer;
• damage that arises during transport between manufacturer and customer,or  between service centre and customer;
• products purchased as seconds or as used goods;
• consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions).

Repairs or an exchange in full do not extend the warranty period under any circumstances.
