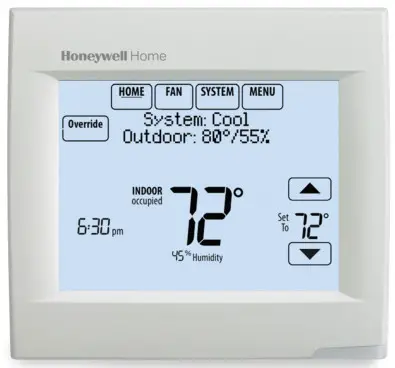

VisionPRO® 8000 Thermostat with RedLINK® Technology
for Light Commercial Applications
MANAGE YOUR HVAC SYSTEM FROM ADVICE ANYWHERE IN THE WORLD
Cost-effective Control Option
The VisionPRO® 8000 Thermostat with RedLINK® Technology offers selectable light commercial settings and the ability to remotely monitor and control heating and cooling systems anytime, anywhere with no need for a person on-site.
REMOTE ACCESS AND CONTROL MADE EASY
- Easy to program and use — No manual required
- Remote monitoring — Easily control multiple buildings from a PC, tablet, or smartphone
- Self-monitoring diagnostics — Sends alerts for needed maintenance and service issues
- Total solution — Integrates occupancy sensors, lighting controls and other HVAC/IAQ systems*
EFFICIENT PROPERTY MANAGEMENT
- Includes diagnostics and alerts — System information sent to your computer, tablet or smartphone through free Total Connect Comfort account**
- Easy Remote Access — Simply download data to a microSD card and view on a PC
- Low install cost with no monitoring fees
RELIABLE COMMERCIAL CONTROL
- Building code compliant — Meets commercial building codes, including Title 24
- Efficient commercial management — Temperature setpoint limits and keypad lock outlets you manage energy usage for maximum savings
- 365-day scheduling — Program a holiday schedule including up to 25 custom events
- Initiate occupancy — Save energy in rooms not frequently used
- Adjustable ramp rates — Initiates early recovery as needed
- Retrofit existing controls — Replace inefficient HVAC controls with RedLINK® wireless management system
- Multiple Install options — RedLINK® VisionPRO® thermostat can be wired directly to HVAC equipment or wireless to EIM, eliminating on-site wiring issues.
*An Equipment Interface Module (EIM) is required for occupancy sensors.
**VisionPRO® 8000 does not monitor system DeltaT; view DeltaT in installer setup.
Easily integrate humidification, dehumidification, ventilation, indoor air quality and zoning systems — without running new wires. Wireless accessories install in minutes with the touch of a button, helping you solve more comfort issues and increase profitability.

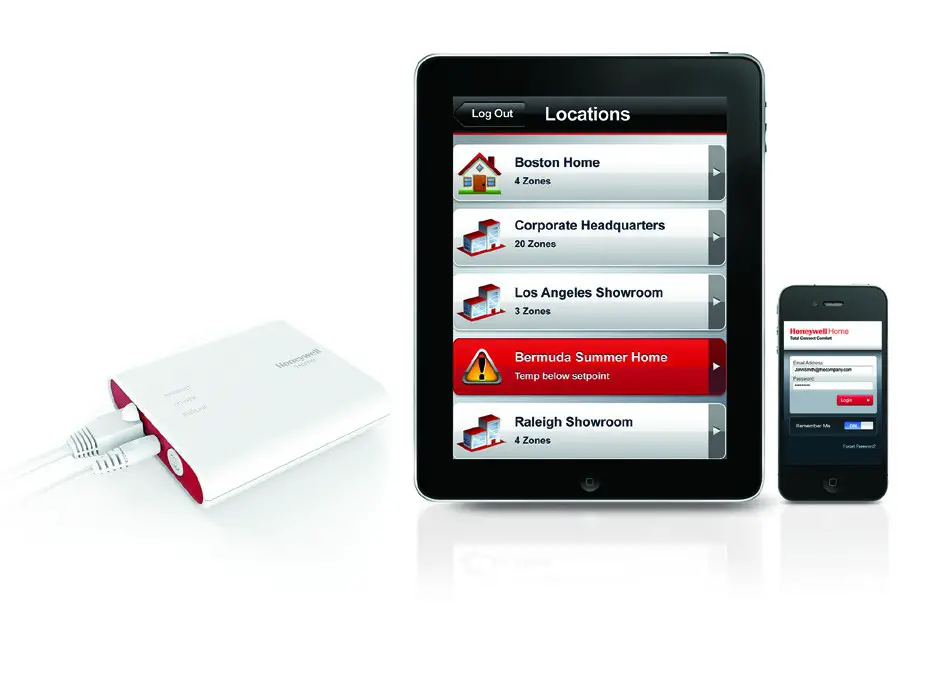

RedLINK® Internet Gateway with Total Connect Comfort Services.
Property managers can remotely monitor and control their heating and cooling systems anytime anywhere. Free apps are available for both Apple®and Android™ devices.
VisionPRO® 8000 RedLINK®
| PART NUMBER | PRODUCT DESCRIPTION |
| TH8321R1001 | VisionPRO® 8000 thermostats with RedLINK® technology. Residential or light commercial use. 7-day programmable. Up to 3H/2C heat pump or up to 2H/2C conventional. Includes a set of IAQ contacts to control humidification, dehumidification or ventilation. Works standalone or with the THM5421R1021 EIM or THM4000R1000 wireless adapter and RedLINK® technology TrueZONE® panel. |
| TH8320R1003 | VisionPRO® 8000 thermostats with RedLINK® technology. Residential or light commercial use. 7-day programmable. Up to 3H/2C heat pump or up to 2H/2C conventional. Works standalone or with the THM5421R1021 EIM or THM4000R1000 wireless adapter and RedLINK® technology TrueZONE® panel. |
| TH8110R1008 | VisionPRO® 8000 technology with RedLINK® technology. Residential or light commercial use. 7-day programmable. 1H/1C heat pump or 1H/1C conventional. Works standalone or with the THM5421R1021 Equipment Interface Module (EIM) or THM4000R1000 wireless adapter and RedLINK® technology TrueZONE® panel. |
| YTH8321R1002 | Kit with TH8321R1001 thermostat and THM6000R7001 Gateway. |
Equipment Interface Modules
| THM5421R1021 | Controls up to 4 stages of heat and 4 stages of cool in a heat pump system and up to 3 stages of heat and 4 stages of cool in a conventional system. Three sets of universal IAQ contacts to control humidification, dehumidification, and ventilation. Four sensor inputs for wired sensors or dry contact devices. Compatible with Prestige® IAQ or RedLINK® technology VisionPRO® 8000 thermostats. |
|
YTHM5421R1010 | EIM kit with 2 duct sensors. Controls up to 4 stages of heat and 4 stages of cool in a heat pump system and up to 3 stages of heat and 4 stages of cool in a conventional system. Three sets of IAQ contacts to control humidification, dehumidification, and ventilation. Four sensor inputs for wired sensors or dry contact devices. Compatible with all Prestige® IAQ thermostats and the VisionPRO® 8000 thermostat. |
VisionPRO® 8000 RedLINK® Wall Cover Plate
THP2400A1019

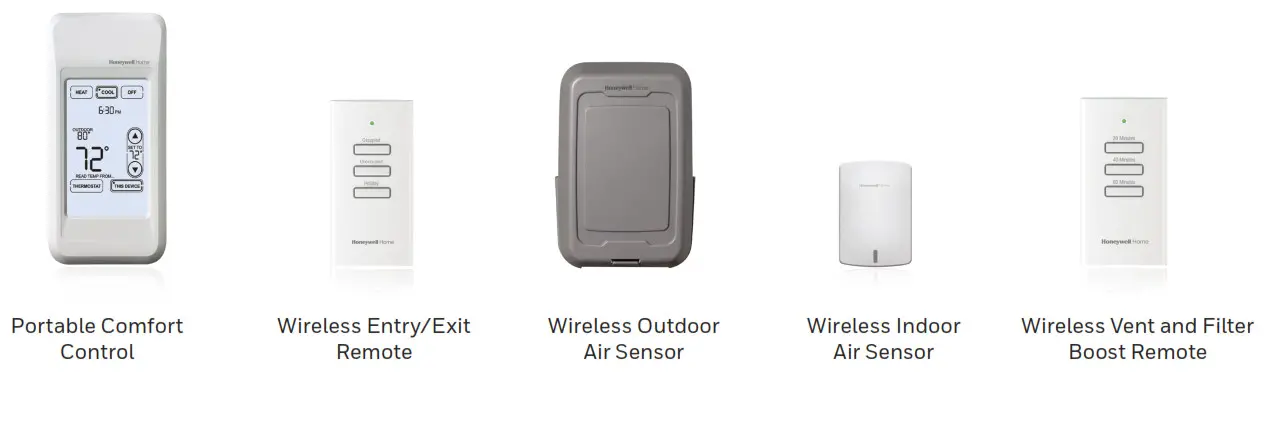

RedLINK® Accessories
| THM6000R7001 | RedLINK® Internet Gateway |
| REM5000R1001 | Portable Comfort Control |
| REM1000R1003 | Wireless entry/exit remote |
| C7089R1013 | Wireless outdoor air sensor |
| C7189R1004 | Wireless indoor air sensor |
| HVC20A1000 | Wireless vent and filter boost remote |
| THM4000R1000 | Wireless adapter for RedLINK® technologyTrueZONE® or to extend the wireless range of EIM |
