1700 Ventura Whole House Fan
1545 CFM, 80W, 44-55 dBA
Owner’s Manual
LL1700 Ventura Whole House Fan

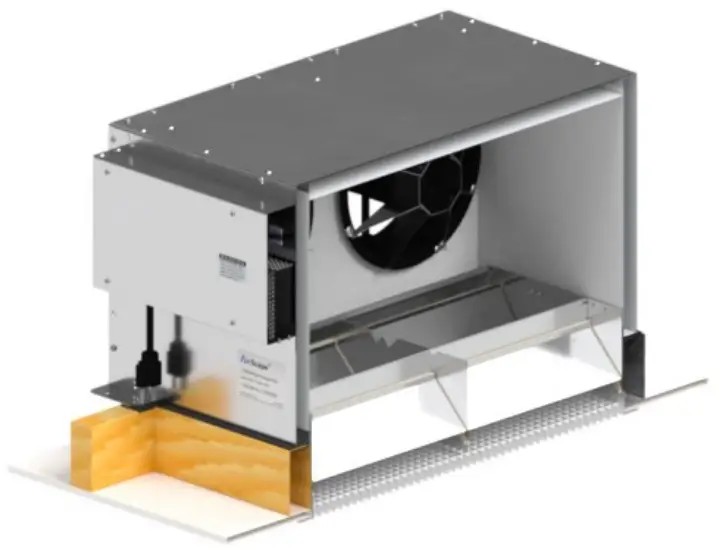

Our low profile easy install Whole House Fan. This unit comes with a low effort air door and cube core grille. The unit fits 16 and 24 O/C framing. The included Digital Touch Controller controls 10 speeds allowing for harmonic and efficiency selection in your preference. This controller also includes a 12 hour timer and dims its indicator lights when left alone.

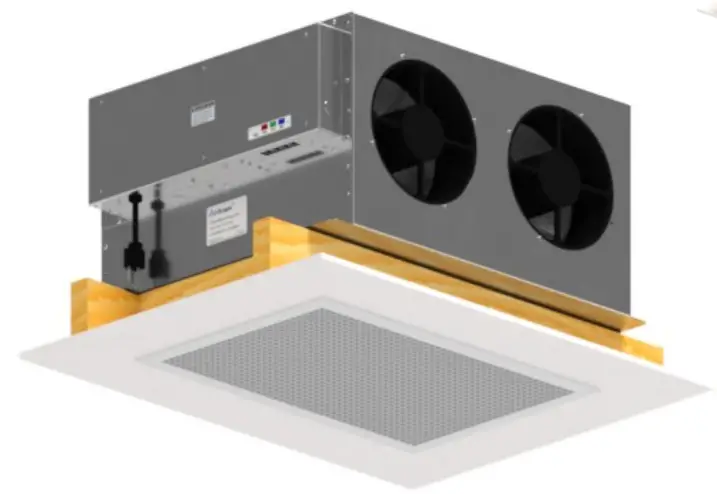

Options available but not included are: a remote and an acoustical plenum
AirLab Specifications:
| Fan Speed | Power (Watts) | Air Flow CFM | Efficiency (CFM per W) |
| 1 | 9 | 2 | 0.22 |
| 2 | 14 | 9 | 0.64 |
| 3 | 20 | 84 | 4.2 |
| 4 | 27 | 321 | 11.89 |
| 5 | 33.8 | 547 | 16.18 |
| 6 | 43.2 | 913 | 21.13 |
| 7 | 54.7 | 1226 | 22.41 |
| 8 | 63.4 | 1351 | 21.31 |
| 9 | 73.9 | 1488 | 20.14 |
| 10 | 80 | 1545 | 19.31 |
High Efficiency Range
120VAC, Single Phase, 0.7A
Unit Weight = 47 lbs
