Gembird Mhs-123 Stereo Headset With Volume Control User Manual

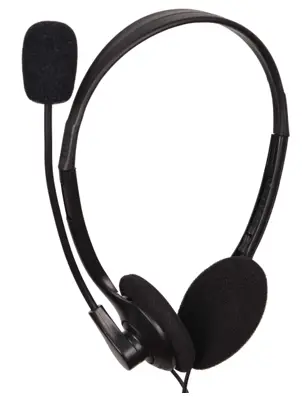

MHS-123 Stereo Headset with Volume Control
User Manual

Features

• Soft foam ear cushion
• Flexible microphone holder
• Integrated volume control

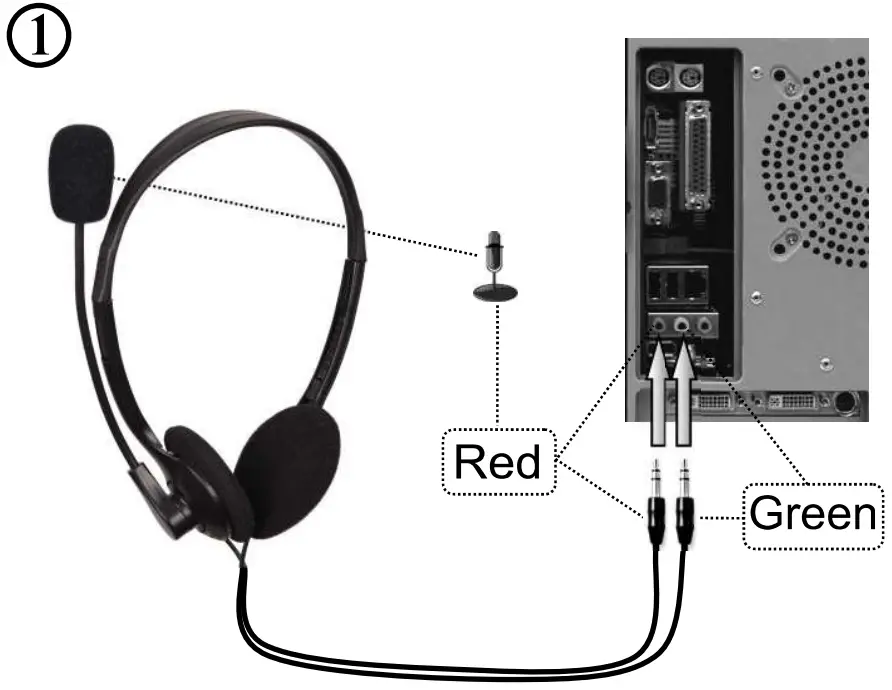

• Compatible with any 3.5 mm audio plug device

Specifications

• Impedance: 32 Ohm
• Frequency response: 20 – 20000 Hz
• Sensitivity: 103 +/- 3 dB
• Max. input power: 60 mW
• Cord length: 1.8 m
• Omnidirectional microphone:
• Frequency response: 30 – 16000 Hz
• Impedance: > 2.2 KOhm
• Sensitivity: -58 +/- 3 dB

This product is tested and complies with the essential requirements of the laws of member states concerning LVD, EMC. The CE declaration can be found under www.gembird.eu

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer’s expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products
Gembird Europe B.V.
Wittevrouwen 56, 1358CD Almere
The Netherlands
www.gembird.nl/support
[email protected]
Tel. +31-36-5211588

GEMBIRD EUROPE B.V.
http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
