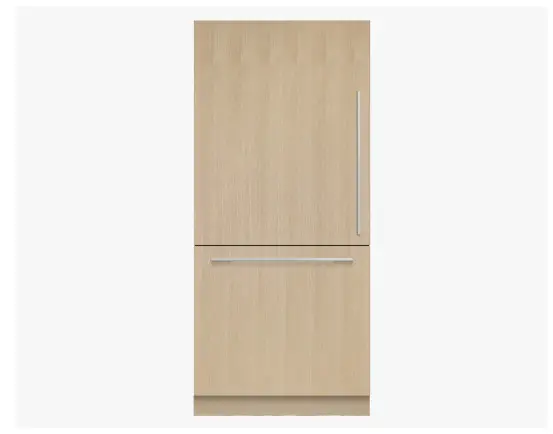

PAYKEL RS36W80LJ1 N Integrated Refrigerator
User Guide
Integrated Refrigerator
Freezer, 36″, Ice
Series 7 | Integrated
Panel Ready|Left hinge
Choose a roomy refrigerator with an ice maker. Fits flush with your custom cabinetry or with our stainless steel panels. ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory Spacious bottom freezer with full extension drawer, and Internal ice maker with boost for busy times Can be fitted for a height of 80 or 84 inches

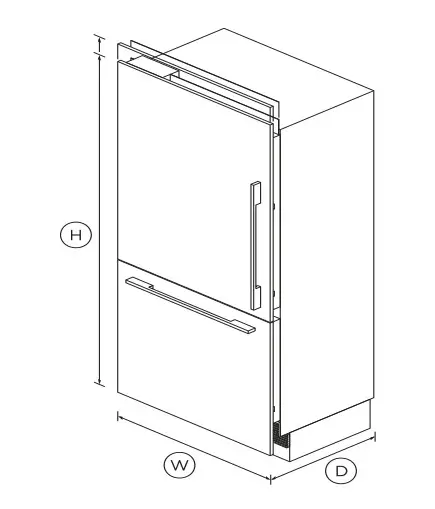

DIMENSIONS
| Height | 79 13/16″ |
| Width | 35 1/16″ |
| Depth | 23 3/4″ |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Complementary Design
With their premium handle styling and stainless steel finish, our refrigerators are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Easy Cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Simple storage
This refrigerator is designed to make it simple for you to store, access, and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
Easy installation
Our integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Our refrigerators are designed for minimal gaps with adjustable front and rear feet to allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen.
SPECIFICATIONS
Accessories
| Contemporary round handle | AHS-ASBI-B |
| Contemporary square handle | RS36W |
| Joiner kit | RS80 |
| Matching Replacement Water | FWC3 |
| Professional round flush handle | AHP3RD36W |
| Professional round handle kit | AHCRS36W |
| Professional square handle kit | AHV2RS36W |
| Square fine aluminum handle | AHD5RD36W |
| Square fine black handle kit | AHD5RD36WB |
| Stainless steel door panel | 80″ Left hinge RD3680WL, |
Capacity
| Volume | 16.8cu ft |
| Volume freezer | 5.1cu ft |
| Volume refrigerator | 11.7cu ft |
Consumption
| Energy rating | Energy star |
| Energy usage | 534kWh/year |
Features
| Adjustable door shelves | 6 |
| Adjustable glass cantilevered | • |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Deli storage bins | 1 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
Freezer Features
| Automatic ice maker | • |
| Bottle chill | • |
| Drawer alarm | • |
| Fast freeze | • |
| Freezer bins | • |
| Ice Boost | • |
| LED lighting | • |
Performance
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
Product dimensions
| Depth | 23 3/4″ |
| Height | 79 13/16″ |
| Width | 35 1/16″ |
Warranty
| Parts and labour | 2 years |
| Sealed system parts only | 5 years |
SKU
26317
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher &
